Specs
Sizing
Geometry
Frameset

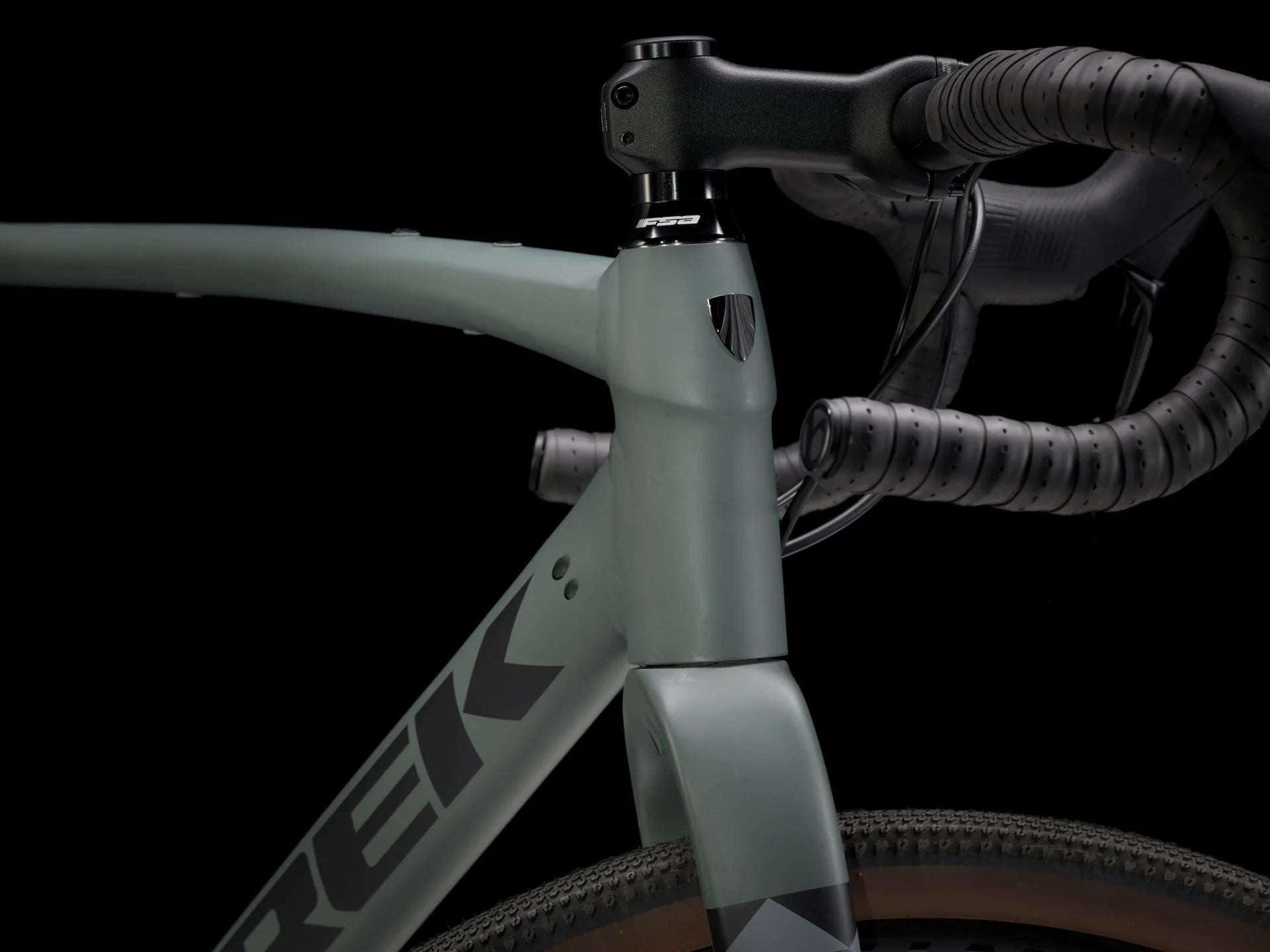

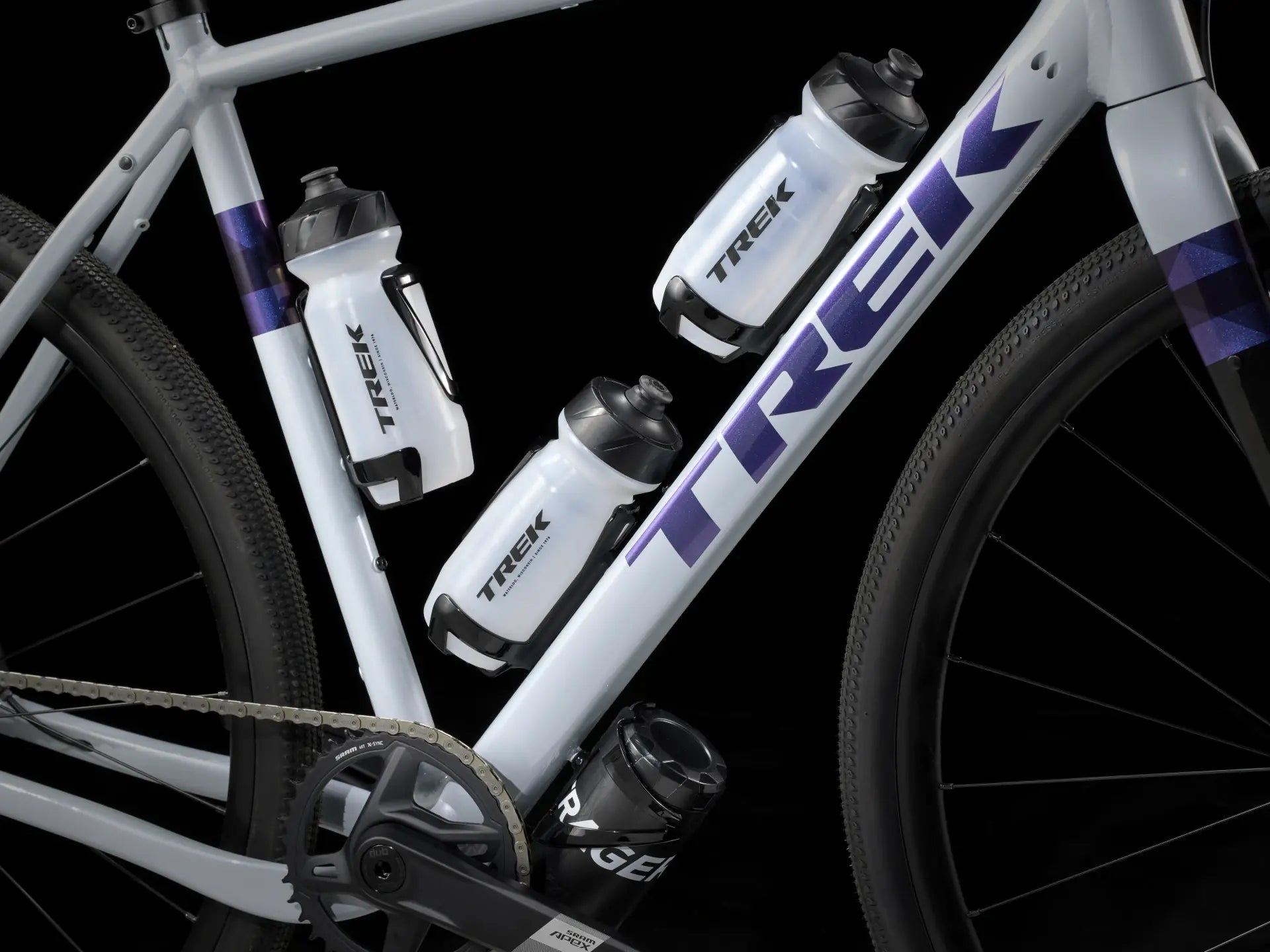

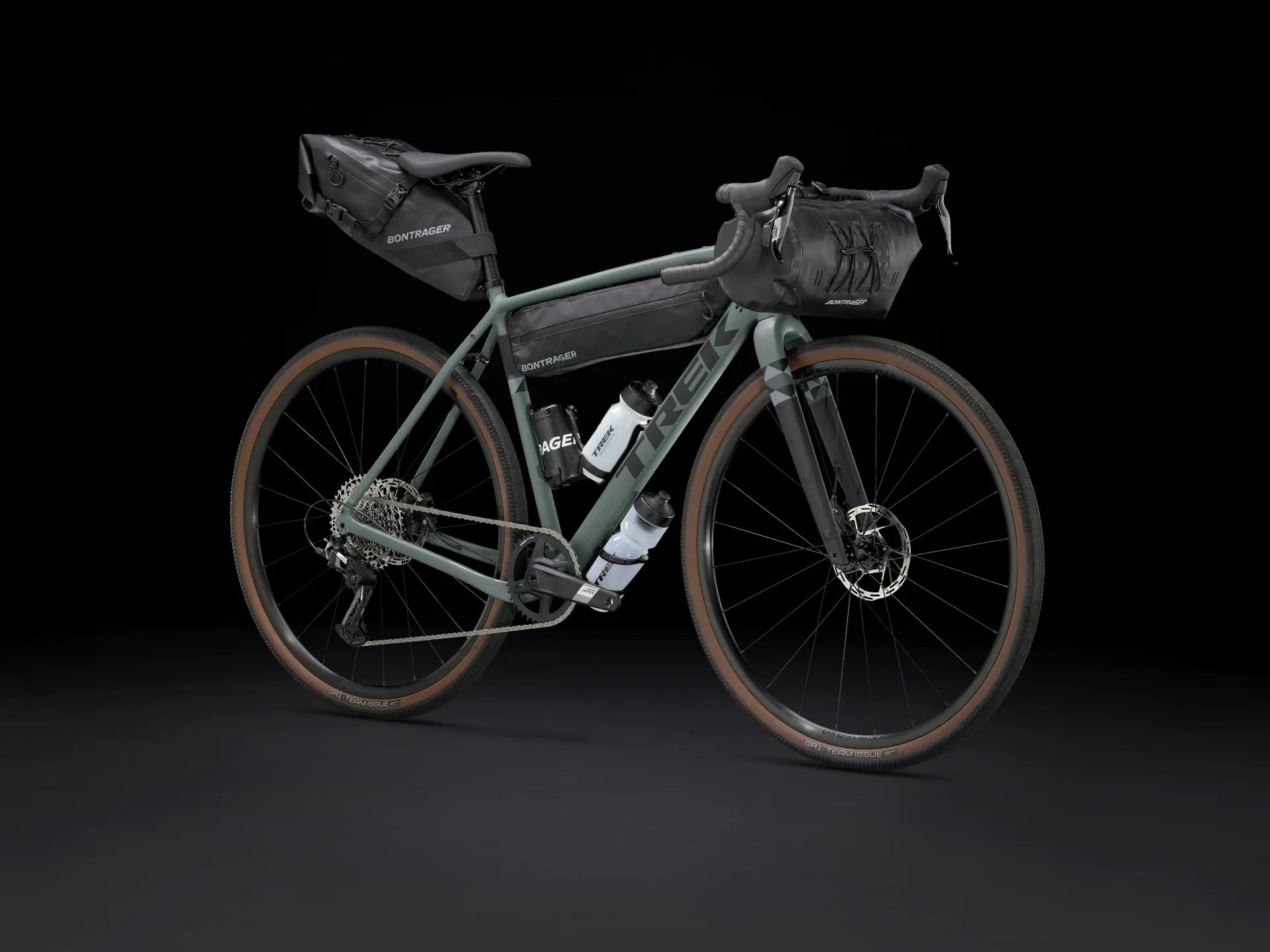

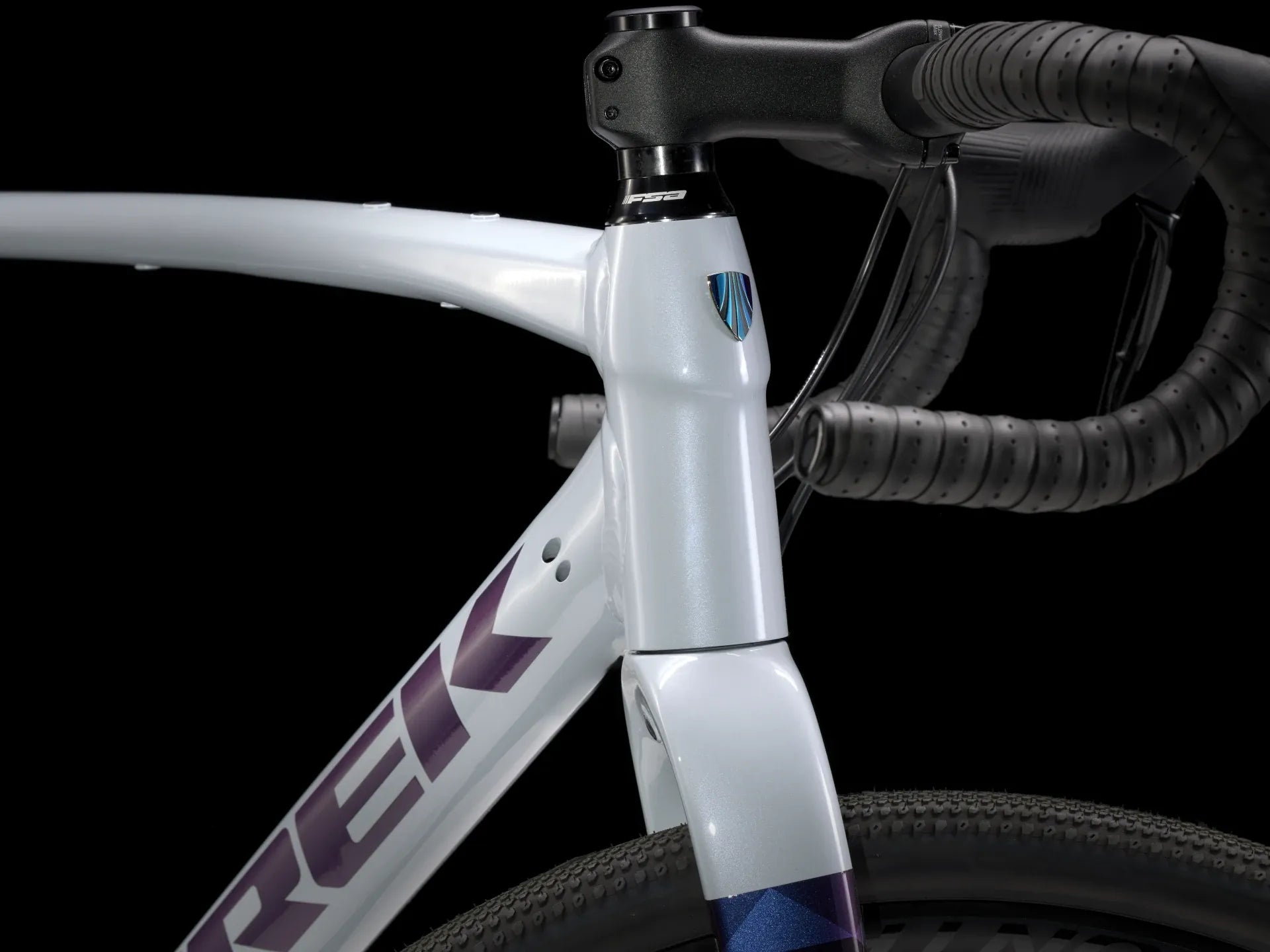

Frame with Fork 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle

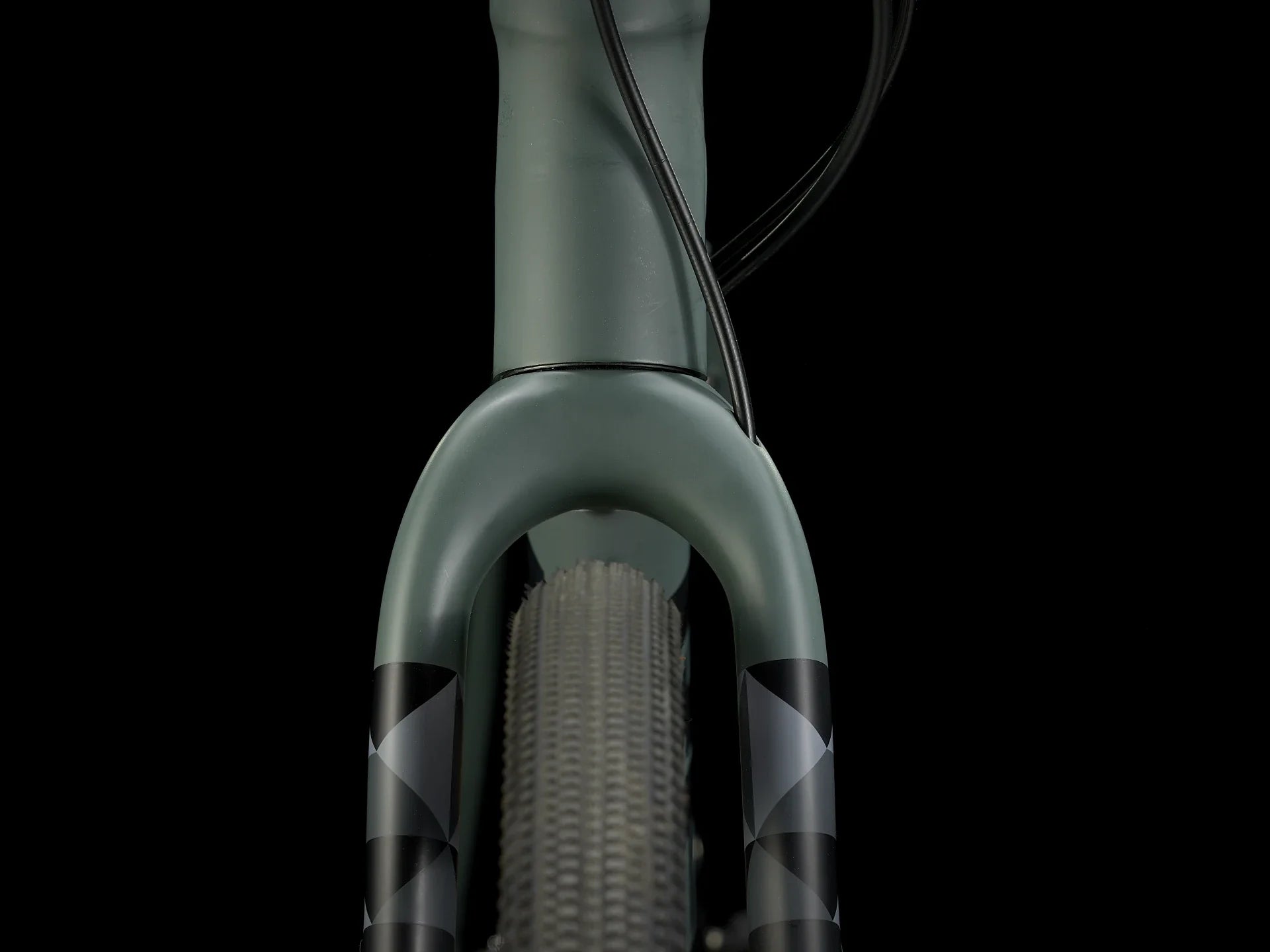

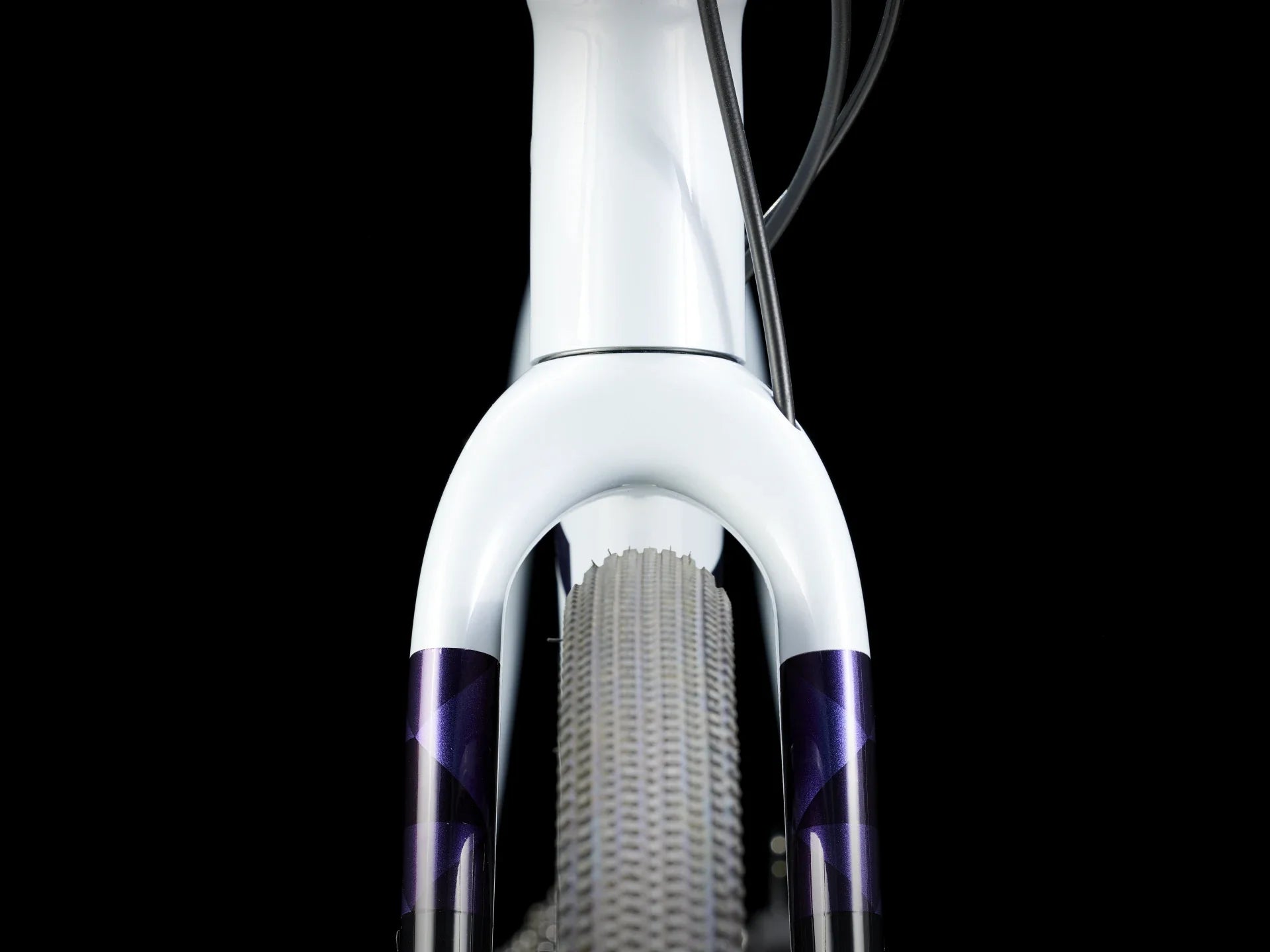

Fork Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Weight

Weight 56 - 9.60 kg / 21.17 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

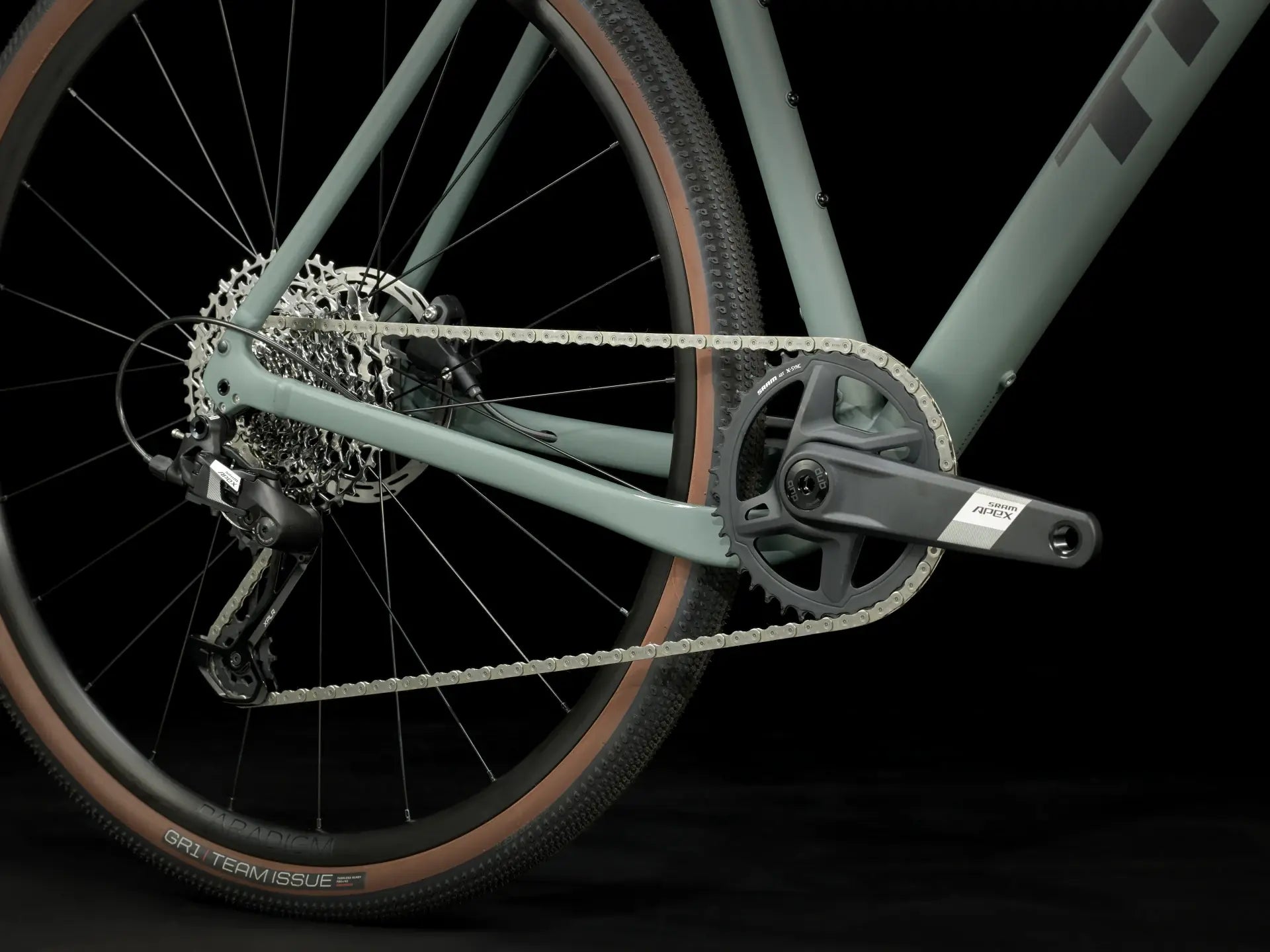

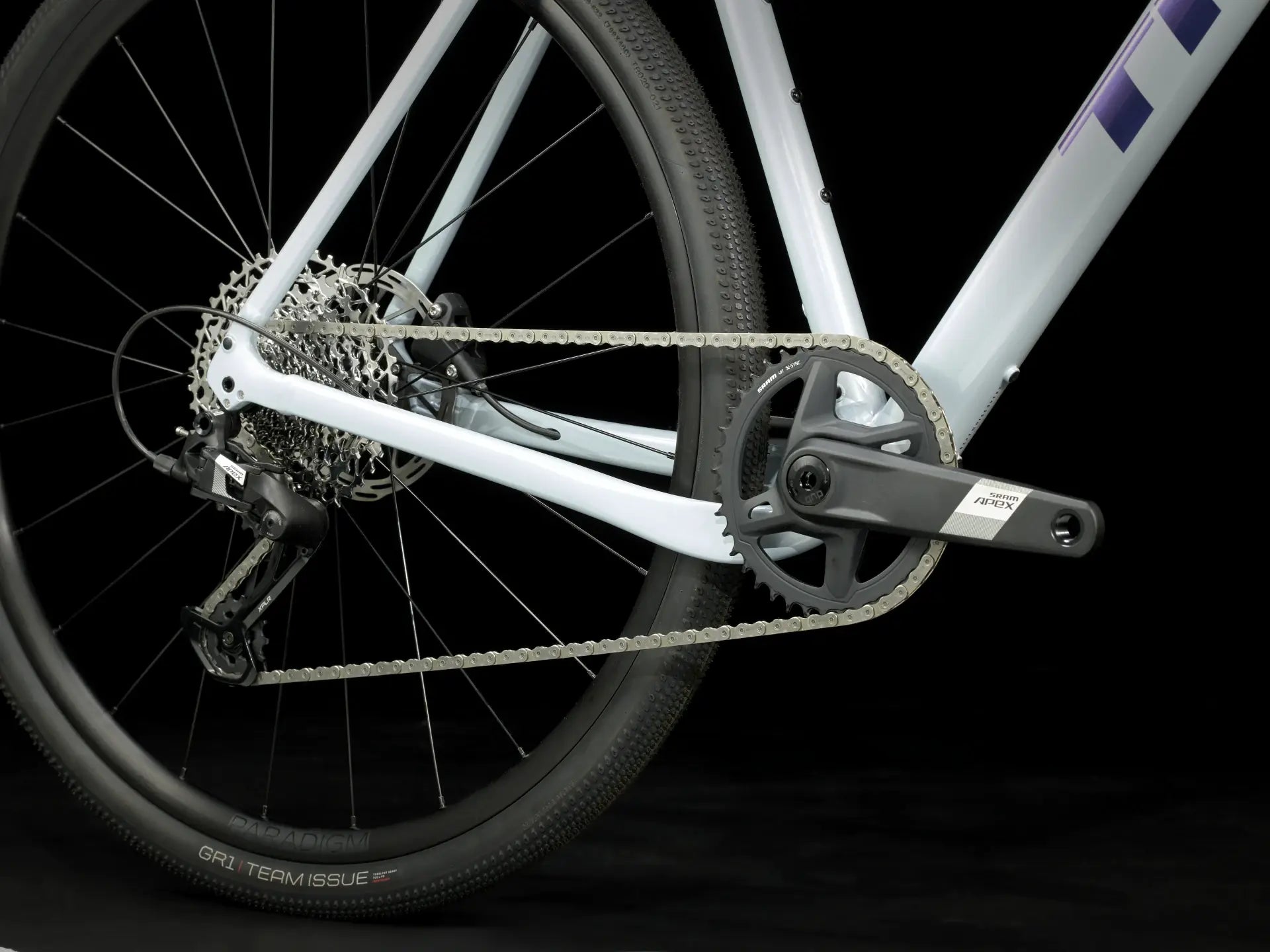

Drivetrain

Shifter SRAM Apex, 12 speed
Rear derailleur SRAM Apex XPLR, 44T max cog
*Crank Size:49
SRAM Apex 1, 40T, DUB Wide, 165mm length
Size: 52
SRAM Apex 1, 40T, DUB Wide, 170mm length
Size: 54, 56
SRAM Apex 1, 40T, DUB Wide, 172.5mm length
Size: 58, 61
SRAM Apex 1, 40T, DUB Wide, 175mm length
Bottom bracket SRAM DUB, T47 threaded, internal bearing

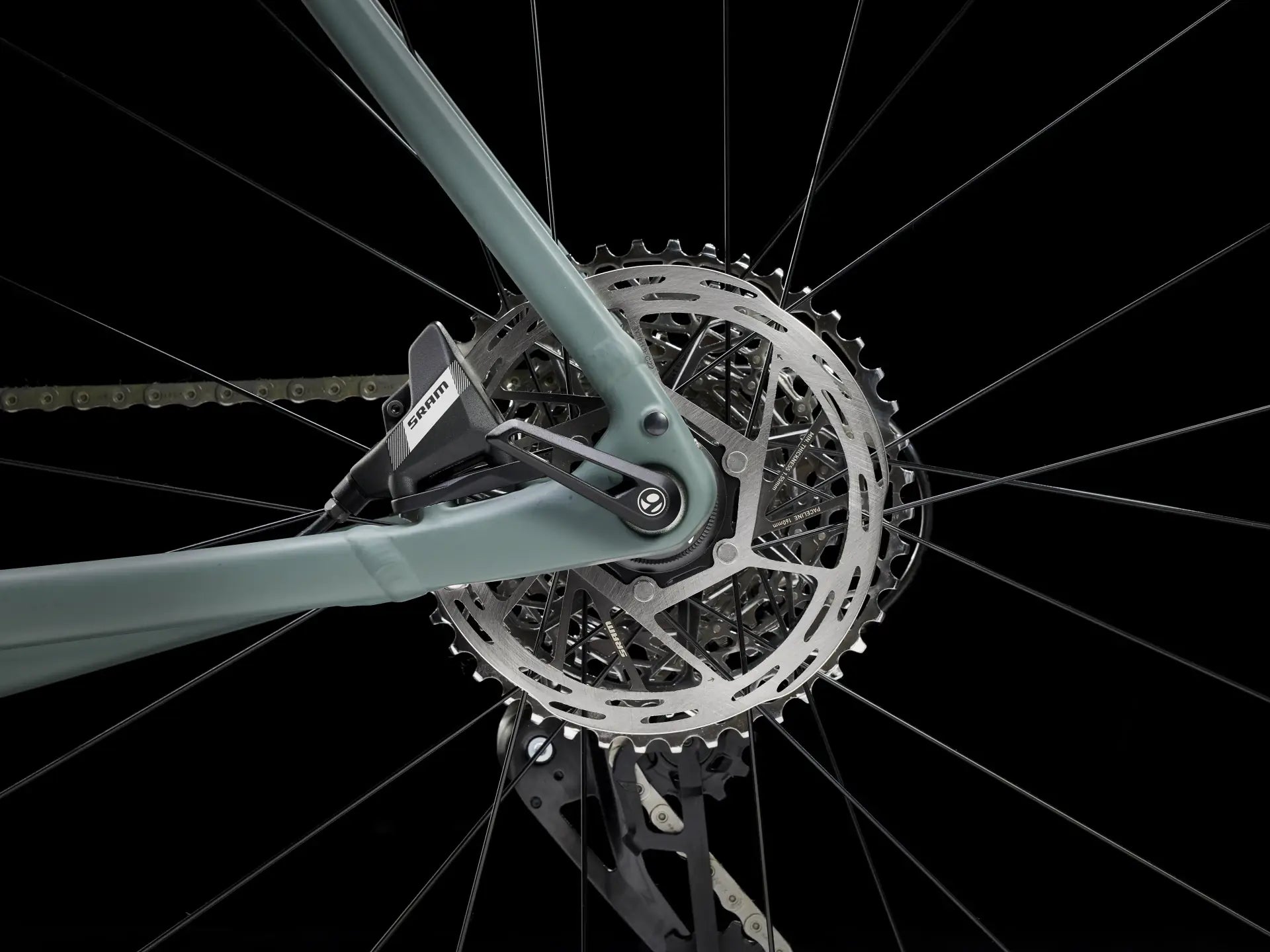

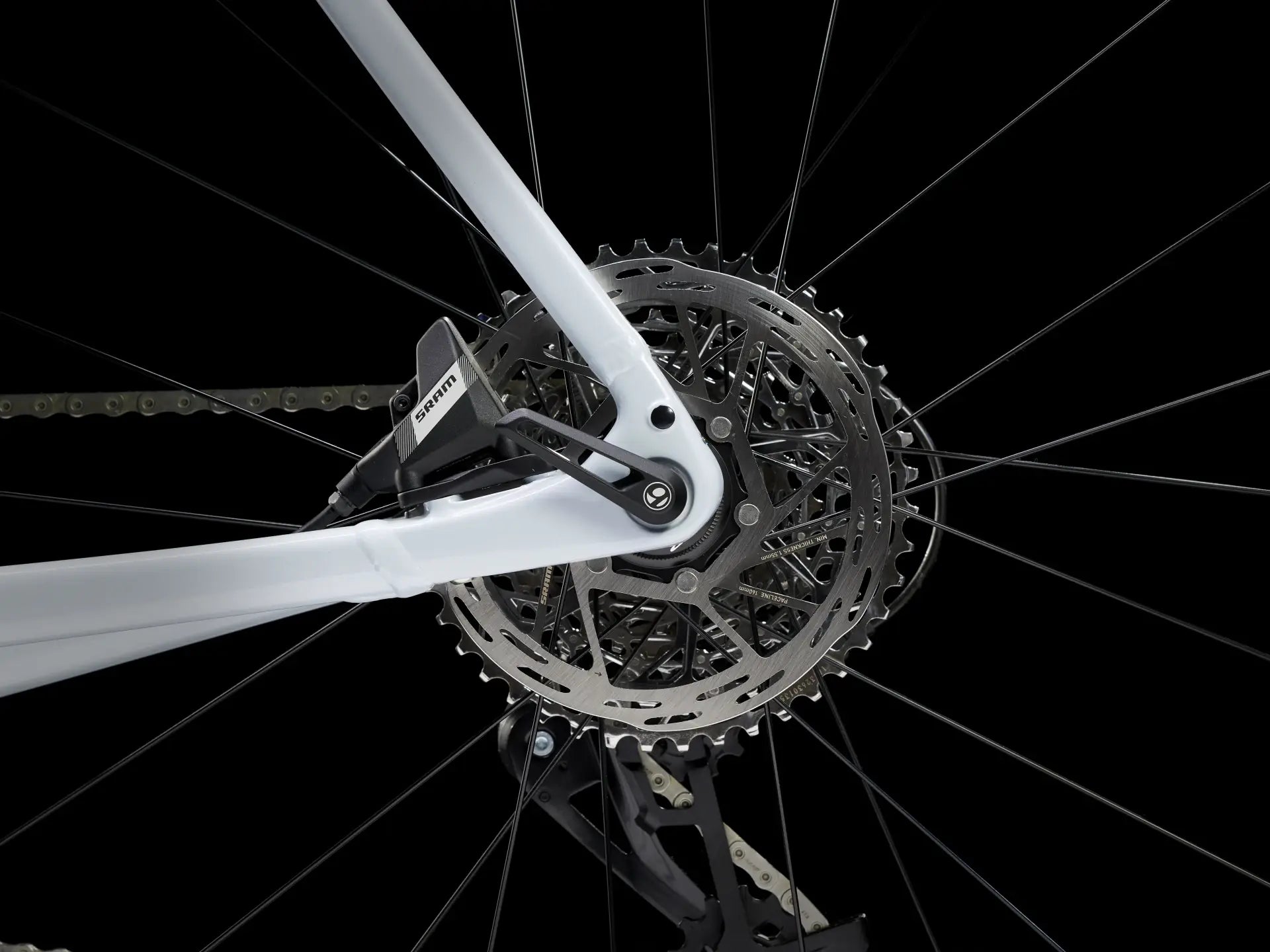

Cassette SRAM PG-1230, 11-44, 12 speed
Chain SRAM Apex, 12 speed
Max. chainring size 1x: 44T (SRAM), 50T (Shimano), 2x: 50/34

Wheels

Hub front Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front Bontrager Switch thru axle, removable lever
Hub rear Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear Bontrager Switch thru axle, removable lever
Rim Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve
Tire Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm
Tire part Bontrager TLR sealant, 6oz
Rim strip Bontrager TLR
Max tire size See service manual

Components

*Saddle Size: 49, 52
Bontrager Verse Comp, steel rails, 155mm width
Size: 54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145mm width
Seatpost Size: XXS
Bontrager alloy, 27.2mm, 12mm offset, 330mm length

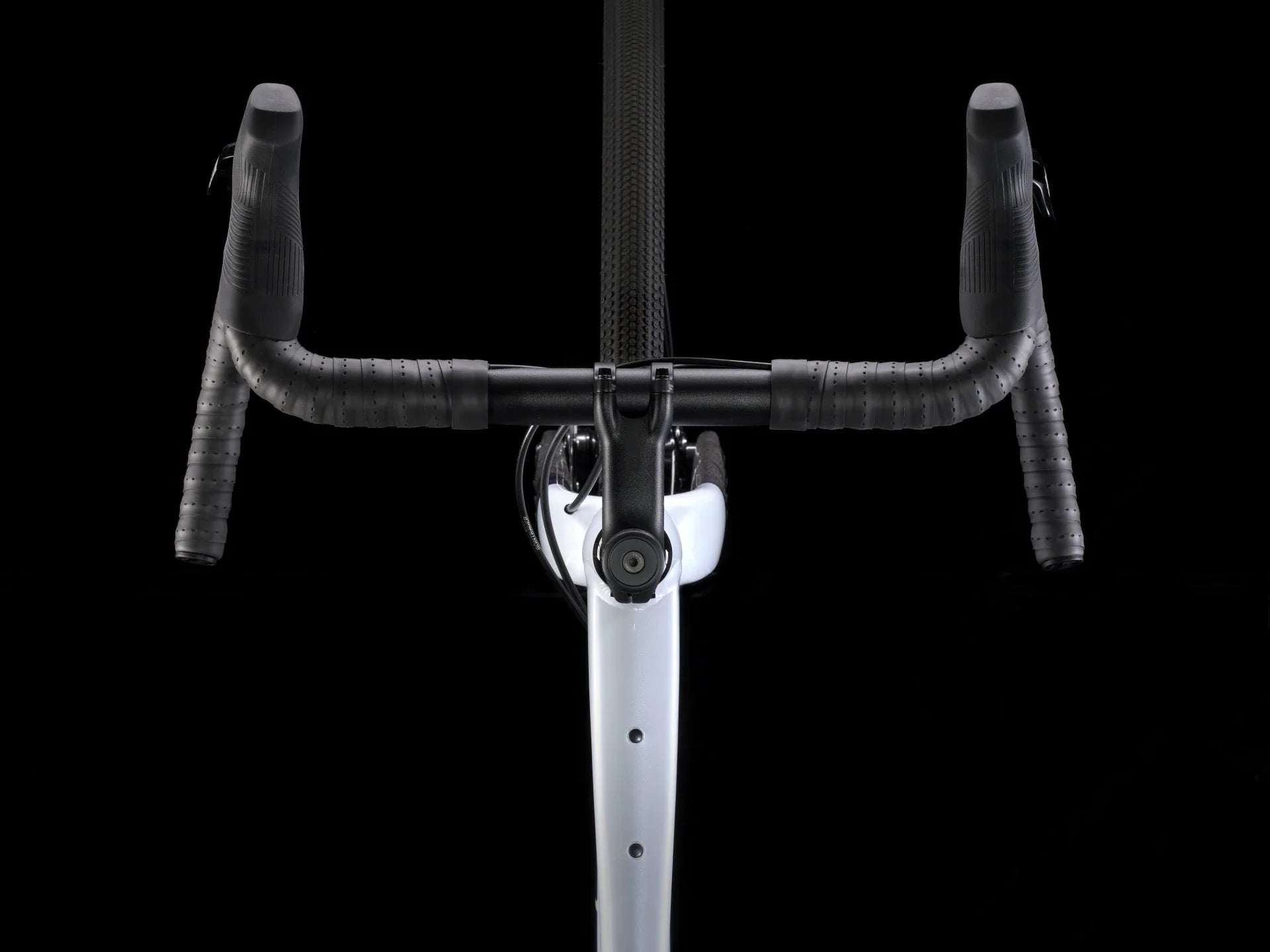

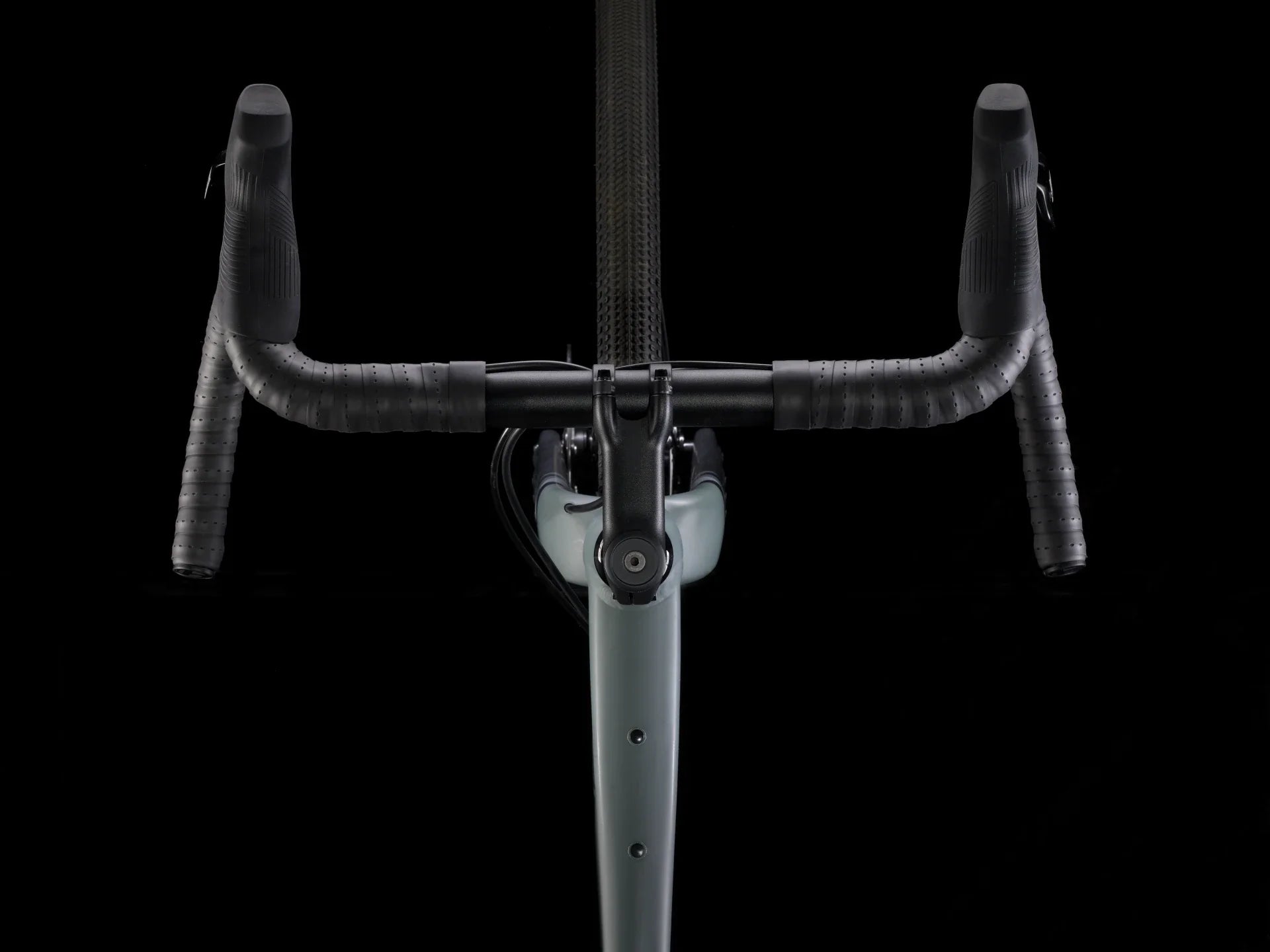

*Handlebar Size:49
Bontrager Elite Gravel, 38cm width
Size: 52
Bontrager Elite Gravel, 40cm width
Size: 54, 56
Bontrager Elite Gravel, 42cm width
Size: 58, 61
Bontrager Elite Gravel, 44cm width
Grips Bontrager XR Trail Comp, nylon lock-on
Handlebar tape Bontrager Supertack Perf tape
*Stem Size: 49
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: 56, 58
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 61
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length

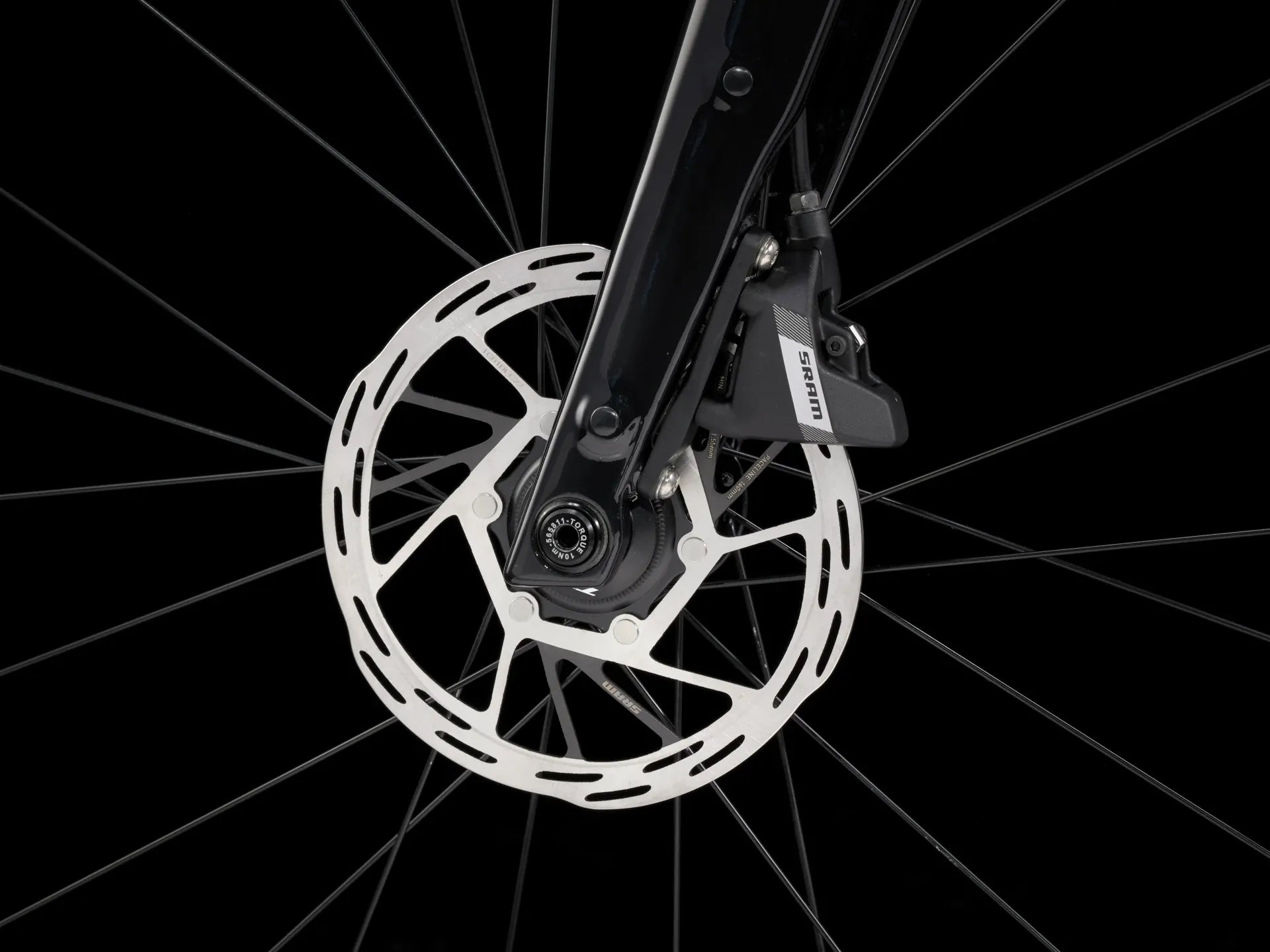

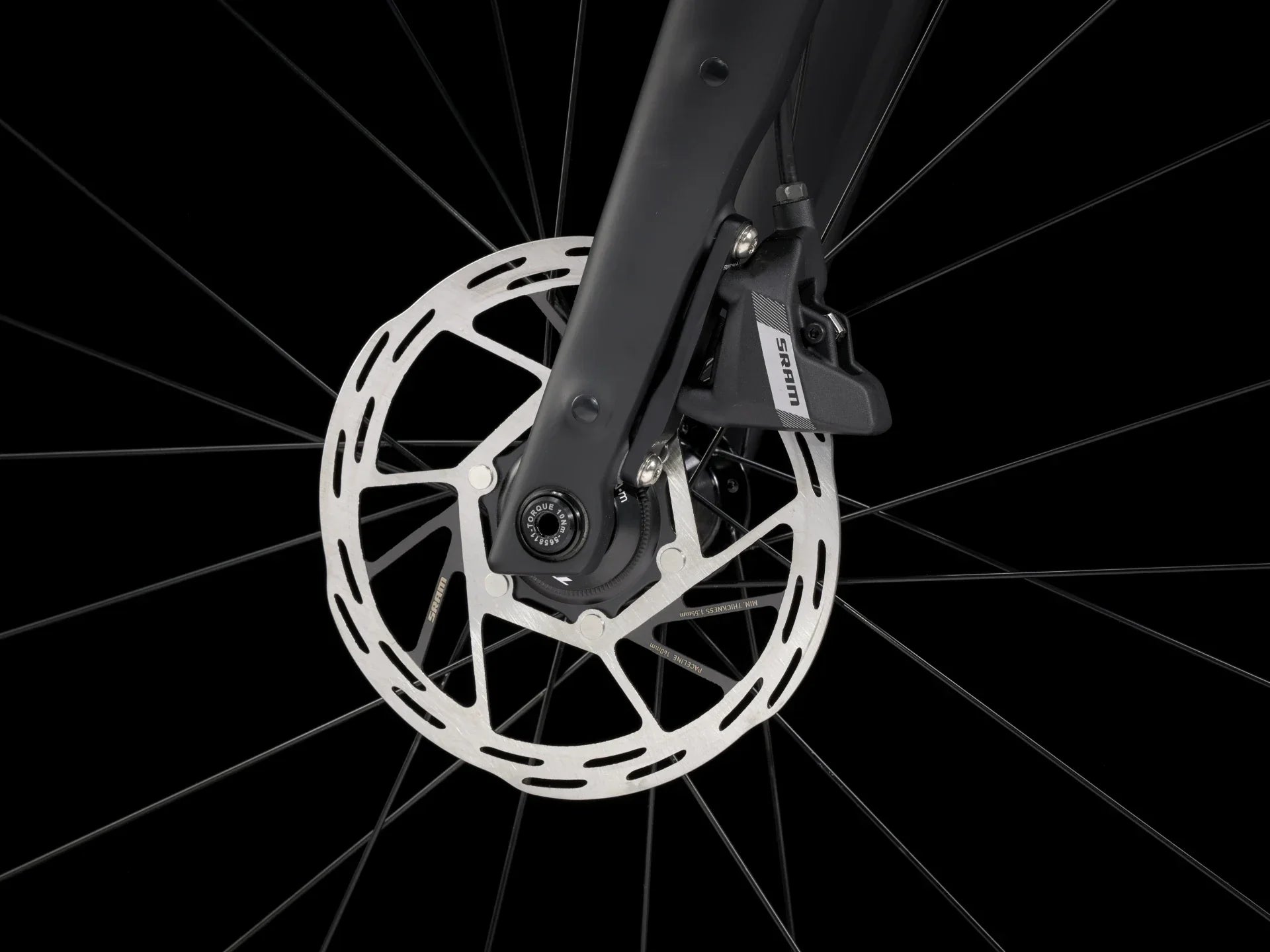

Brake SRAM Apex hydraulic disc, flat mount
Brake rotor SRAM Paceline, rounded, centerlock, 160mm
Brake lever SRAM Apex, 12 speed
Rotor size Max brake rotor sizes: 160mm front & rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

Size

49

52

54

56

58

61

Rider Height

156 - 163 cm

5'1" - 5'4"

163 - 168 cm

5'4" - 5'6"

168 - 174 cm

5'6" - 5'9"

174 - 180 cm

5'9" - 5'11"

180 - 185 cm

5'11" - 6'1"

185 - 191 cm

6'1" - 6'3"

Inseam

74 - 77 cm

29" - 30"

76 - 79 cm

30" - 31"

78 - 82 cm

31" - 32"

81 - 85 cm

32" - 33"

84 - 87 cm

33" - 34"

86 - 90 cm

34" - 35"

All measurements provided in cm unless otherwise noted.

Sizing table
Frame size number Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack Stem length
49 cm 700c 49.0 74.1° 9.0 71.2° 54.1 7.8 43.5 4.5 7.4 102.5 73.5 39.3 53.8 70.0
52 cm 700c 52.0 73.7° 10.5 71.6° 55.5 7.8 43.5 4.5 7.1 103.3 76.5 39.9 55.3 80.0
54 cm 700c 54.0 73.2° 12.5 71.8° 57.0 7.6 43.5 4.5 7.0 104.1 78.9 40.3 57.1 80.0
56 cm 700c 56.0 72.8° 14.5 72.2° 58.4 7.6 43.5 4.5 6.7 104.8 80.9 40.7 59.2 90.0
58 cm 700c 58.0 72.5° 16.5 72.3° 59.7 7.4 43.5 4.5 6.6 105.8 82.9 41.1 60.9 90.0
61 cm 700c 61.0 72.1° 19.5 72.6° 61.7 7.4 43.5 4.5 6.5 107.0 85.9 41.7 63.9 100.0
