Specs
Sizing
Geometry
Frameset

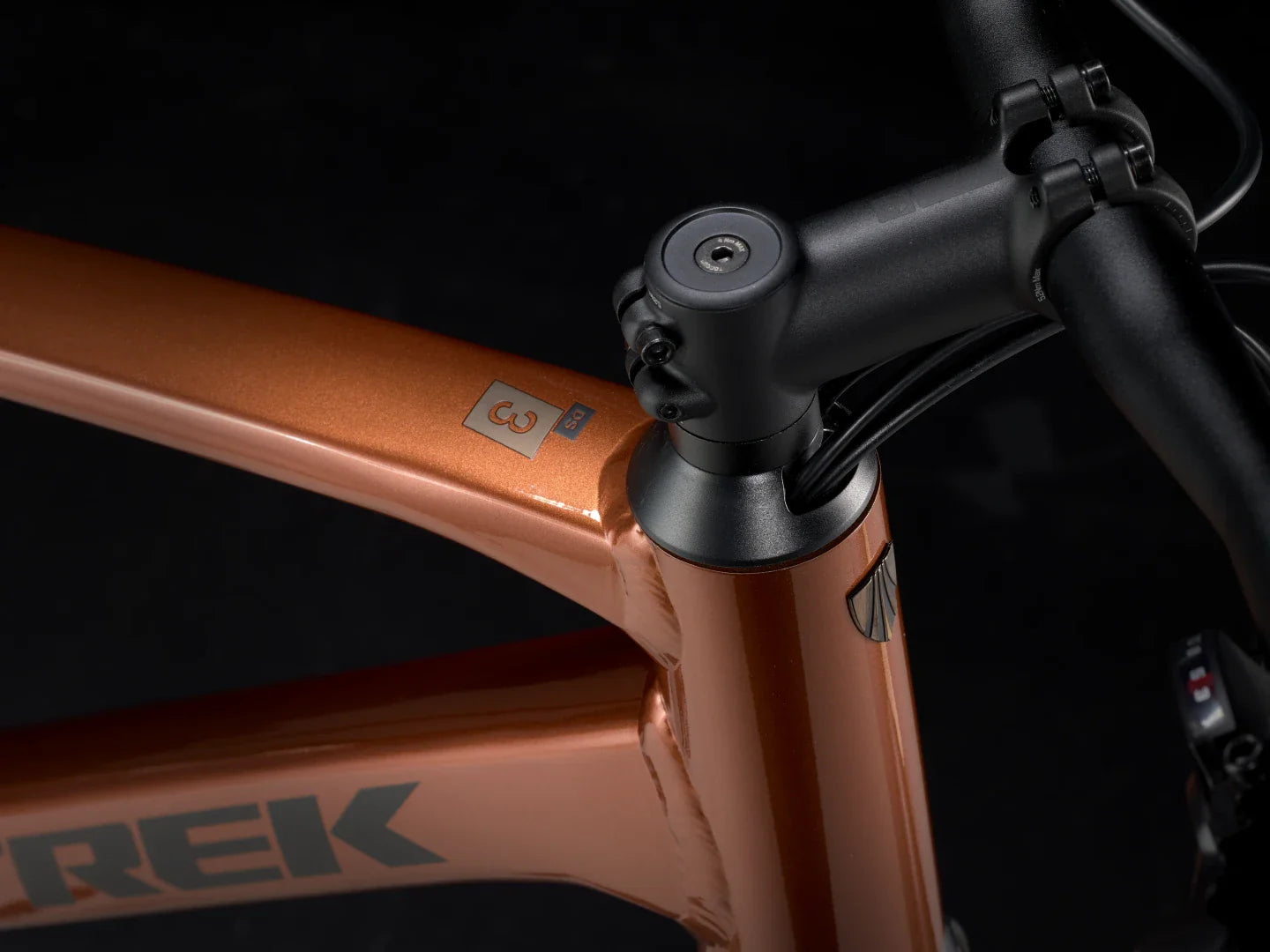

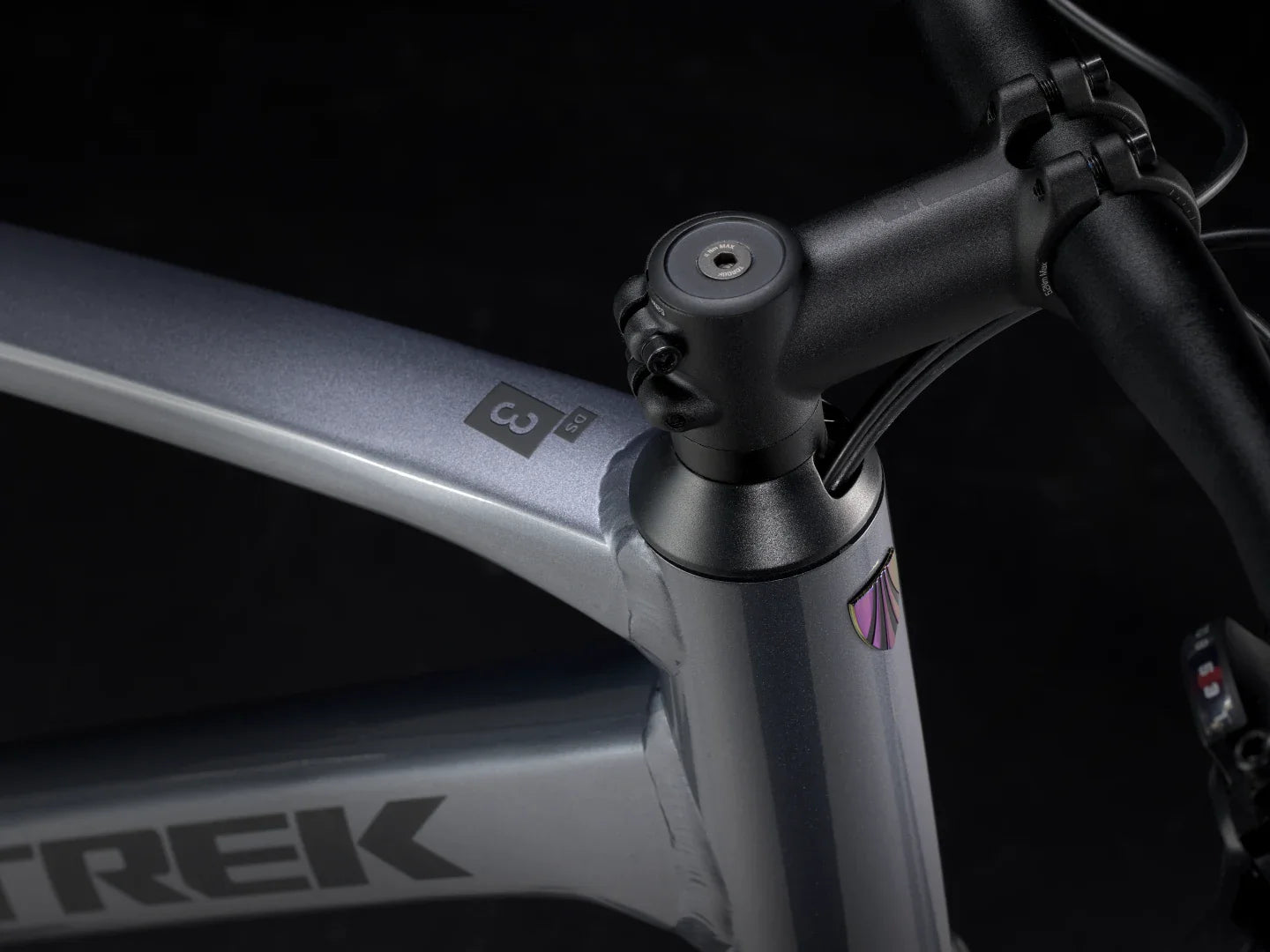

Frame Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount. 135x5 mm QR

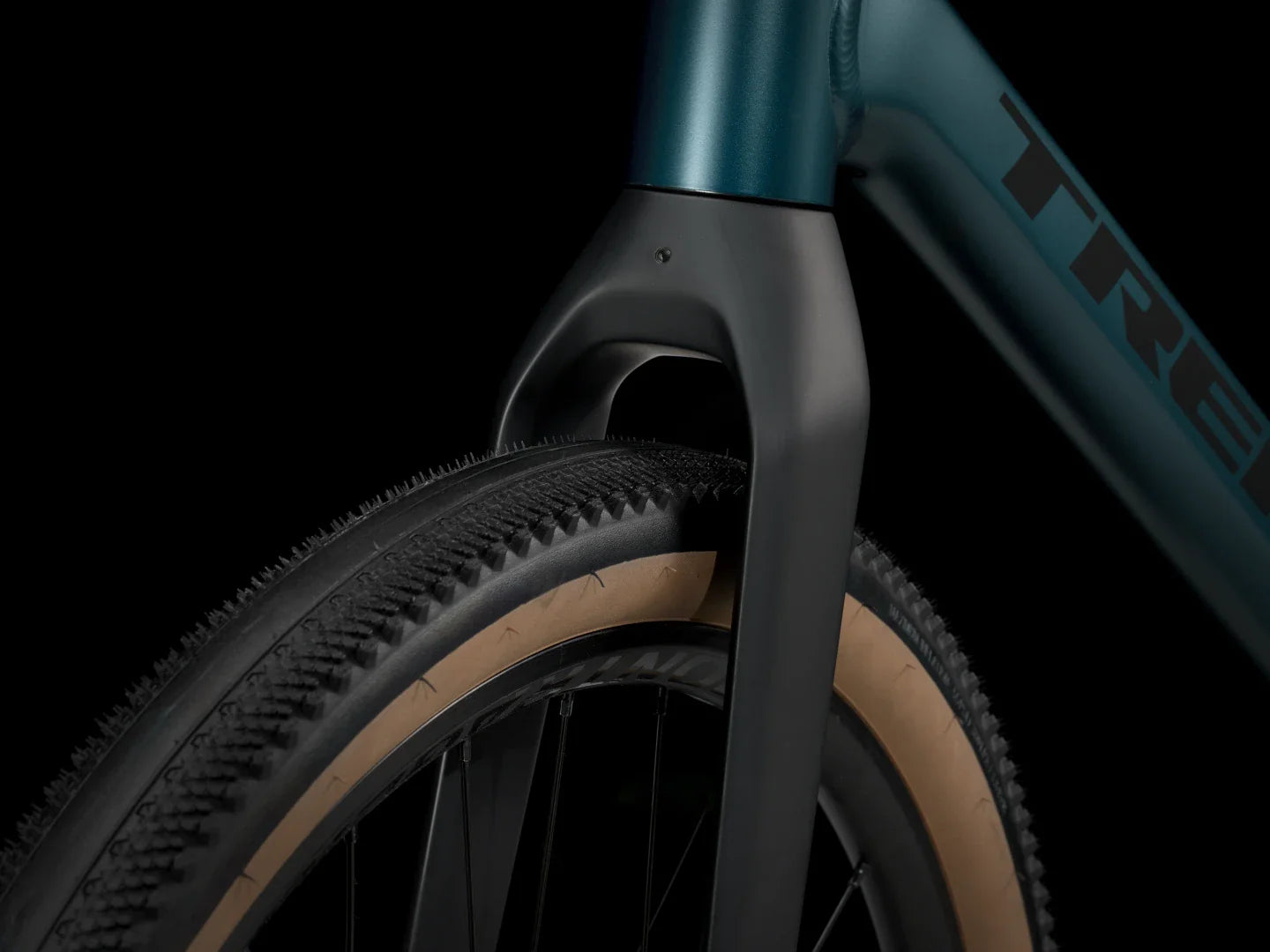

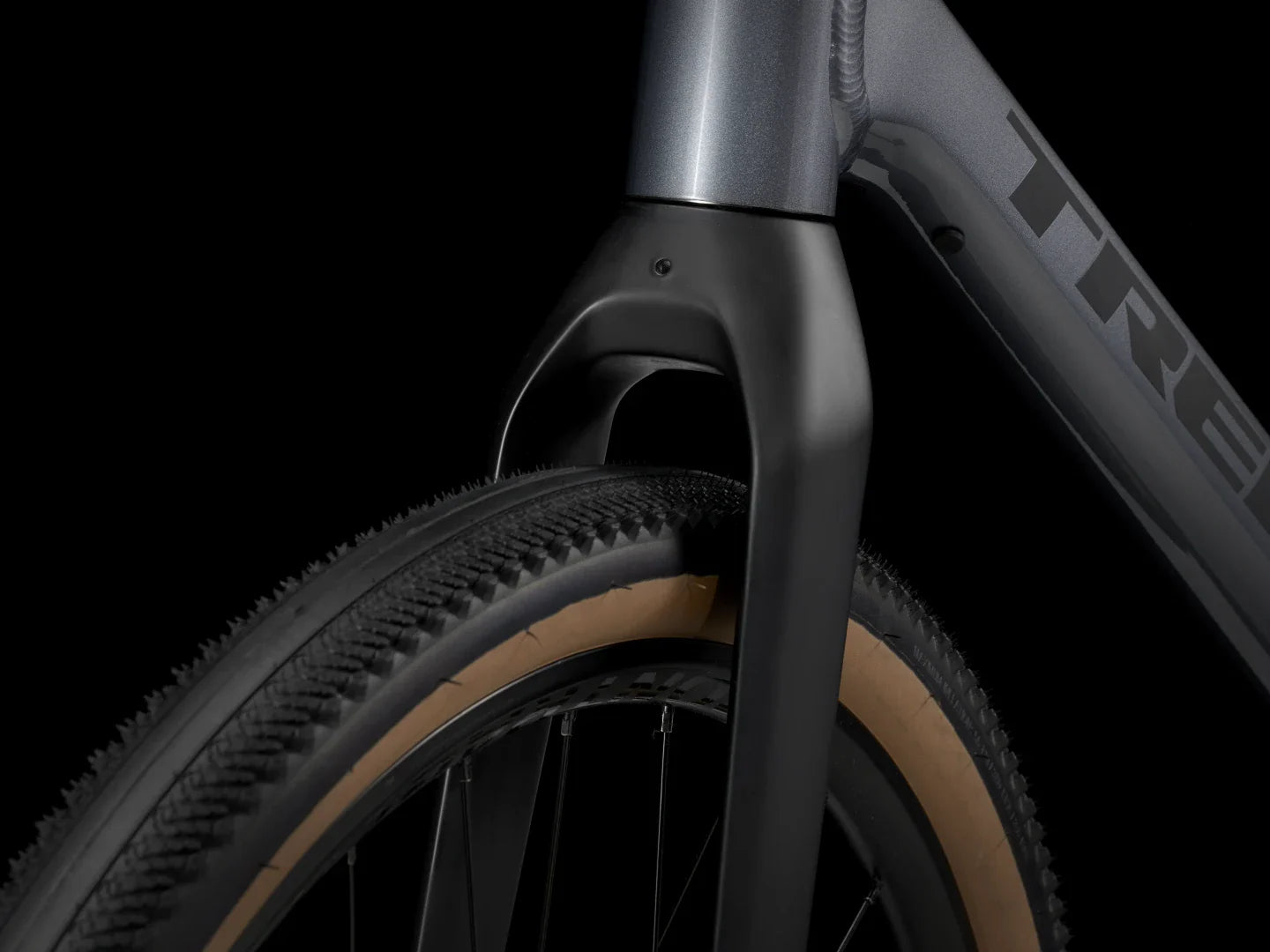

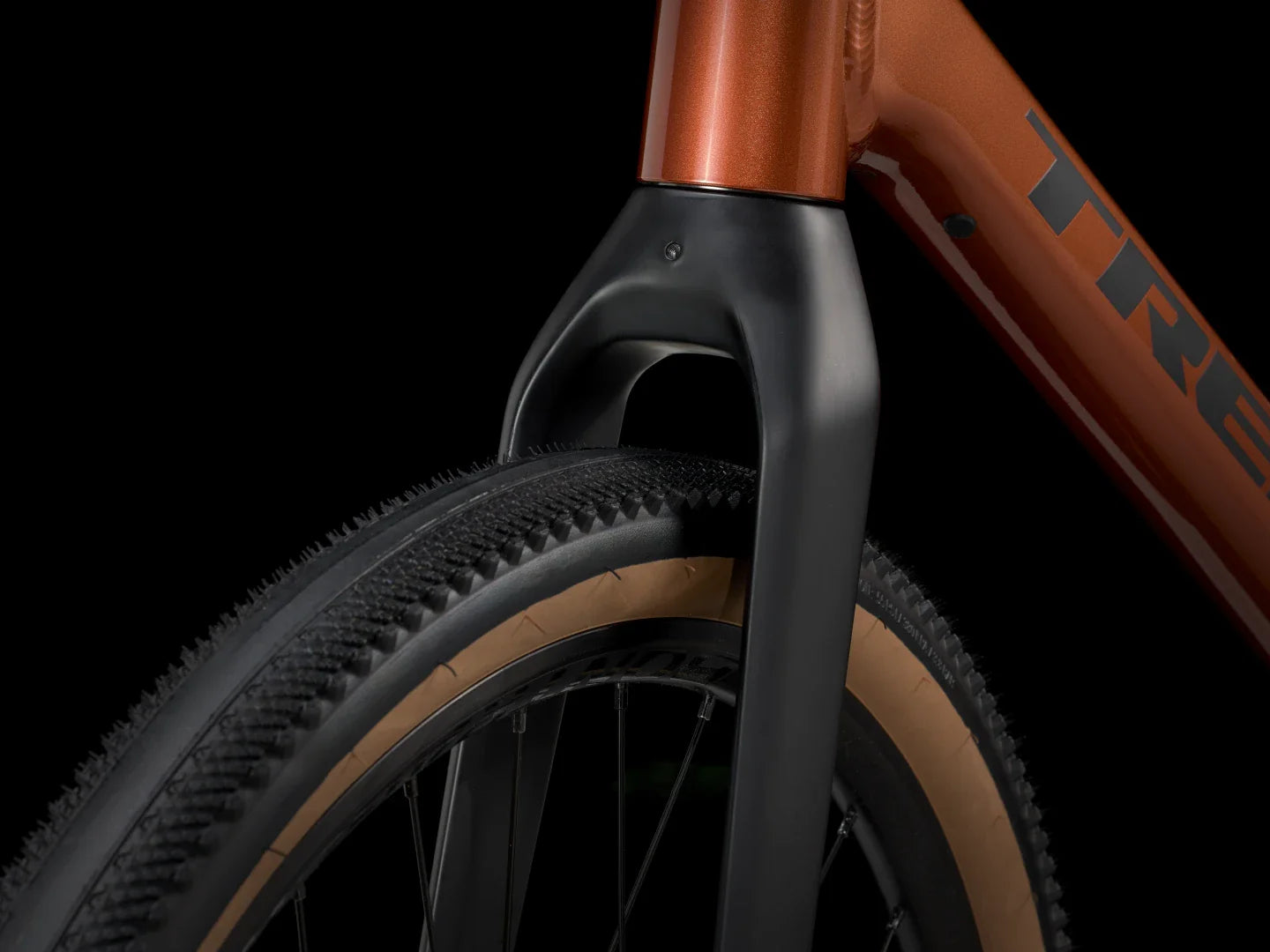

Fork Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR

Wheels

Hub front Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front 139x5 mm bolt-on
Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear 152x5 mm QR
Rim Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tyre Bontrager GR0 Expert, wire bead, puncture protection, 60 tpi, 650x50c
Max tyre size 27.5x2.00"

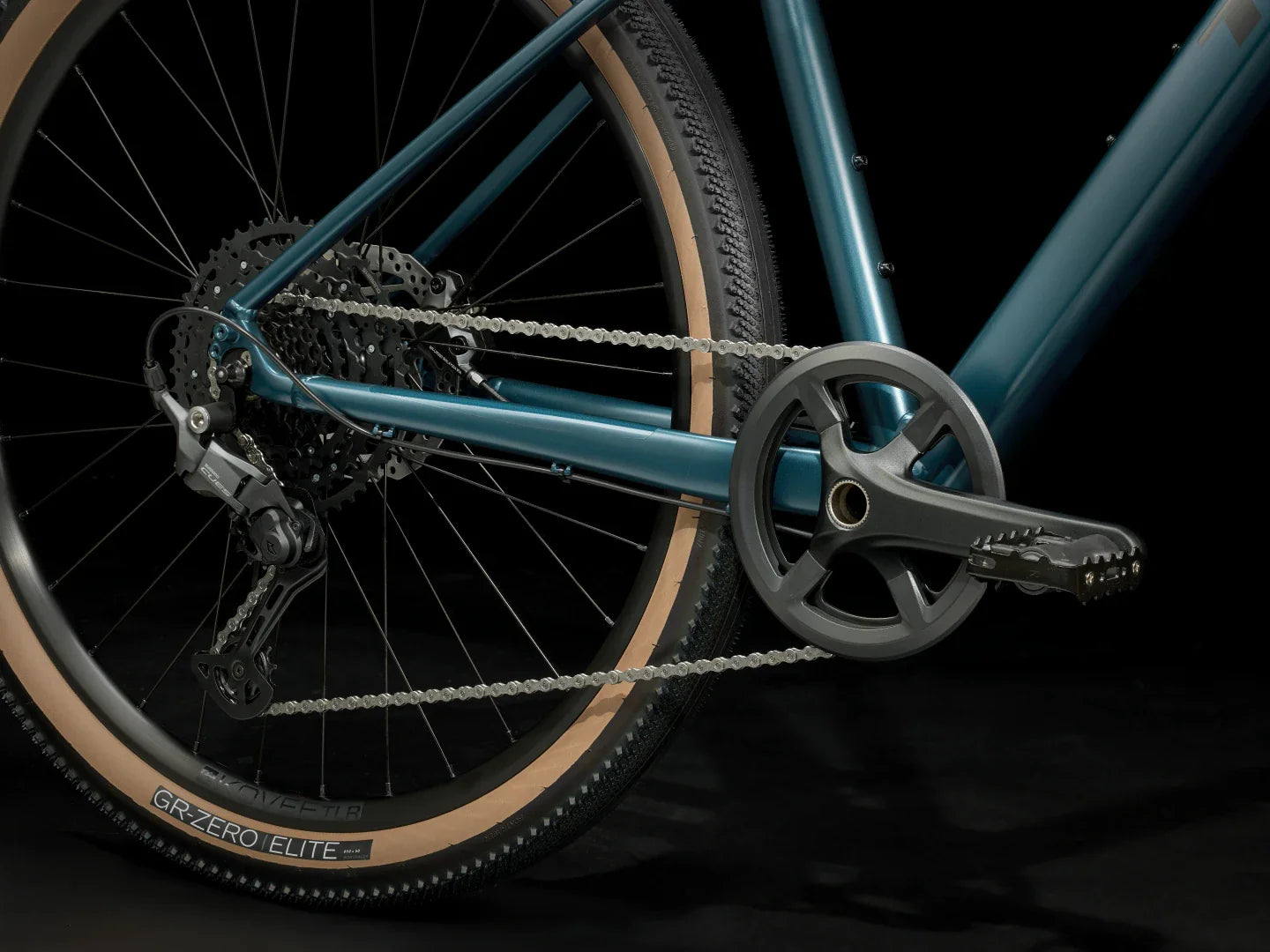

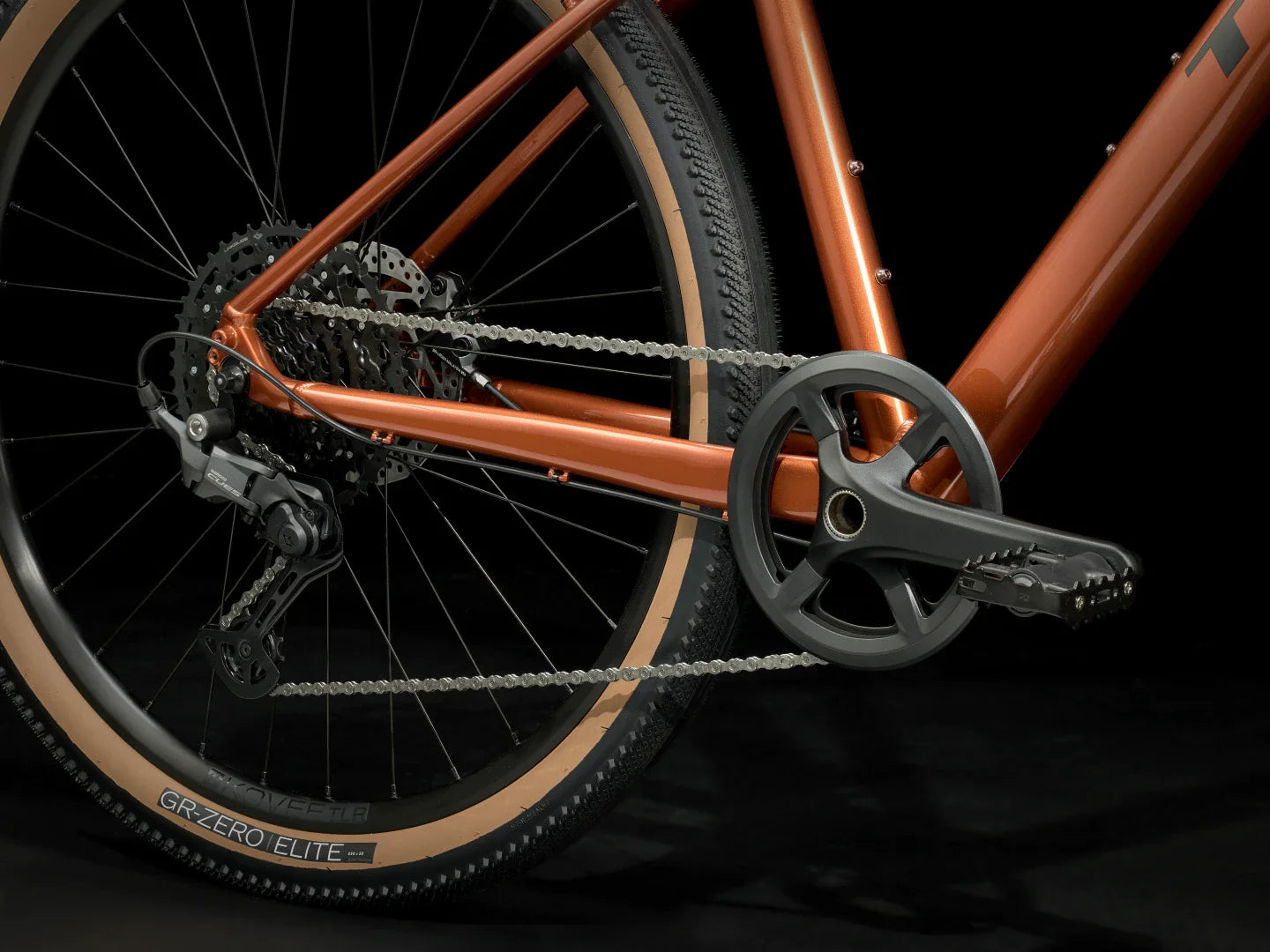

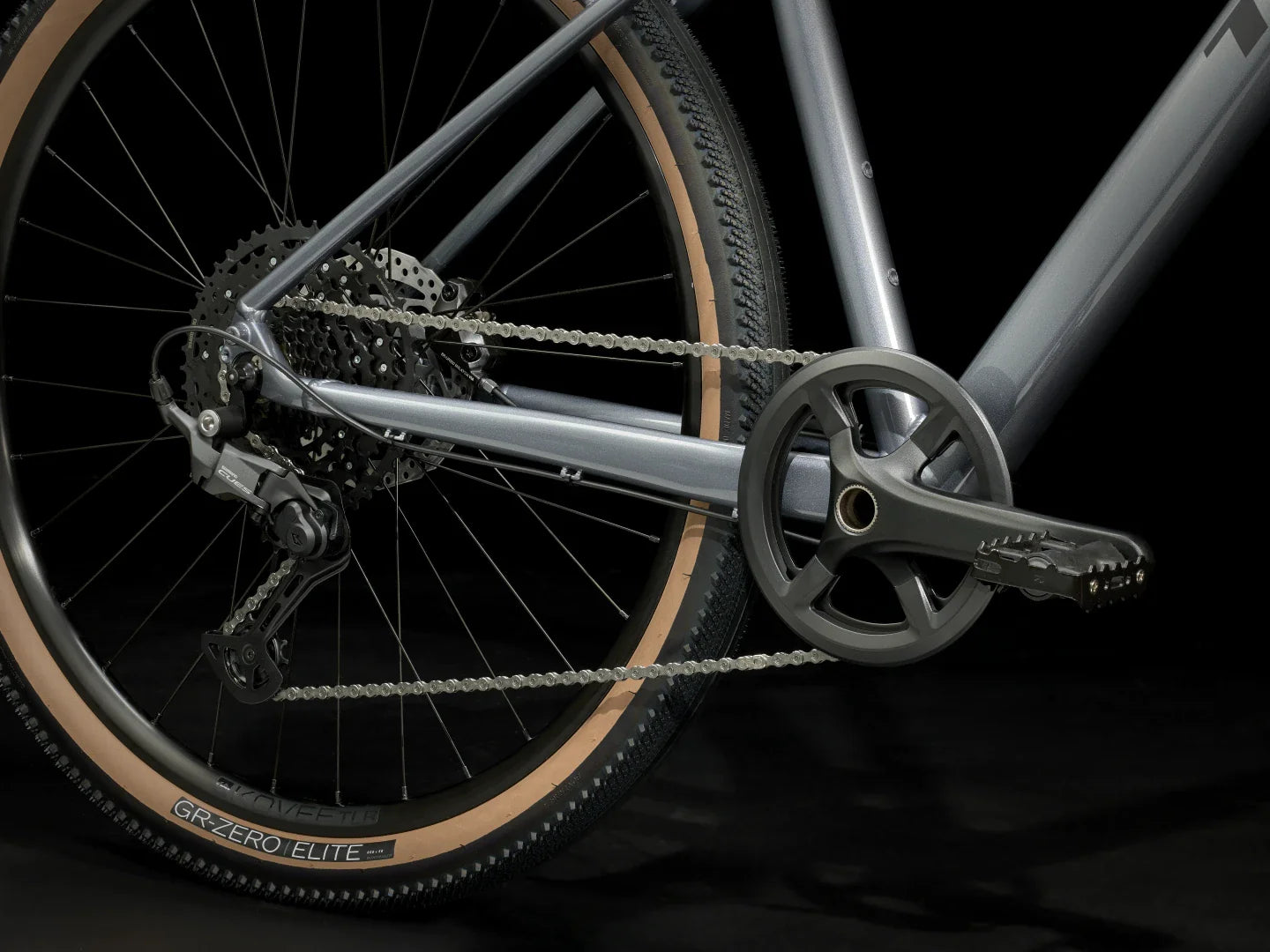

Drivetrain

Shifter Shimano Deore M4100, 10-speed
Rear derailleur Shimano Deore M5120, long cage
*Crank Size: S, M
Prowheel alloy, 40T narrow-wide ring, 170 mm length
Size: L, XL
Prowheel alloy, 40T narrow-wide ring, 175 mm length
Cassette Shimano Deore M4100, 11-46, 10-speed
Chain KMC X10, 10-speed
Pedal Wellgo nylon body, alloy cage
Max. chainring size 1x: 42T, 2x/3x: 48T

Components

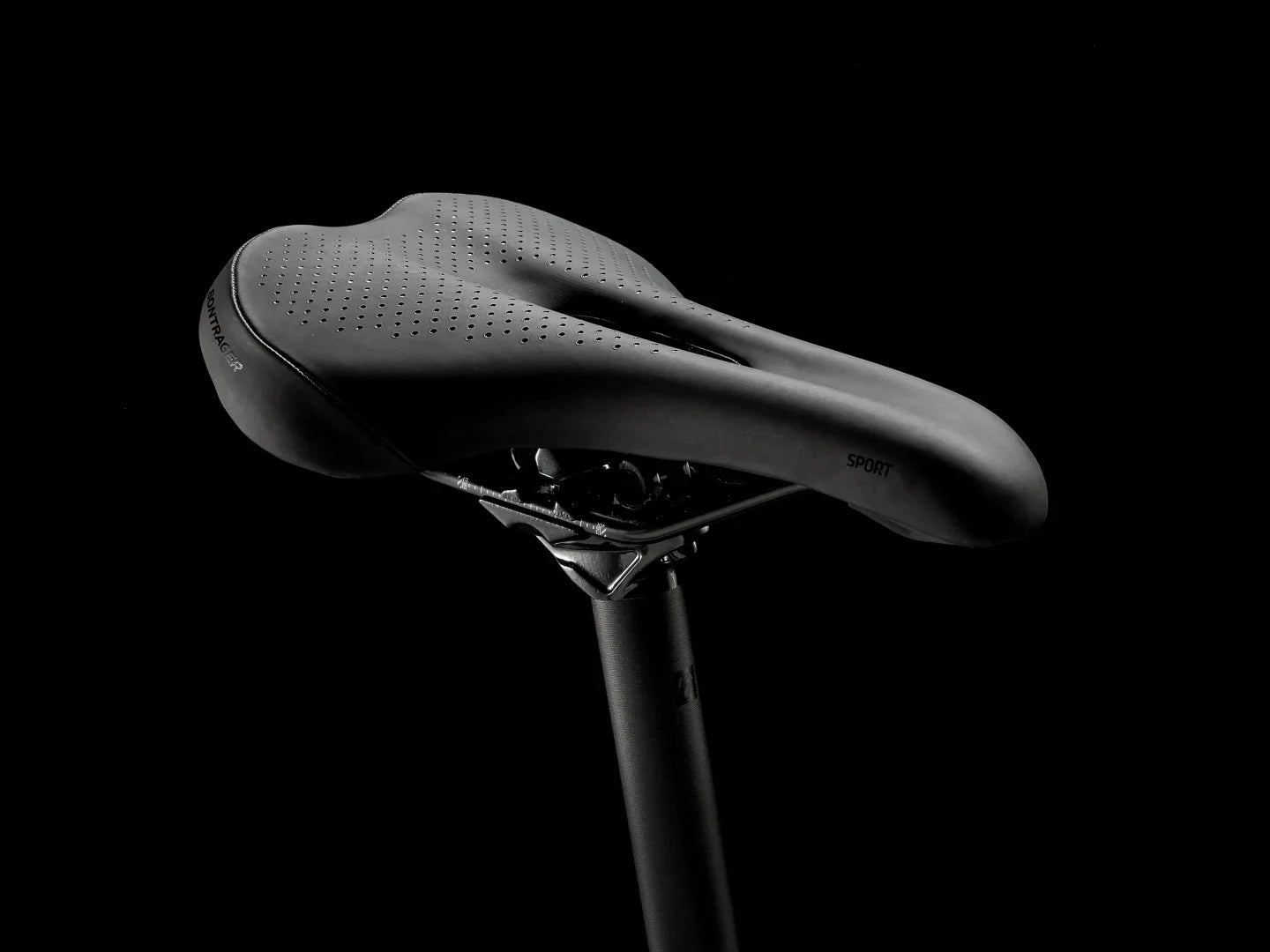

Saddle Bontrager H1
Seatpost Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

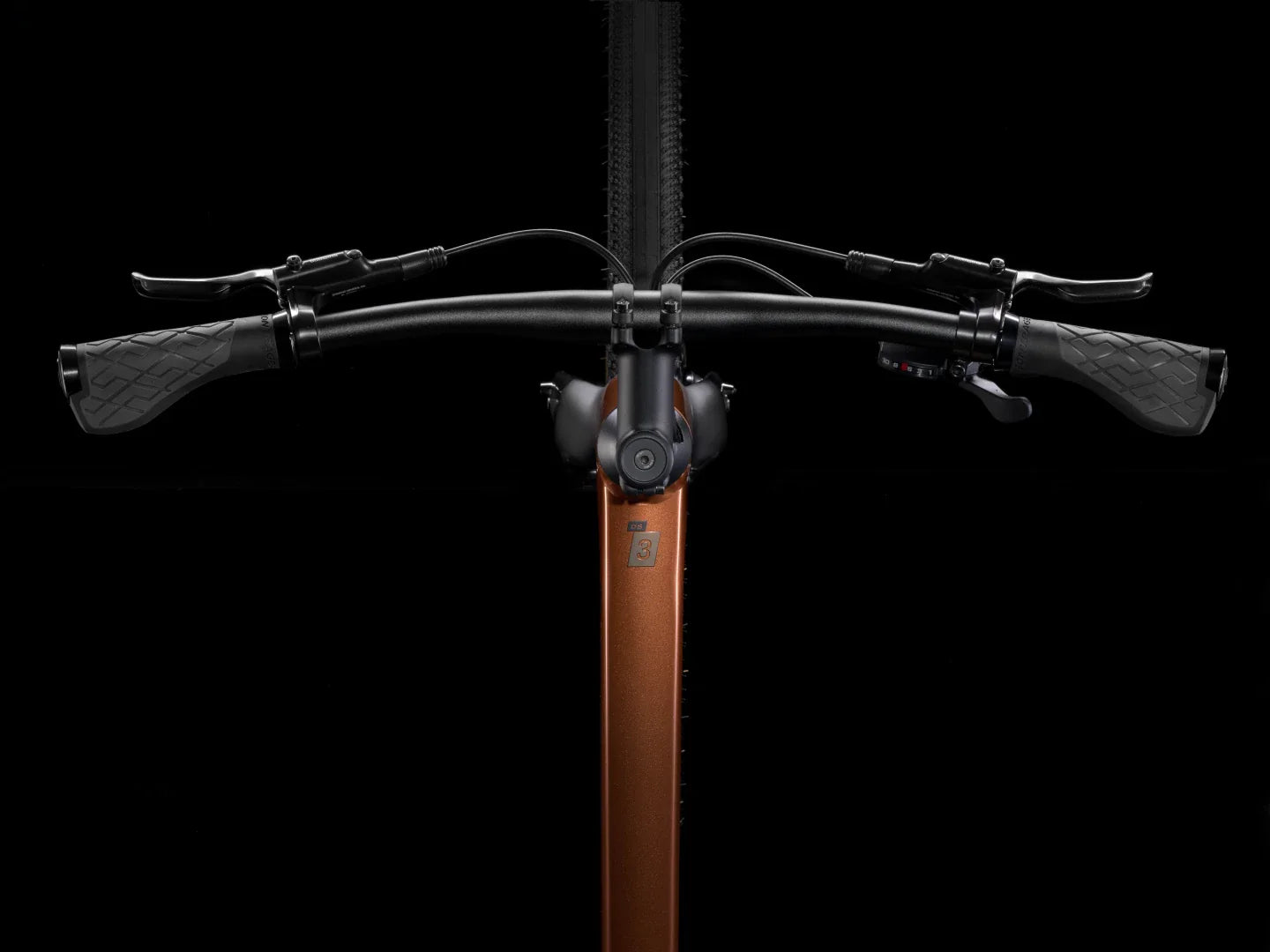

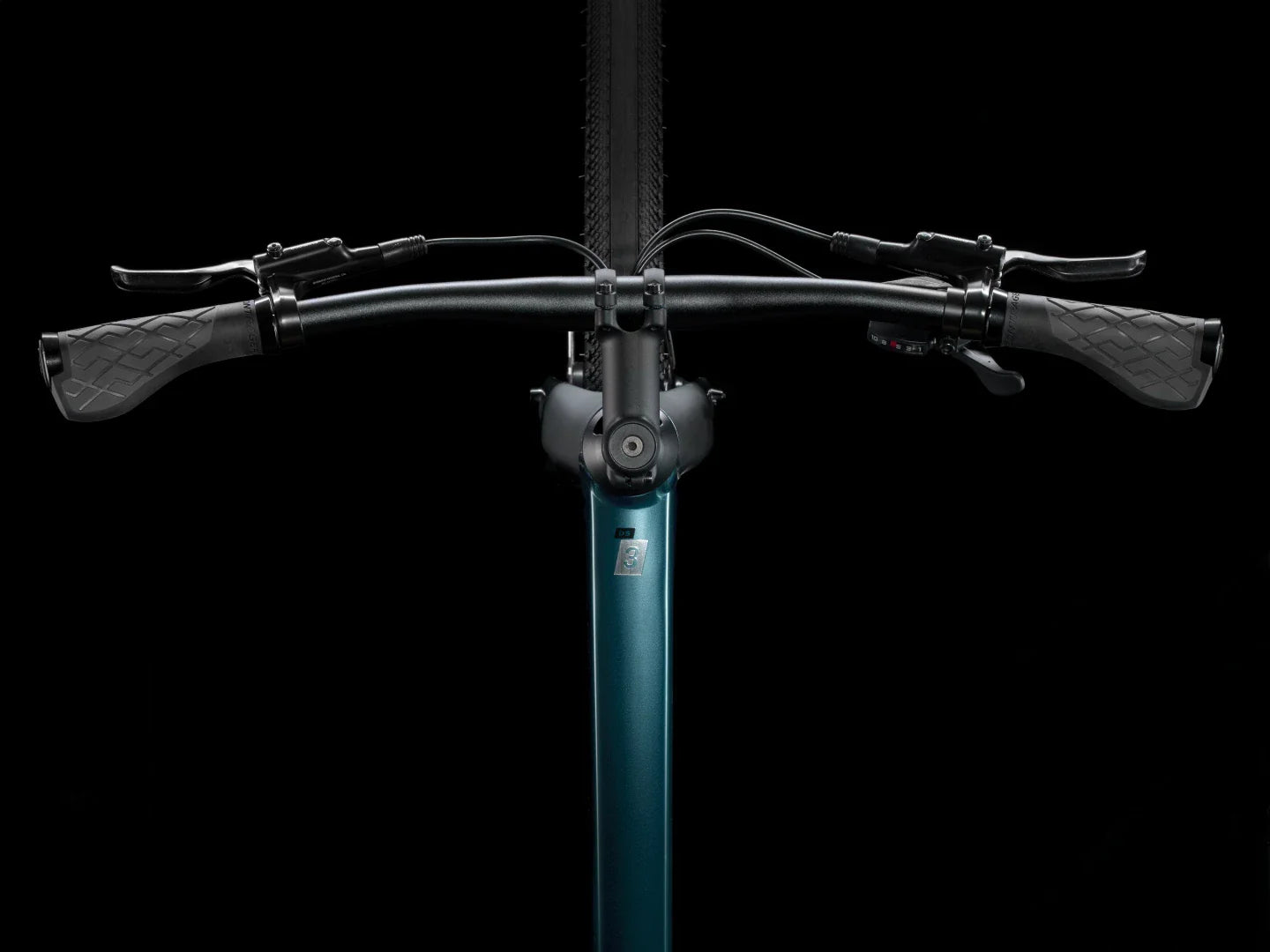

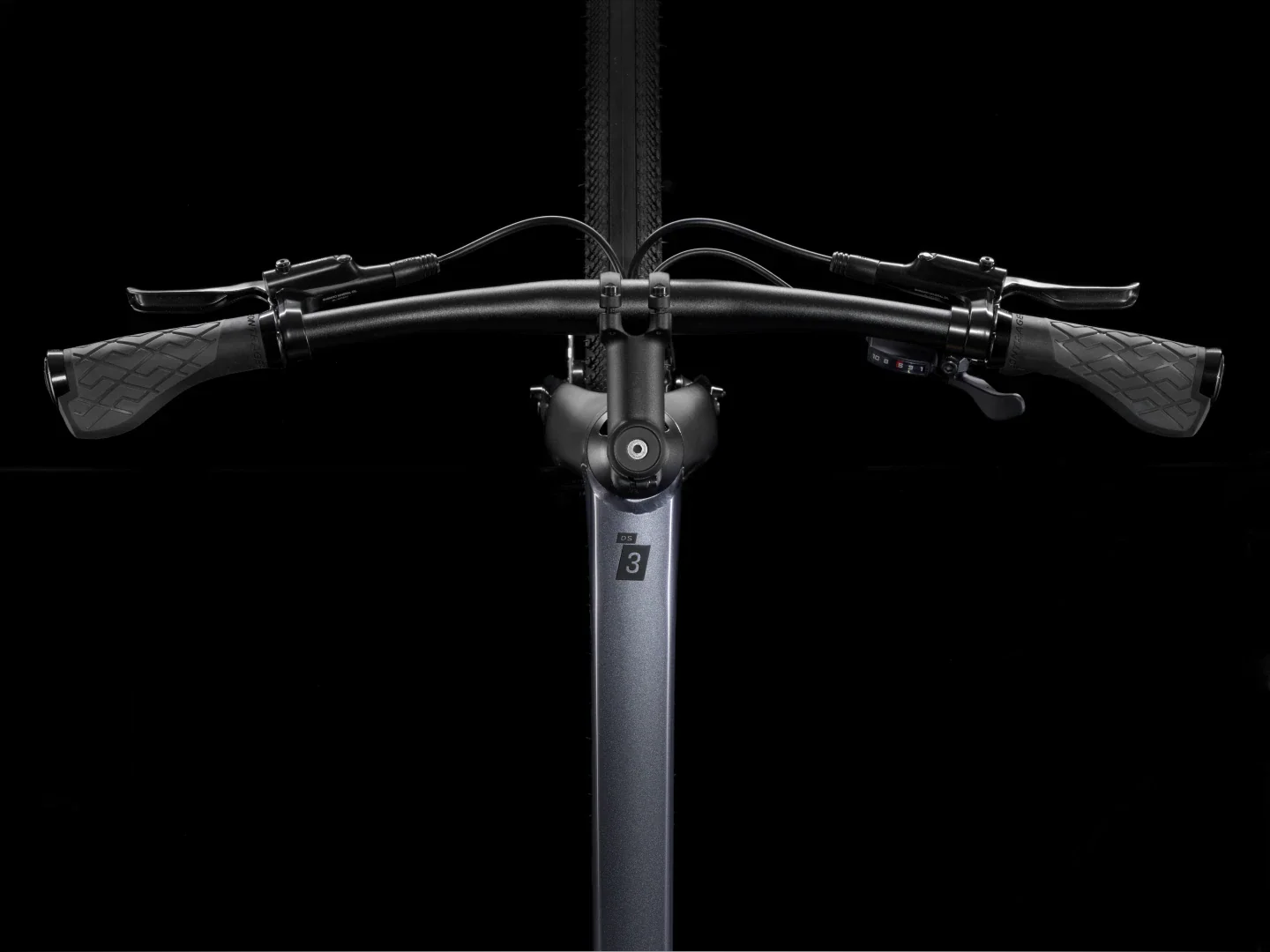

*Handlebar Size: S
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size: M, L
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
Size: XL
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 690 mm width

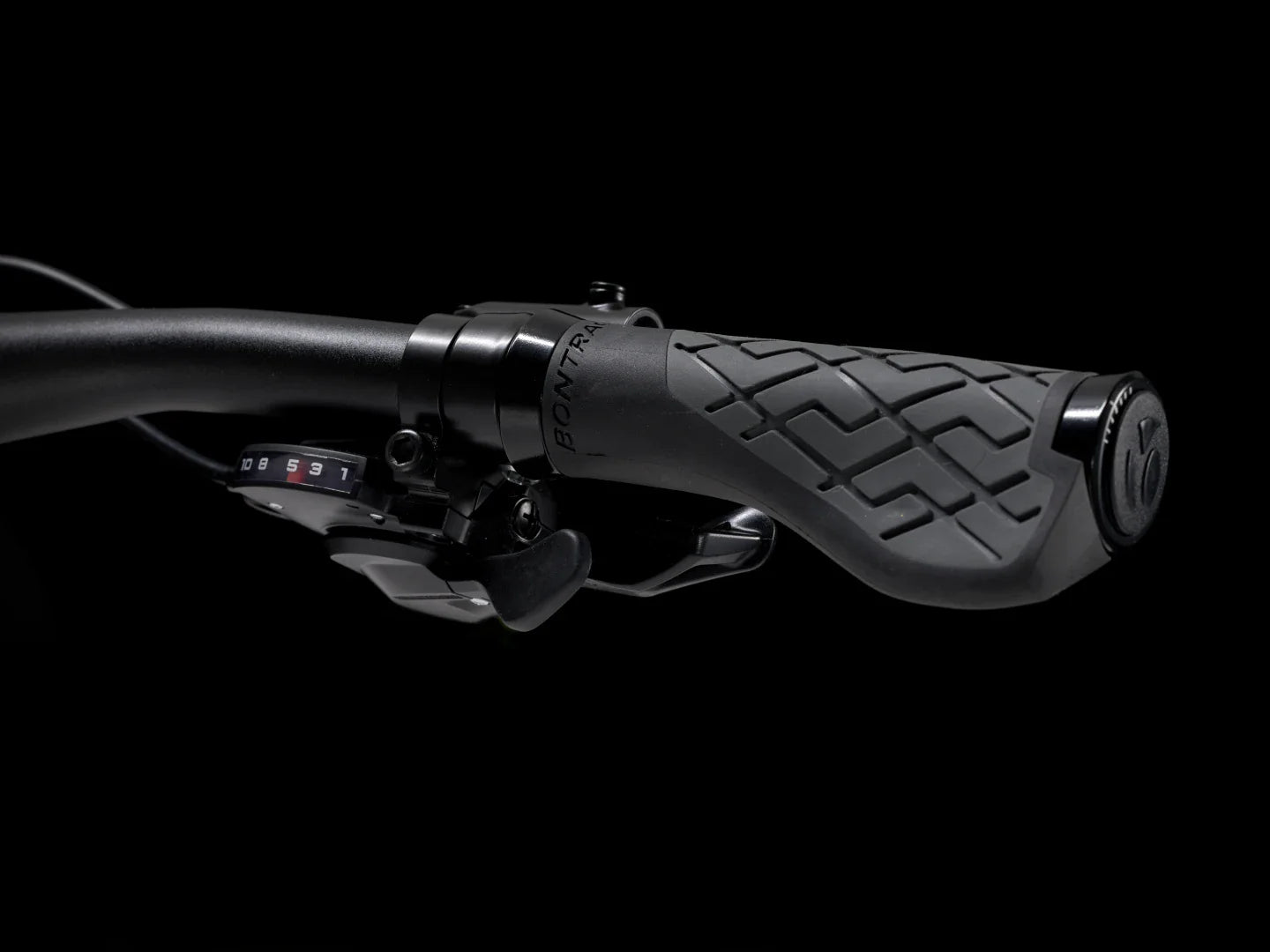

Grips Bontrager XR Endurance Elite

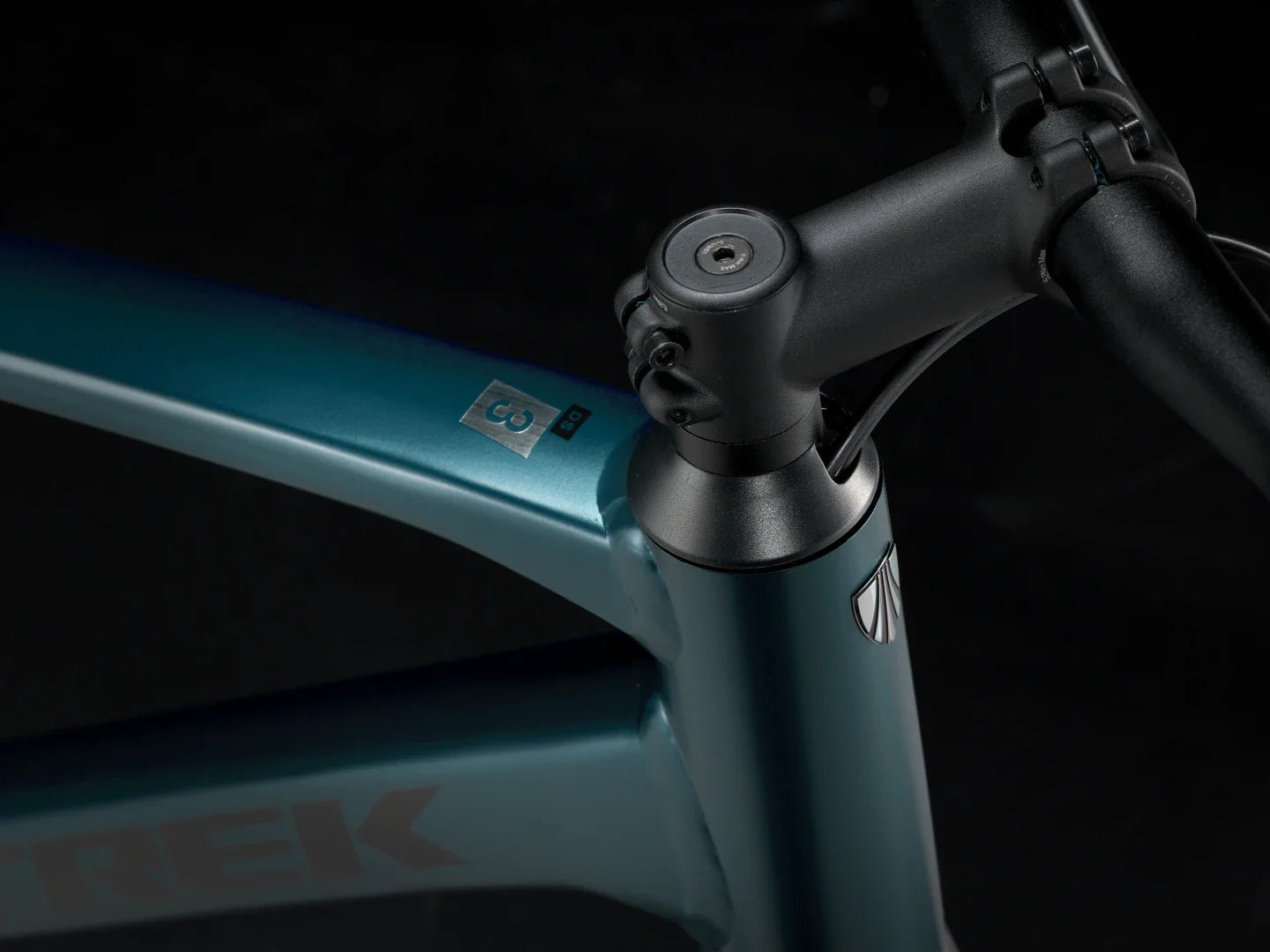

*Stem Size: S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: M, L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length

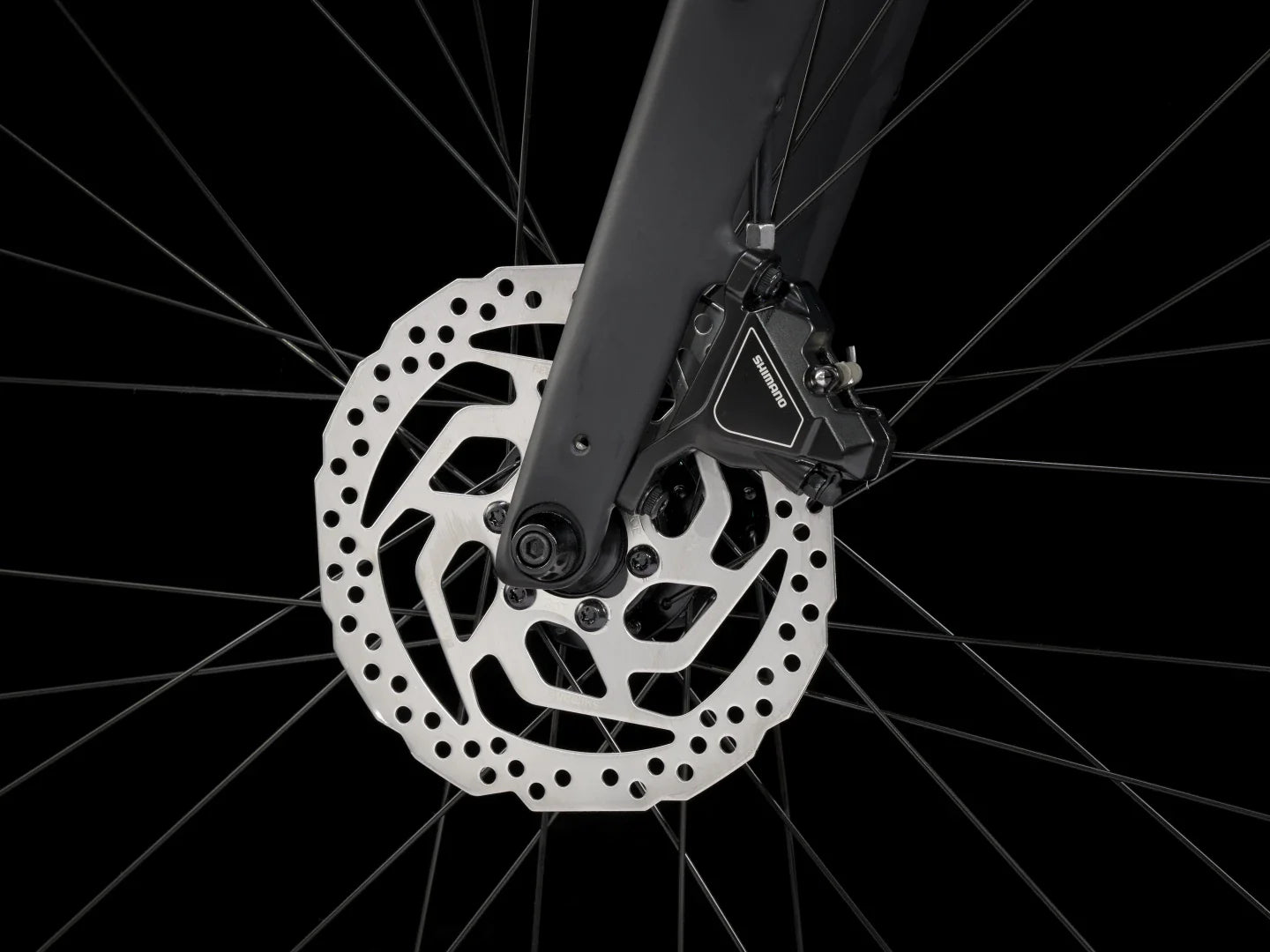

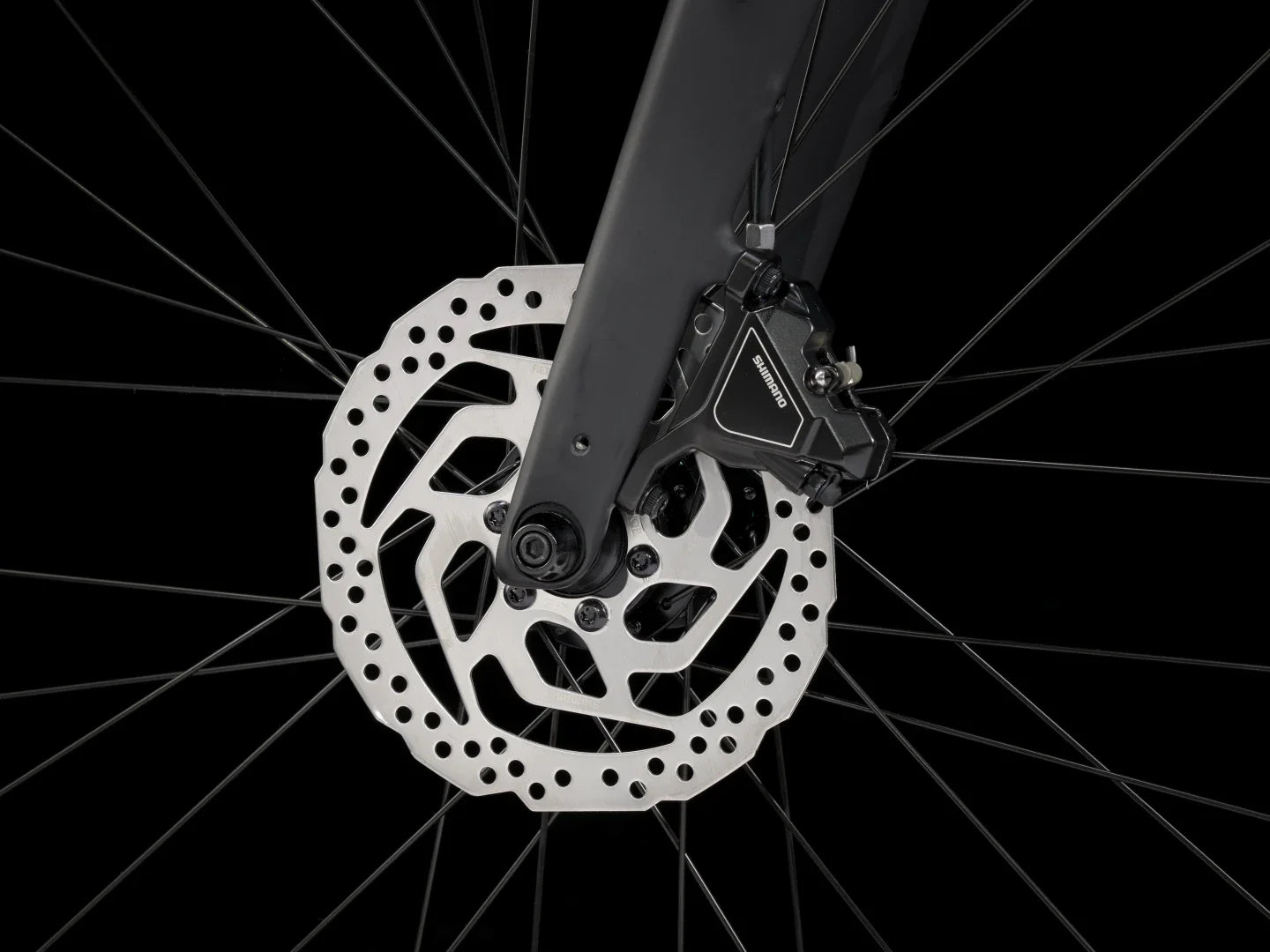

Brake Shimano hydraulic disc, MT201 lever, UR300 calliper
Brake rotor Shimano RT26, 6-bolt,160 mm
Rotor size Max brake rotor size: 160 mm

Weight

Weight M - 11.88 kg / 26.2 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.

Size

XS

S

M

L

XL

Rider Height

147 - 155 cm

4'10" - 5'1"

155 - 165 cm

5'1" - 5'5"

165 - 175 cm

5'5" - 5'9"

175 - 186 cm

5'9" - 6'1"

186 - 197 cm

6'1" - 6'6"

Inseam

69 - 73 cm

27" - 29"

72 - 78 cm

28" - 31"

77 - 83 cm

30" - 33"

82 - 88 cm

32" - 35"

87 - 93 cm

34" - 37"

All measurements provided in cm unless otherwise stated.

Sizing table
Frame size letter Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
S 27.5" 37.5 73.8° 14.0 69.8° 54.5 28.9 6.0 44.7 3.9 8.7 105.2 72.3 37.8 57.3
M 27.5" 42.0 73.3° 16.5 70.3° 56.5 28.9 6.0 44.7 3.9 8.3 106.3 76.1 38.5 59.8
L 27.5" 46.5 72.8° 19.0 70.8° 58.5 28.9 6.0 44.7 3.9 8.0 107.2 80.0 39.1 62.4
XL 27.5" 52.0 71.8° 21.5 71.8° 61.5 28.9 6.0 44.7 3.9 7.4 107.9 84.3 40.1 65.2
