Specs
Sizing
Geometry
Frameset

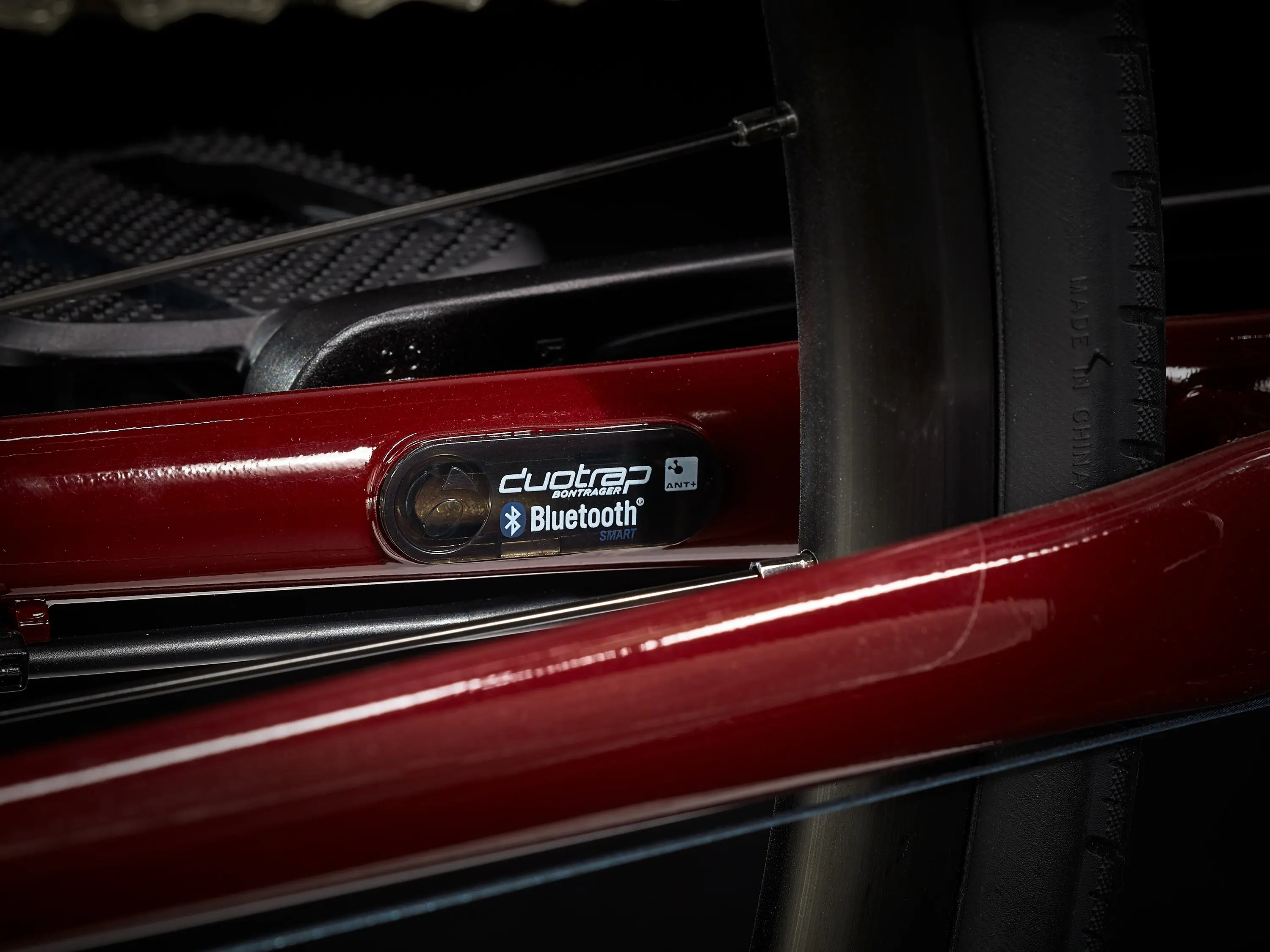

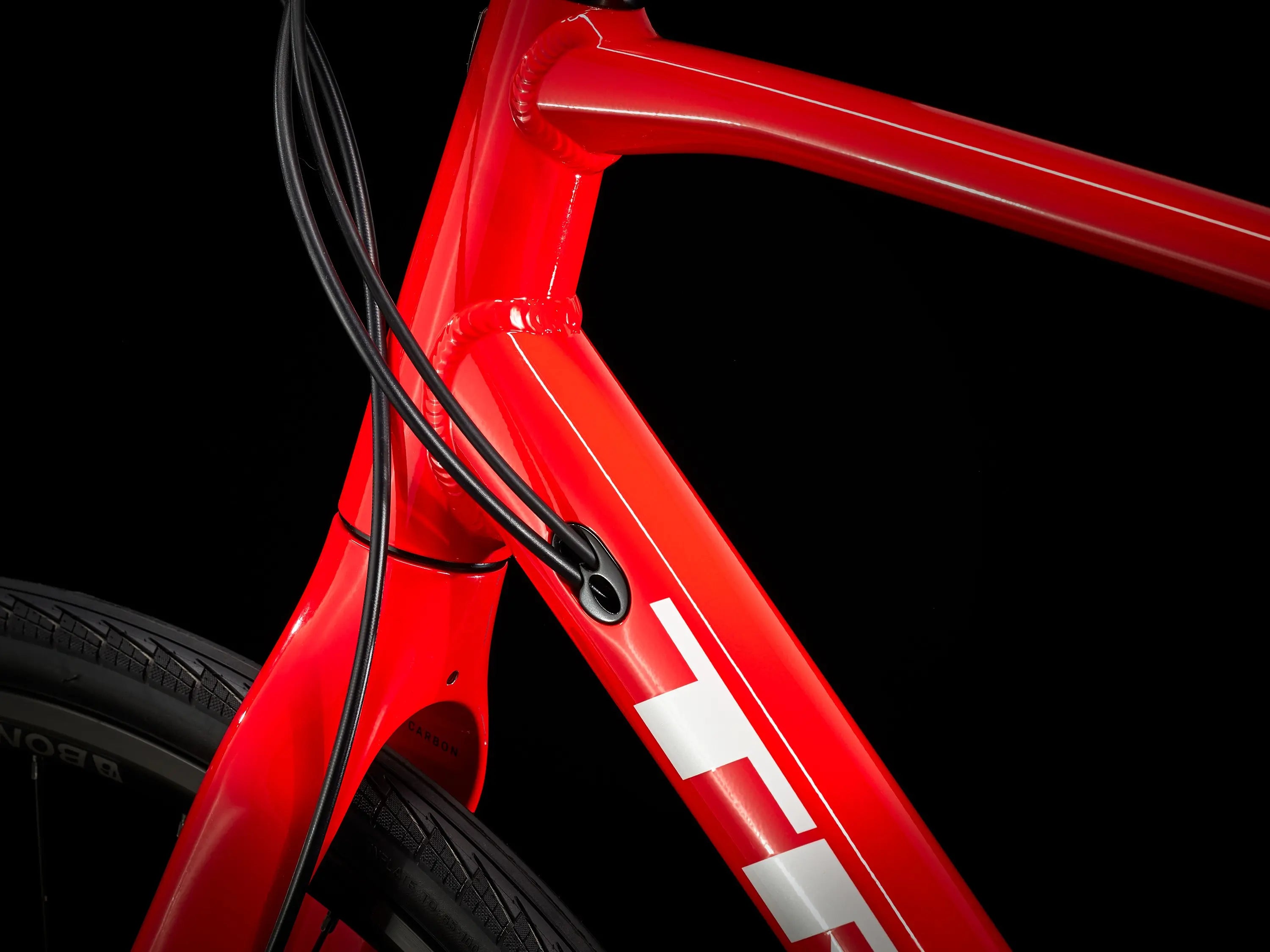

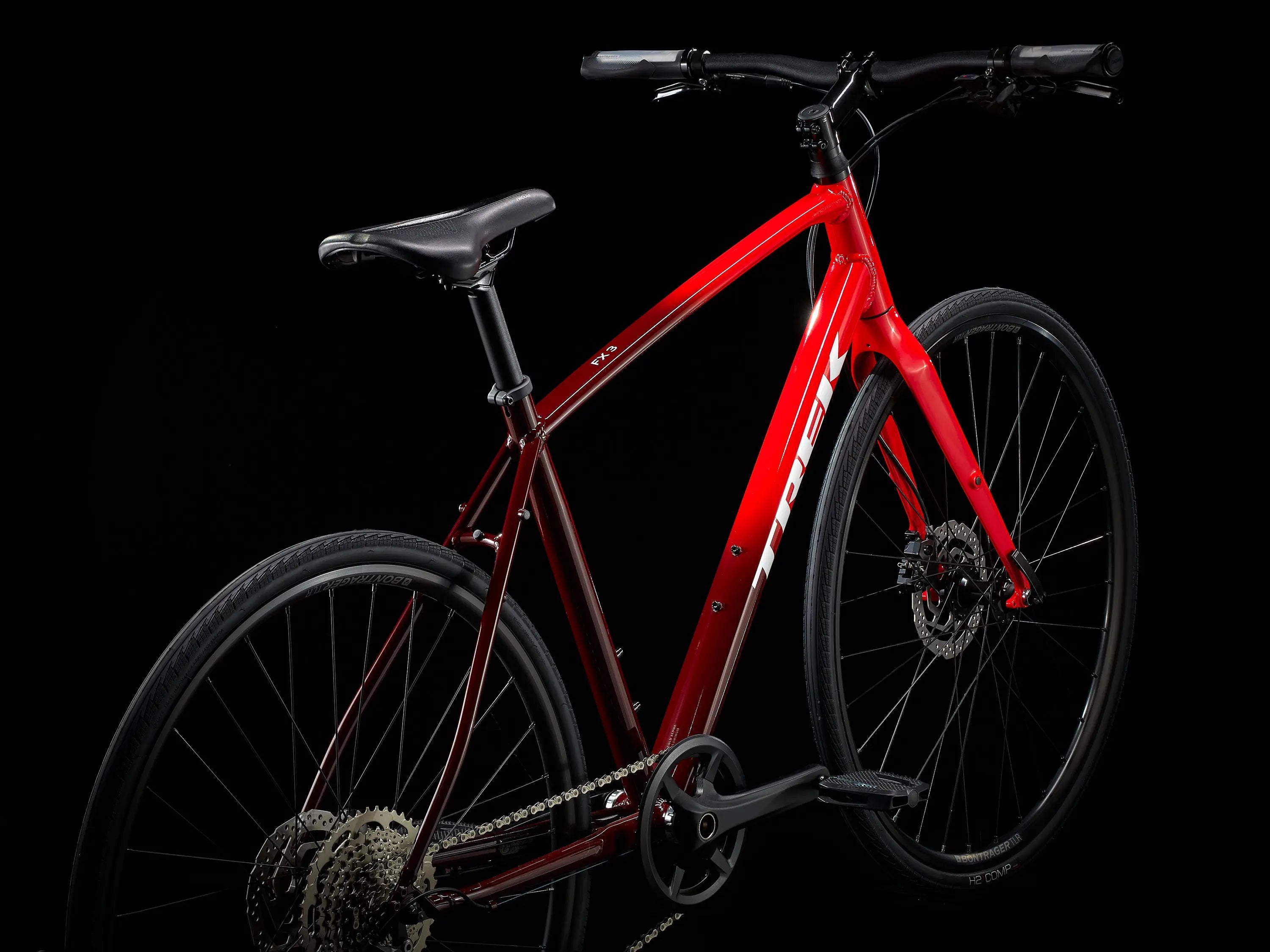

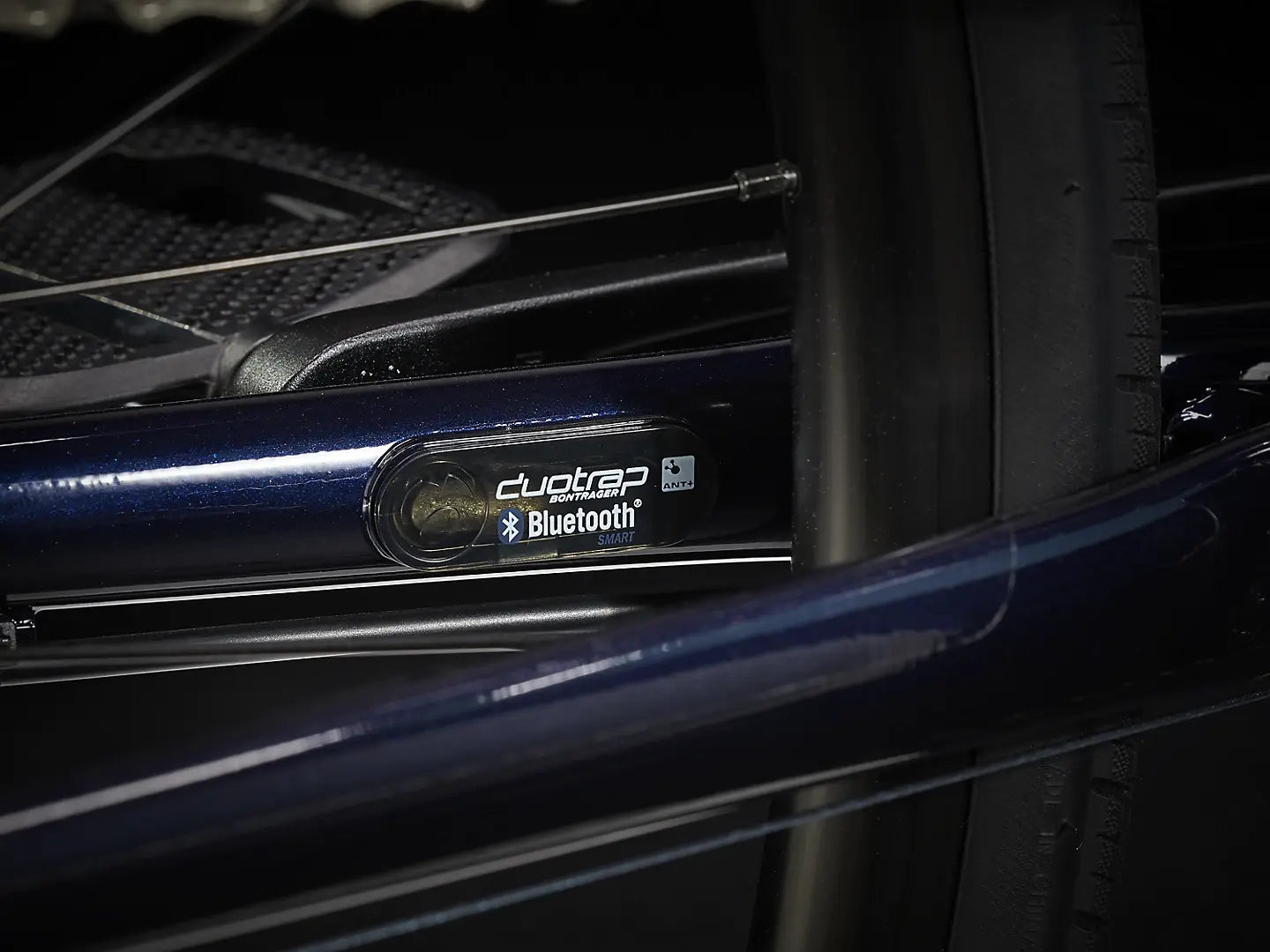

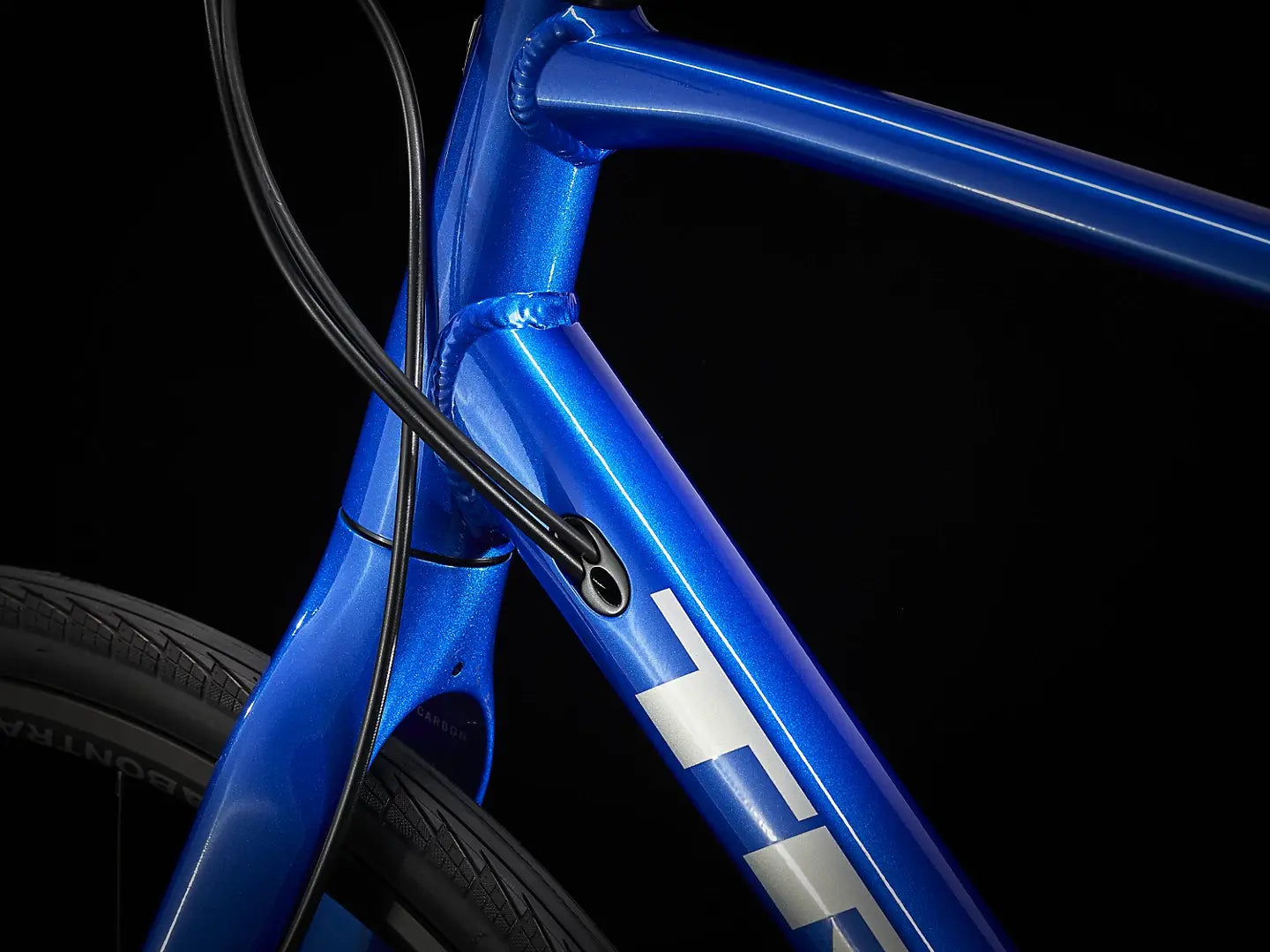

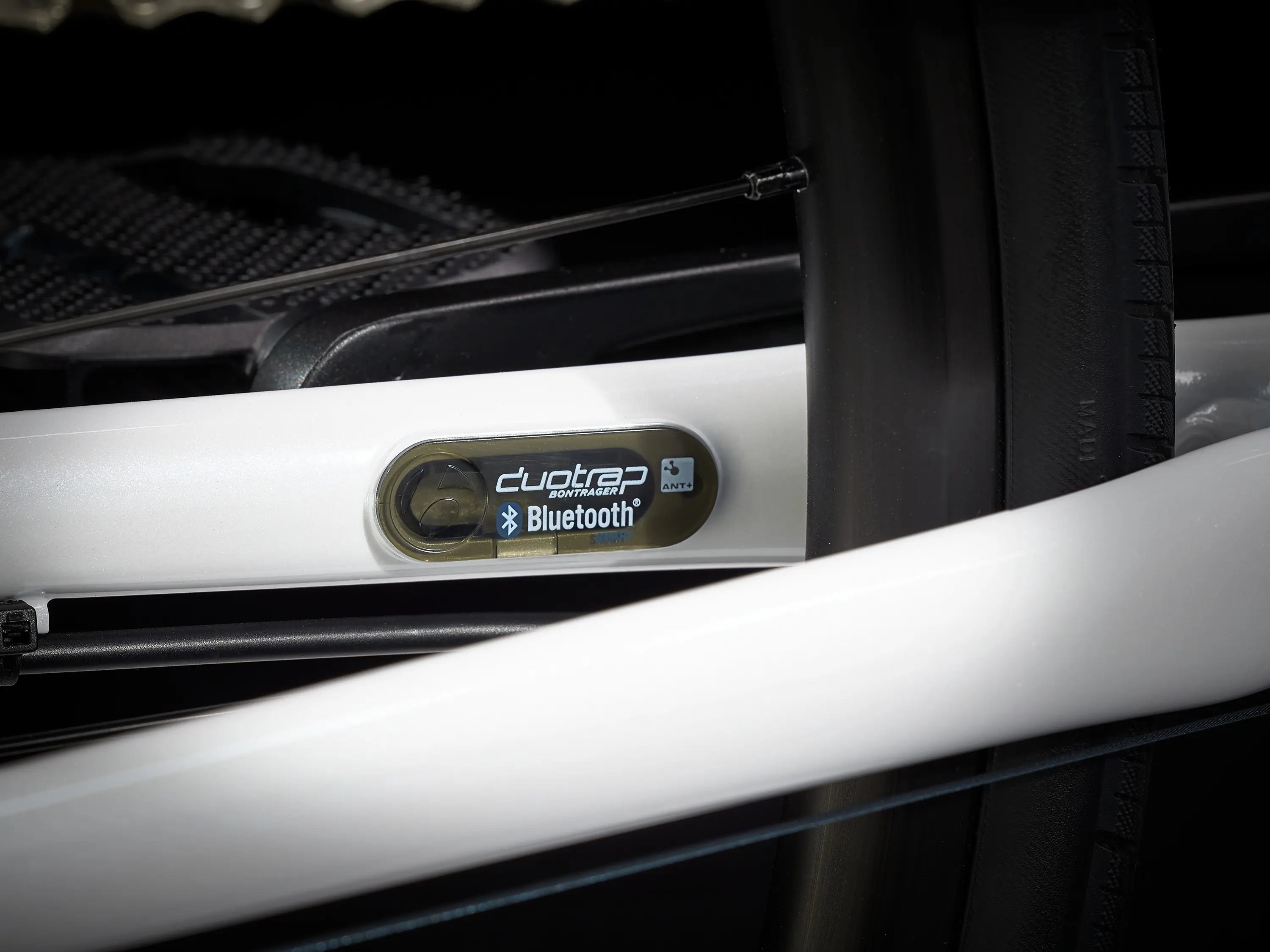

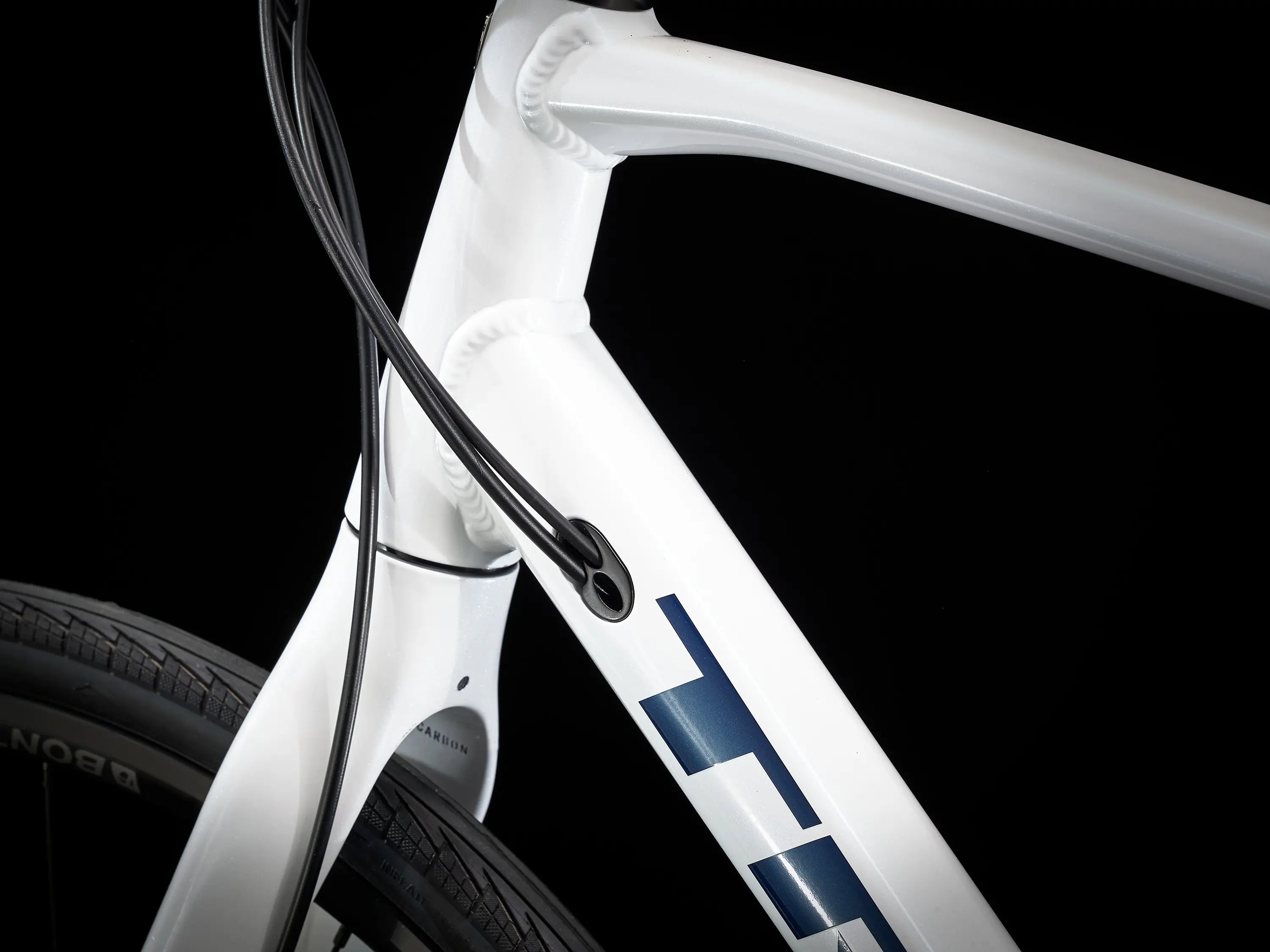

Frame Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR
Fork FX Carbon, rack and mudguard mounts, flat-mount disc, 405 mm axle-to-crown. ThruSkew 5 mm QR

Wheels

Hub front Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front 130x5 mm QR, ThruSkew
Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear 152x5 mm QR

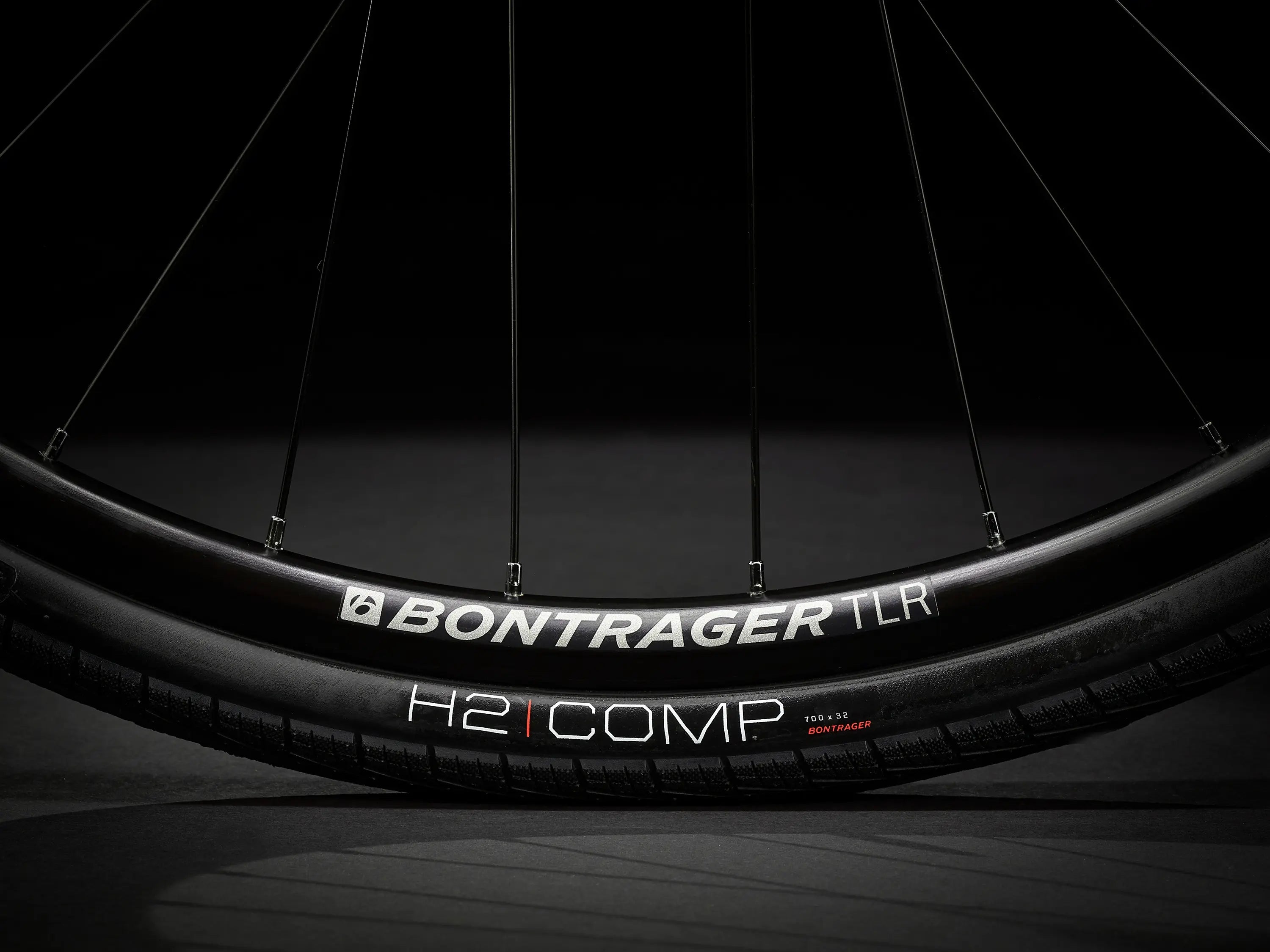

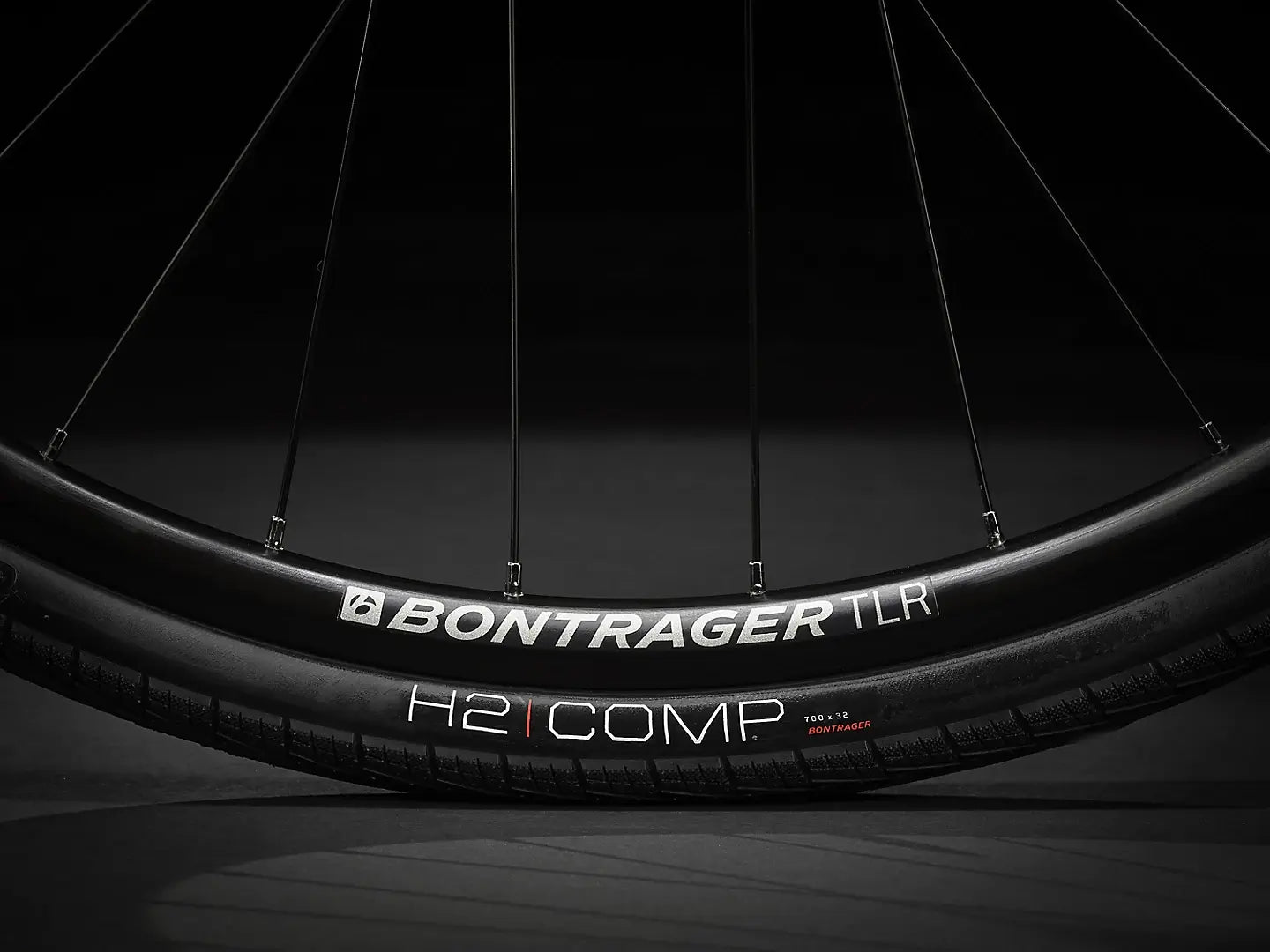

Rim Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Spokes 14 g stainless steel
Tyre Bontrager H2 Comp, wire bead, 30 tpi, 700x32c
Max tyre size 38c without fenders, 35c with fenders

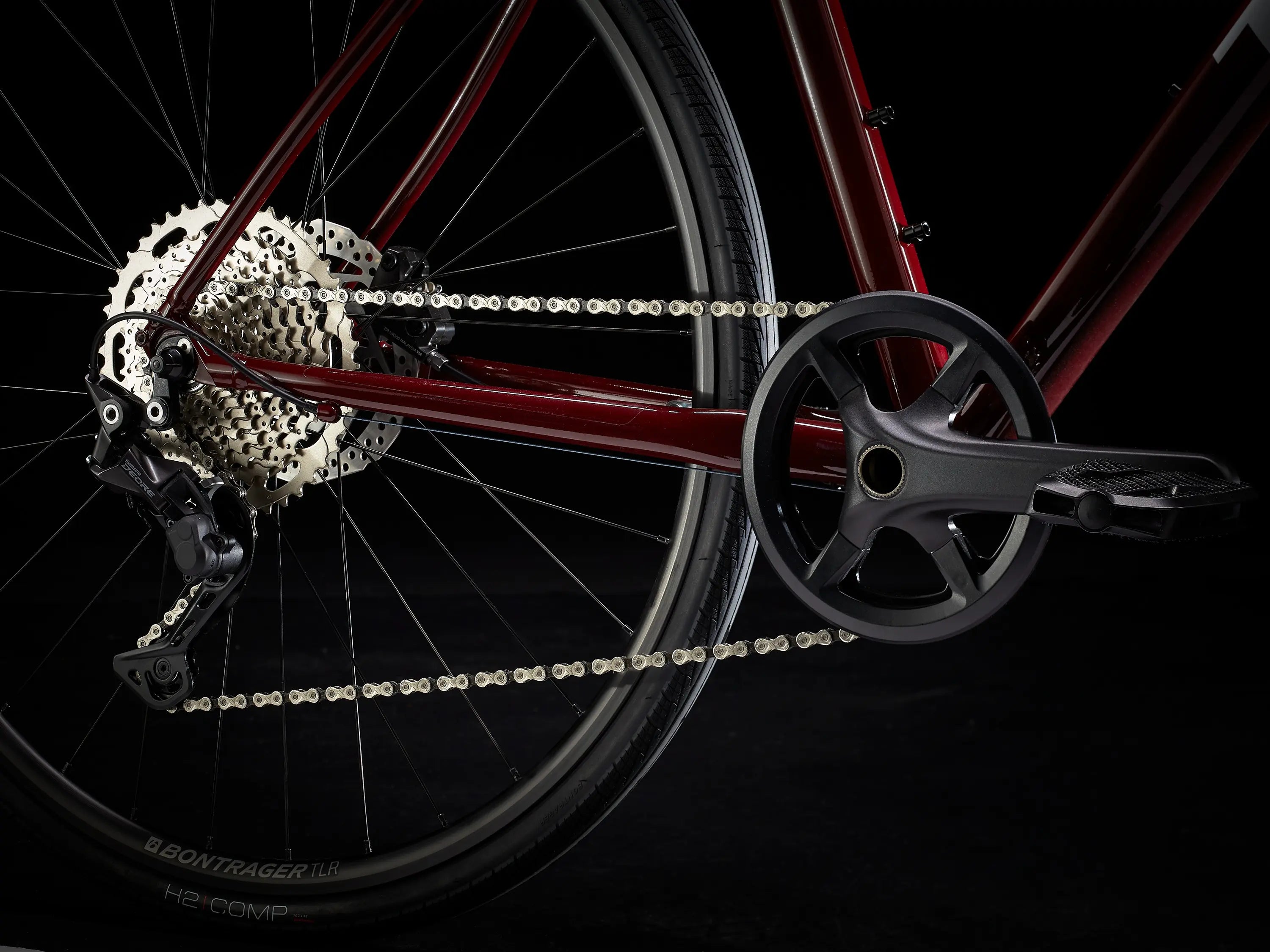

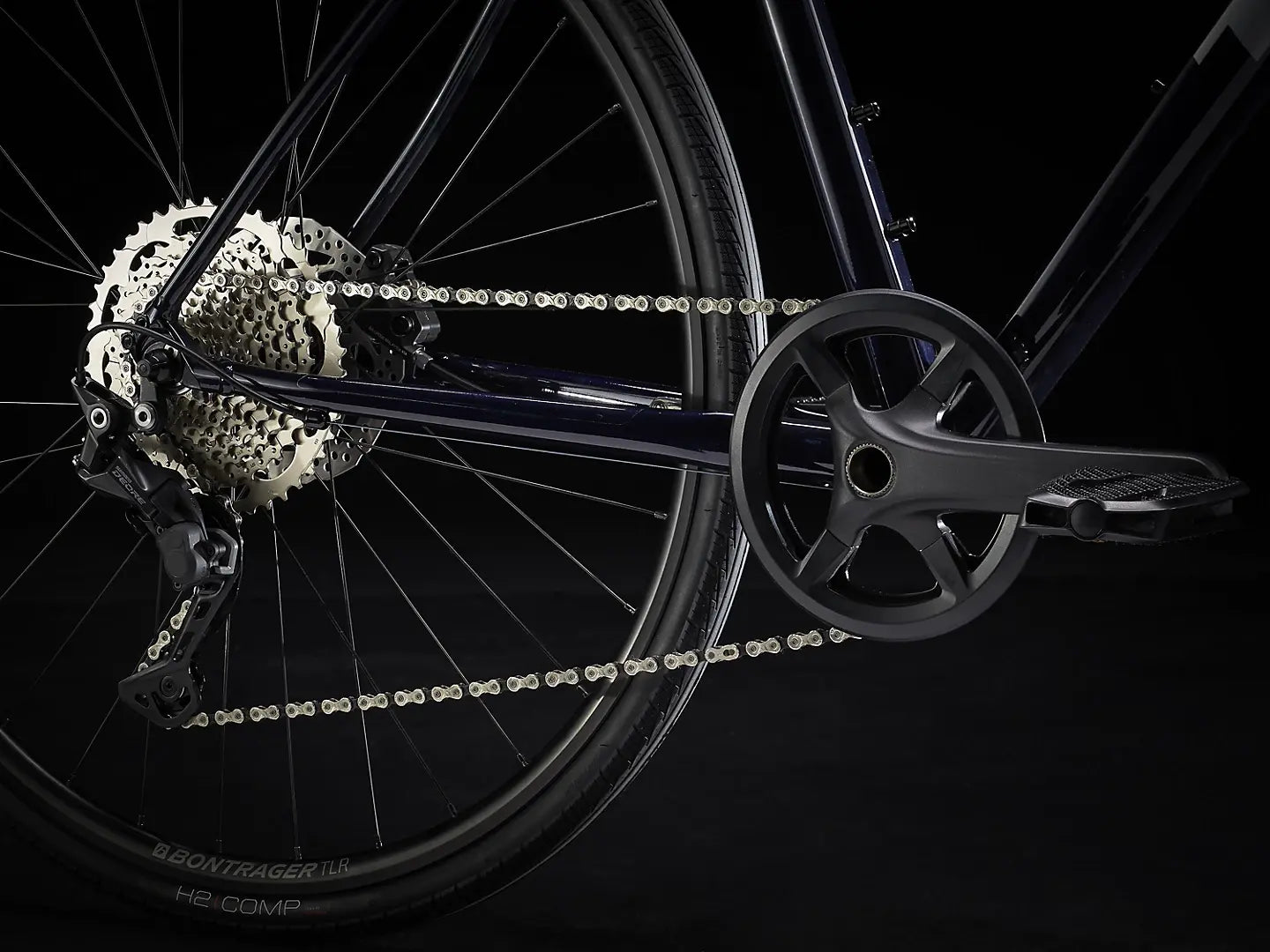

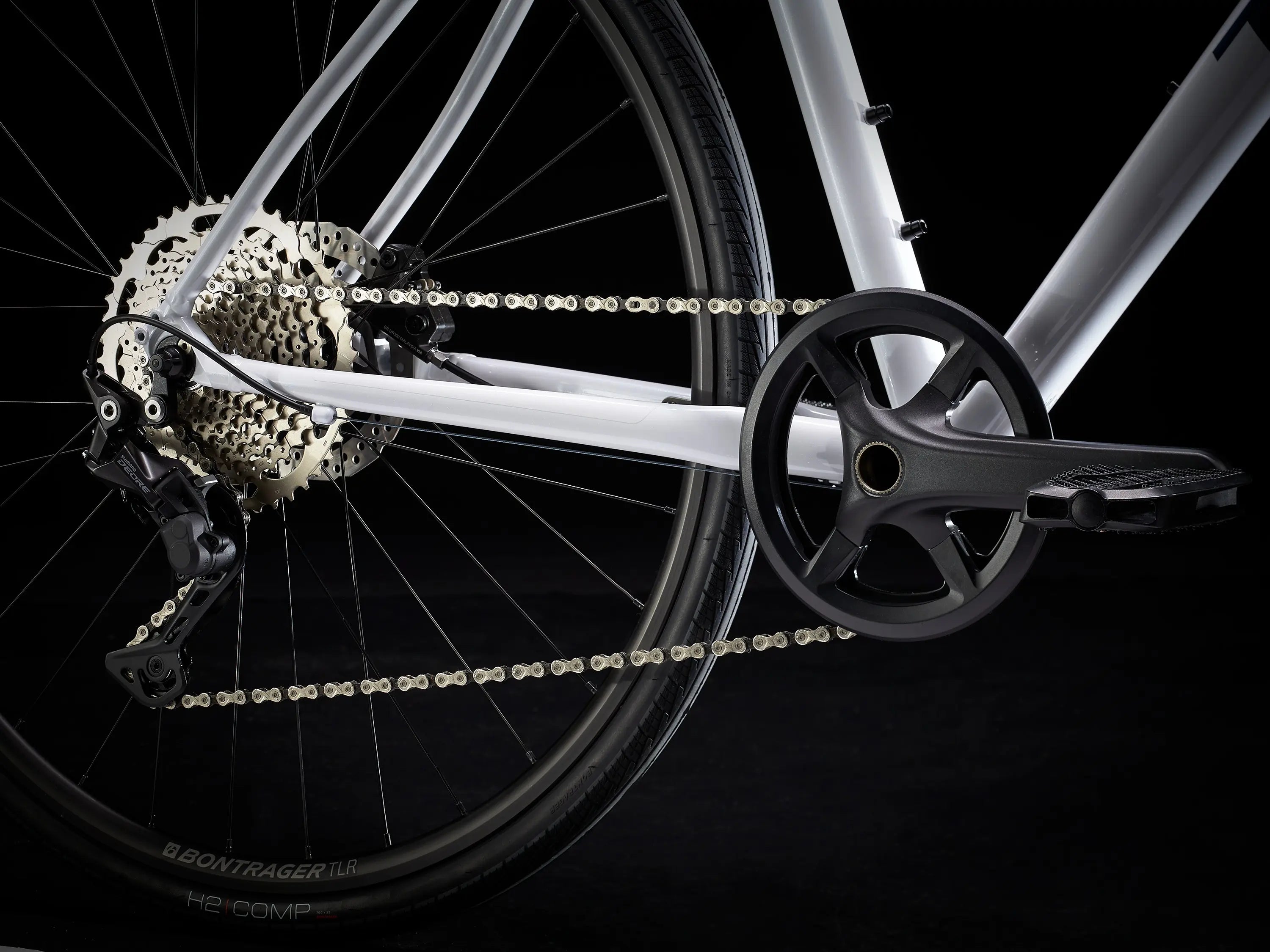

Drivetrain

*Shifter Size: S, M, L, XL, XXL
Shimano Acera M3000, 9 speed
Size: S, M, L, XL, XXL
Shimano Acera M3000, 2 -speed
Front derailleur Shimano Acera T3000, 34.9 mm clamp, top swing, dual pull
Rear derailleur Shimano Alivio M3100, long cage
*Crank Size: S, M
Shimano MT210, 46/30, chain guard, 170 mm length
Size: L, XL, XXL
Shimano MT210, 46/30, chain guard, 175 mm length
Cassette Shimano HG200, 11-36, 9 speed
Chain KMC X9
Pedal Bontrager City pedals

Components

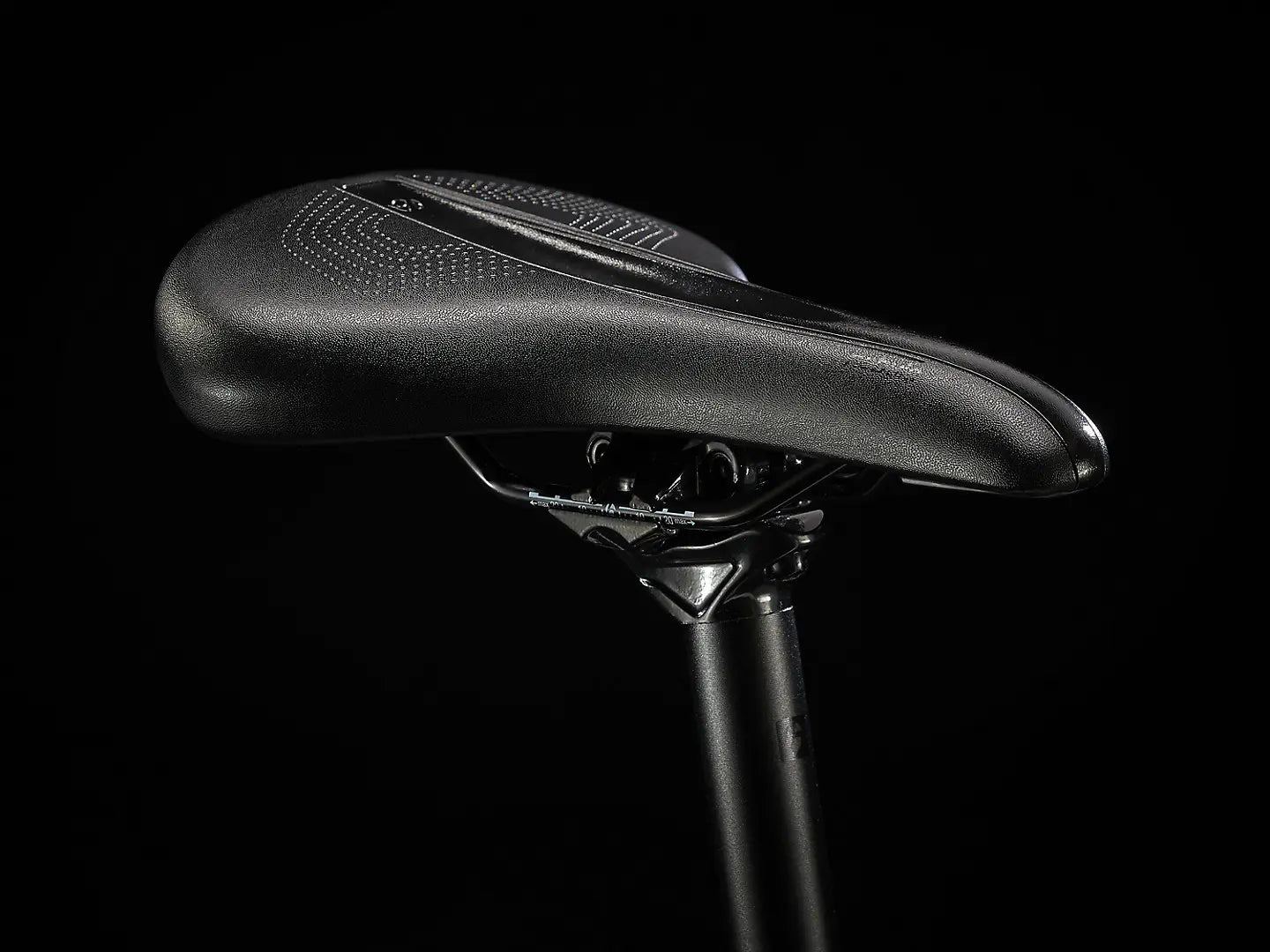

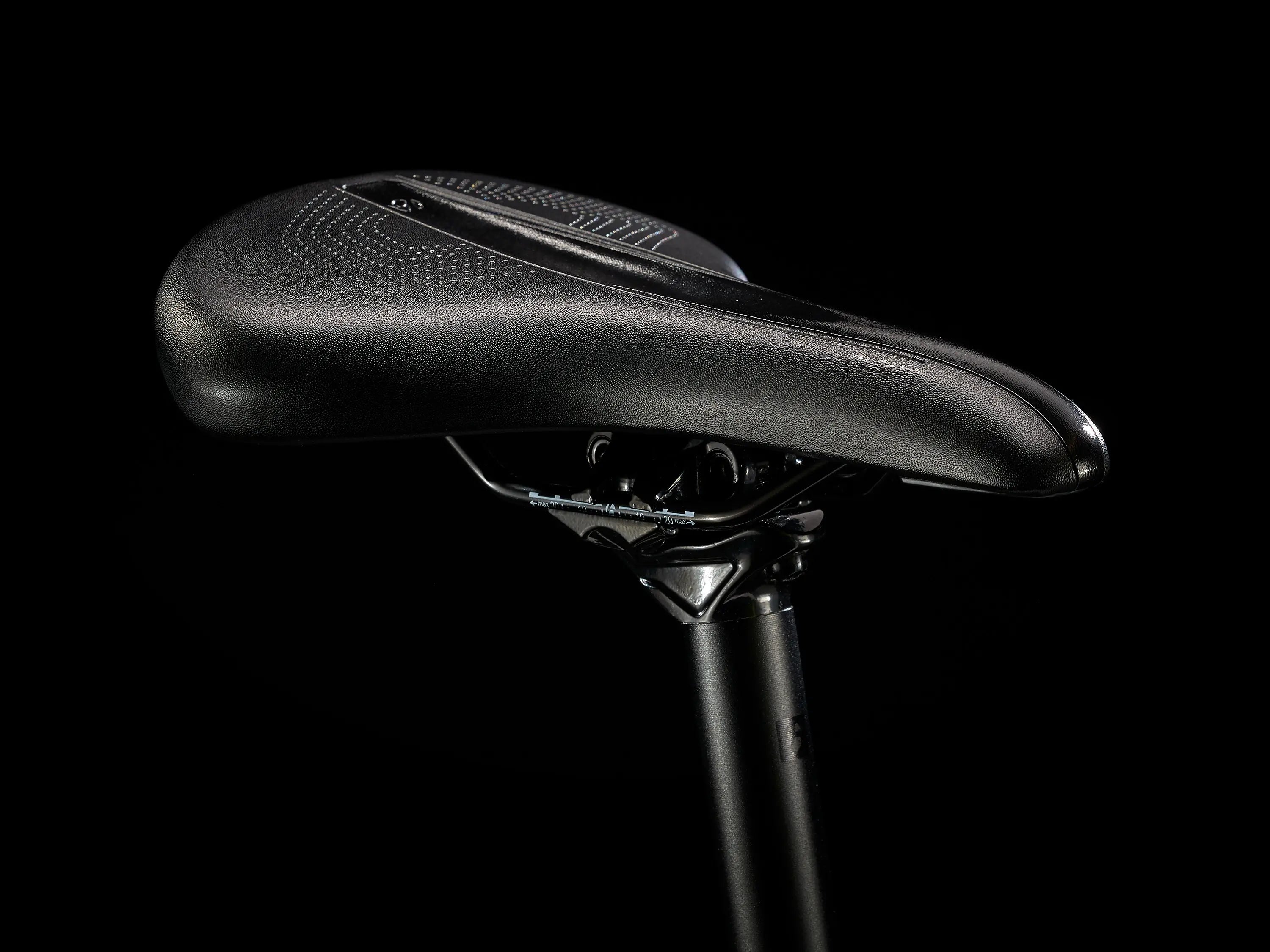

Saddle Bontrager H1
Seatpost Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

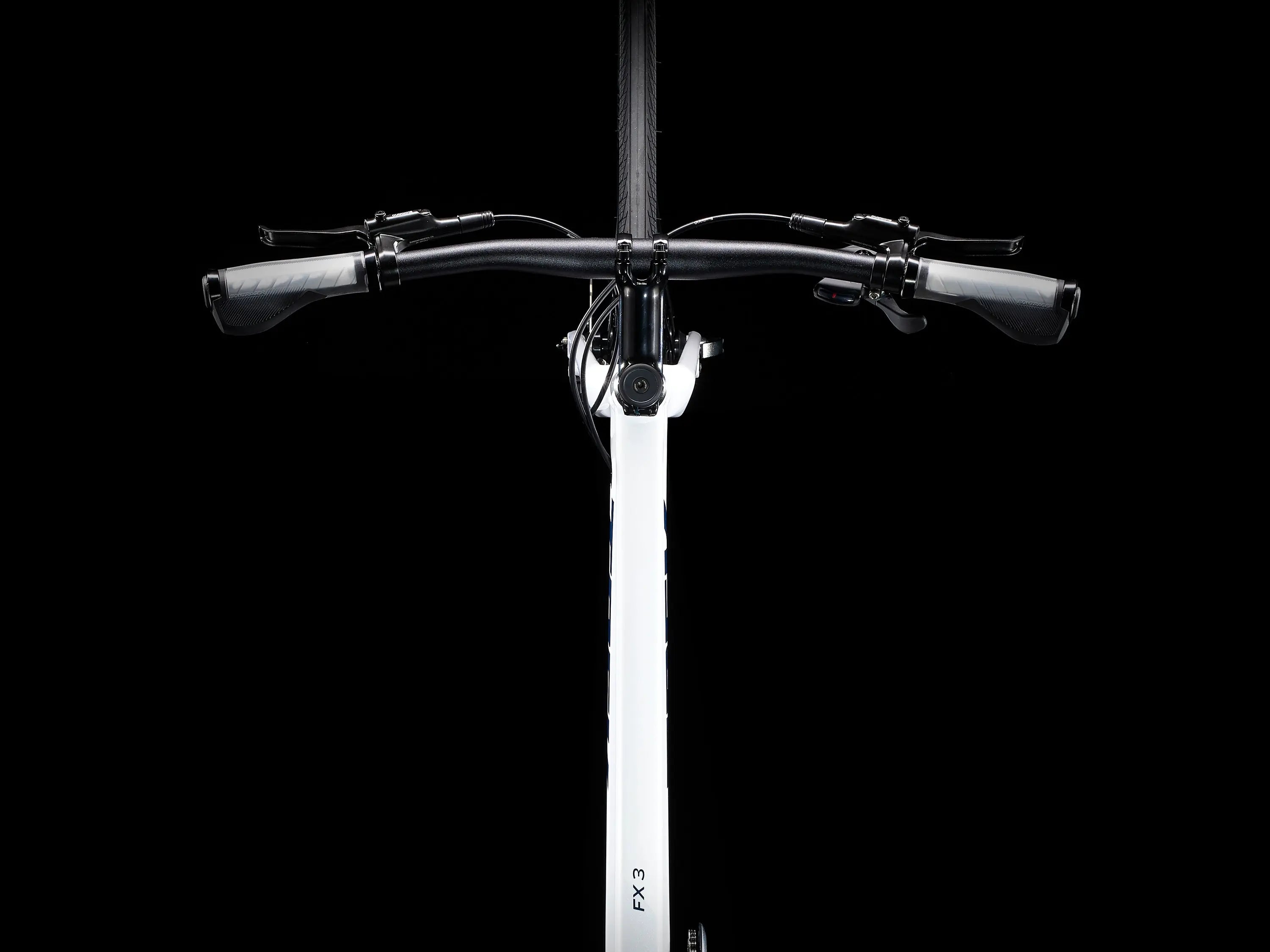

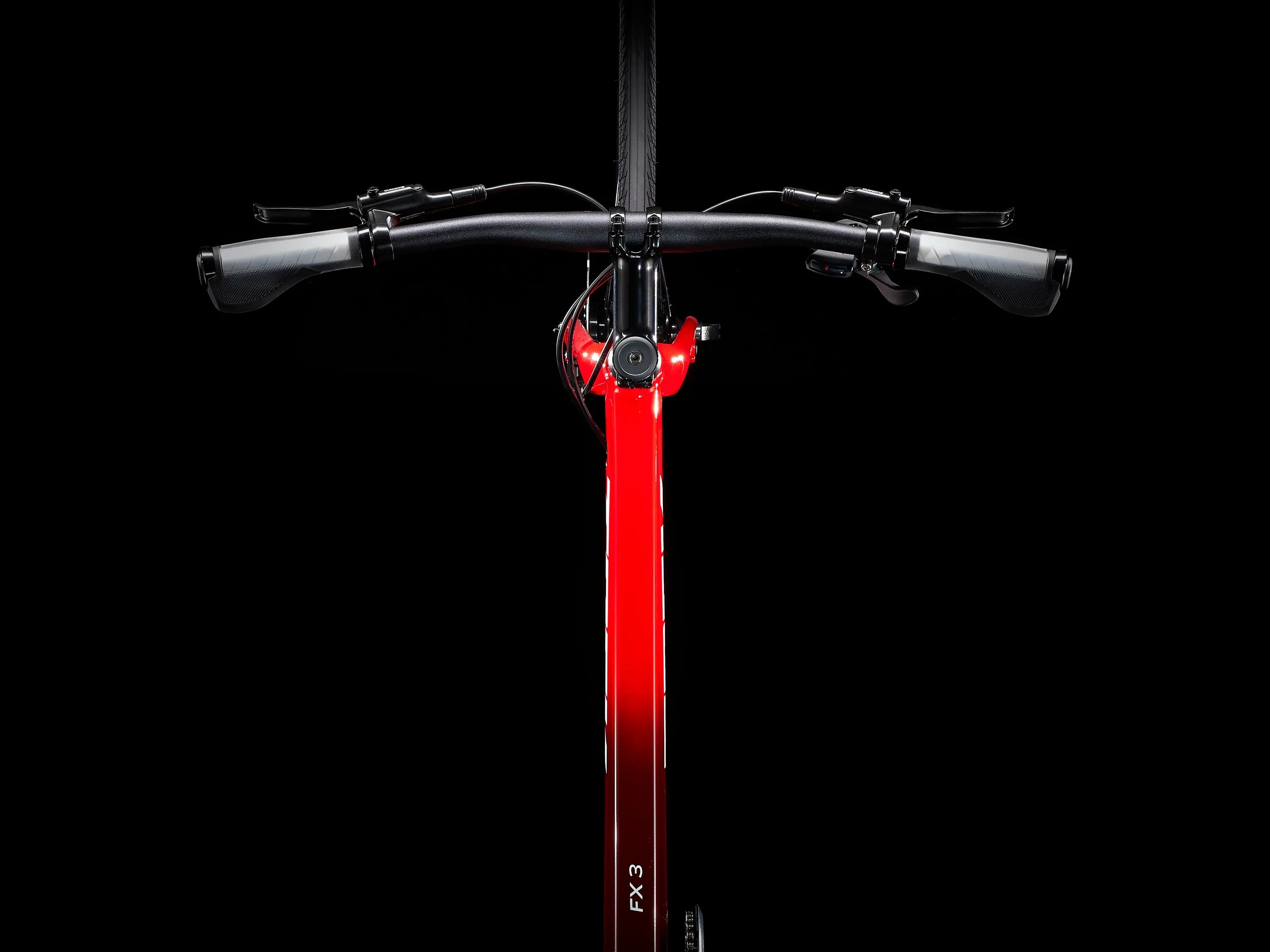

*Handlebar Size: S, M

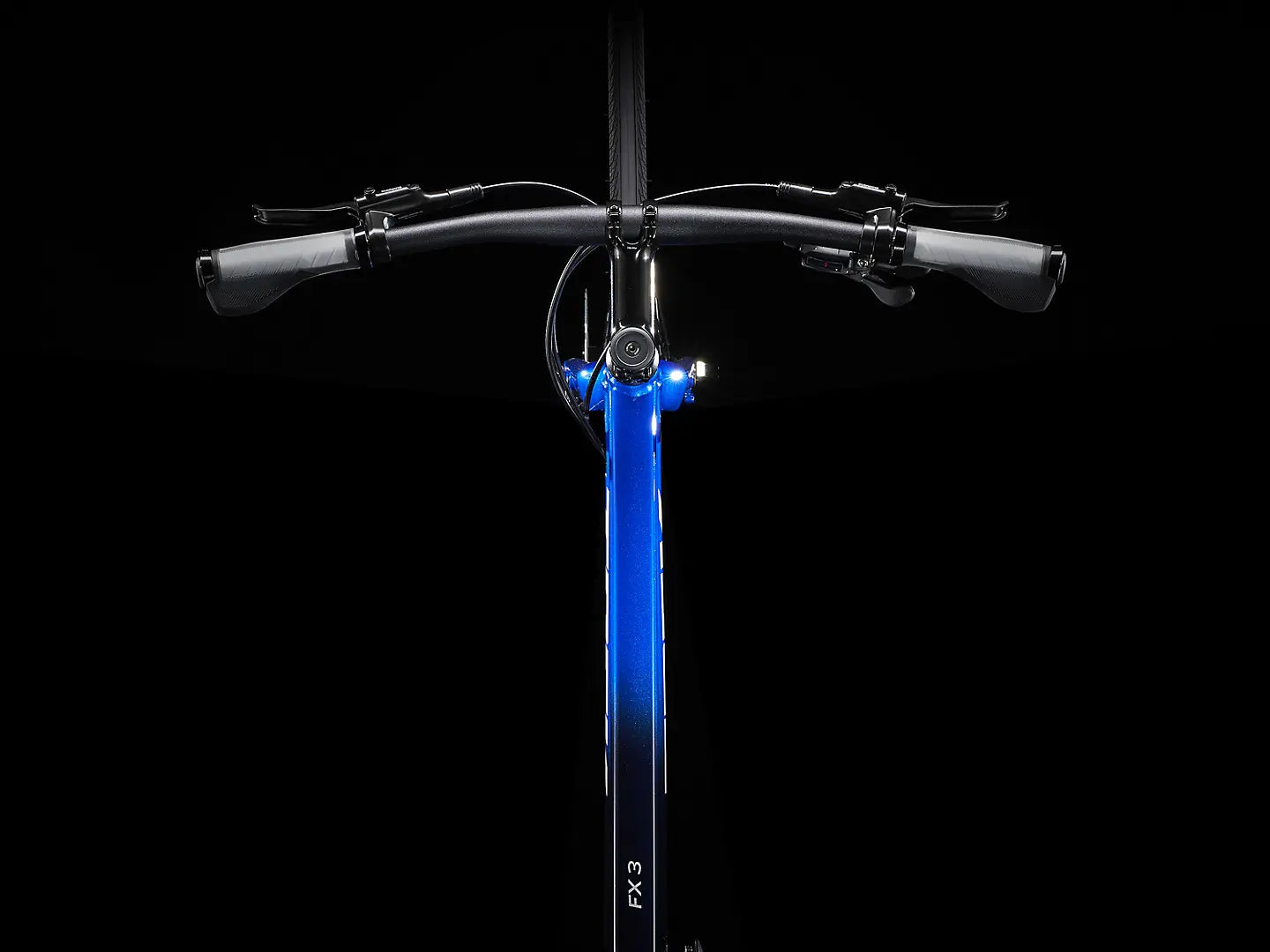

Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size: L, XL, XXL
Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width

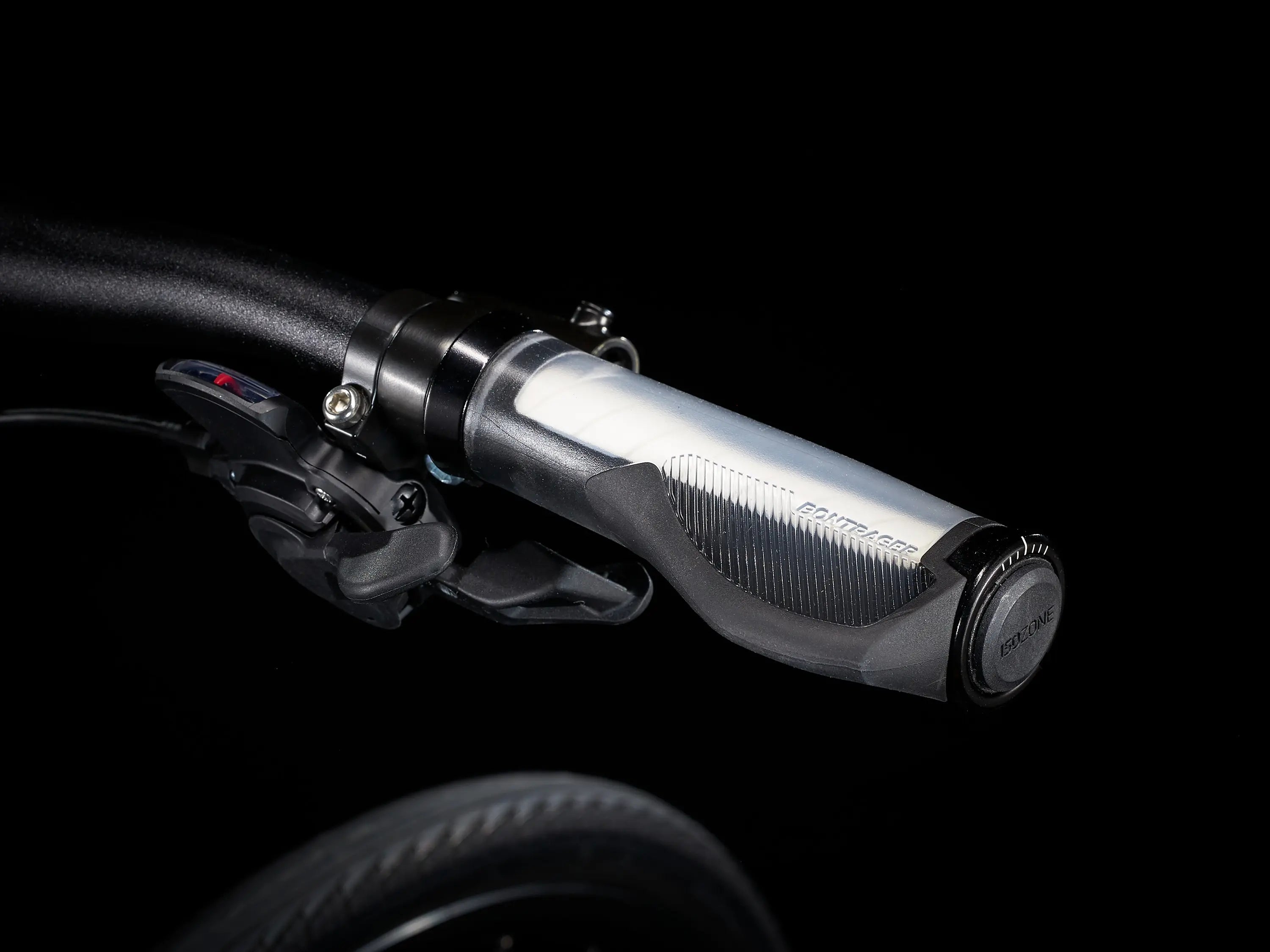

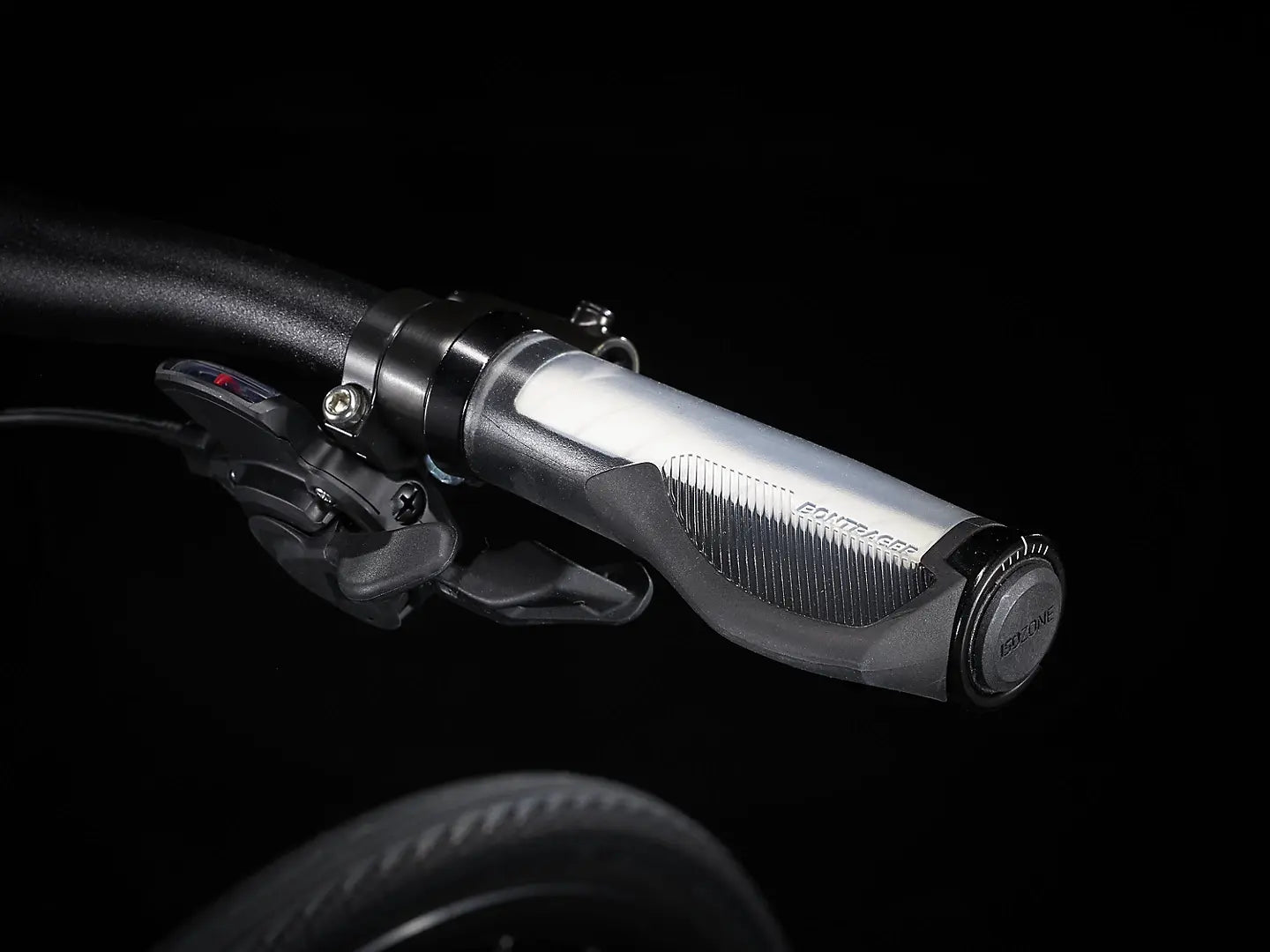

Grips Bontrager Satellite IsoZone Plus, lock-on, ergonomic
*Stem Size: S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: M, L
Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length
Size: XL, XXL
Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length
Head set 1 1/8" steel threadless

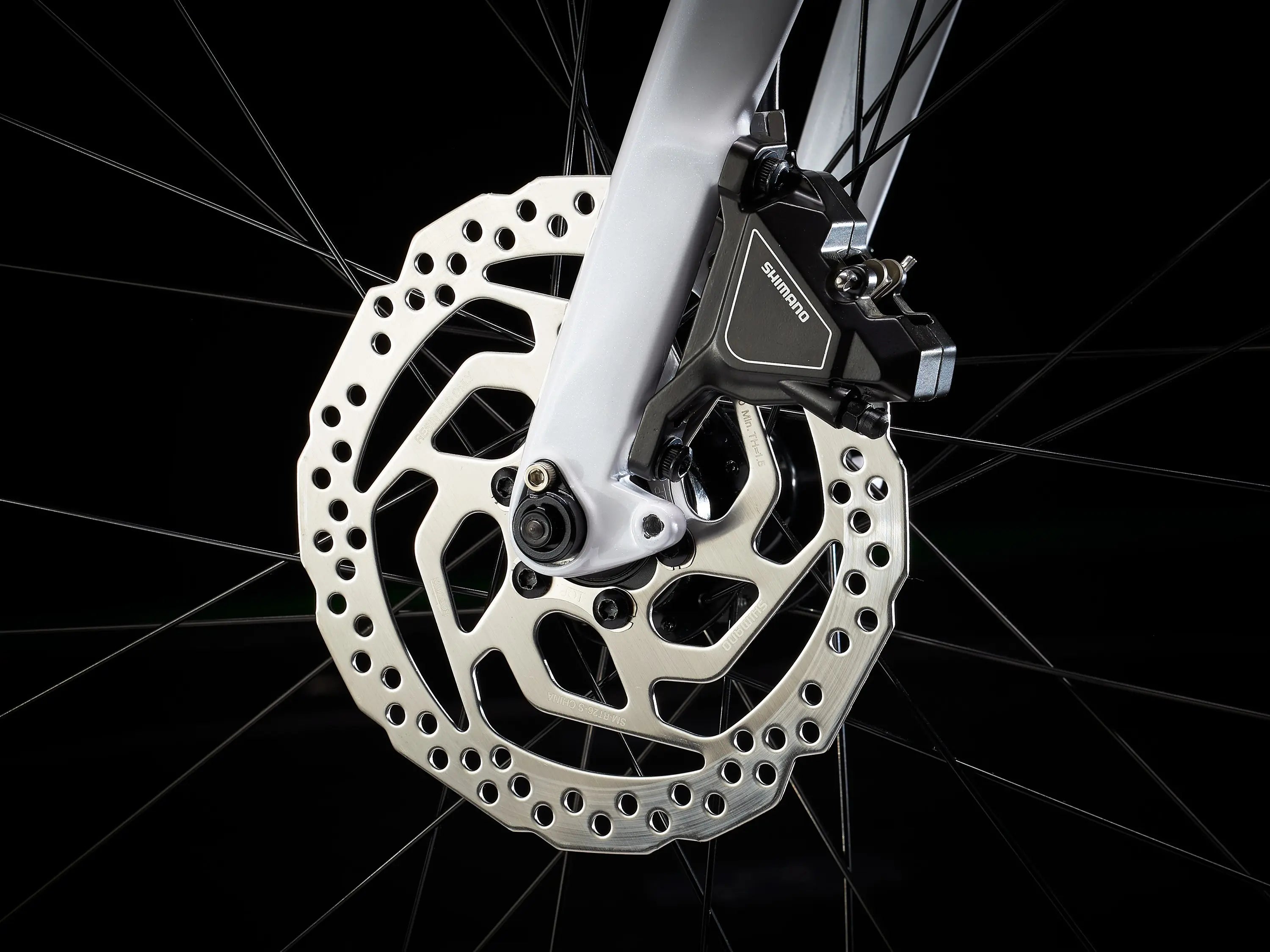

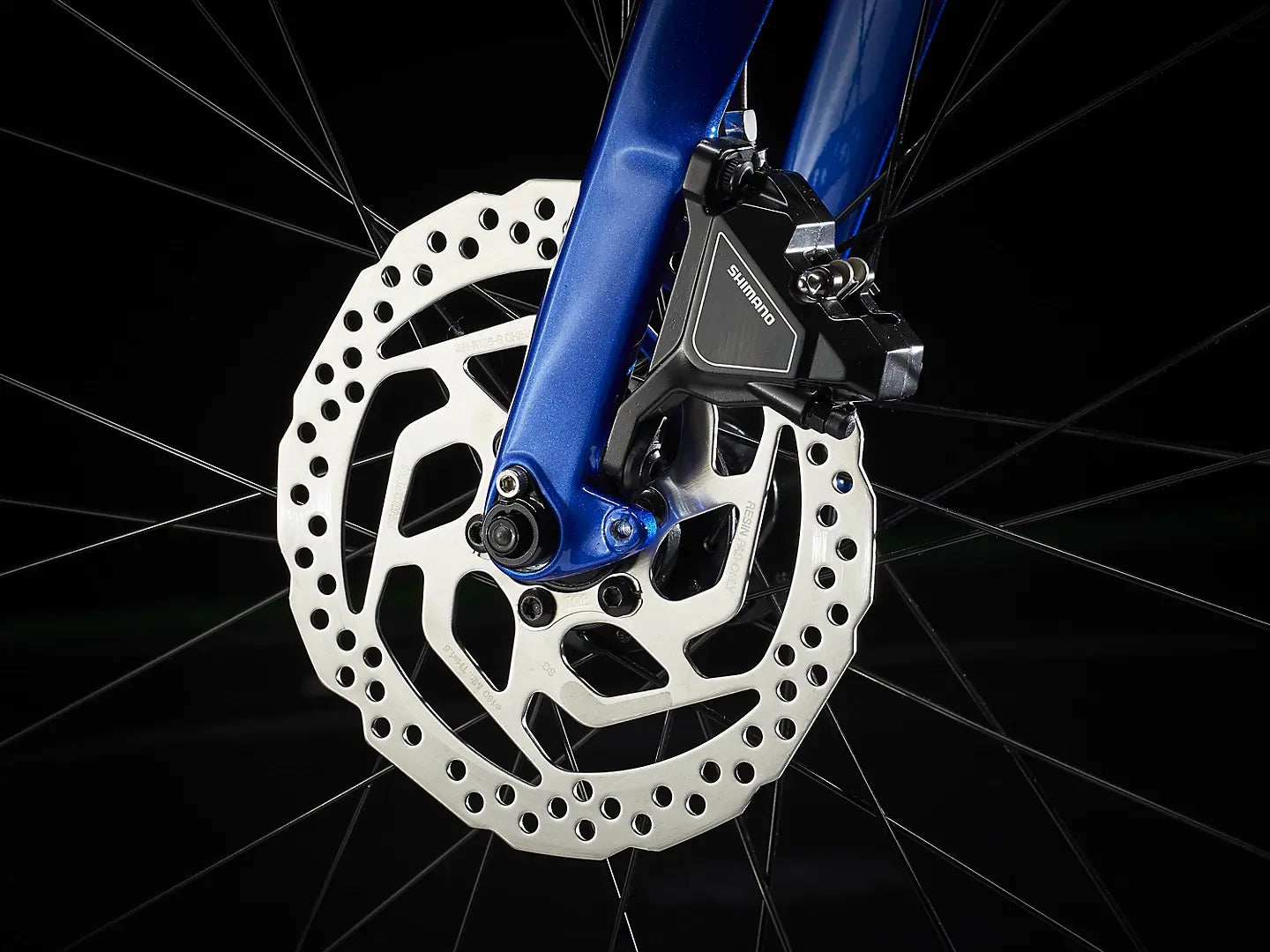

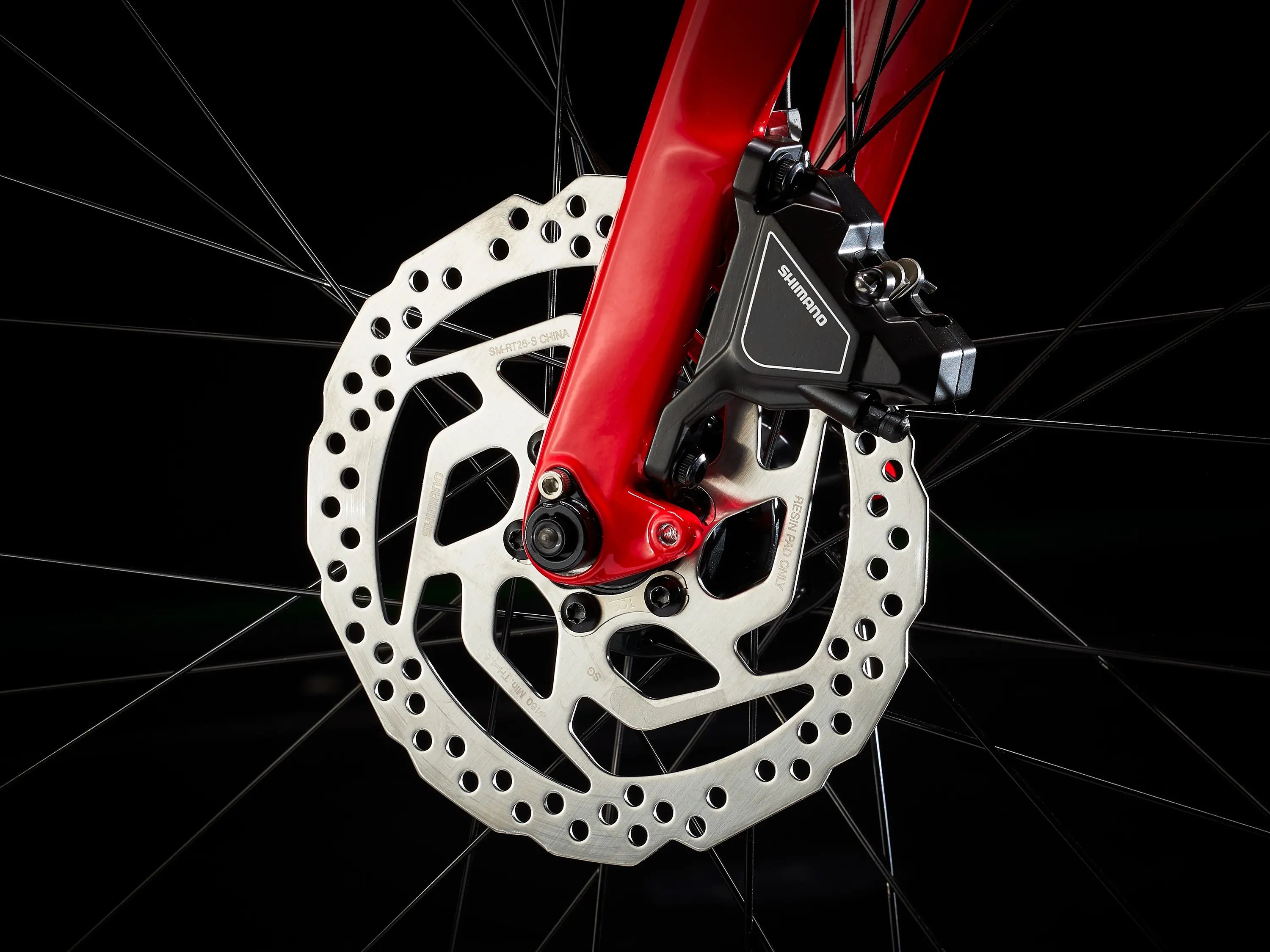

*Brake Size: S, M, L, XL, XXL
Shimano hydraulic disc, MT201 lever, UR300 calliper
Size: S, M, L, XL, XXL
Shimano MT201 hydraulic disc, flat-mount, 160 mm rotor
Brake rotor Shimano RT26, 6-bolt,160 mm
Brake pad Brake Pad Shimano Resin Disc Pad B01S

Weight

Weight M - 11.74 kg / 25.88 lb
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

Size

XS

S

M

L

XL

2XL

Rider Height

147 - 155 cm

4'10" - 5'1"

155 - 165 cm

5'1" - 5'5"

165 - 175 cm

5'5" - 5'9"

175 - 186 cm

5'9" - 6'1"

186 - 197 cm

6'1" - 6'6"

197 - 203 cm

6'6" - 6'8"

Inseam

69 - 73 cm

27" - 29"

72 - 78 cm

28" - 31"

77 - 83 cm

30" - 33"

82 - 88 cm

32" - 35"

87 - 93 cm

34" - 37"

92 - 95 cm

36" - 37"

Sizing table
Frame size letter Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
S 700c 38.1 74.5° 11.5 70.5° 54.2 29.6 6.5 45 5.0 7.5 105.9 70.4 39.3 53.9
M 700c 44.5 74.0° 13.0 71.5° 55.7 29.6 6.5 45 5.0 6.8 106.0 73.8 39.7 55.7
L 700c 50.8 73.5° 16.0 71.5° 57.1 29.6 6.5 45.0 5.0 6.8 107.0 79.9 39.8 58.6
XL 700c 57.2 73.0° 19.0 72.5° 58.7 29.6 6.5 45.0 5.0 6.2 107.0 84.8 39.8 61.8
XXL 700c 63.5 72.0° 22.0 72.5° 60.1 29.6 6.5 45.0 5.0 6.2 107.2 88.5 39.2 64.7
