Specs
Sizing
Geometry
Frameset

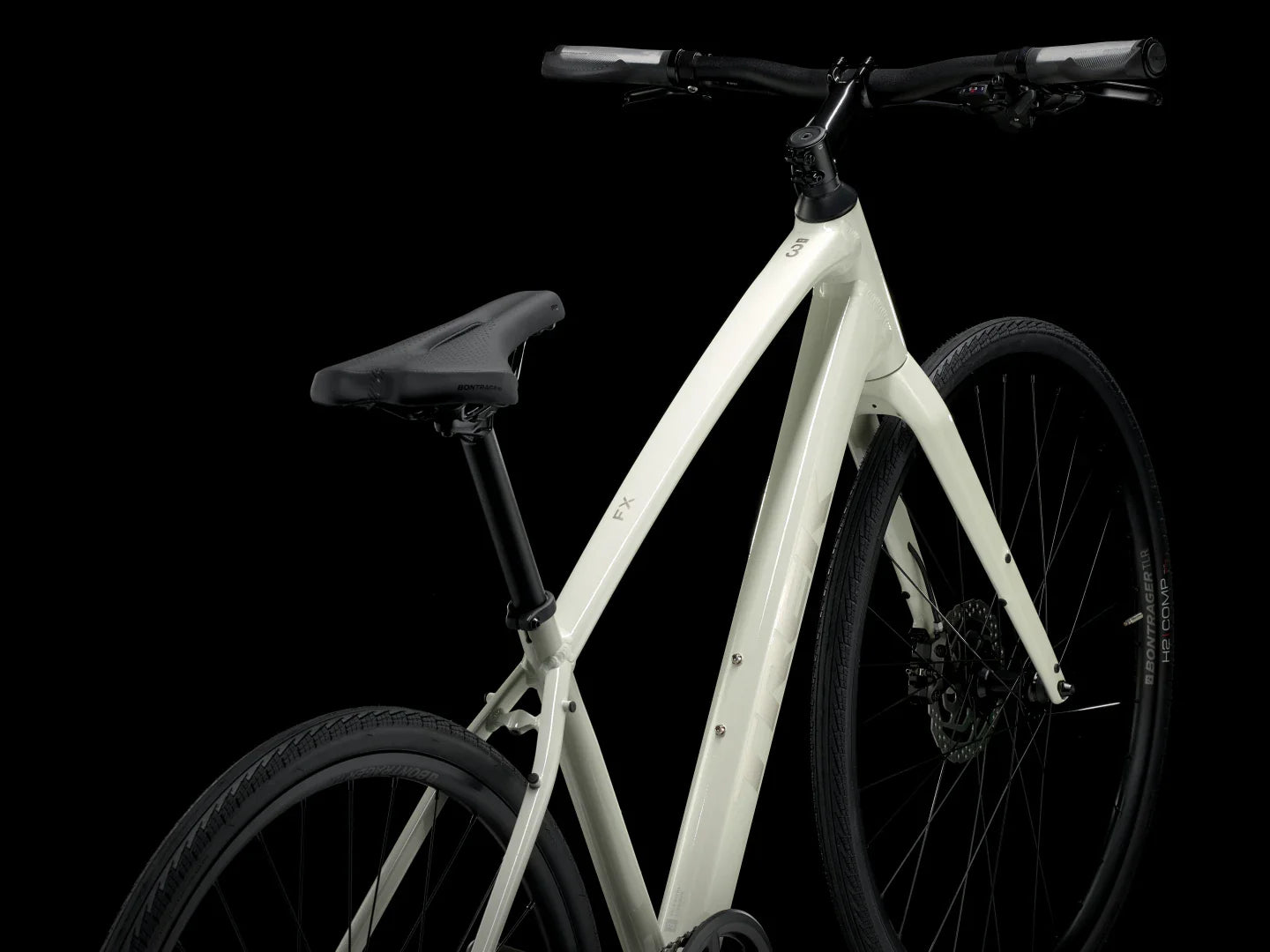

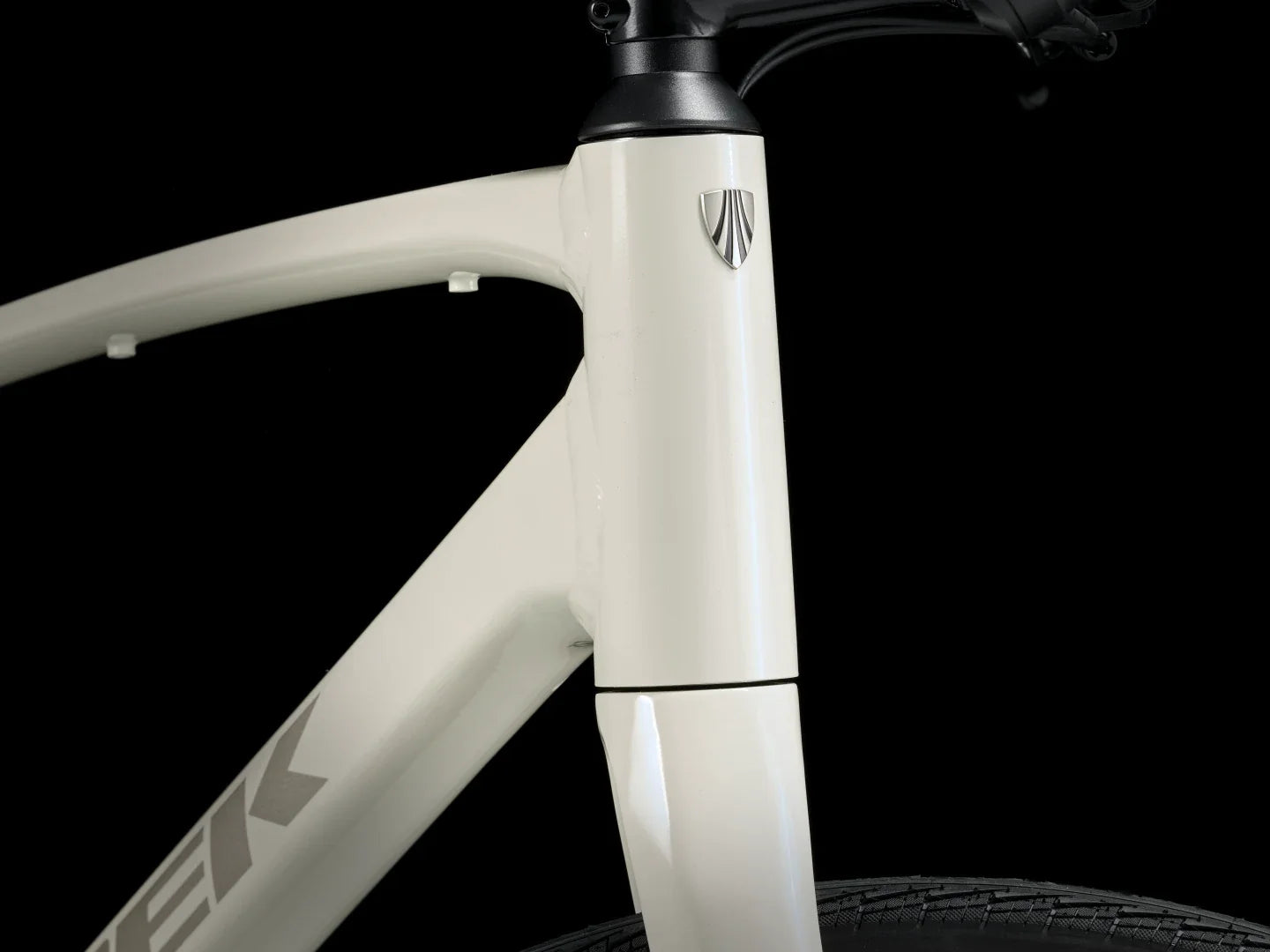

Frame Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Fork FX carbon, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR

Wheels

Hub front Formula DC-20, alloy, 6-bolt, 5x100mm QR
Skewer front 139x5mm bolt-on
Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Skewer rear 152x5mm QR

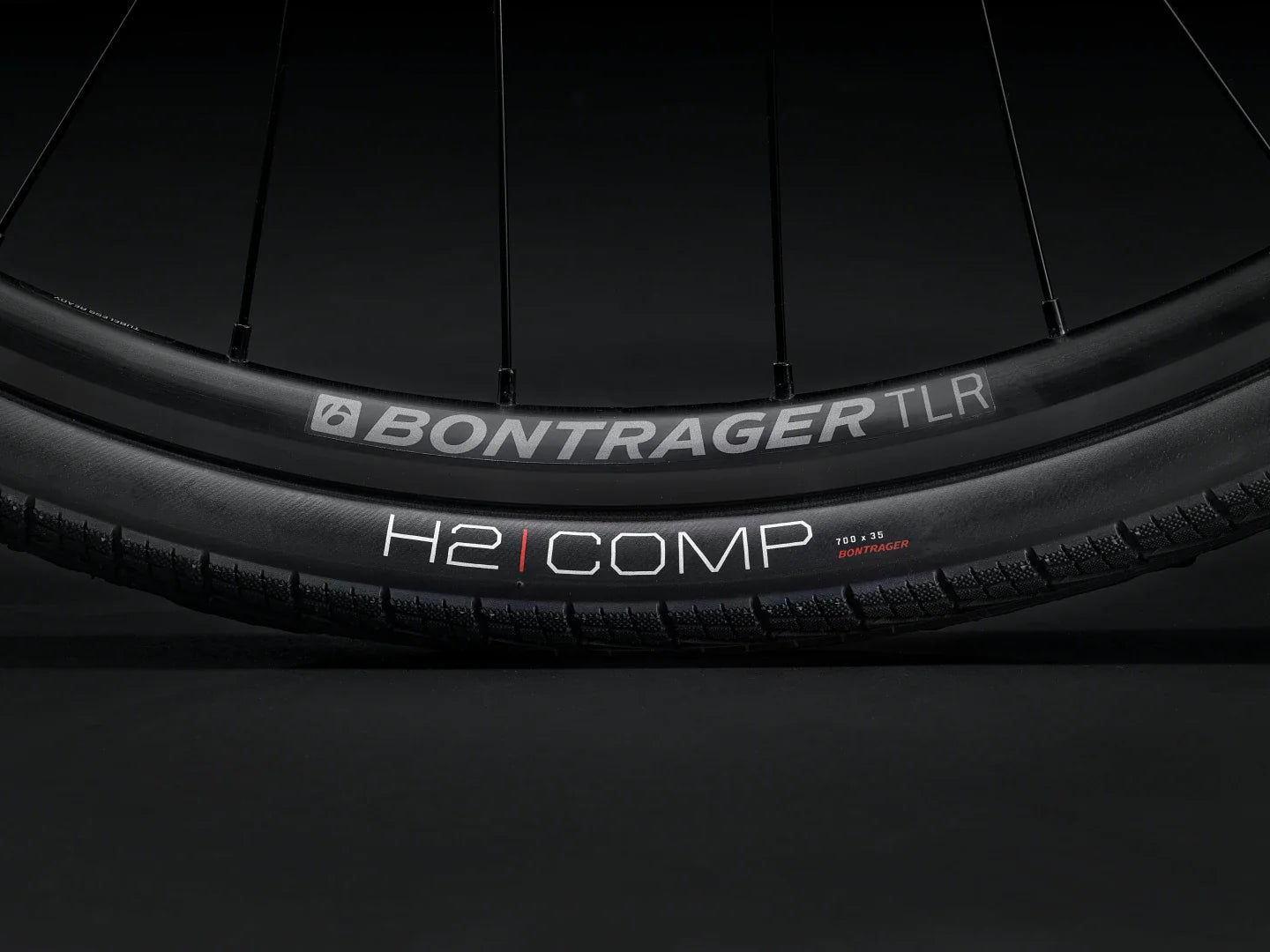

Rim Bontrager Tubeless Ready Disc, 32-hole, Presta valve
Tire Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm
Max tire size 700x40mm

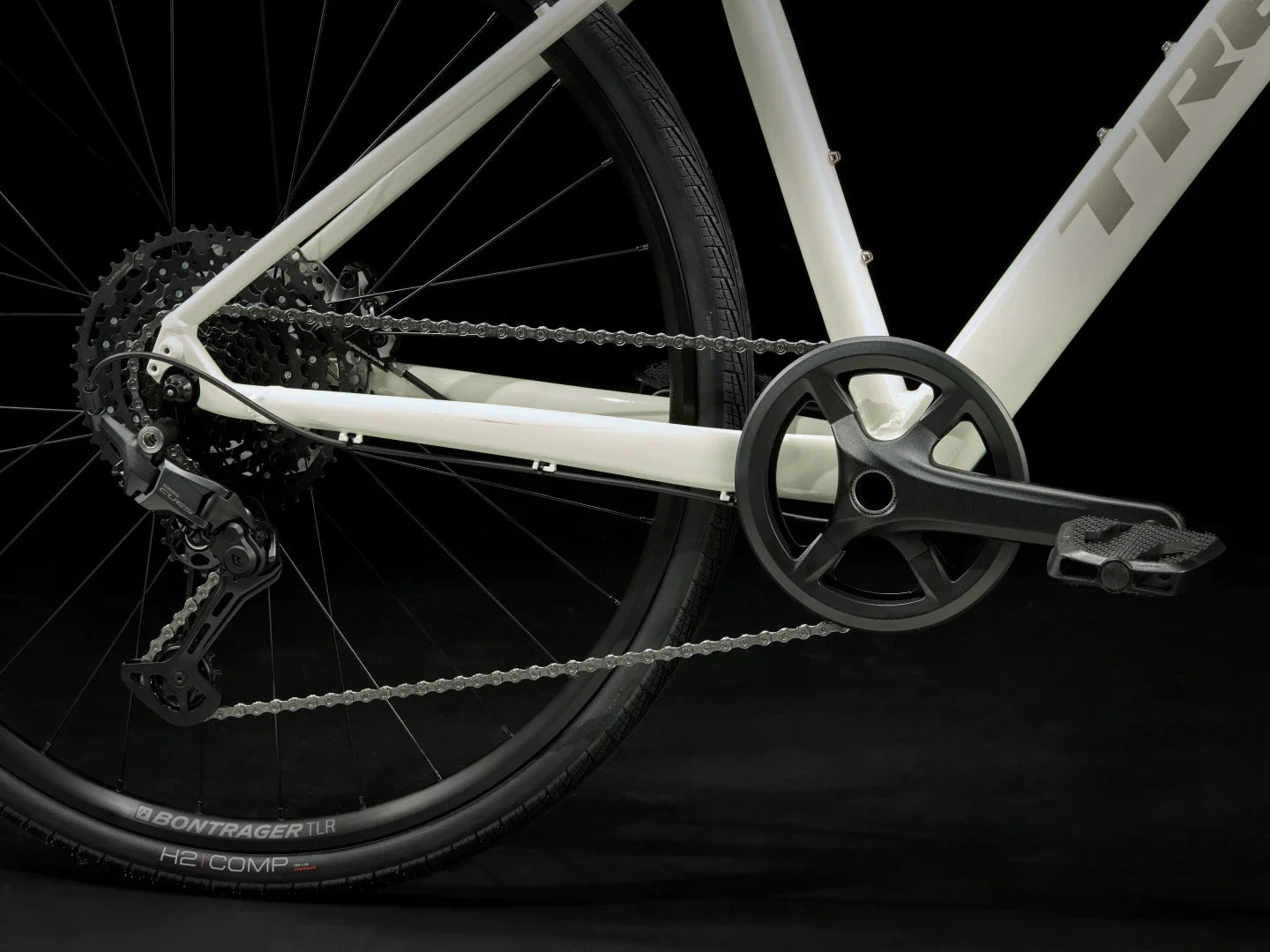

Drivetrain

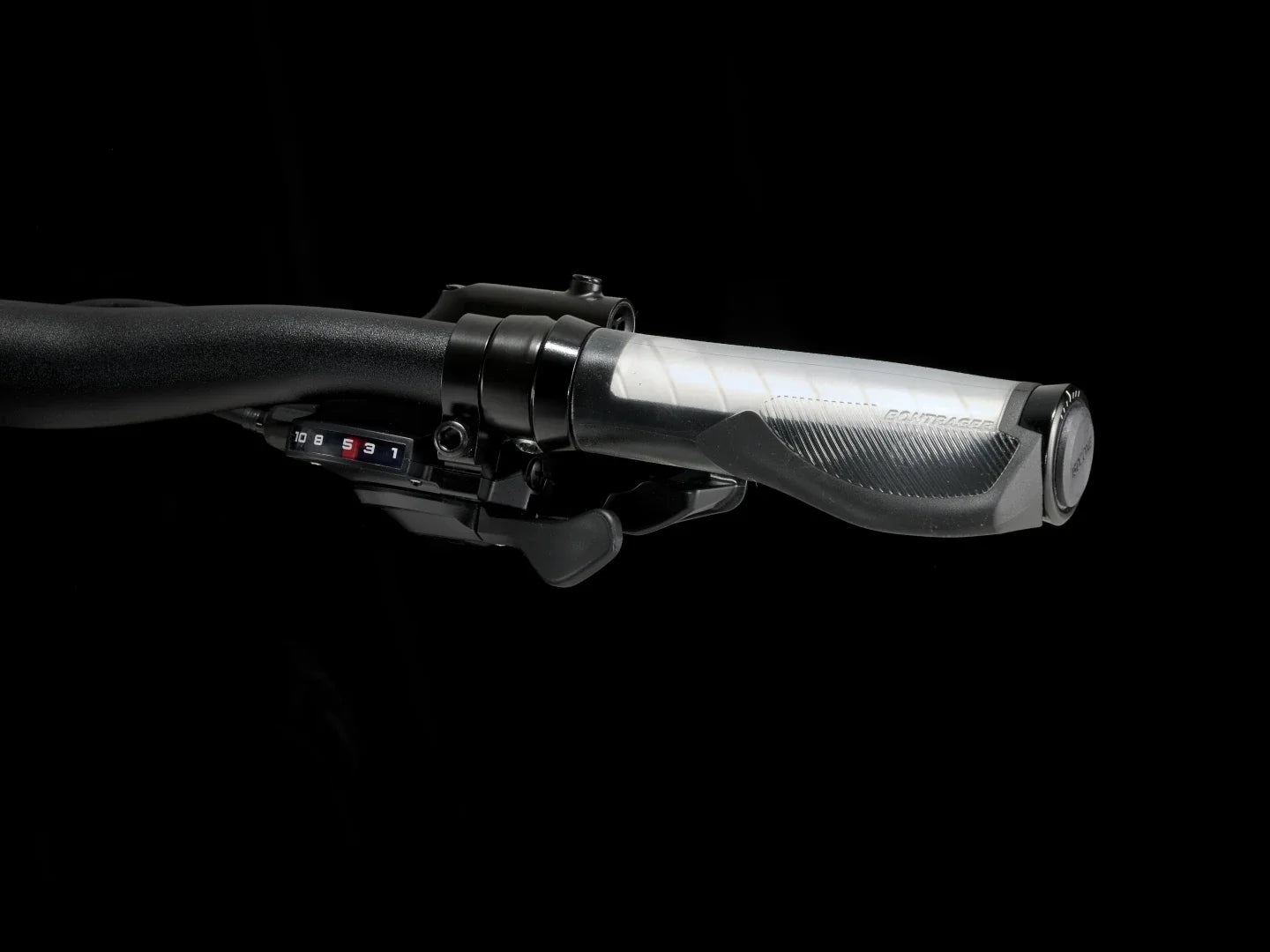

*Shifter Shimano CUES U6000 w/optical gear display, 10 speed
Rear derailleur Shimano CUES U6000 GS
Crank Prowheel alloy, 40T narrow-wide ring, 170mm length
Cassette Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
Chain Shimano LG500, 9/10/11 speed
Pedal Bontrager City pedals
Max chainring size 1x: 44T, 2x: 46/32

Components

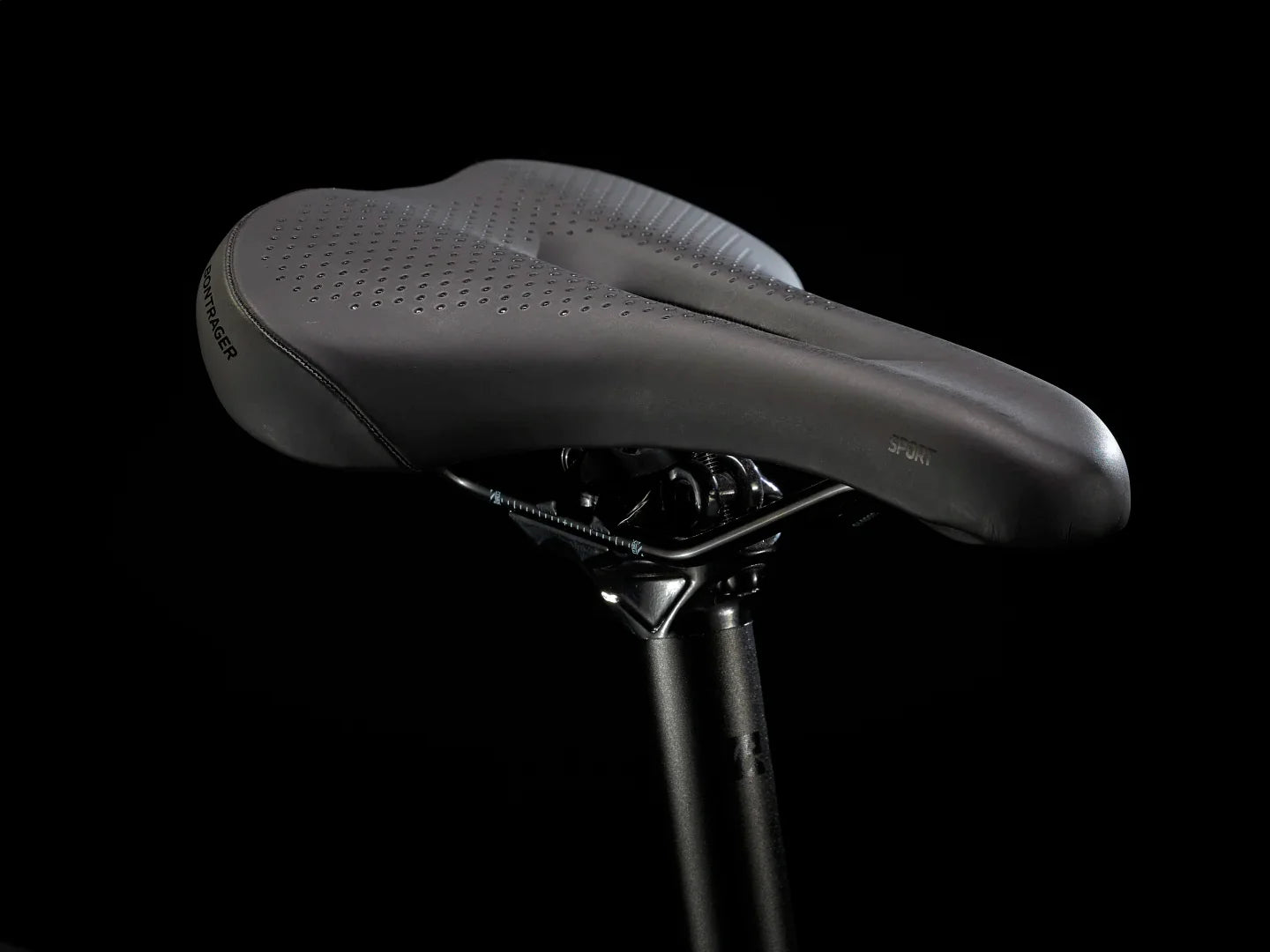

Saddle Bontrager H1
Seatpost Bontrager alloy, 27.2mm, 12mm offset, 330mm length

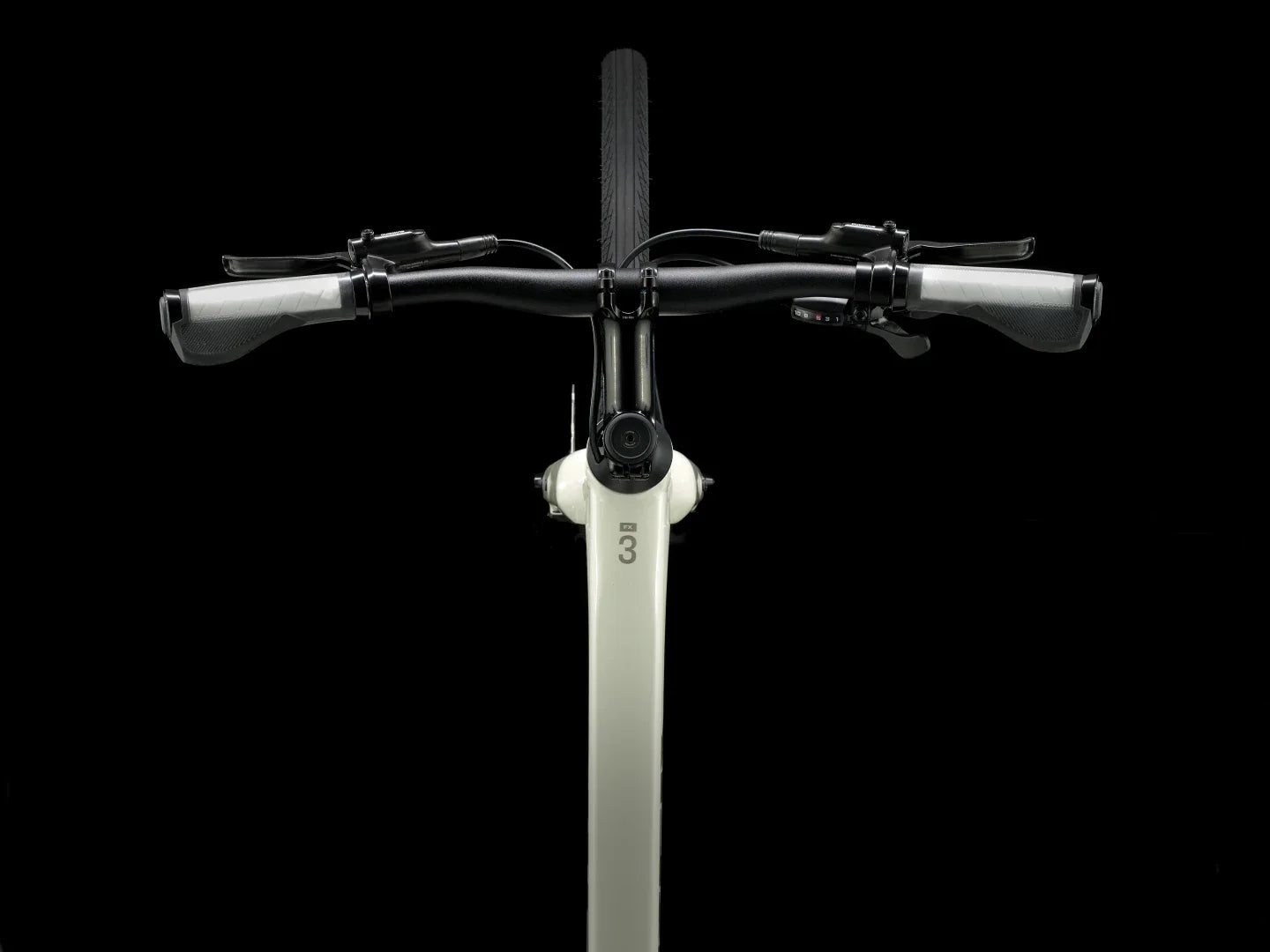

Handlebar Bontrager Satellite Plus IsoZone, alloy, 31.8mm, 15mm rise, 600mm width
Grips Bontrager Satellite IsoZone Plus, lock-on, ergonomic
Stem Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length

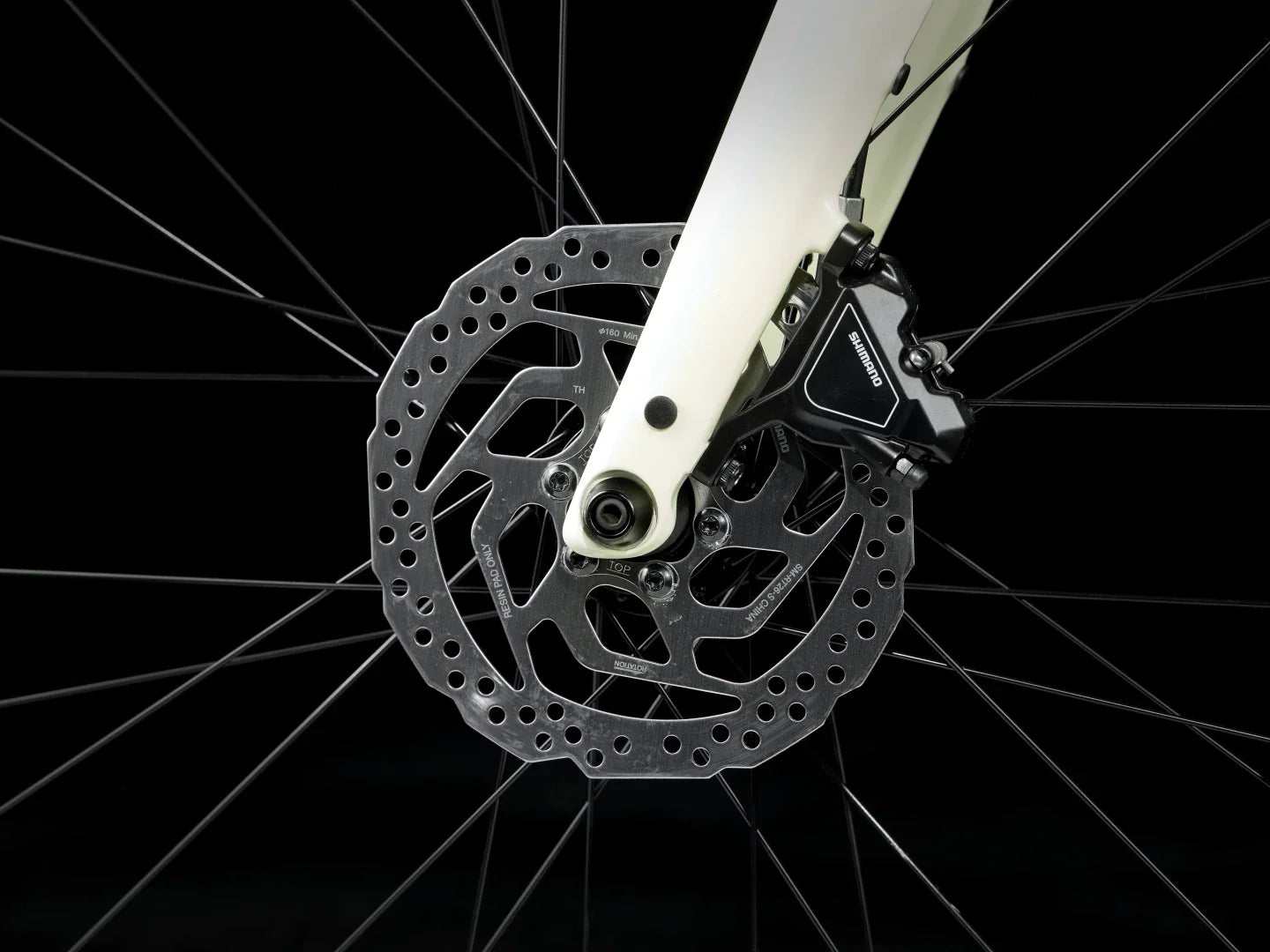

Brake Shimano hydraulic disc, MT201 lever, UR300 caliper
Brake rotor Shimano RT26, 6-bolt,160 mm
Rotor size Max brake rotor sizes: 160mm front & rear

Weight

Weight M - 11.50 kg / 25.36 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

Size

XS

S

M

L

XL

2XL

Rider Height

147 - 155 cm

4'10" - 5'1"

155 - 165 cm

5'1" - 5'5"

165 - 175 cm

5'5" - 5'9"

175 - 186 cm

5'9" - 6'1"

186 - 197 cm

6'1" - 6'6"

197 - 203 cm

6'6" - 6'8"

Inseam

69 - 73 cm

27" - 29"

72 - 78 cm

28" - 31"

77 - 83 cm

30" - 33"

82 - 88 cm

32" - 35"

87 - 93 cm

34" - 37"

92 - 95 cm

36" - 37"

All measurements provided in cm unless otherwise noted.

Sizing table
Frame size letter Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
XS 700c 40.0 75.0° 11.5 70.0° 52.8 28.5 6.5 44.7 5.0 7.4 105.2 67.5 38.3 54.3
