Compare color
  • dark-aquatic
Click on color/pattern to compare, click and drag images to reorder
Specs
Sizing
Geometry
Frameset

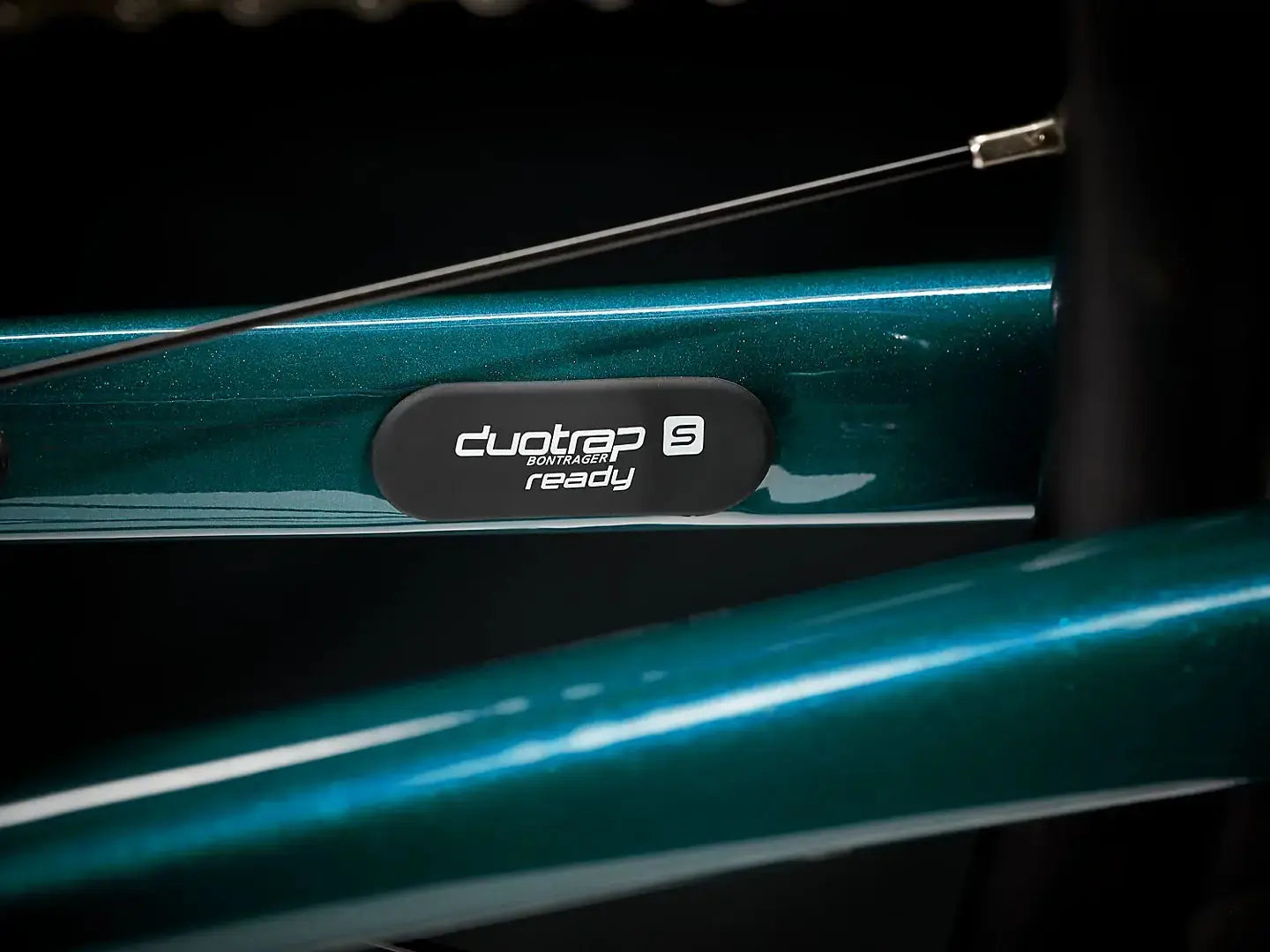

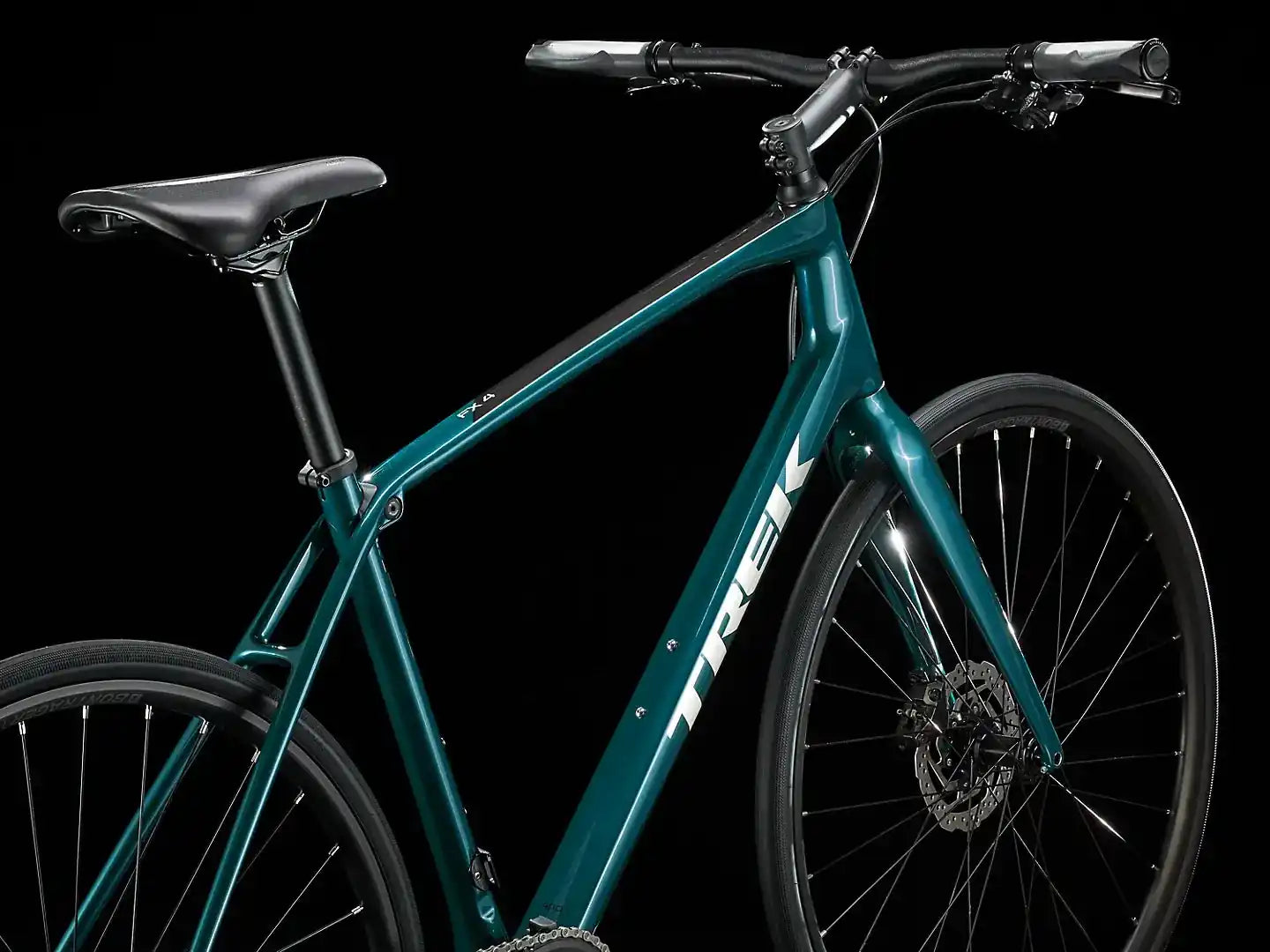

Frame 400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, mudguard mounts, flat mount disc, 135x5 mm ThruSkew
Frame with Fork 400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, mudguard mounts, flat mount disc, 135x5 mm ThruSkew
Fork Carbon, hidden mudguard mounts, flat mount disc, 5x100 mm thru-skew

Wheels

Hub front Formula CL-51 alloy, 100x5 mm QR
Skewer front 135x5 mm bolt-on
Hub rear Formula CL-52 alloy, 135x5 mm QR
Skewer rear 169x5 mm bolt-on

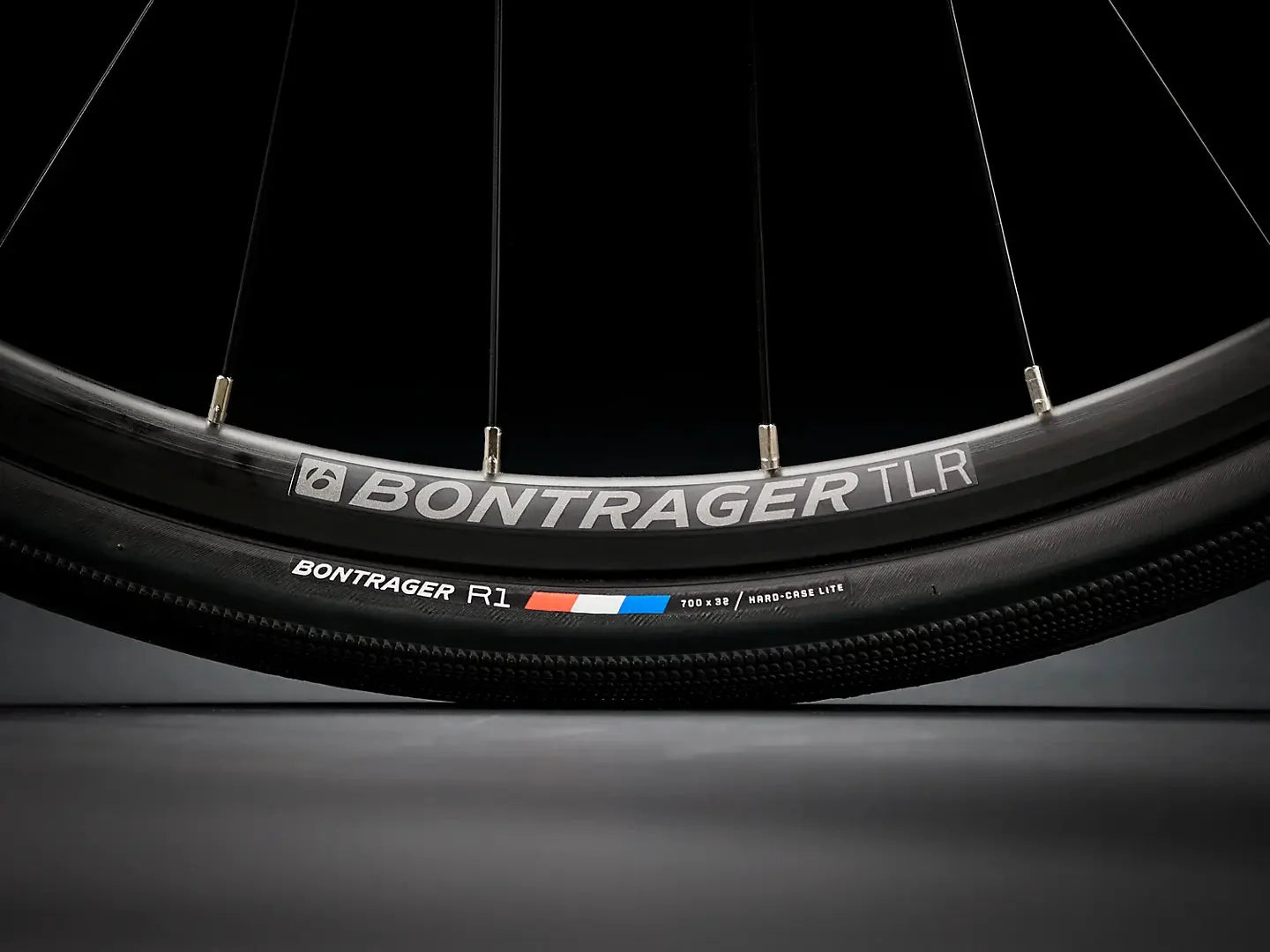

Rim Bontrager Paradigm, Tubeless Ready, 32-hole, 21 mm width, Presta valve
Tyre Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40 c
Max tyre size 42c without mudguards, 40c with mudguards

Drivetrain

*Shifter Size: XS, S, M, L, XL
Shimano Deore M4100, 10 speed
Size: XS, S, M, L, XL
Shimano Deore M5100, 11-speed
*Rear derailleur Size: XS, S, M, L, XL
Shimano Deore M5120, long cage
Size: XS, S, M, L, XL
Shimano Deore M5100, long cage, Shadow Plus

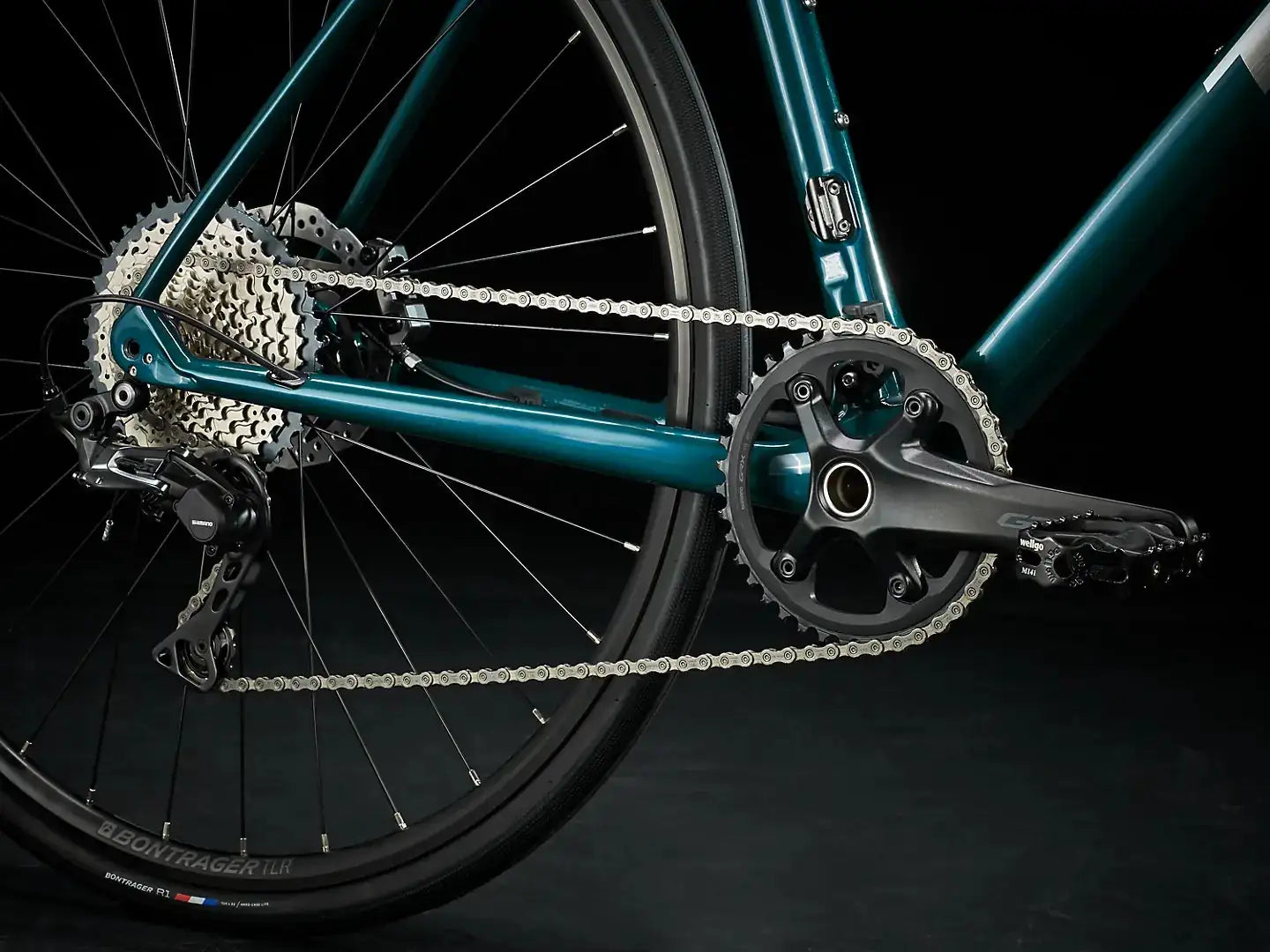

Crank Prowheel alloy, 42T narrow-wide ring, 175 mm length
*Cassette Size: XS, S, M, L, XL
Shimano Deore M4100, 11-46, 10-speed
Size: XS, S, M, L, XL
Shimano Deore M5100, 11-51, 11-speed
*Chain Size: XS, S, M, L, XL
KMC X10, 10-speed
Size: XS, S, M, L, XL
KMC X11, 11-speed
Pedal Bontrager City pedals
Max. chainring size 44T

Components

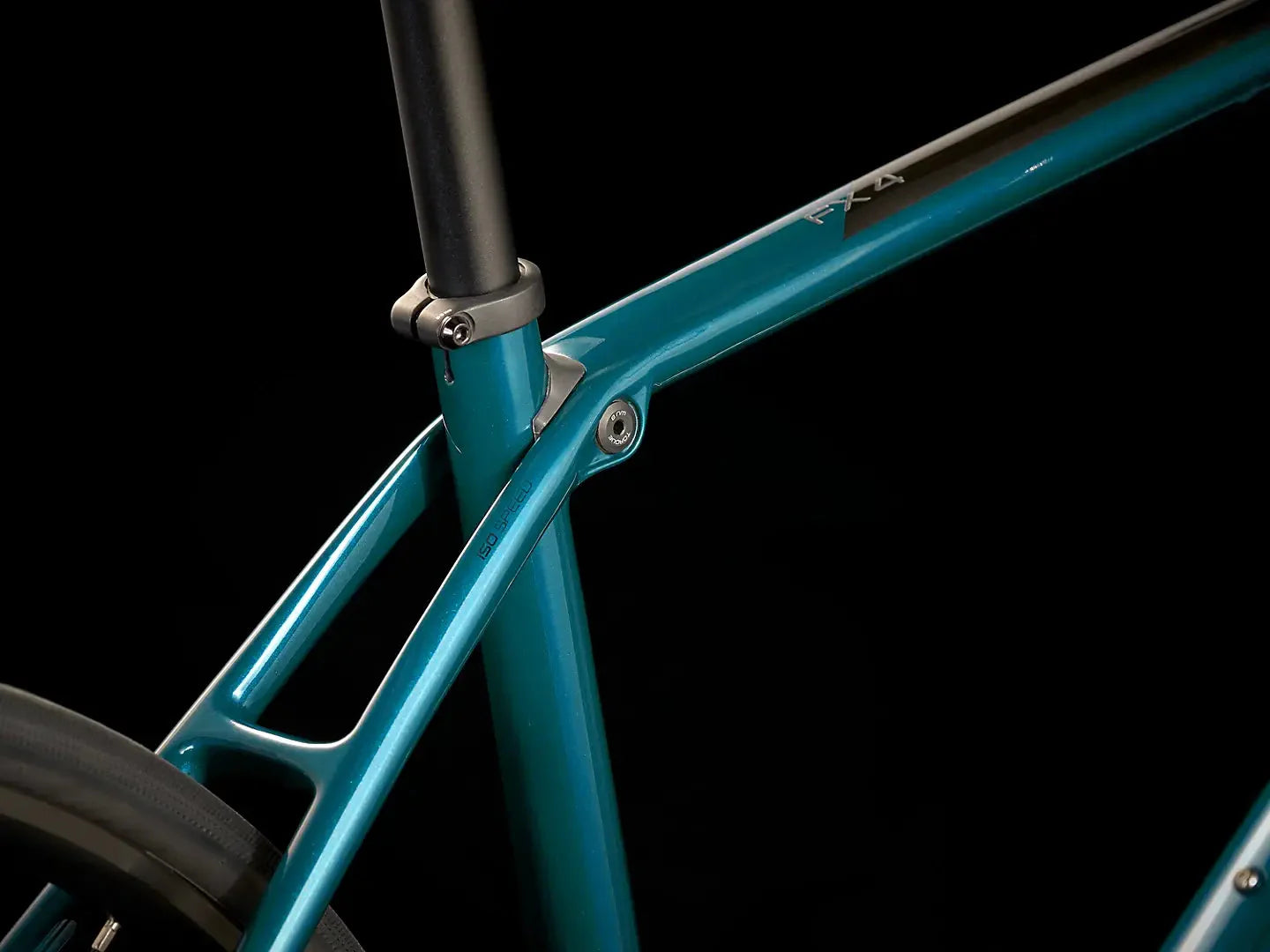

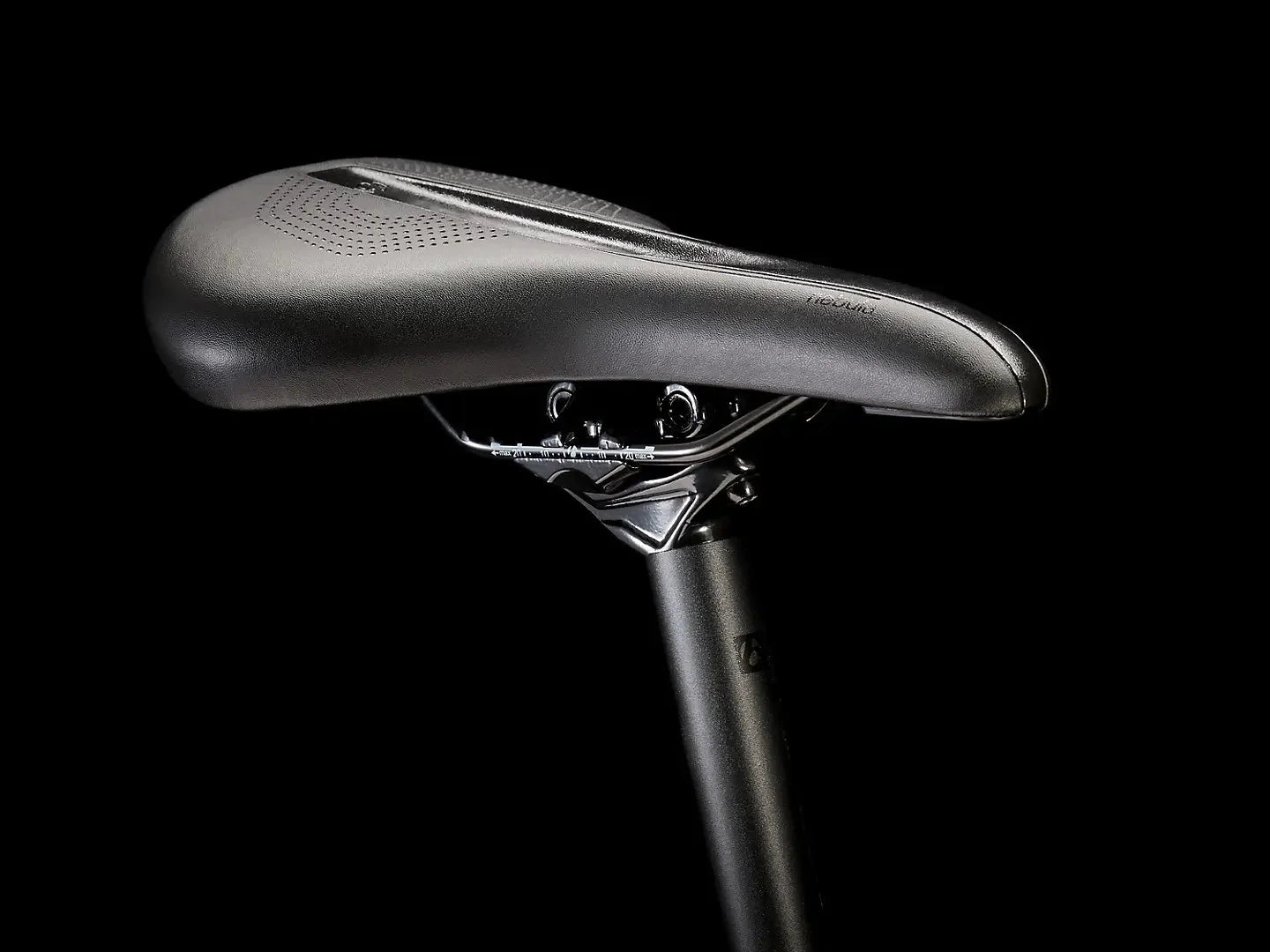

Saddle Bontrager H1 Seatpost Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length *Handlebar Size: XS, S

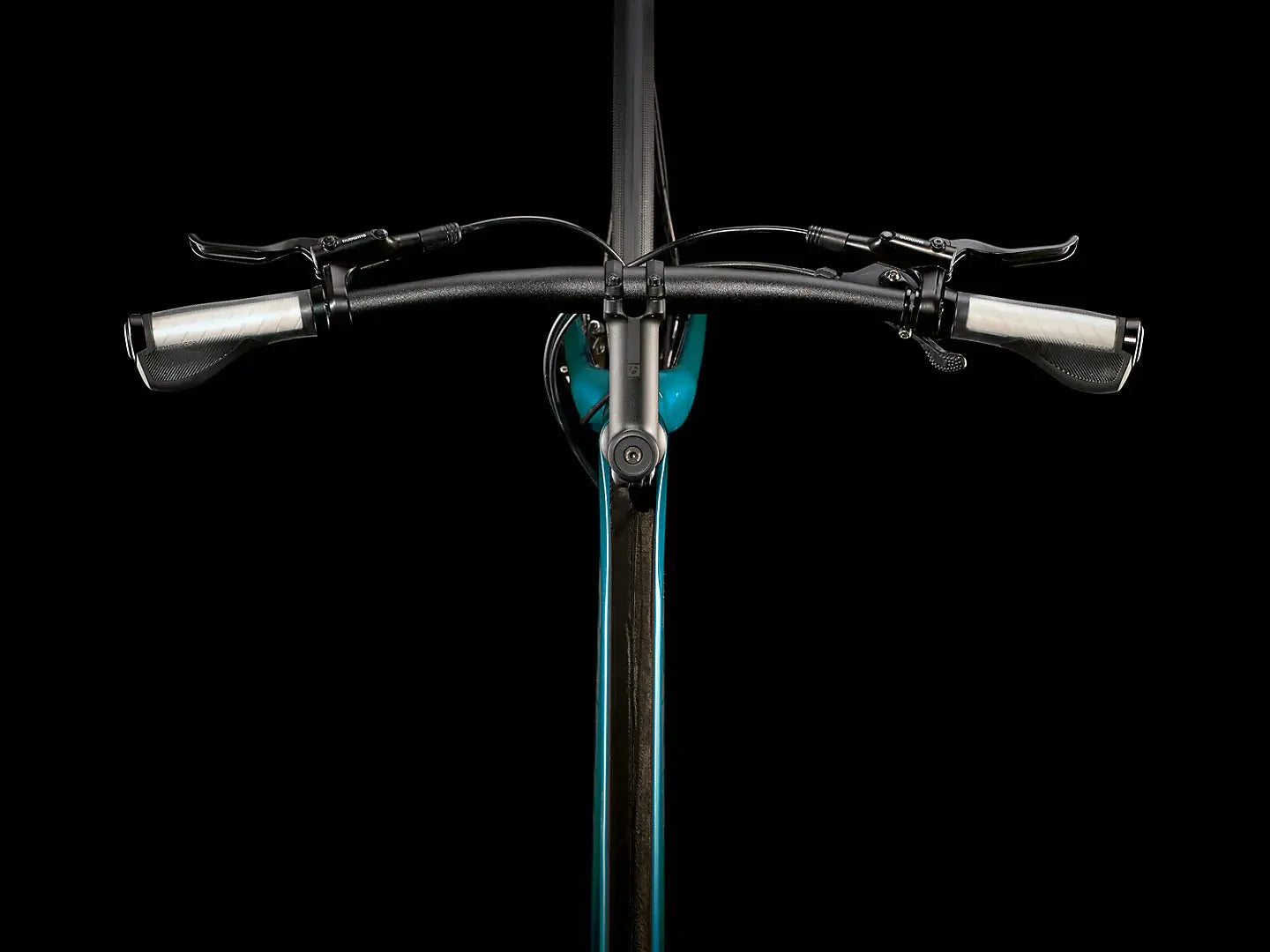

Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 600 mm width Size: M, L, XL

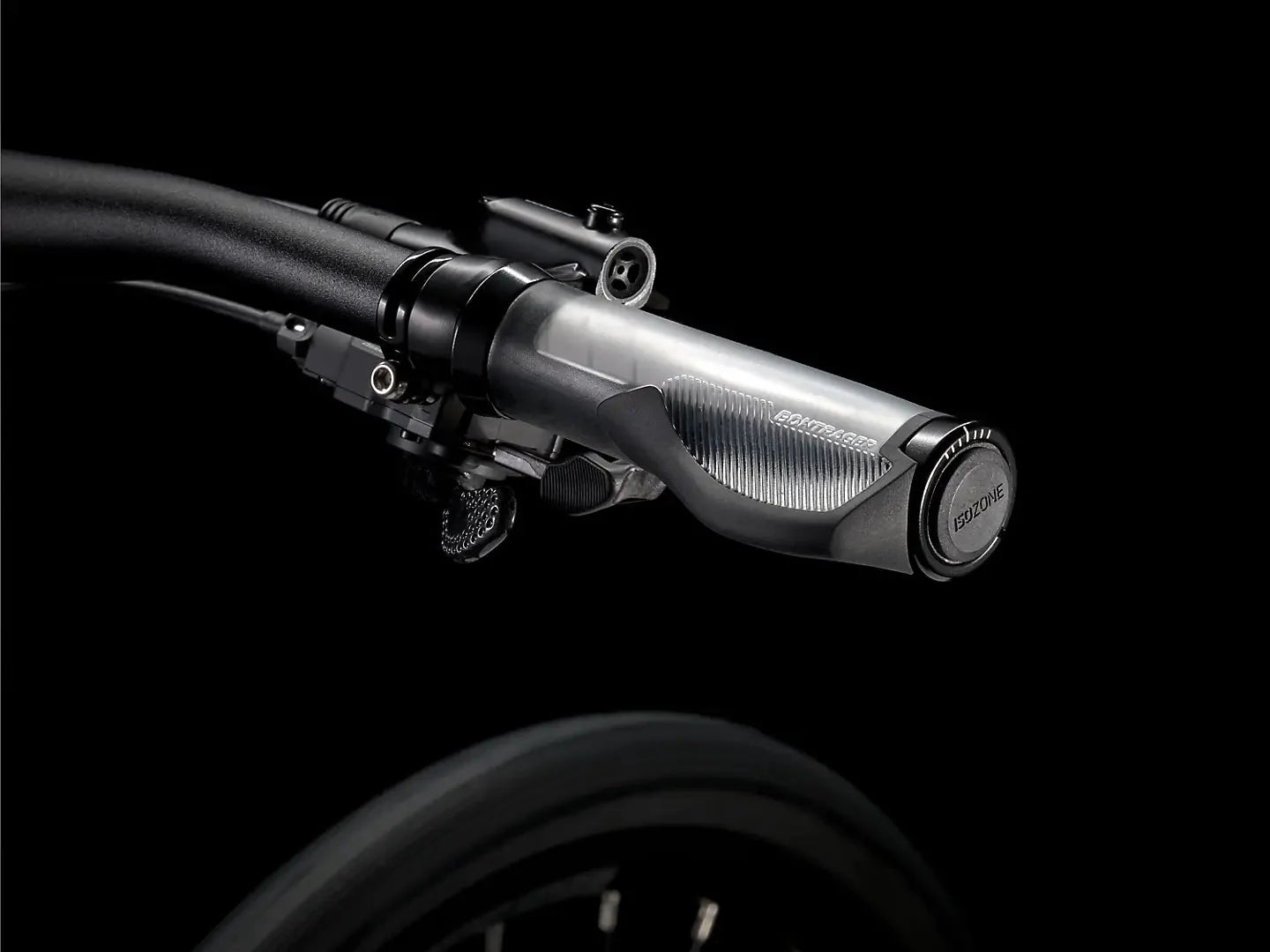

Bontrager Satellite Plus IsoZone, alloy, 31.8 mm, 15 mm rise, 660 mm width Grips Bontrager Satellite IsoZone Plus, lock-on, ergonomic *Stem Size: XS
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length Size: S, M
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length Size: L, XL

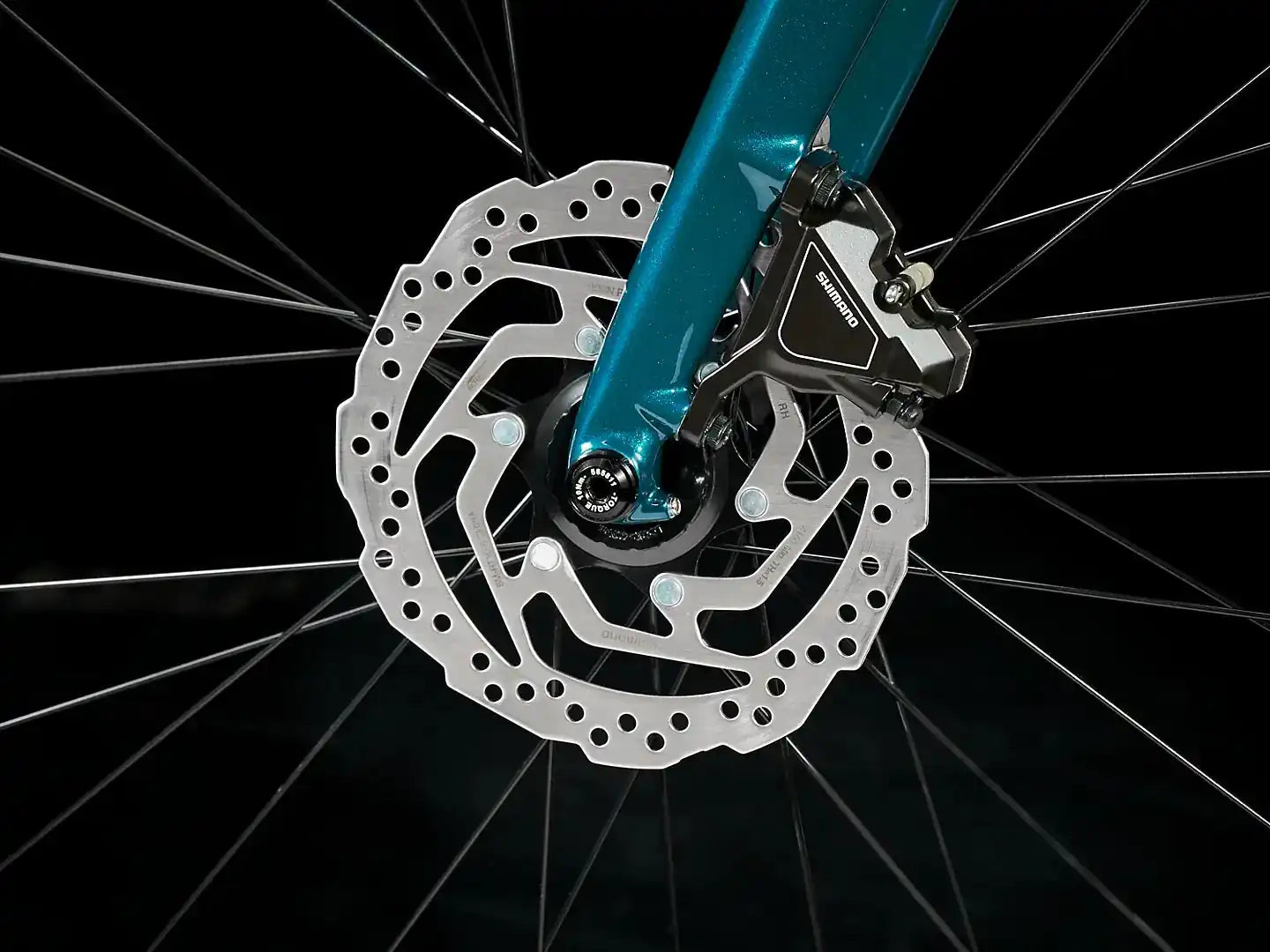

Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length Brake Shimano hydraulic disc, MT201 lever, UR300 calliper Brake rotor Shimano RT10, CenterLock, 160 mm Brake Set Promax DSK-927 hydraulic disc, flat mount, 160 mm rotor Rotor size Max brake rotor size: 160 mm

Weight

Weight M - 10.74 kg / 23.68 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

Size

XS

S

M

L

XL

Rider Height

147 - 155 cm

4'10" - 5'1"

155 - 165 cm

5'1" - 5'5"

165 - 175 cm

5'5" - 5'9"

175 - 186 cm

5'9" - 6'1"

186 - 197 cm

6'1" - 6'6"

Inseam

69 - 73 cm

27" - 29"

72 - 78 cm

28" - 31"

77 - 83 cm

30" - 33"

82 - 88 cm

32" - 35"

87 - 93 cm

34" - 37"

Sizing table
Frame size letter Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
XS 700c 35.6 75.0° 11.0 70.0° 53.1 28.5 6.5 43.8 5.0 7.4 104.5 68.4 38.8 53.3
S 700c 40.6 74.5° 13.5 70.5° 55.0 28.5 6.5 43.8 5.0 7.1 105.6 71.2 39.5 55.8
M 700c 45.7 74.0° 16.0 71.0° 57.0 28.5 6.5 43.8 5.0 7.0 106.7 74.3 40.3 58.4
L 700c 50.8 73.5° 18.5 71.5° 59.0 28.5 6.5 43.8 4.5 6.7 107.2 78.1 40.9 61.1
XL 700c 55.9 72.5° 21.0 72.5° 62.0 28.5 6.5 43.8 4.5 6.3 108.0 81.8 41.9 64.0
