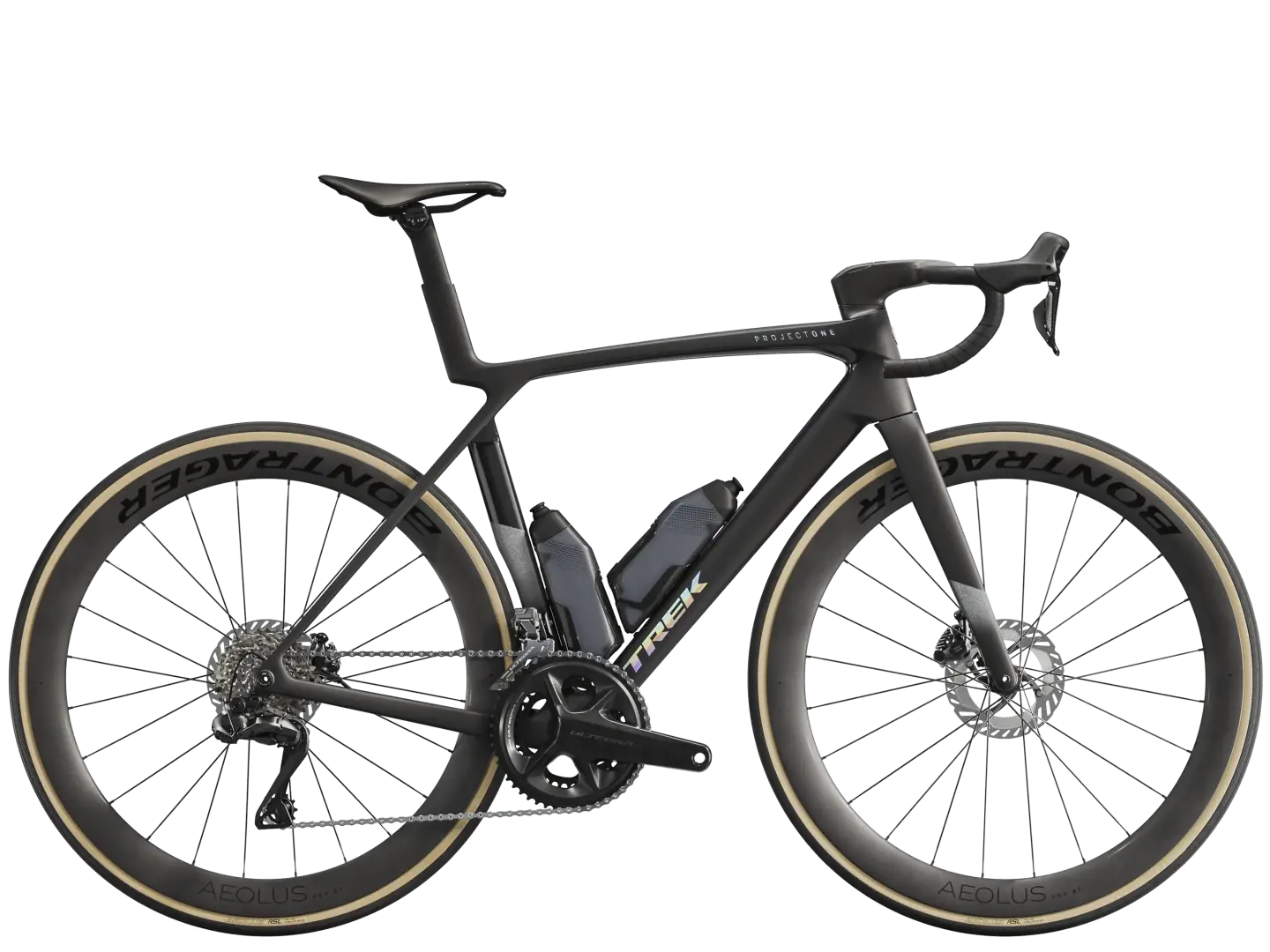

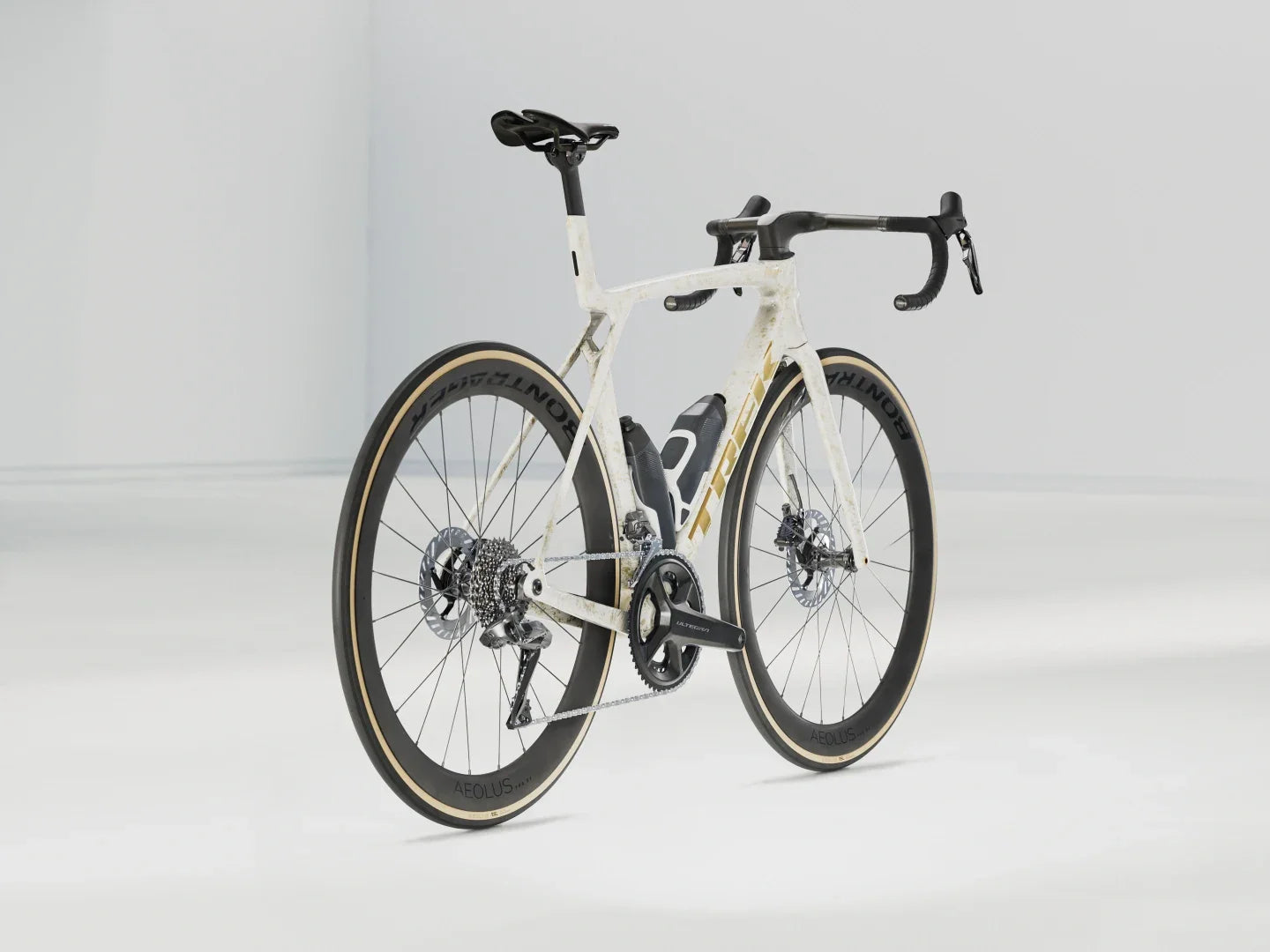

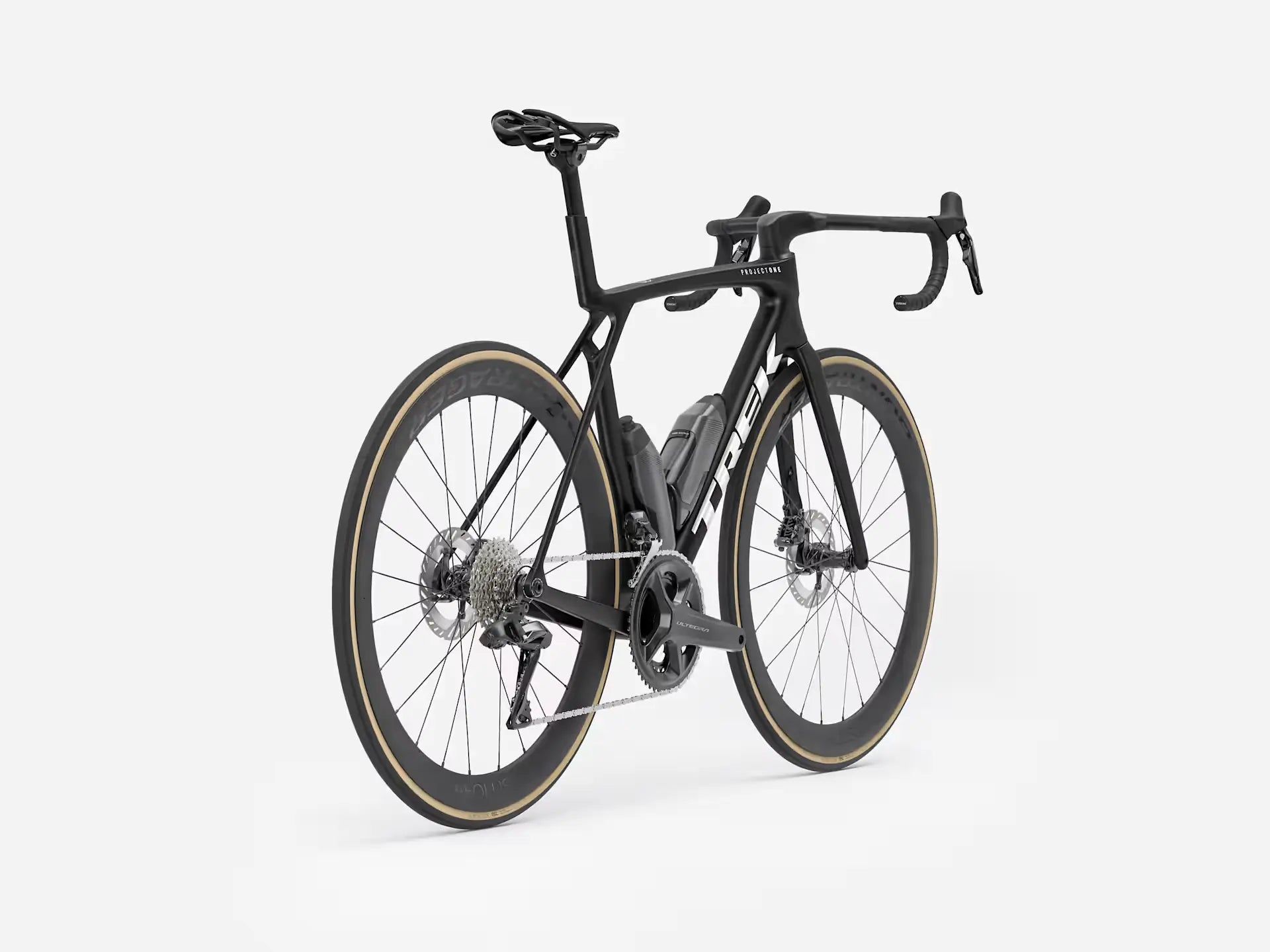

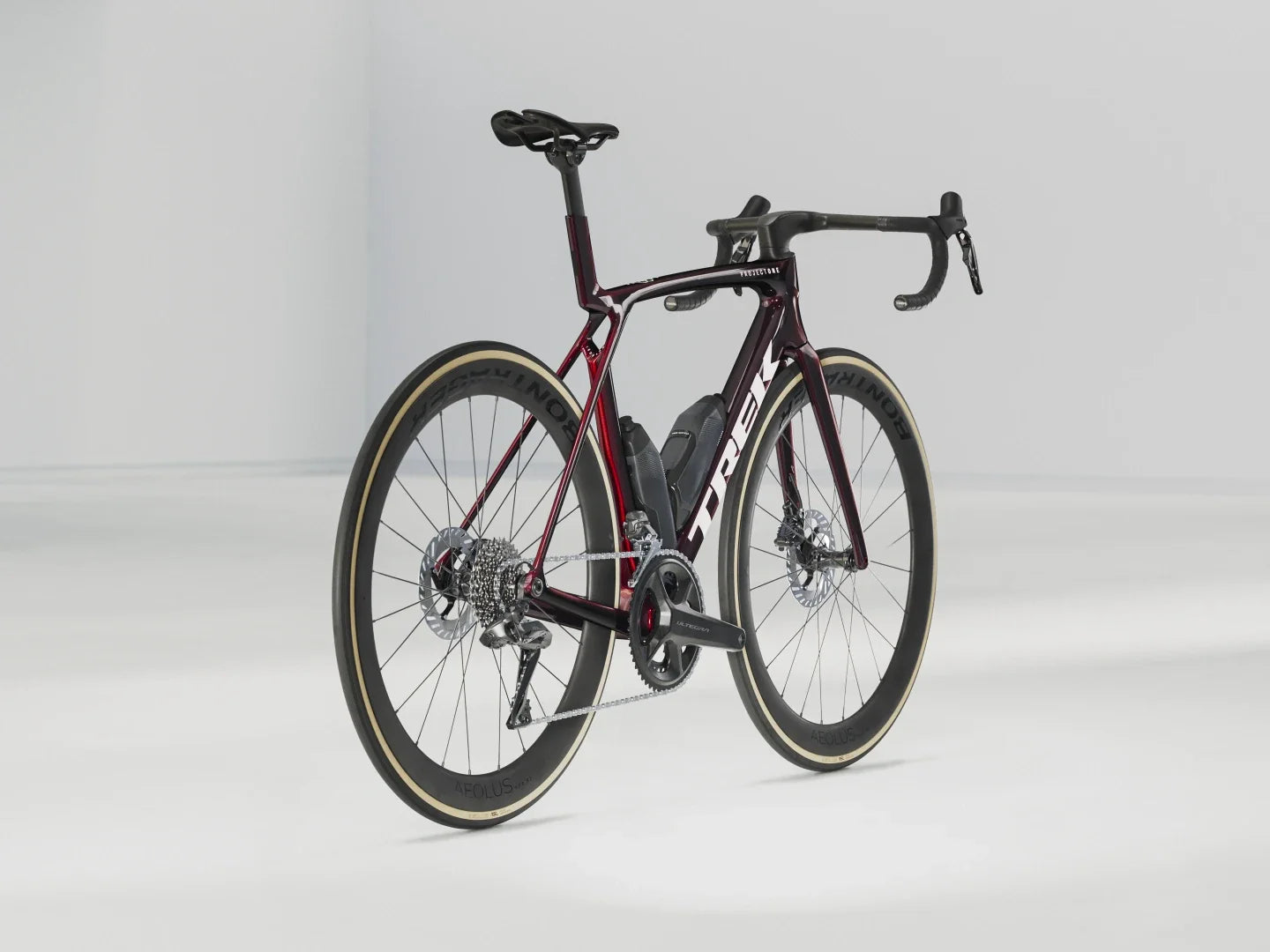

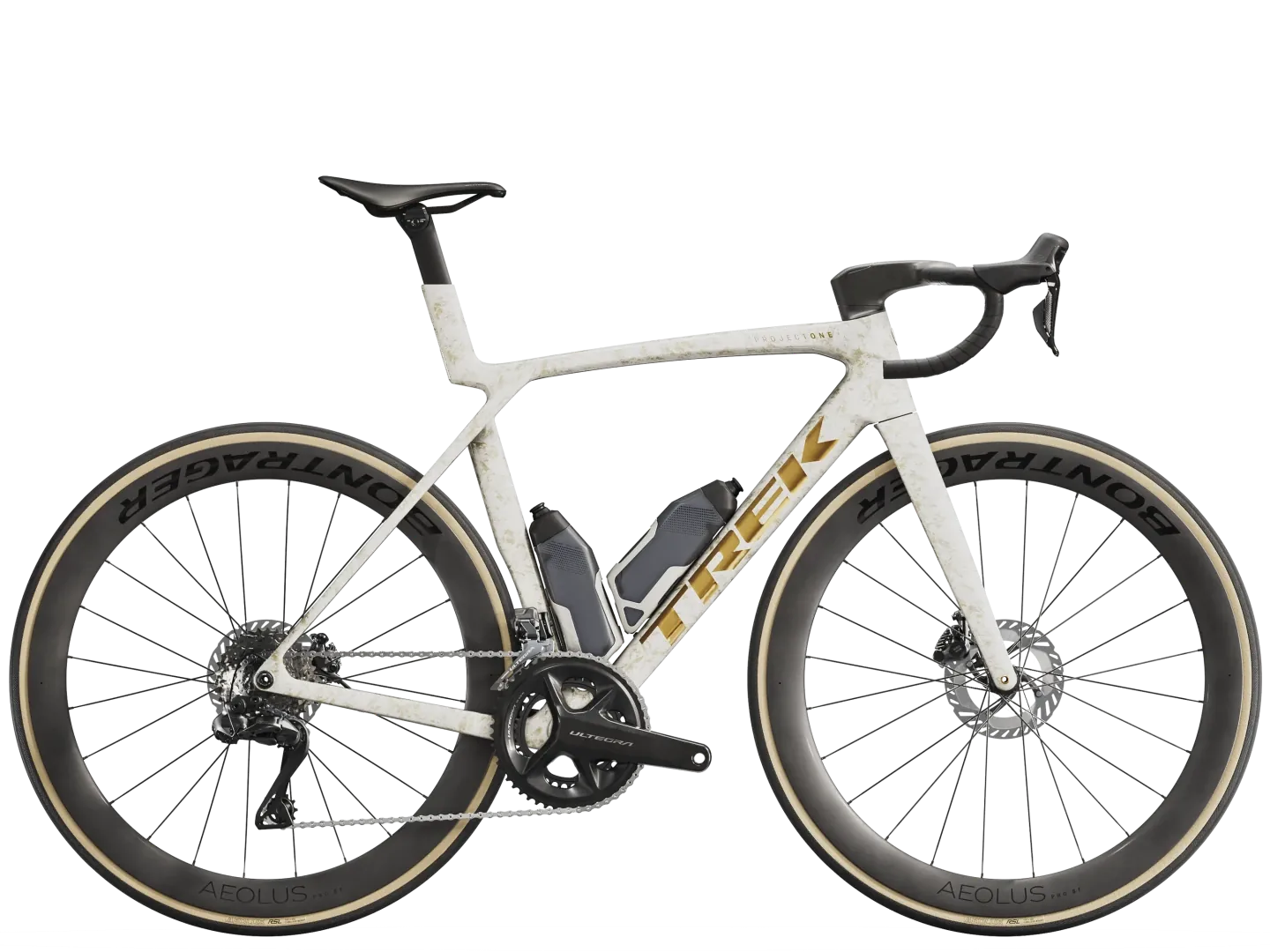

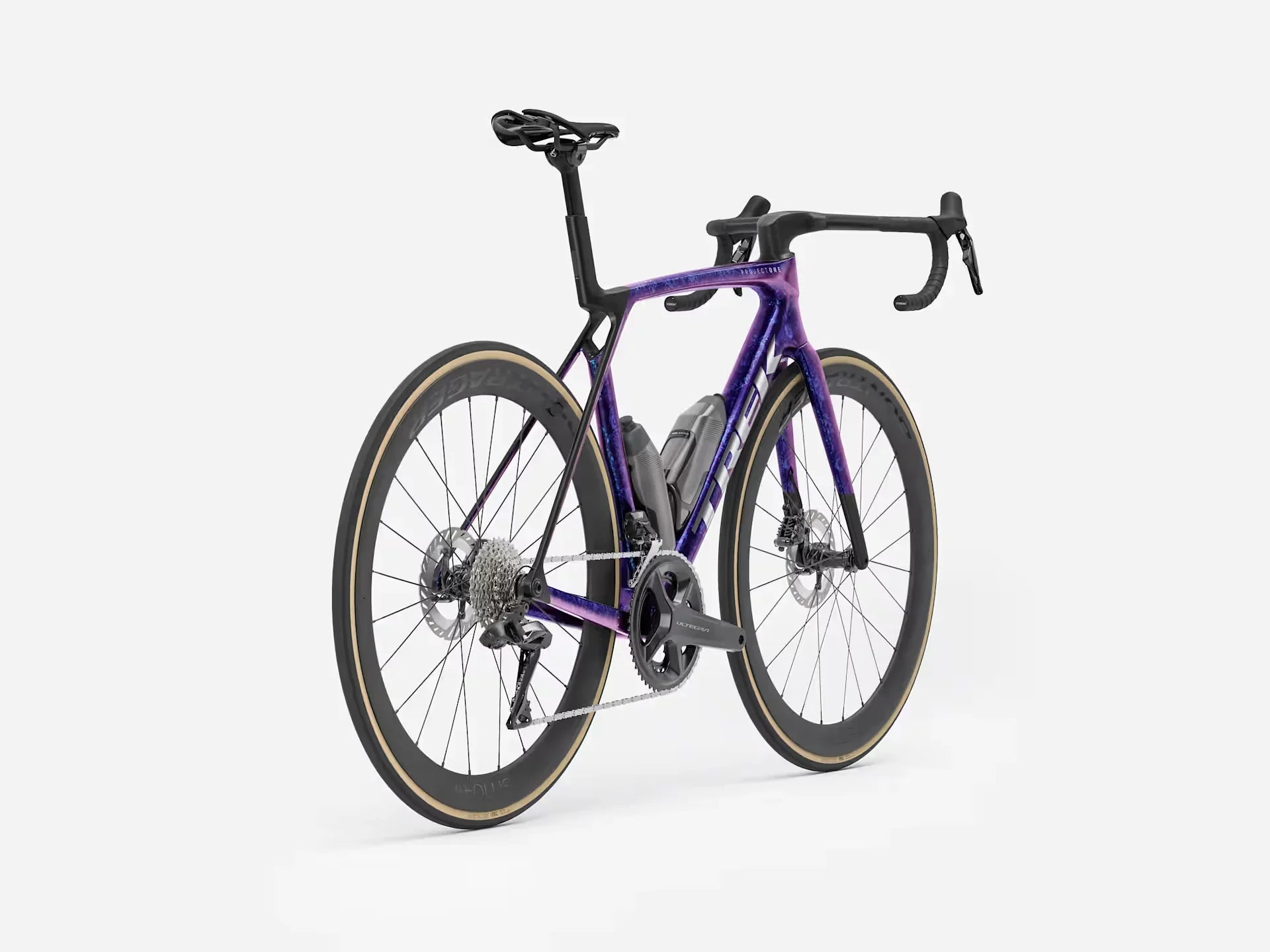

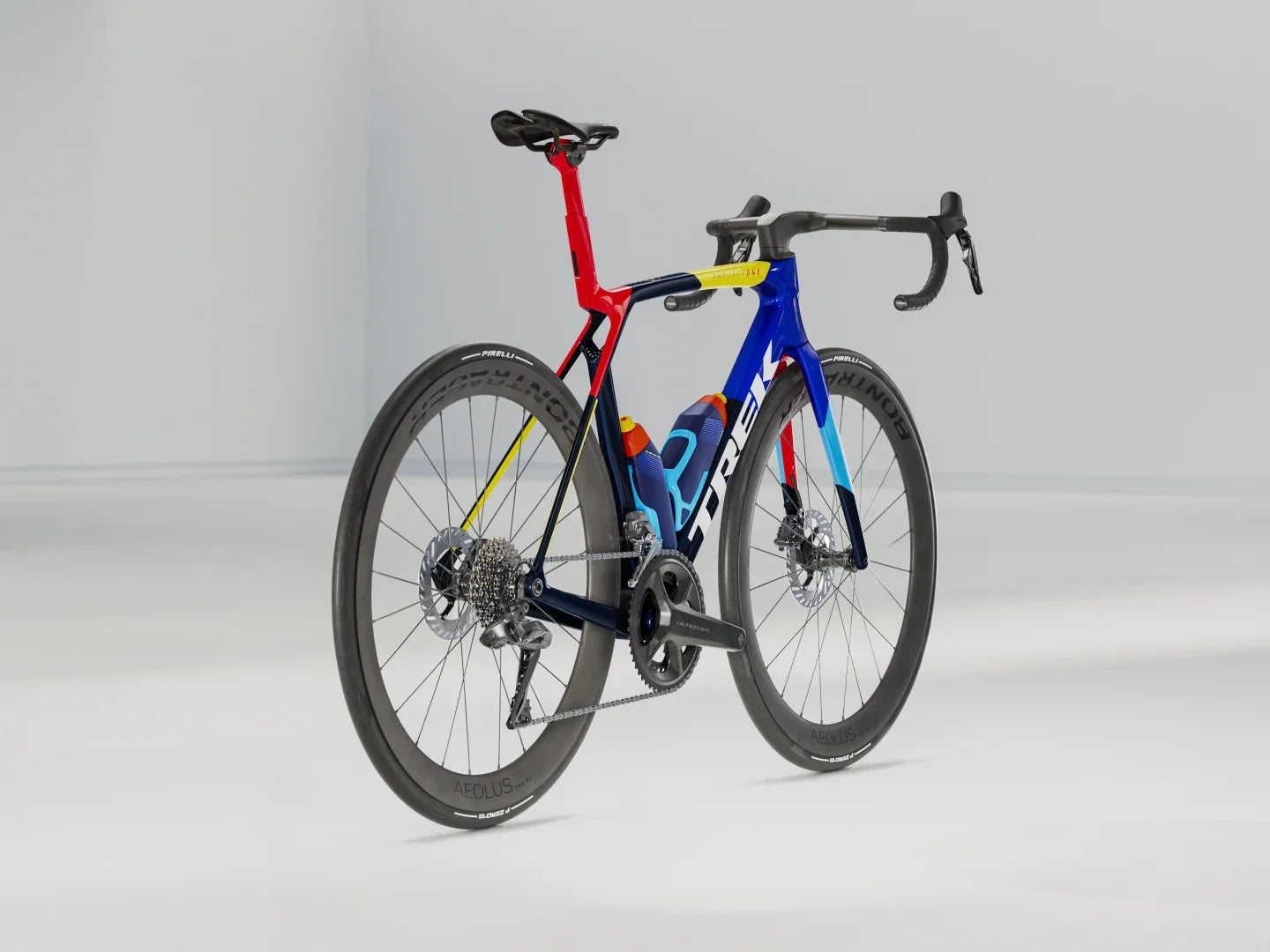

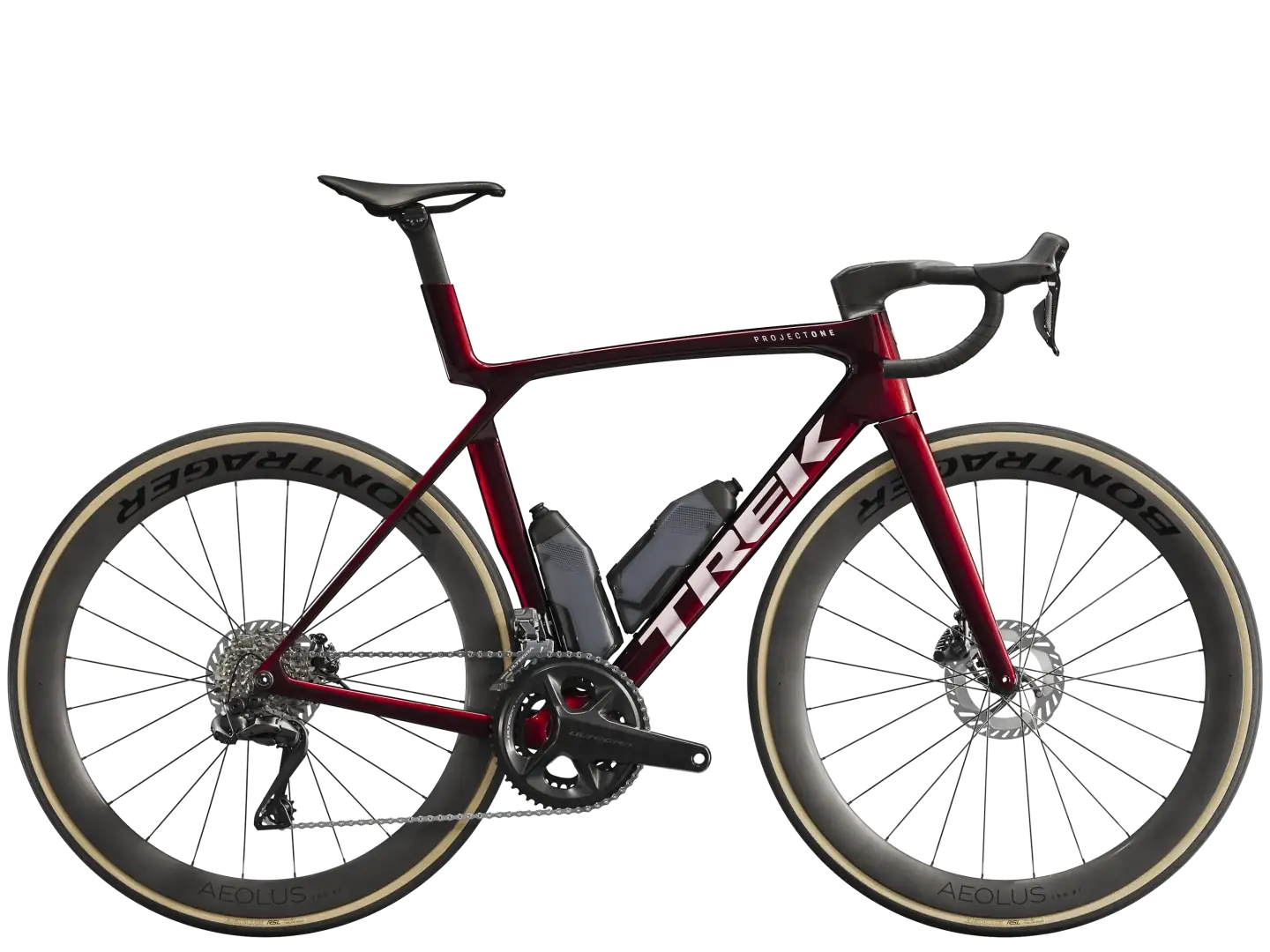

Madone SLR 7 Gen 8
The Madone SLR 7 Gen 8 is an ultralight, high-performance road bike engineered for racing. Its 900 Series OCLV Carbon frame delivers top-level aerodynamics while remaining incredibly light. It’s equipped with a Shimano Ultegra Di2 electronic groupset, advanced IsoFlow frame technology for added comfort, lightweight carbon wheels, and an integrated Trek Aero RSL one-piece carbon bar/stem. This bike is built for riders seeking ultimate race-ready performance.
- 3,762.420 BD
- 3,762.420 BD
- Unit price
- per
Limited-Time Offers, End in:
151D
8H
23M
0S
+
+
Compare color
Specs
Sizing
Geometry
Frameset

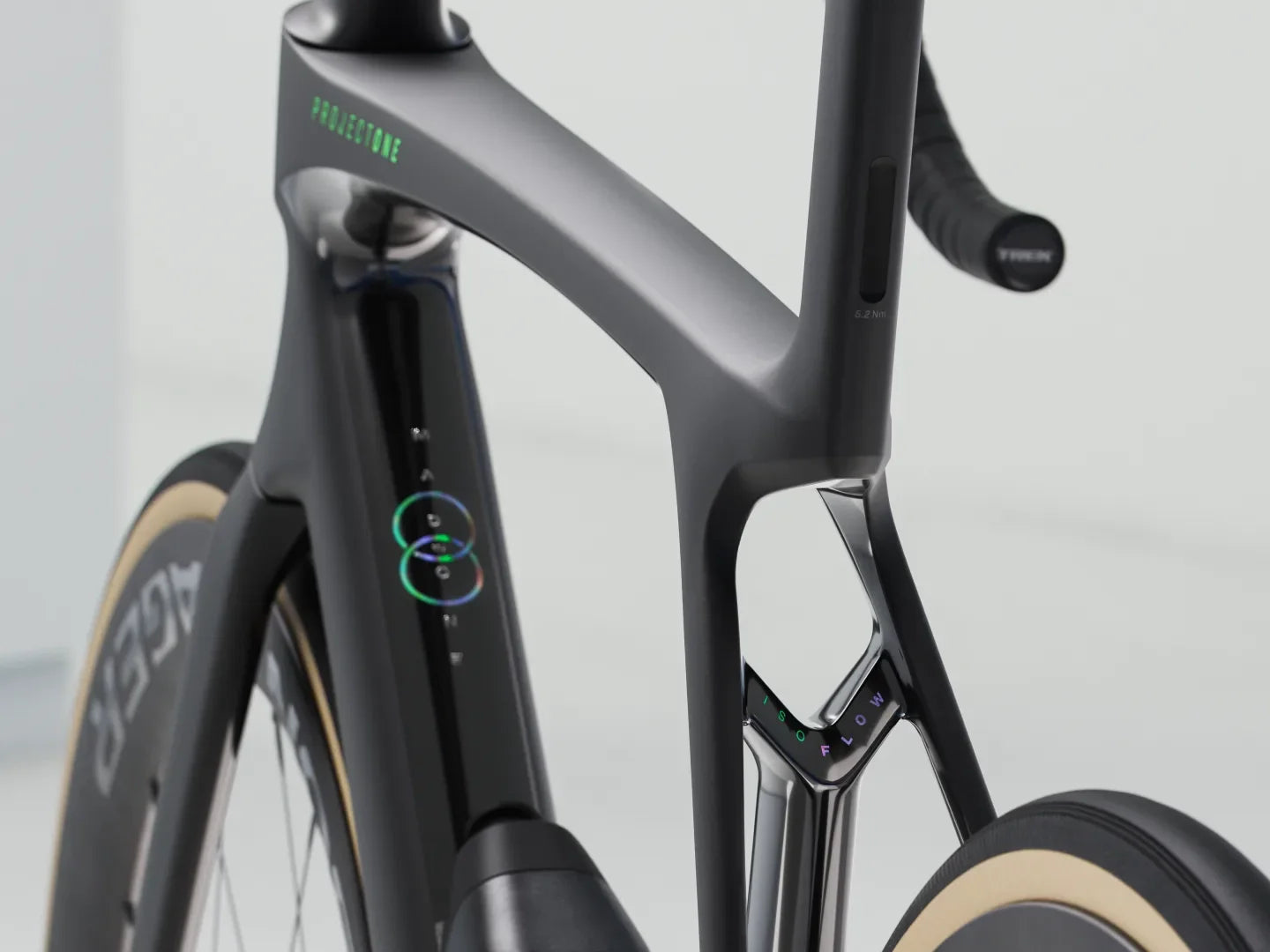

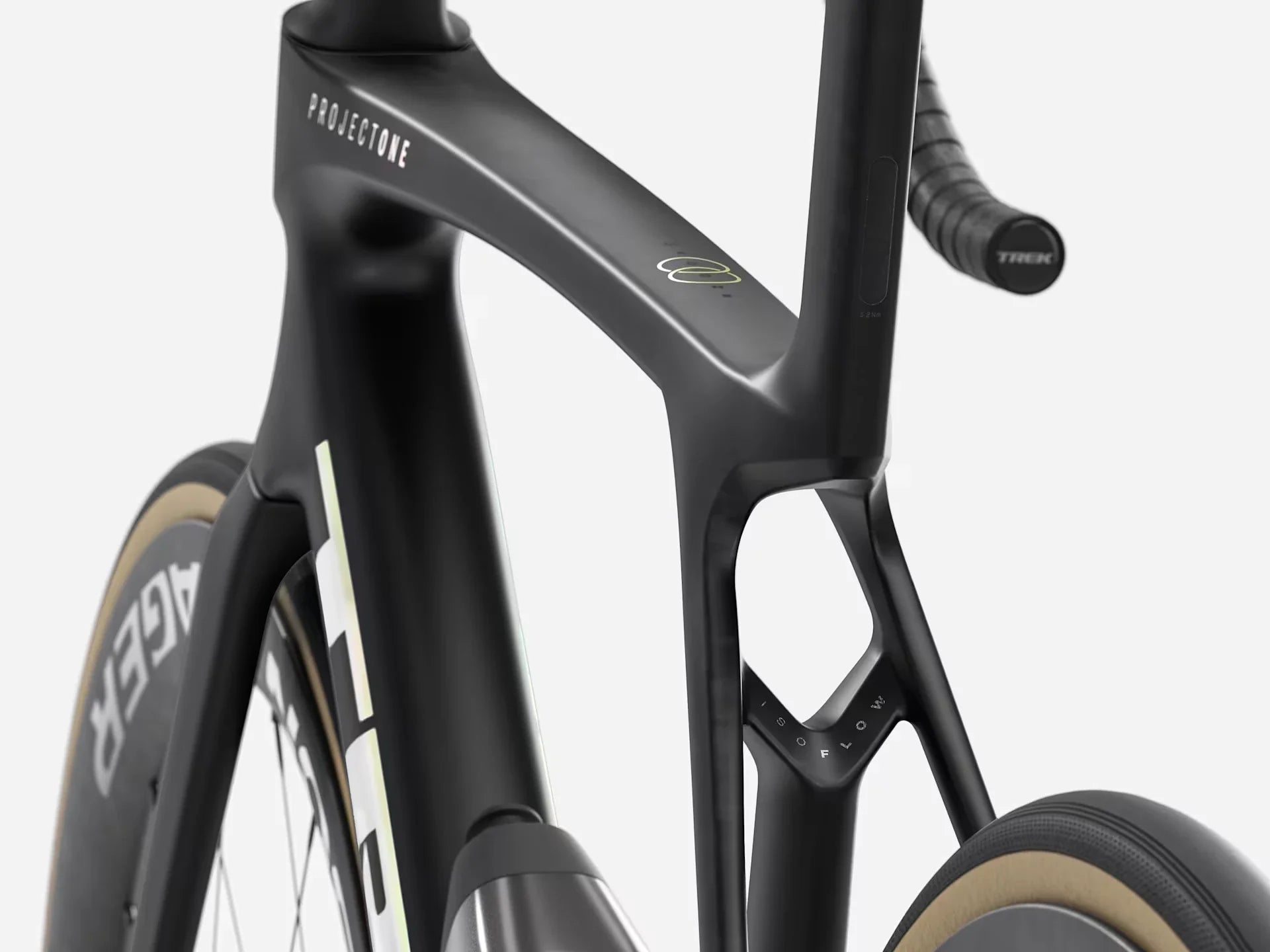

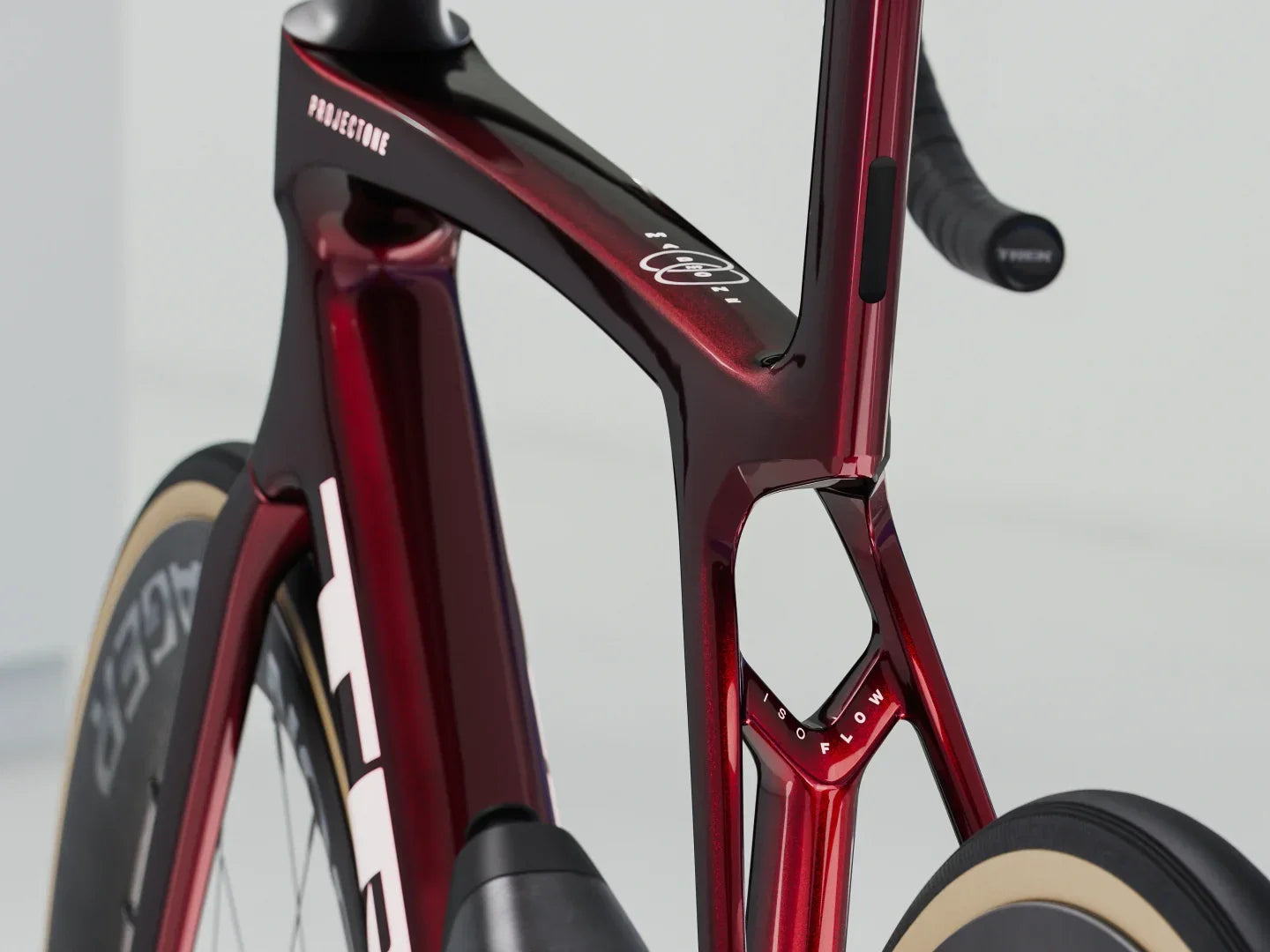

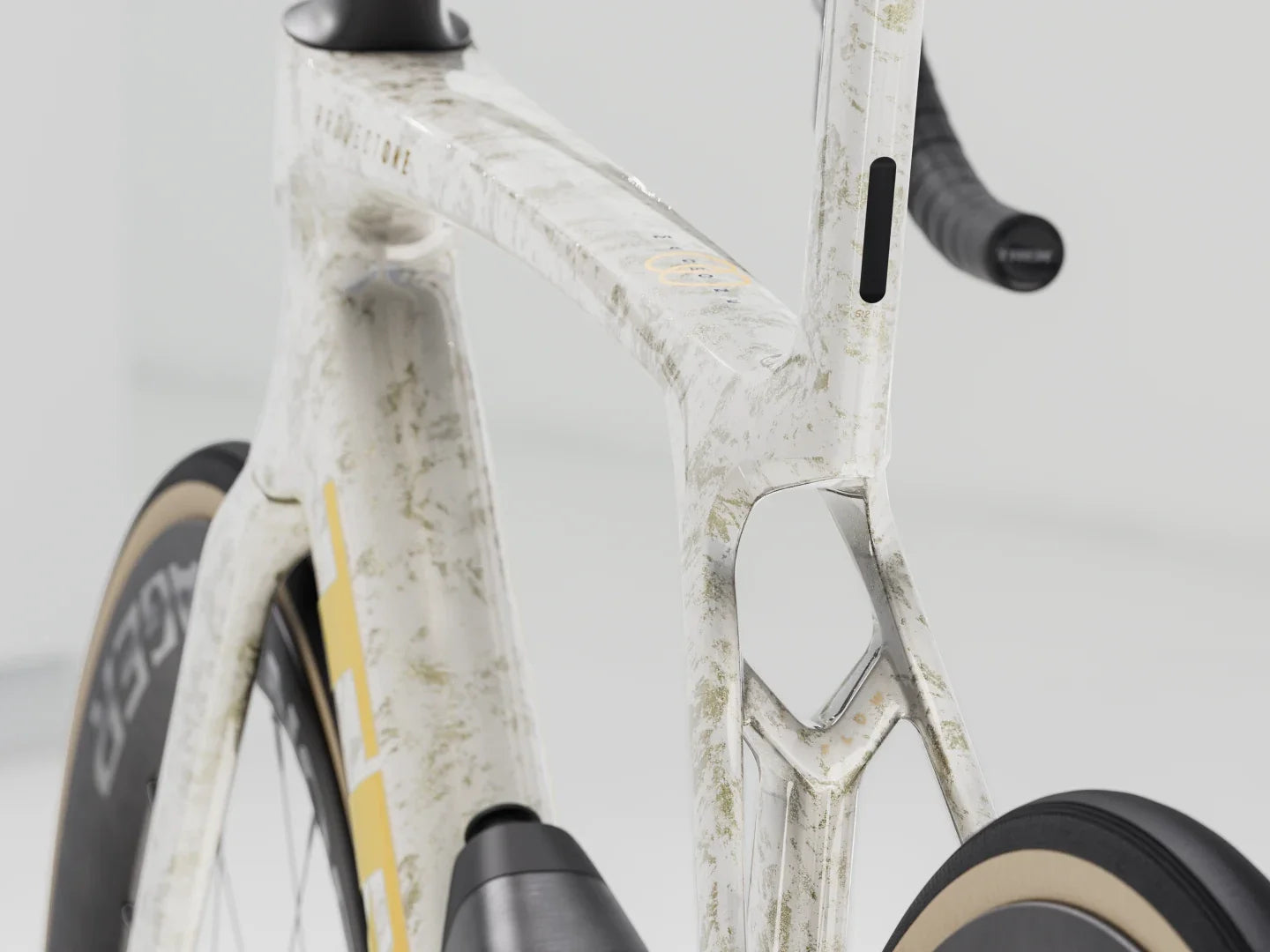

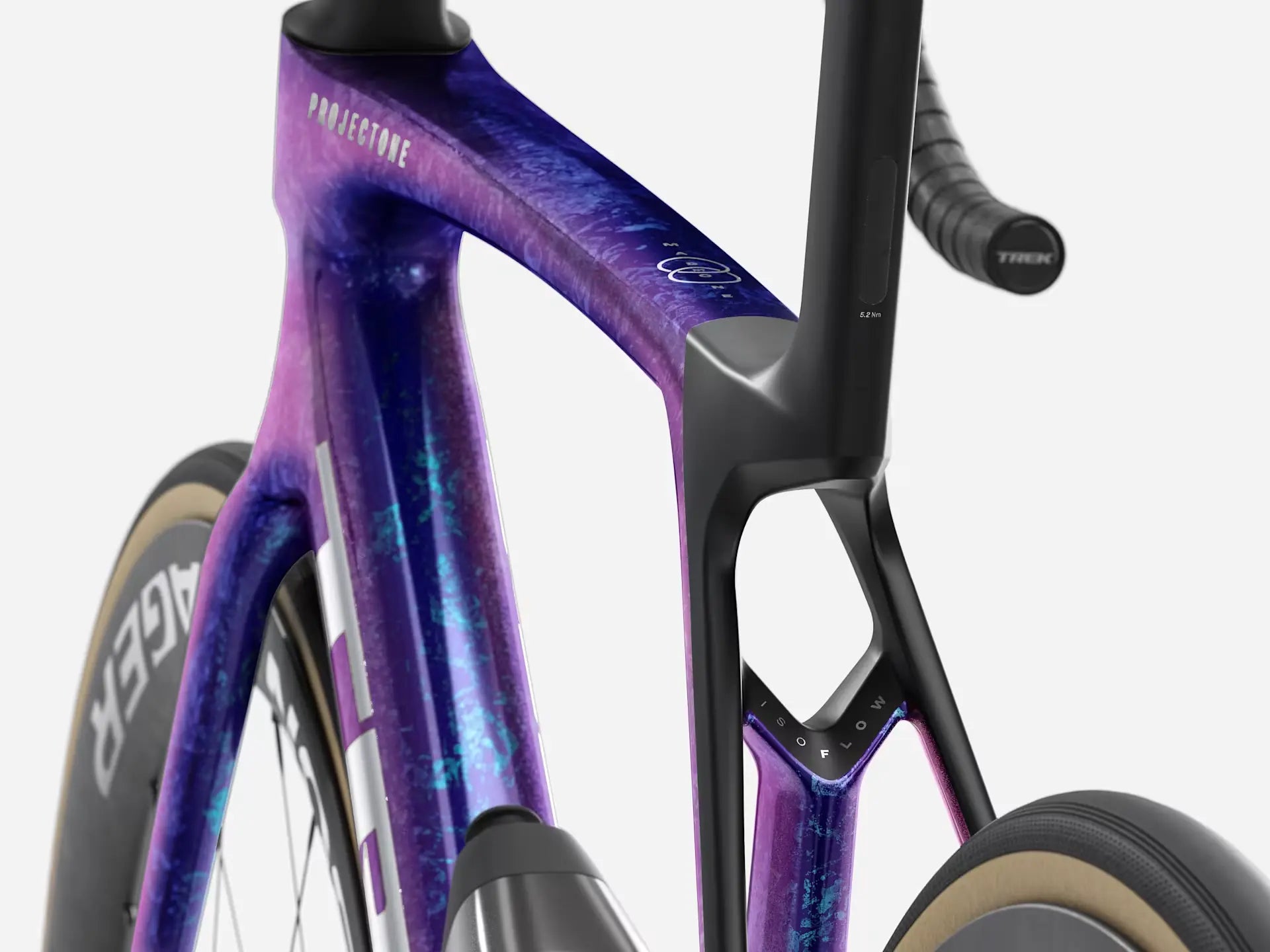

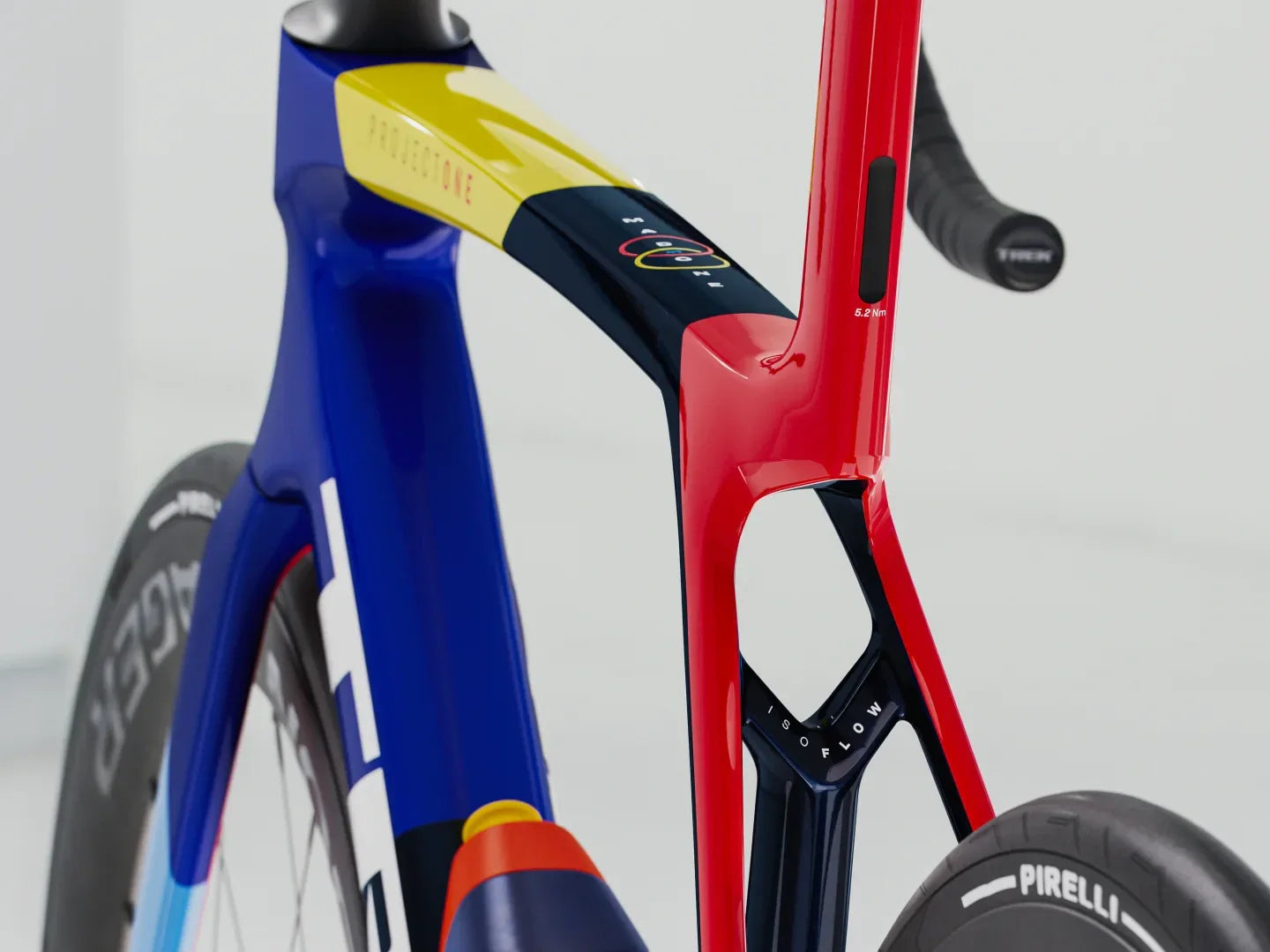

| Frame | 900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
|---|---|
| *Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
Wheels
| Wheel front | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| *Tyre | Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | 32 mm (as measured, see manual for details) |
E-system
| Battery | Shimano BT-DN300 |
|---|---|
| Charger | Charging cable included |

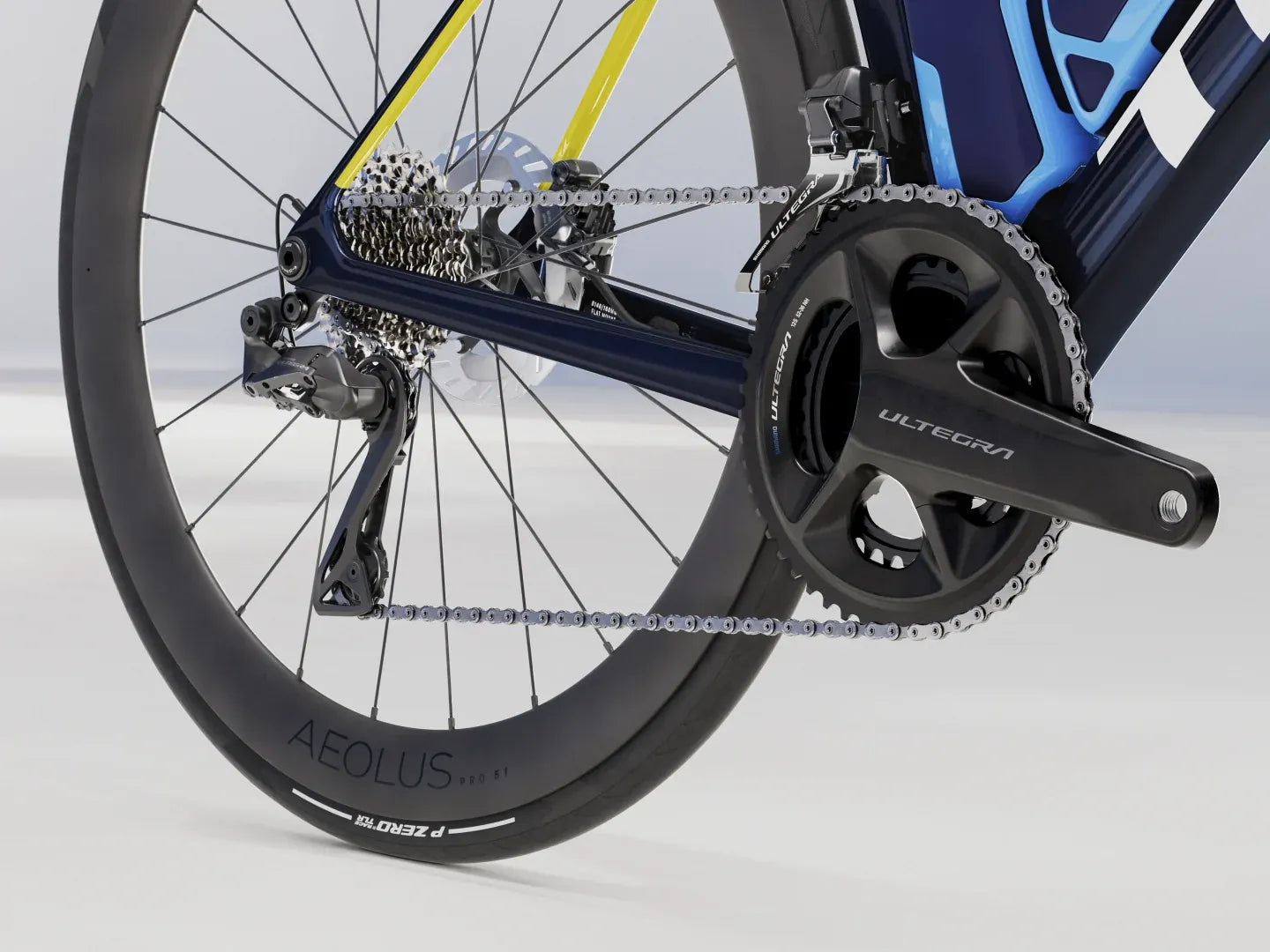

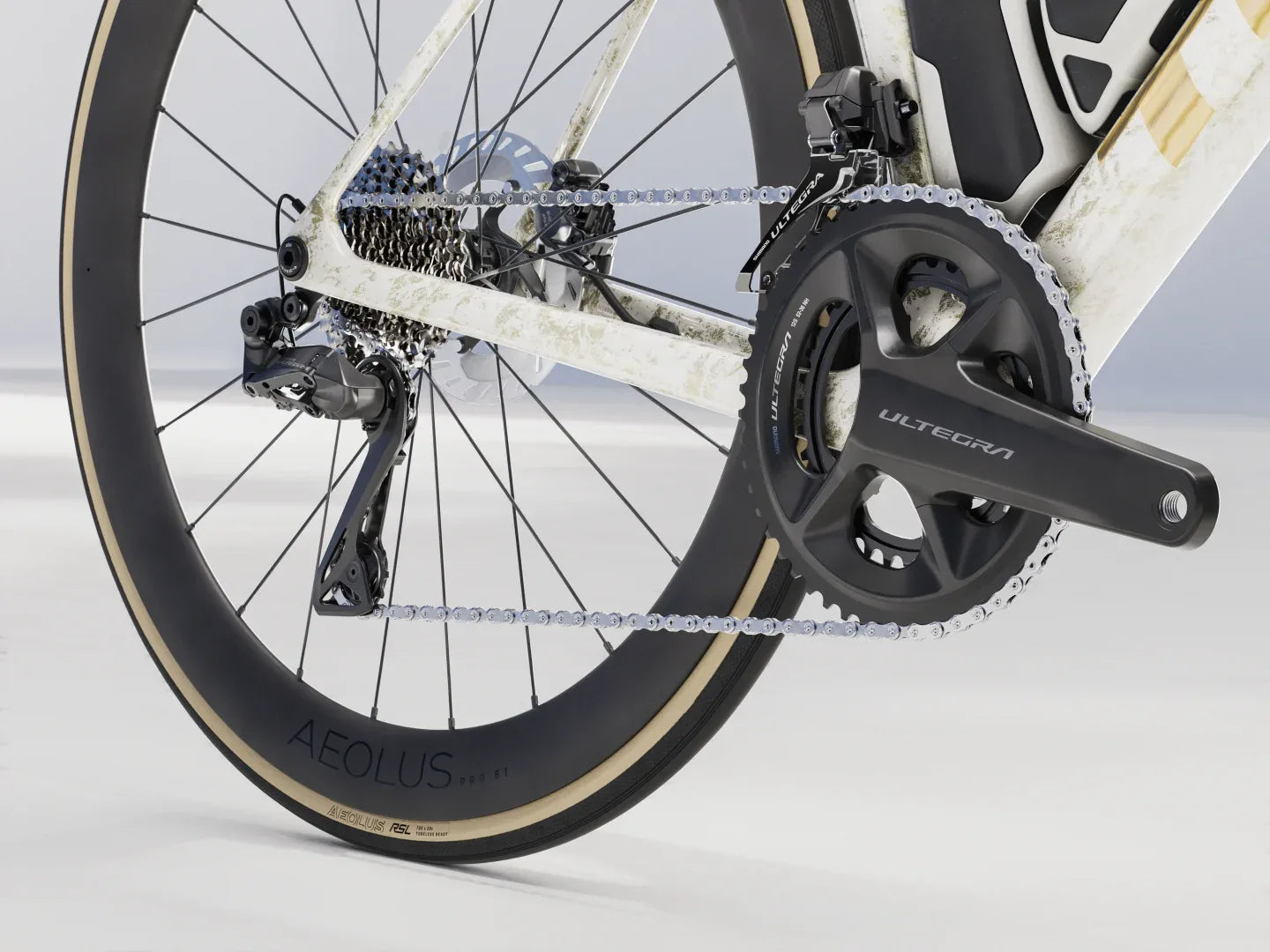

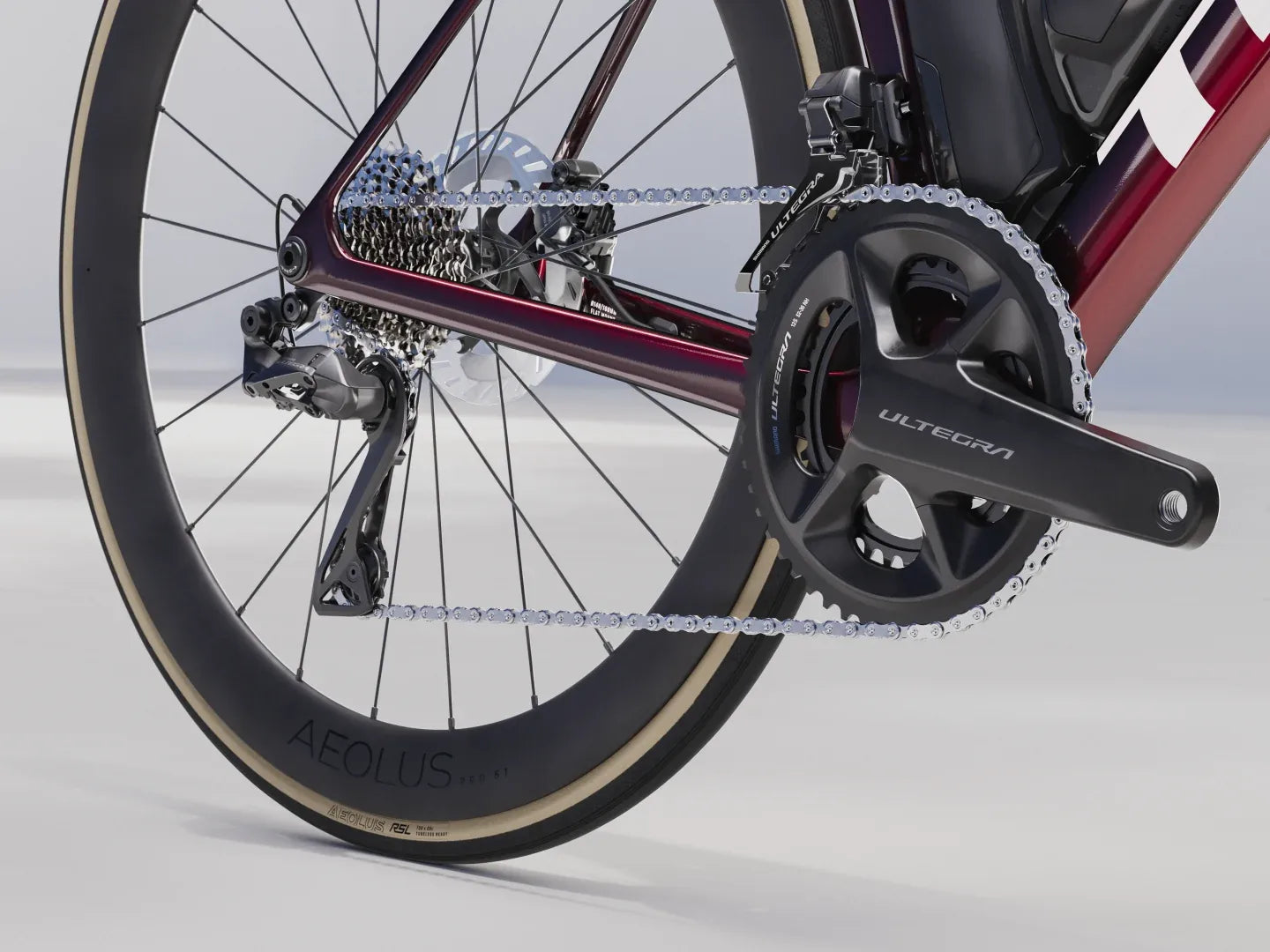

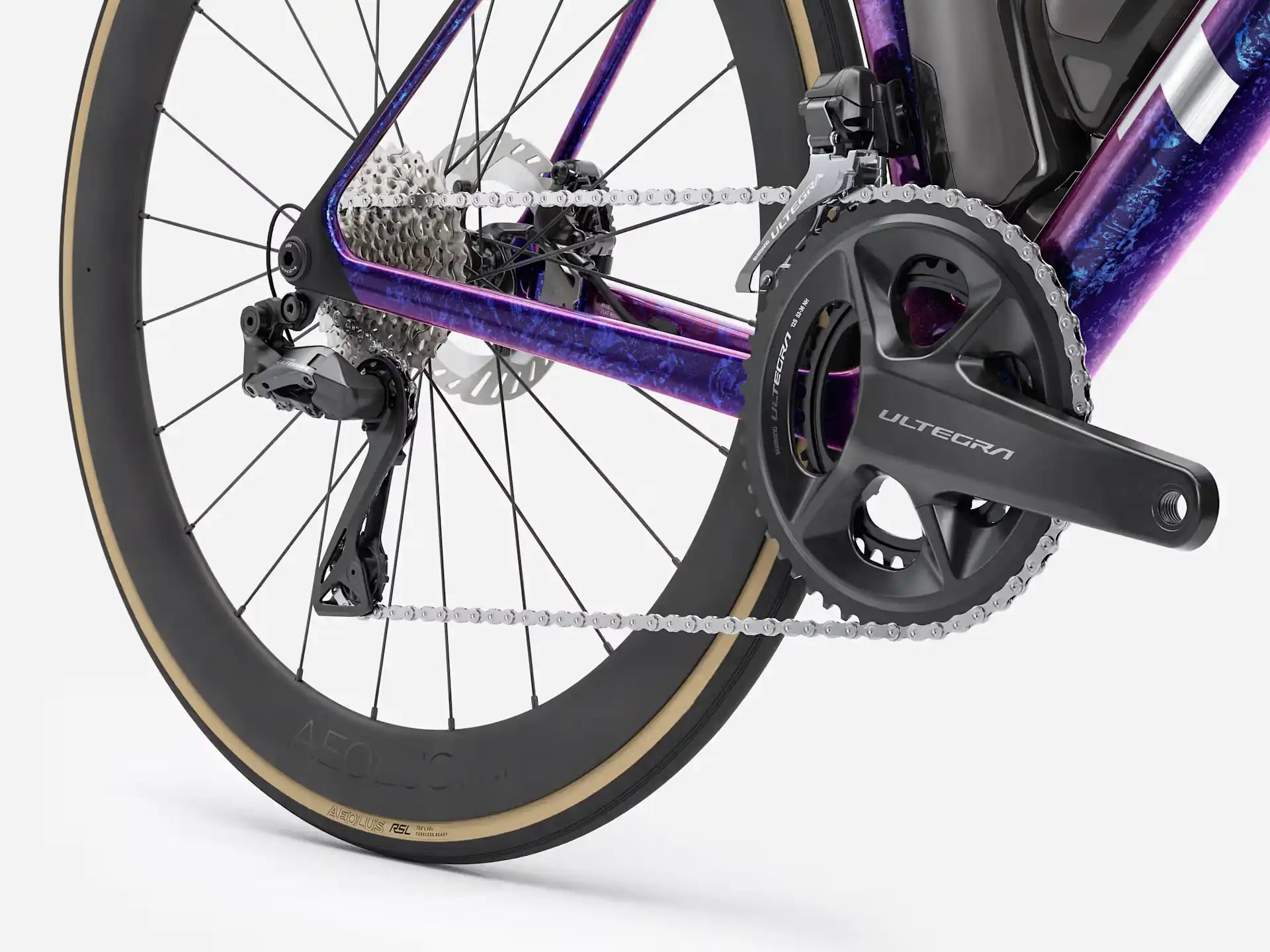

Drivetrain

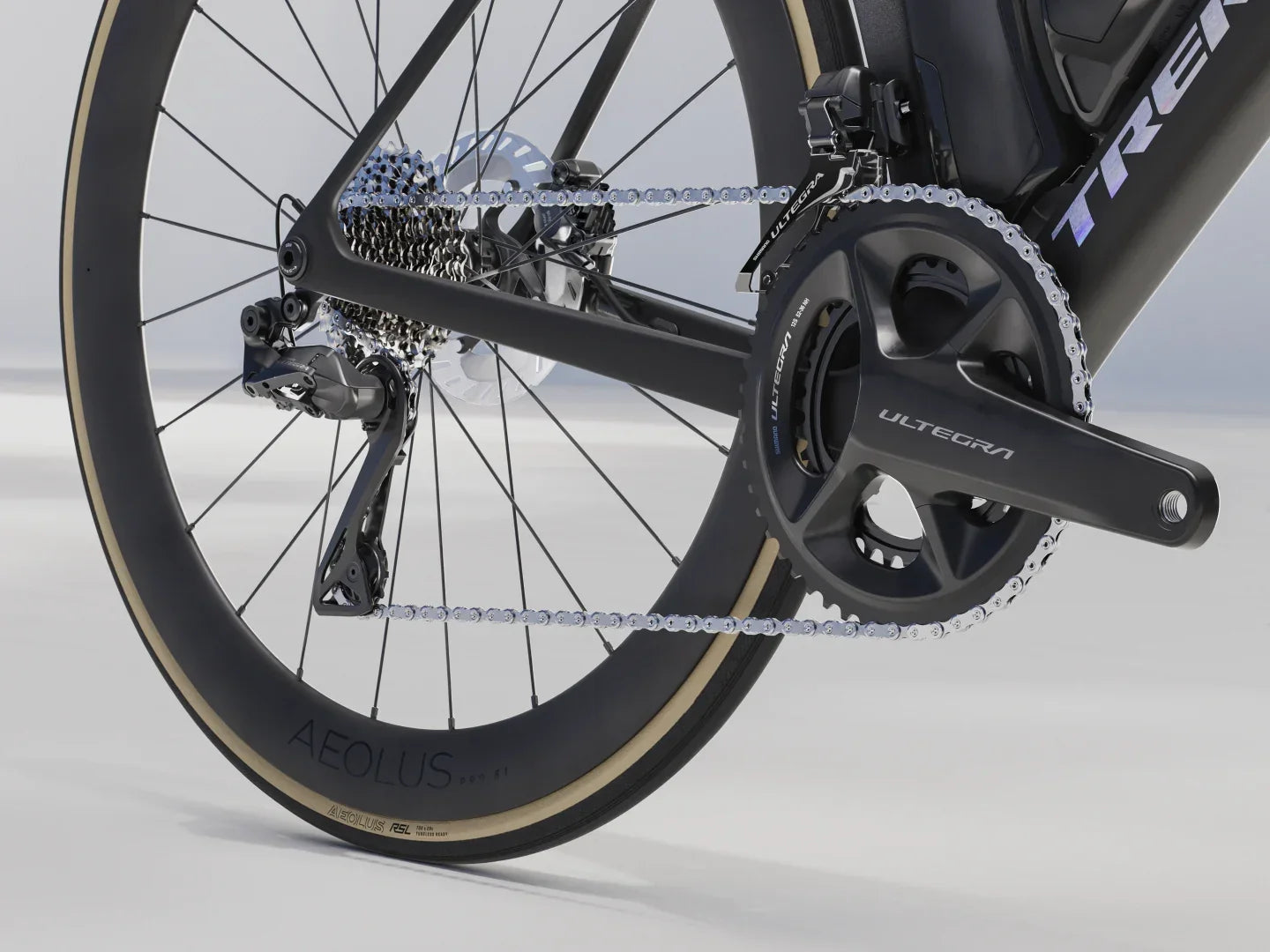

| Shifter | Shimano Ultegra R8170 Di2, 12-speed |
|---|---|
| Front derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Rear derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
| *Crank | Size: XS, S Shimano Ultegra R8100, 52/36, 165 mm length Size: M Shimano Ultegra R8100, 52/36, 170 mm length Size: ML, L Shimano Ultegra R8100, 52/36, 172.5 mm length Size: XL Shimano Ultegra R8100, 52/36, 175 mm length |
| Bottom bracket | Bottom bracket |
| Cassette | Shimano Ultegra R8101, 11-30, 12-speed |
| Chain | Shimano Ultegra/XT M8100, 12-speed |
| Max. chainring size | 1x: 54T, 2x: 56/43 |
Components
| Saddle | Size: XS, S Bontrager Aeolus P2 Pro, carbon rails, 155 mm width Size: M, ML, L, XL Bontrager Aeolus Pro, carbon rails, 145 mm width |
|---|---|
| *Seatpost | Size: XS, S, M Madone aero carbon seat post, 0 mm offset, short length Size: ML, L, XL Madone aero carbon seat post, 0 mm offset, long length |

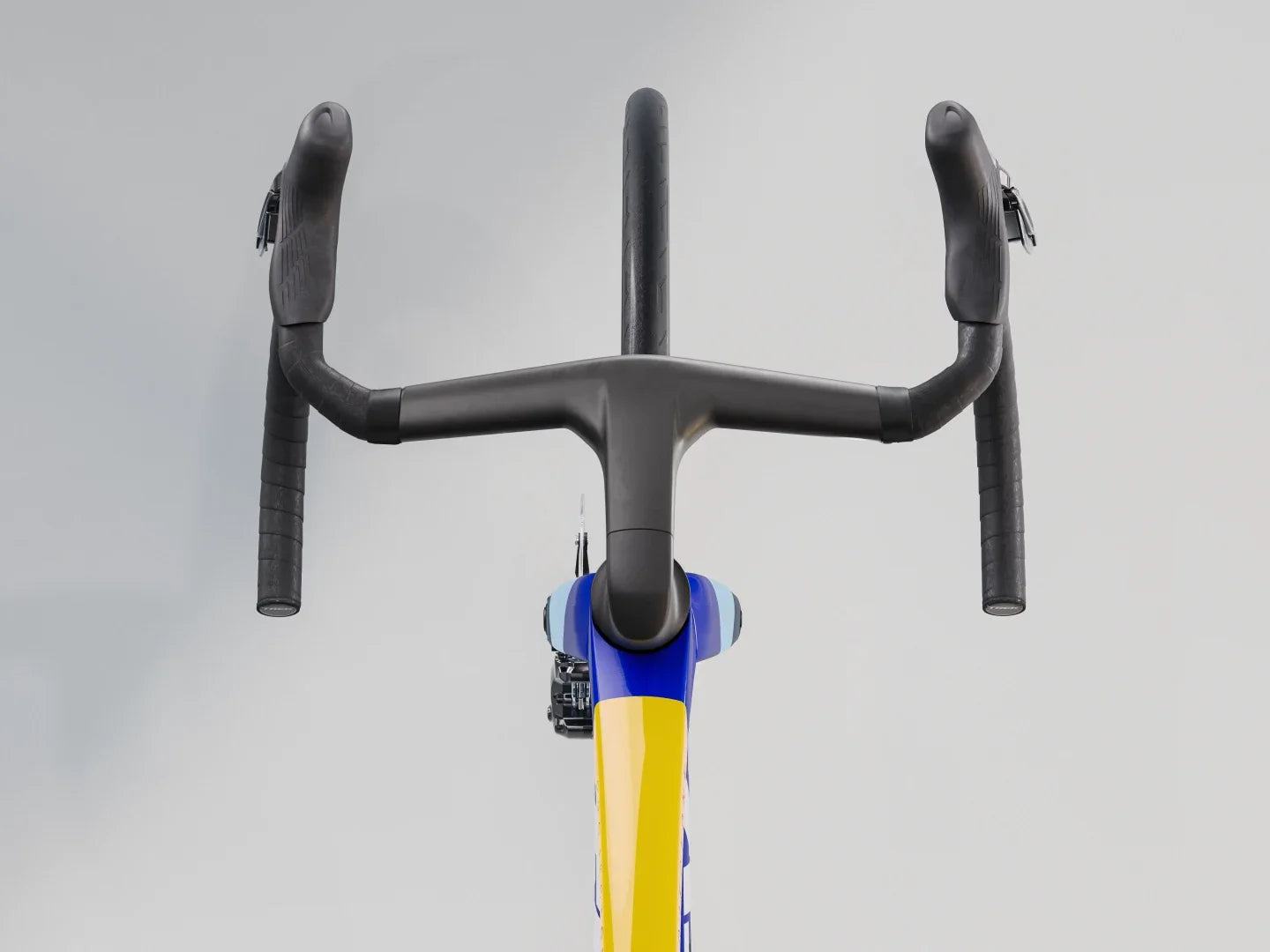

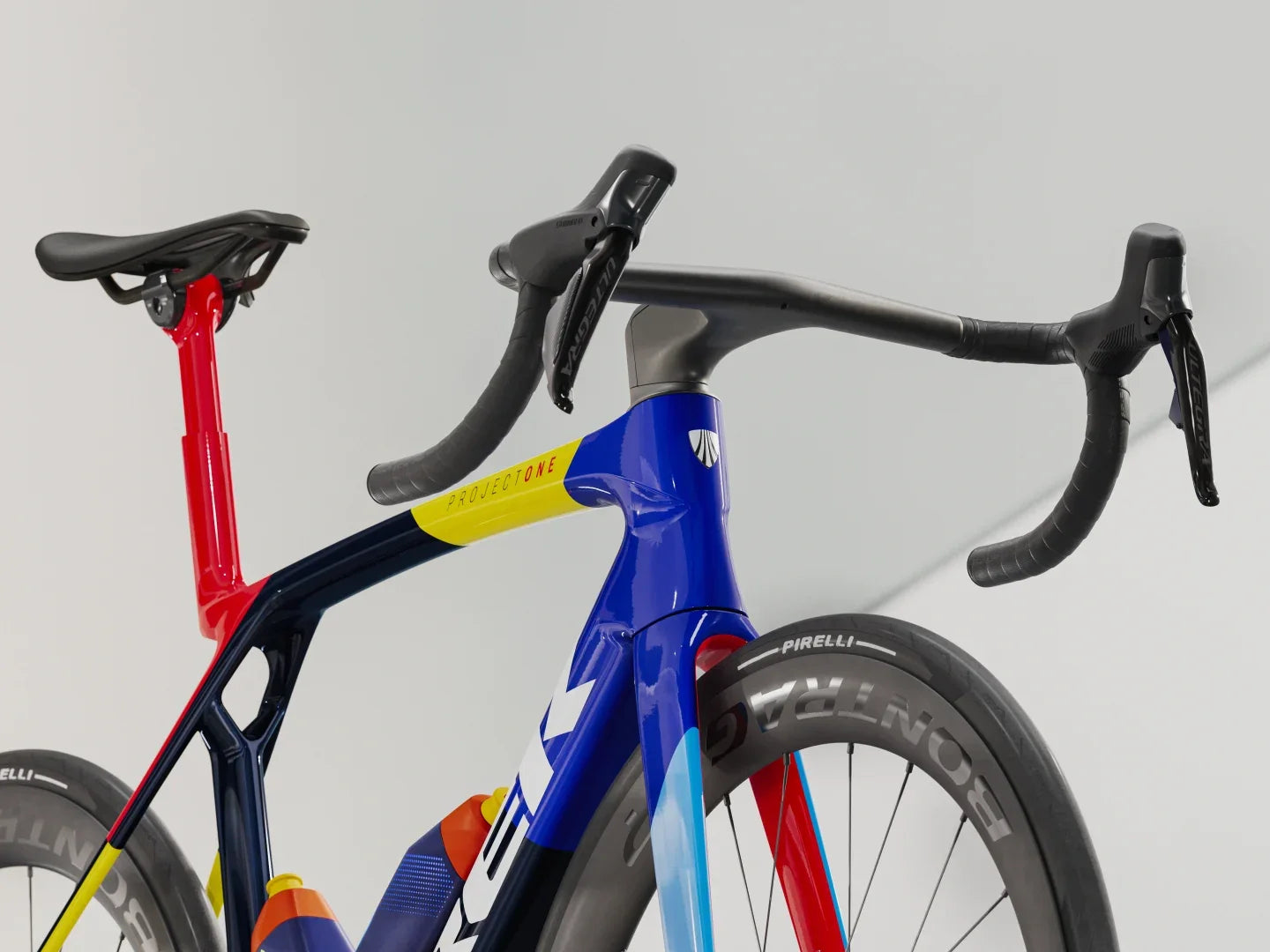

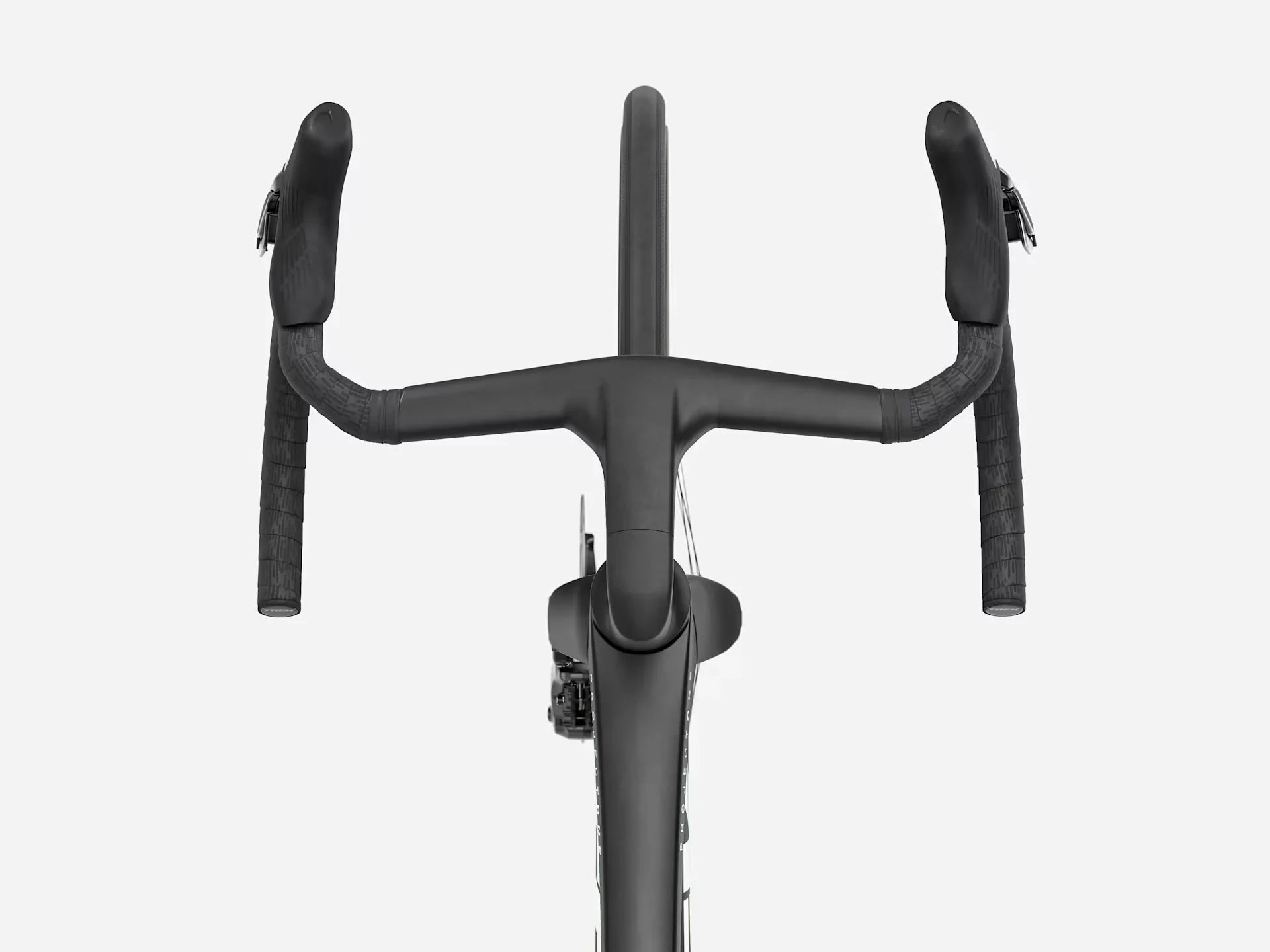

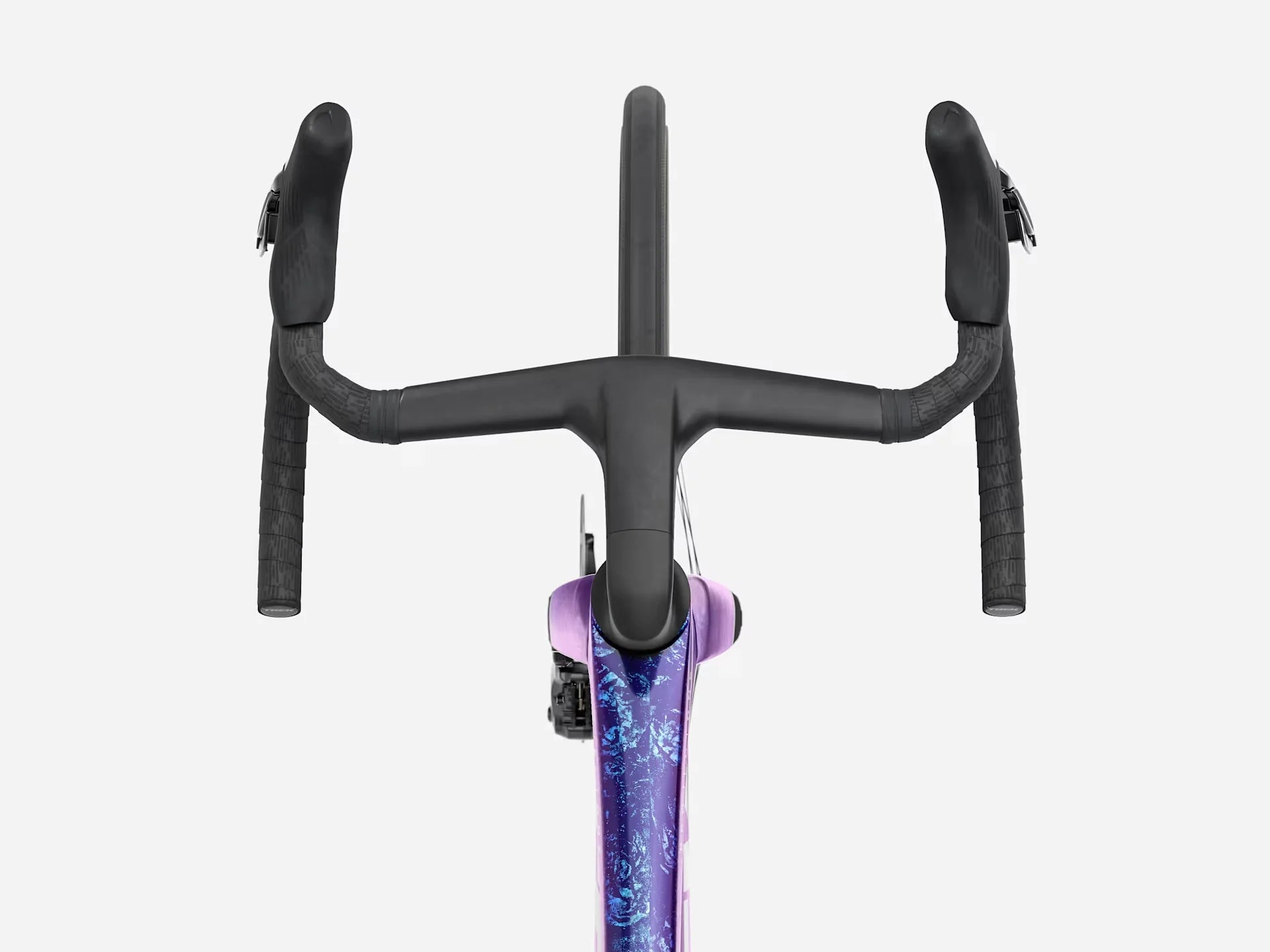

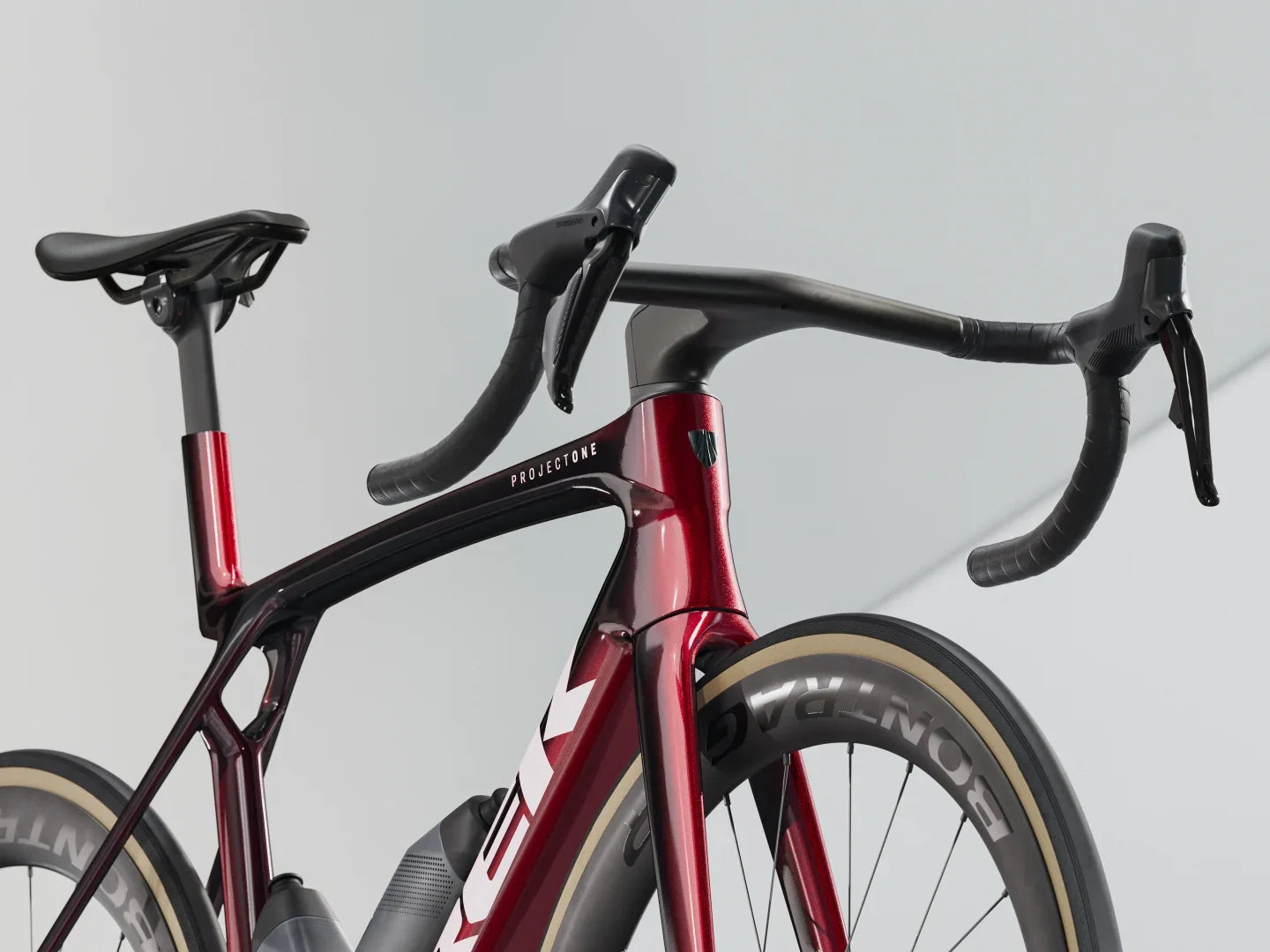

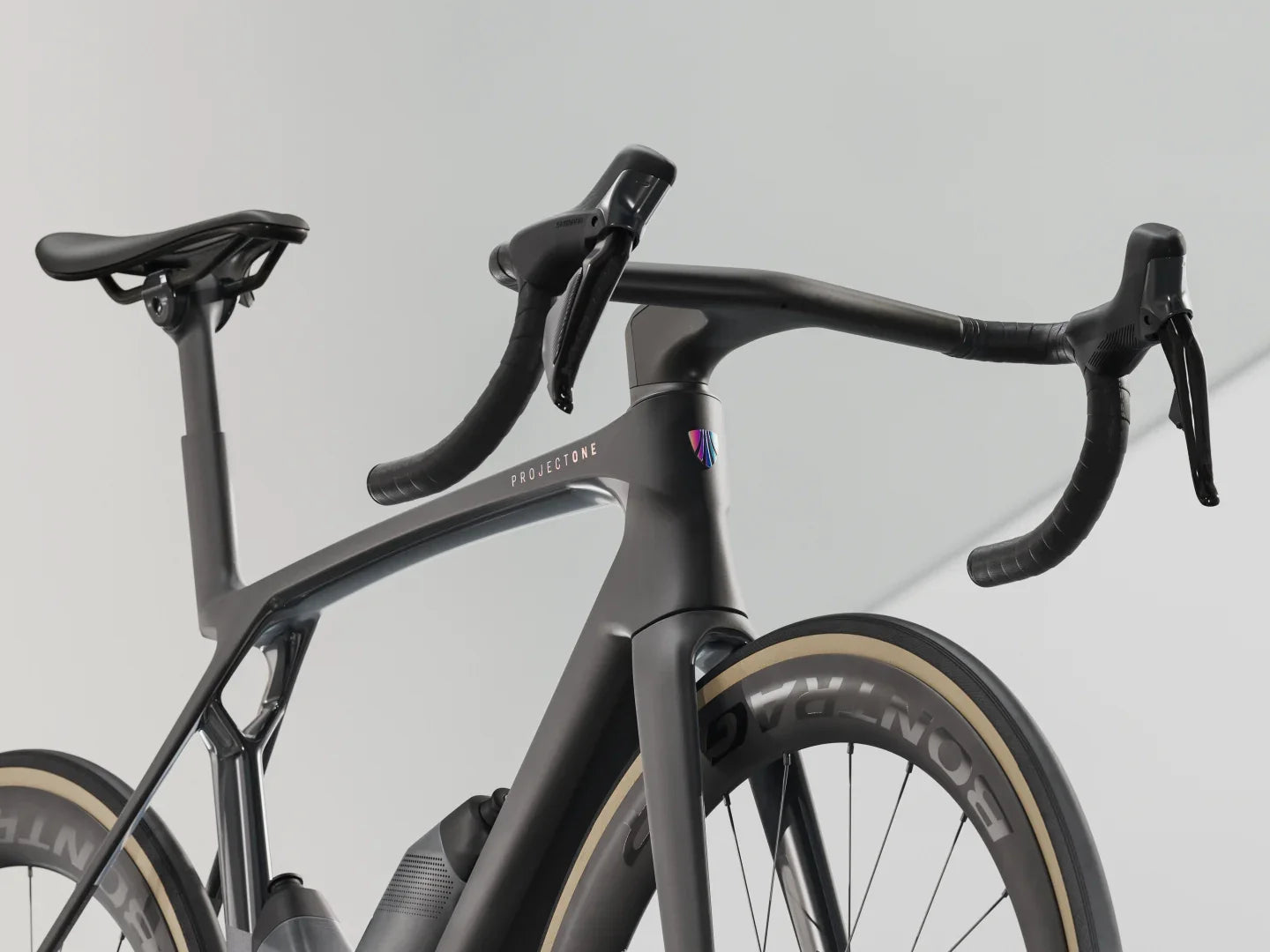

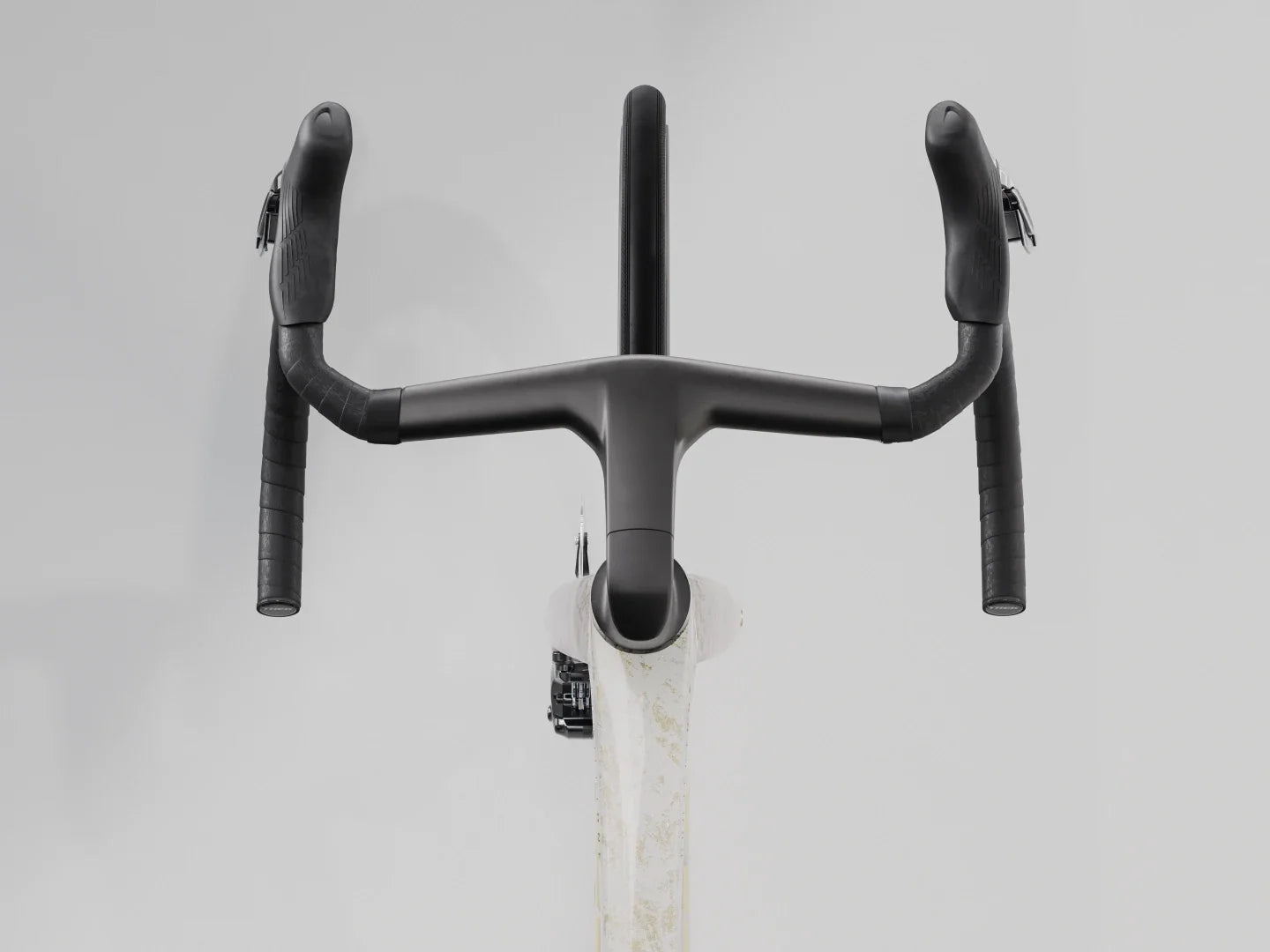

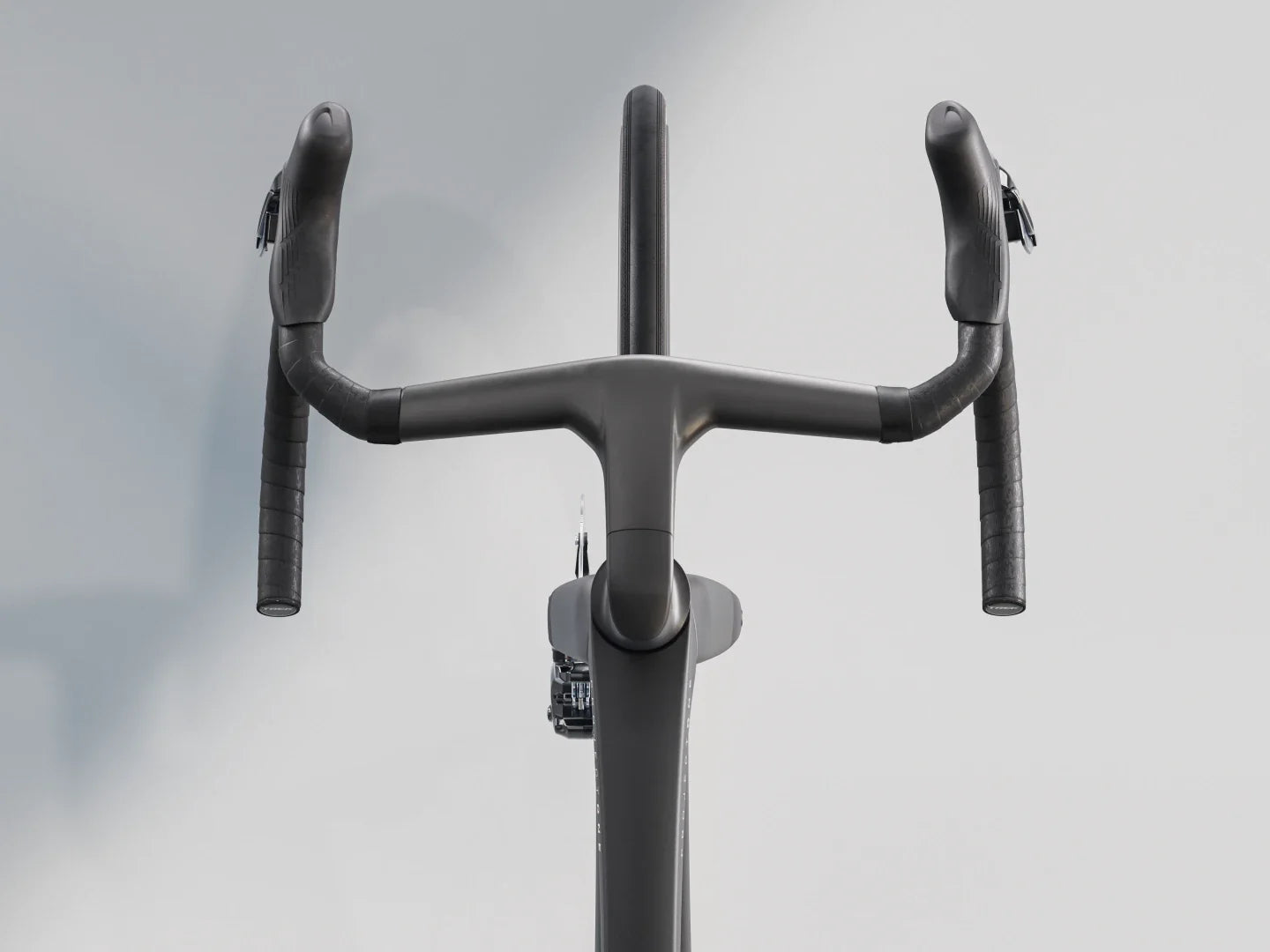

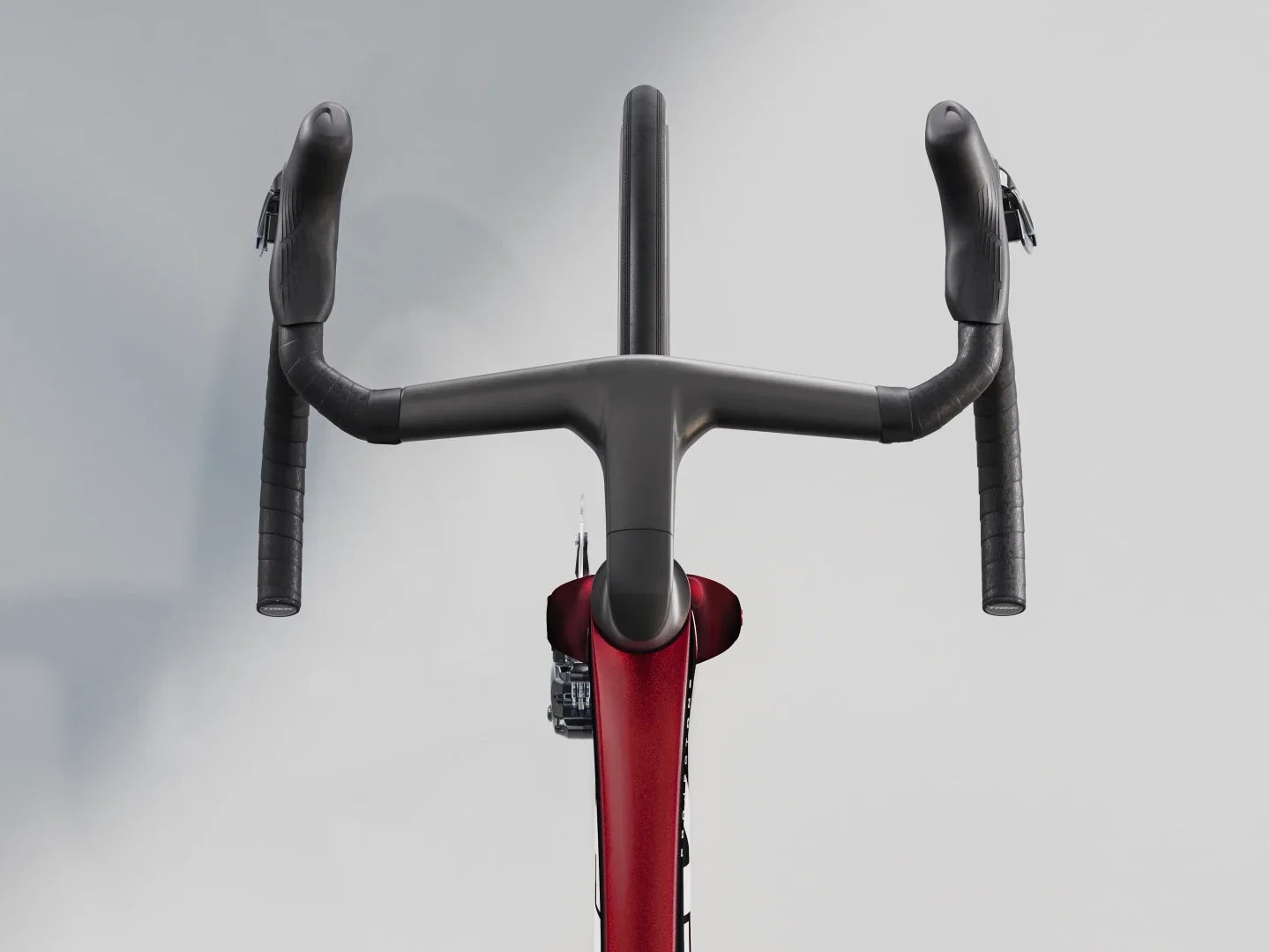

| *Handlebar/stem (integrated) | Size: XS Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length Size: S Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length Size: M Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length Size: ML, L Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length Size: XL Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length |
| Brake rotor | Shimano CL800, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180 mm front, 160 mm rear |
Weight
| Weight | ML - 7.31 kg / 16.12 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Size
XS
S
M
ML
L
XL
Rider Height
143 - 158 cm
4'8" - 5'2"
158 - 162 cm
5'2" - 5'4"
162 - 173 cm
5'4" - 5'8"
173 - 179 cm
5'8" - 5'10"
179 - 188 cm
5'10" - 6'2"
188 - 213 cm
6'2" - 7'0"
Inseam
67 - 74 cm
26" - 29"
74 - 76 cm
29" - 30"
76 - 81 cm
30" - 32"
81 - 84 cm
32" - 33"
84 - 88 cm
33" - 35"
88 - 100 cm
35" - 39"
All measurements provided in cm unless otherwise stated.
| Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack | Saddle rail height min (w/short mast) | Saddle rail height max (w/short mast) | Saddle rail height min (w/tall mast) | Saddle rail height max (w/tall mast) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 700c | 40.4 | 73.8° | 10.0 | 71.6° | 51.7 | 7.2 | 41.0 | 5.0 | 6.1 | 97.1 | 70.9 | 37.0 | 50.7 | 54.9 | 61.2 | 59.2 | 65.4 |
| S | 700c | 44.0 | 73.8° | 12.1 | 72.2° | 53.2 | 7.2 | 41.0 | 4.5 | 6.2 | 97.6 | 74.0 | 37.8 | 53.0 | 58.5 | 64.8 | 62.8 | 69.0 |
| M | 700c | 47.6 | 73.6° | 13.6 | 72.9° | 54.5 | 7.0 | 41.0 | 4.5 | 5.8 | 98.1 | 76.8 | 38.4 | 54.6 | 62.1 | 68.4 | 66.4 | 72.6 |
| ML | 700c | 51.2 | 73.4° | 15.0 | 73.5° | 55.7 | 7.0 | 41.0 | 4.0 | 5.9 | 98.0 | 79.4 | 38.9 | 56.2 | 65.7 | 72.0 | 70.0 | 76.2 |
| L | 700c | 54.8 | 73.4° | 17.2 | 73.8° | 56.8 | 6.8 | 41.1 | 4.0 | 5.7 | 99.0 | 82.5 | 39.4 | 58.2 | 69.3 | 75.6 | 73.6 | 79.8 |
| XL | 700c | 60.9 | 73.4° | 20.1 | 73.9° | 58.4 | 6.8 | 41.2 | 4.0 | 5.7 | 100.7 | 86.9 | 40.2 | 61.0 | 75.4 | 81.7 | 79.7 | 85.9 |
