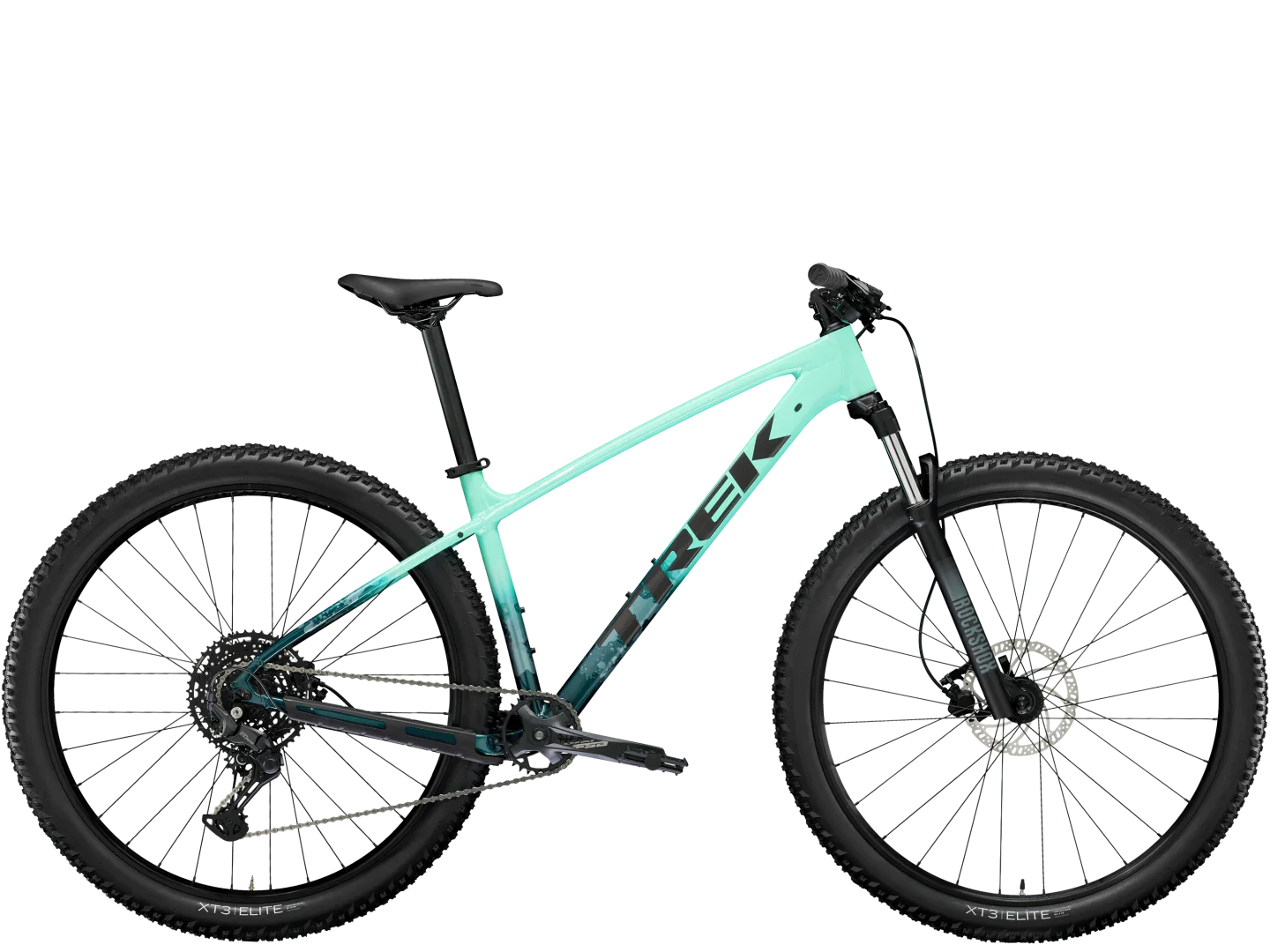

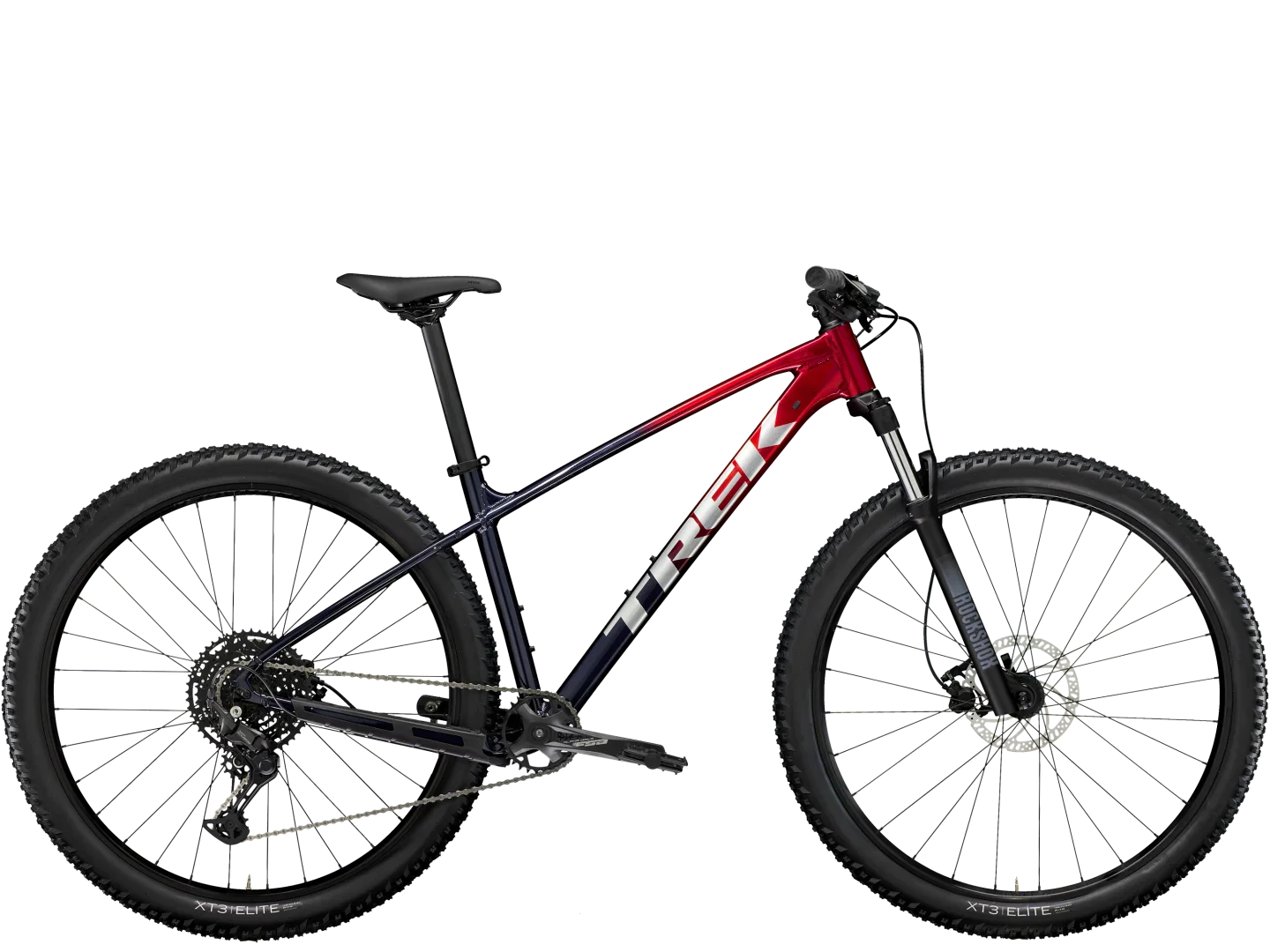

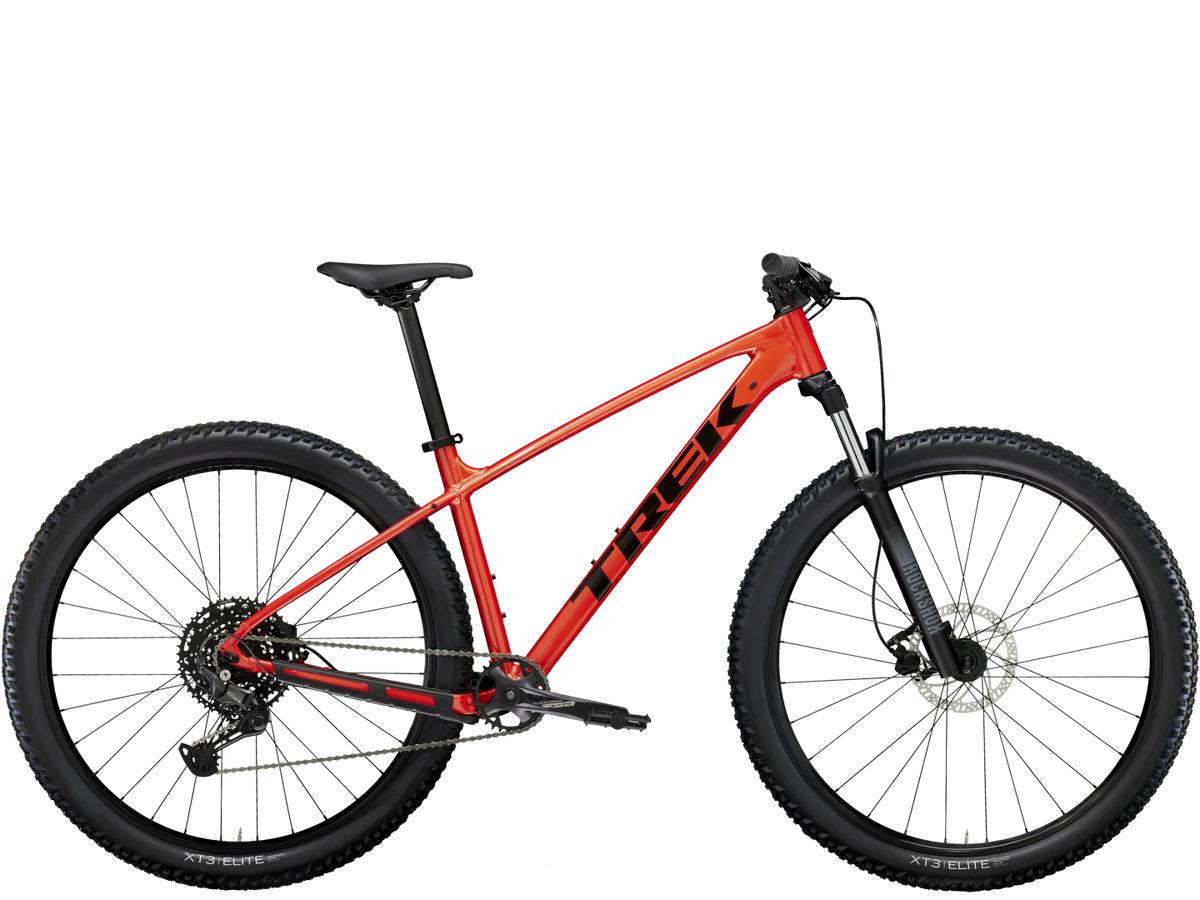

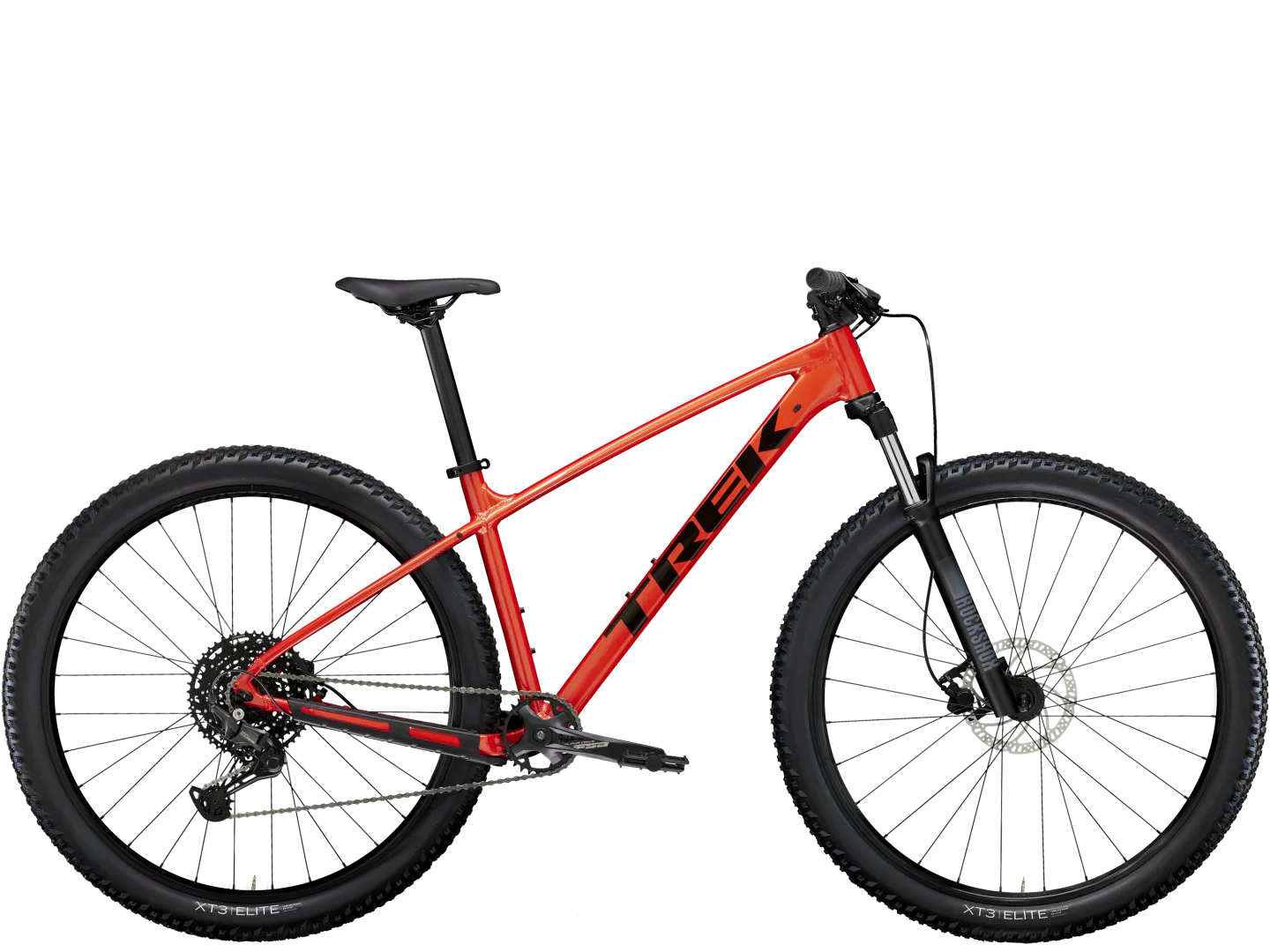

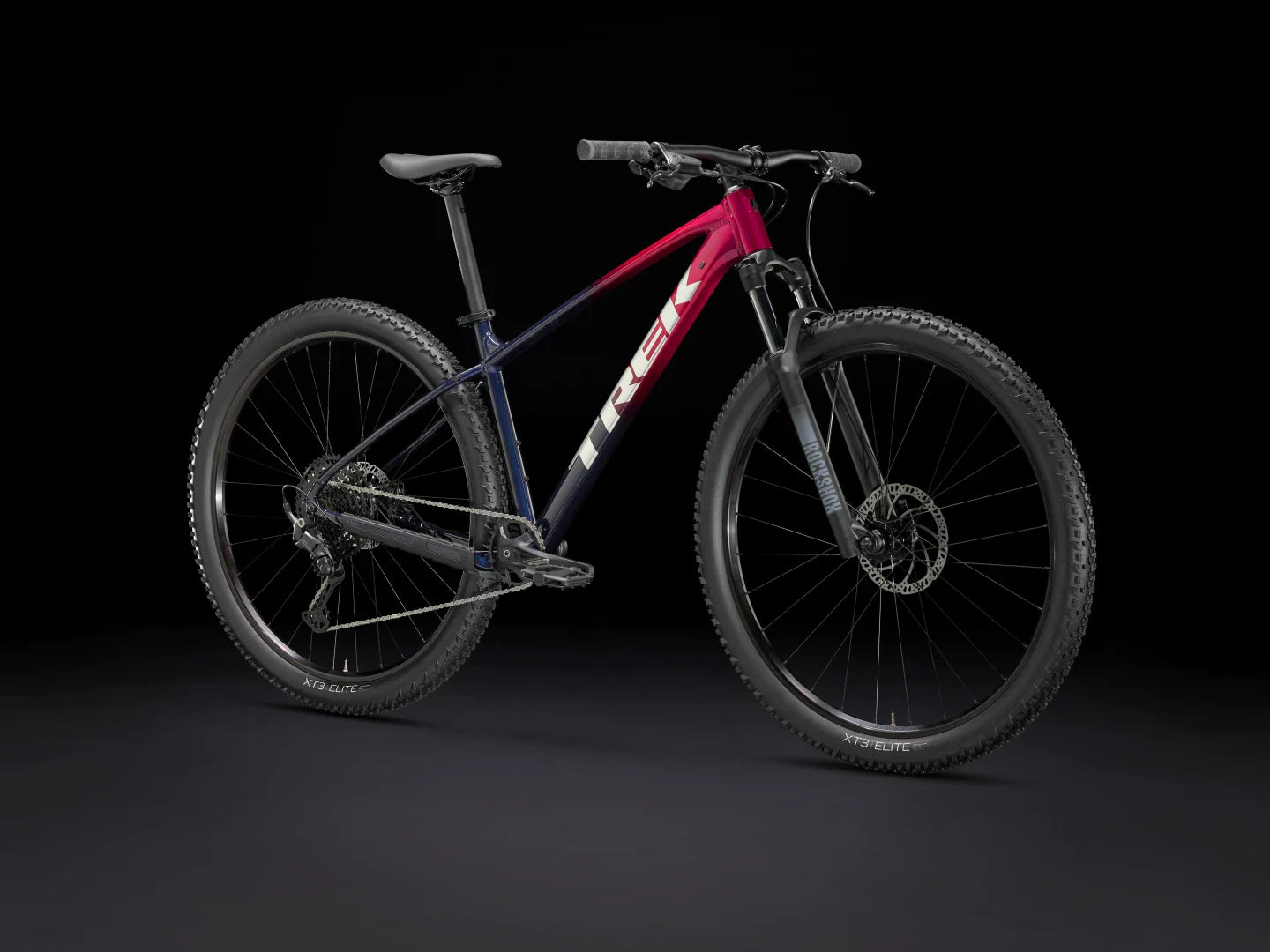

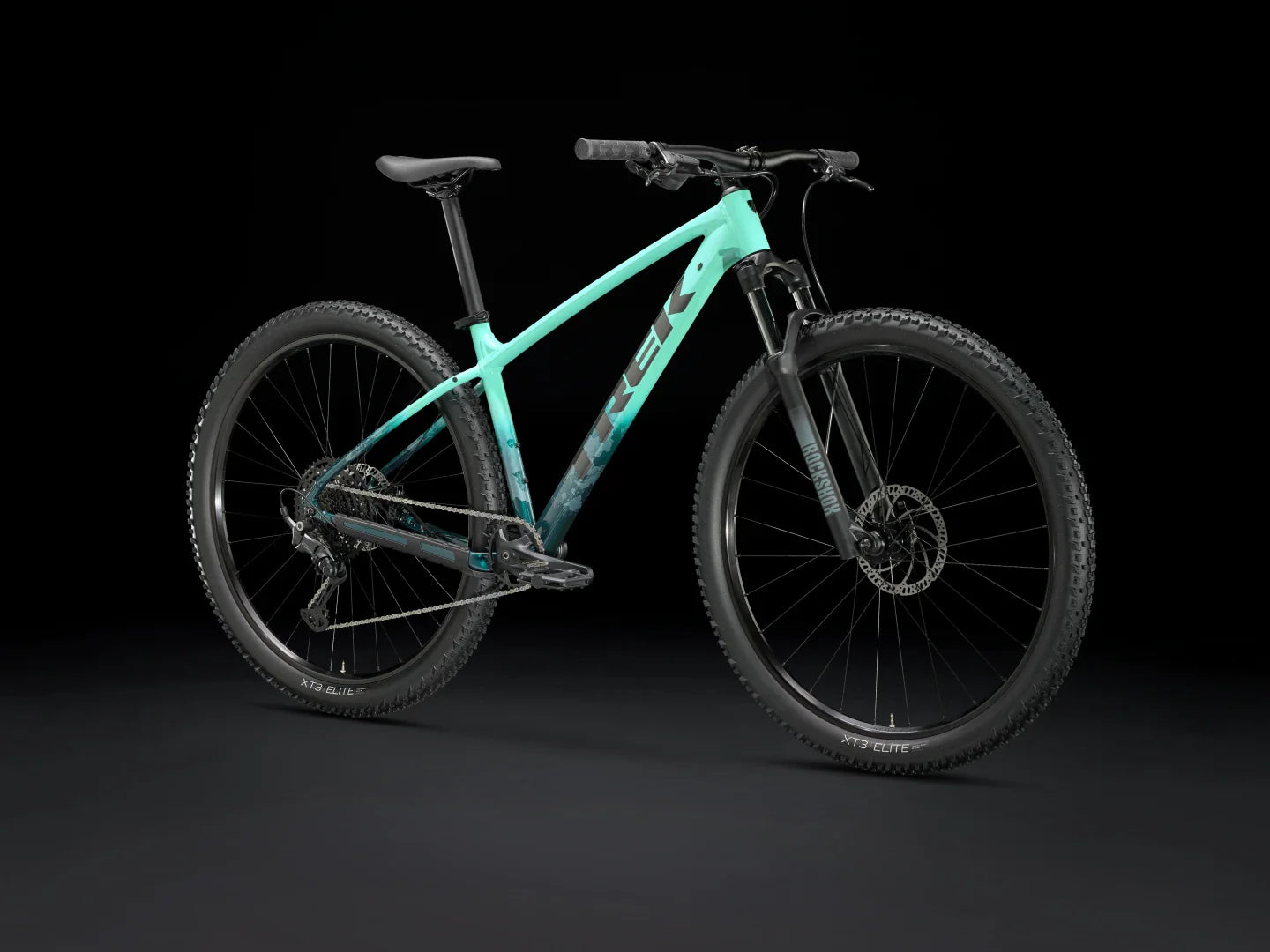

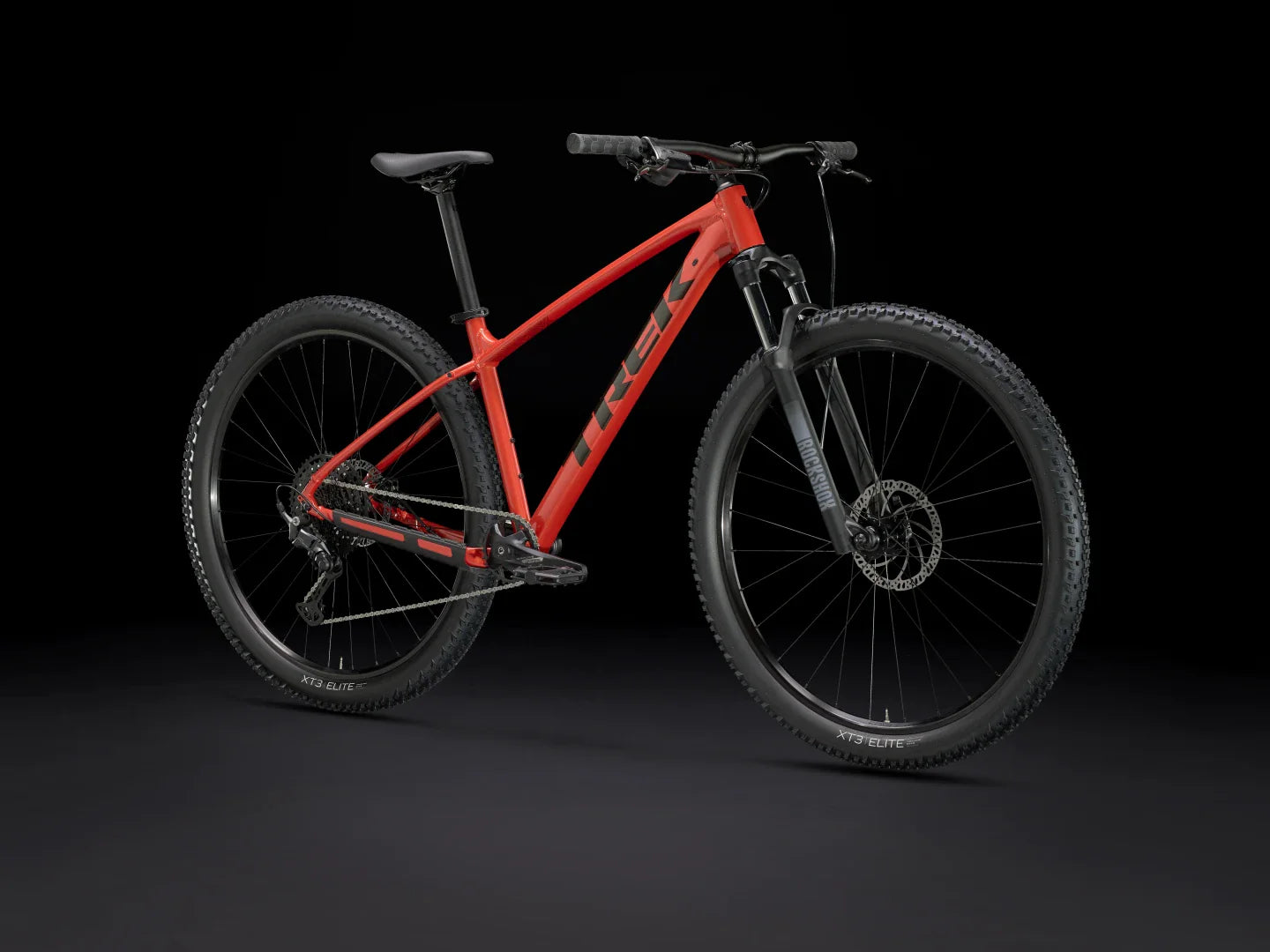

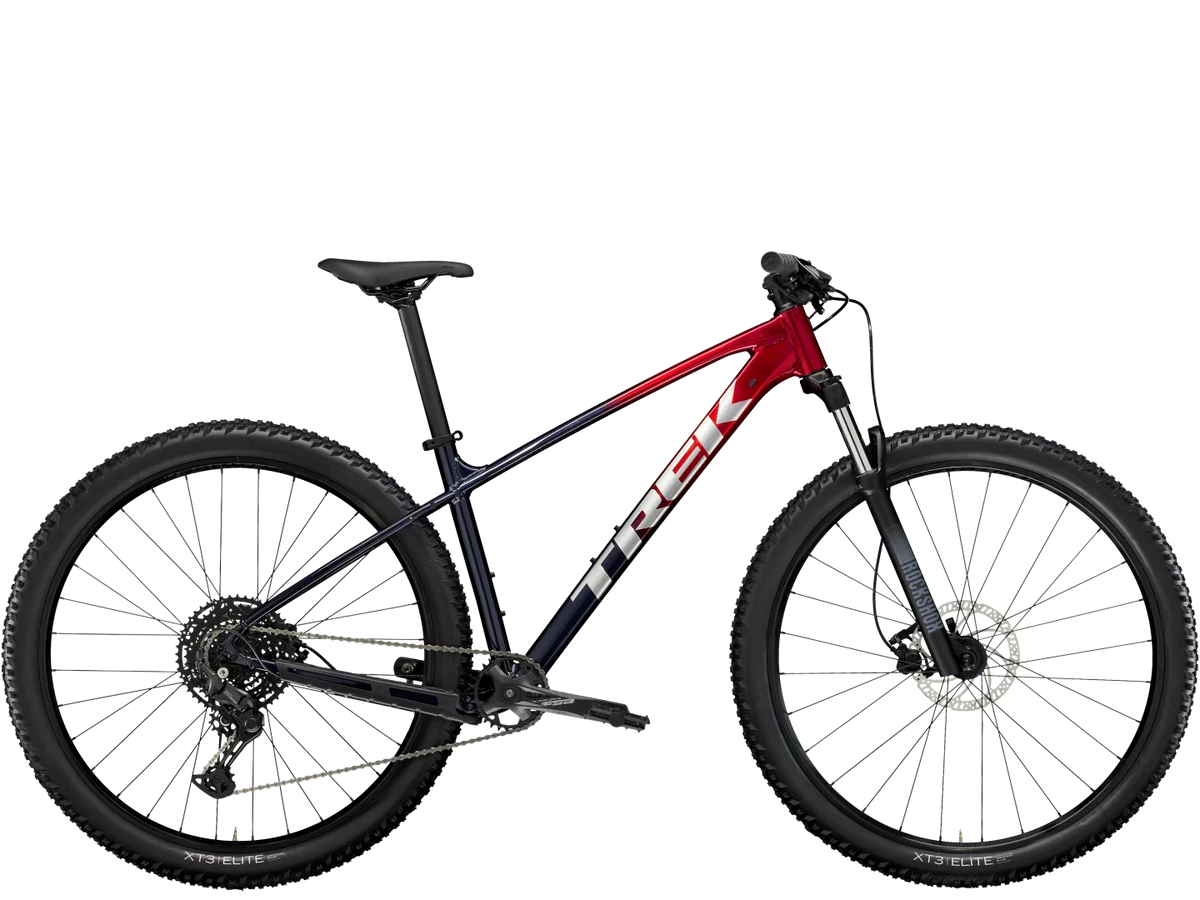

Marlin 6 Gen 3 - 2025

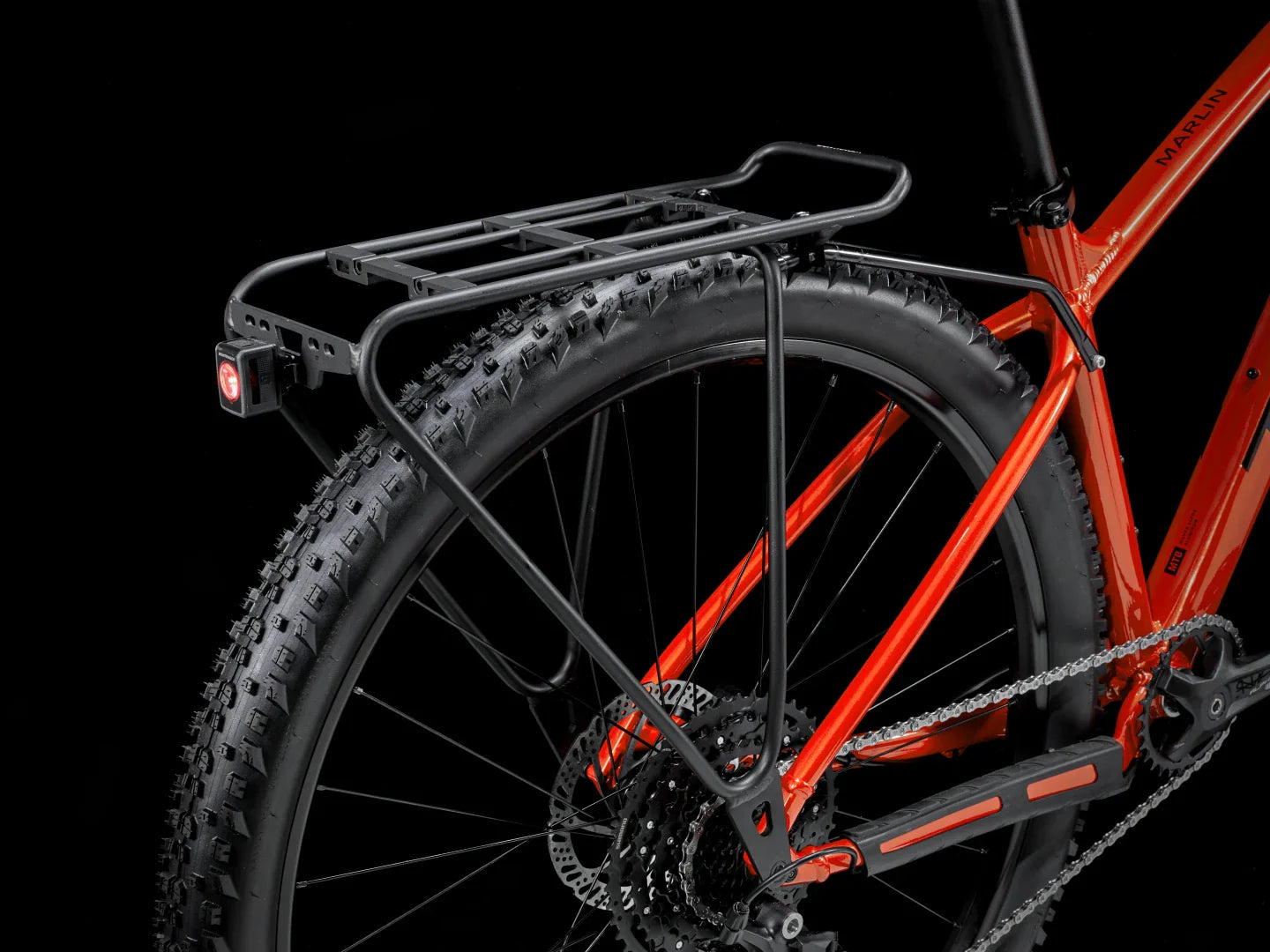

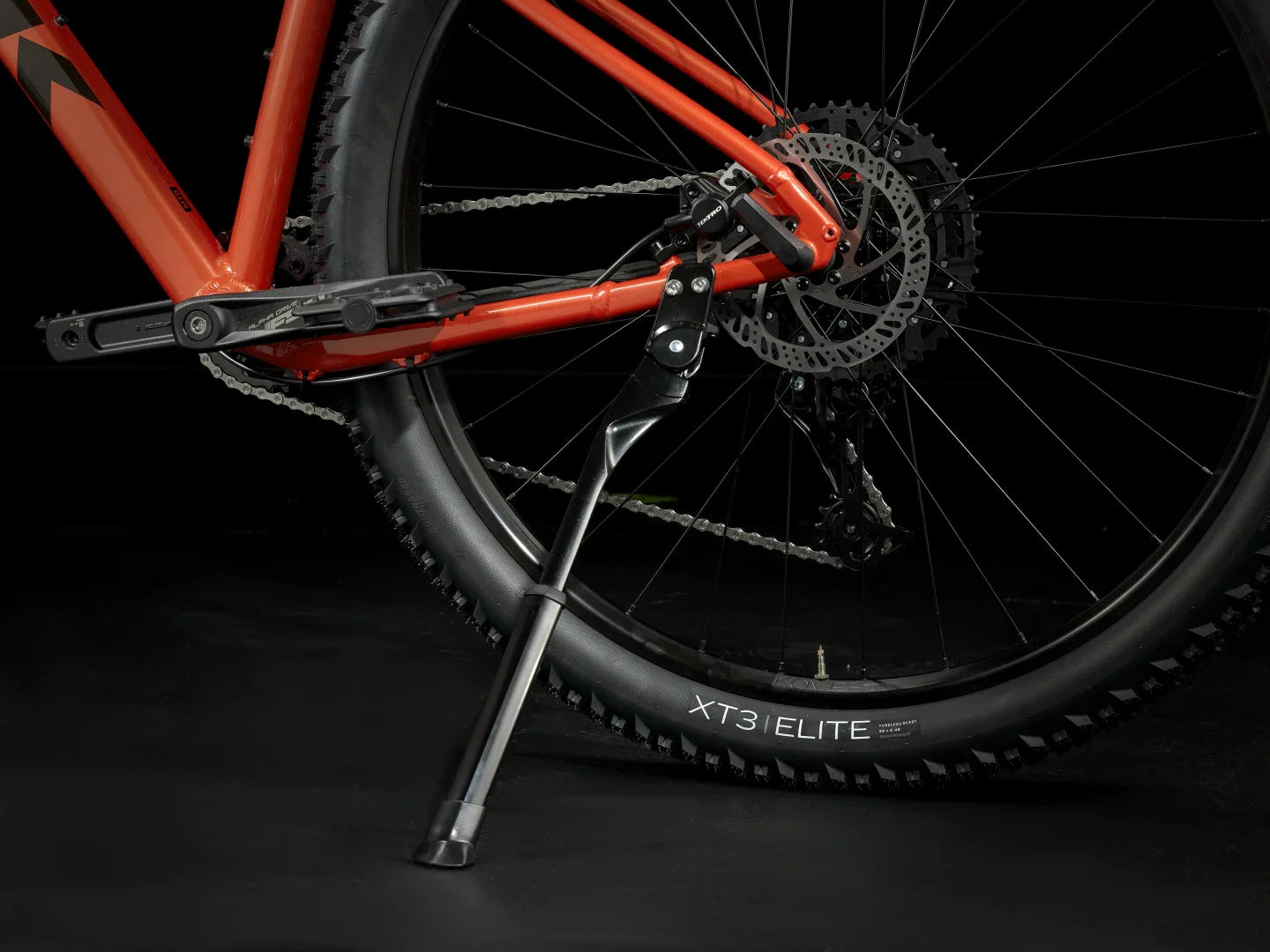

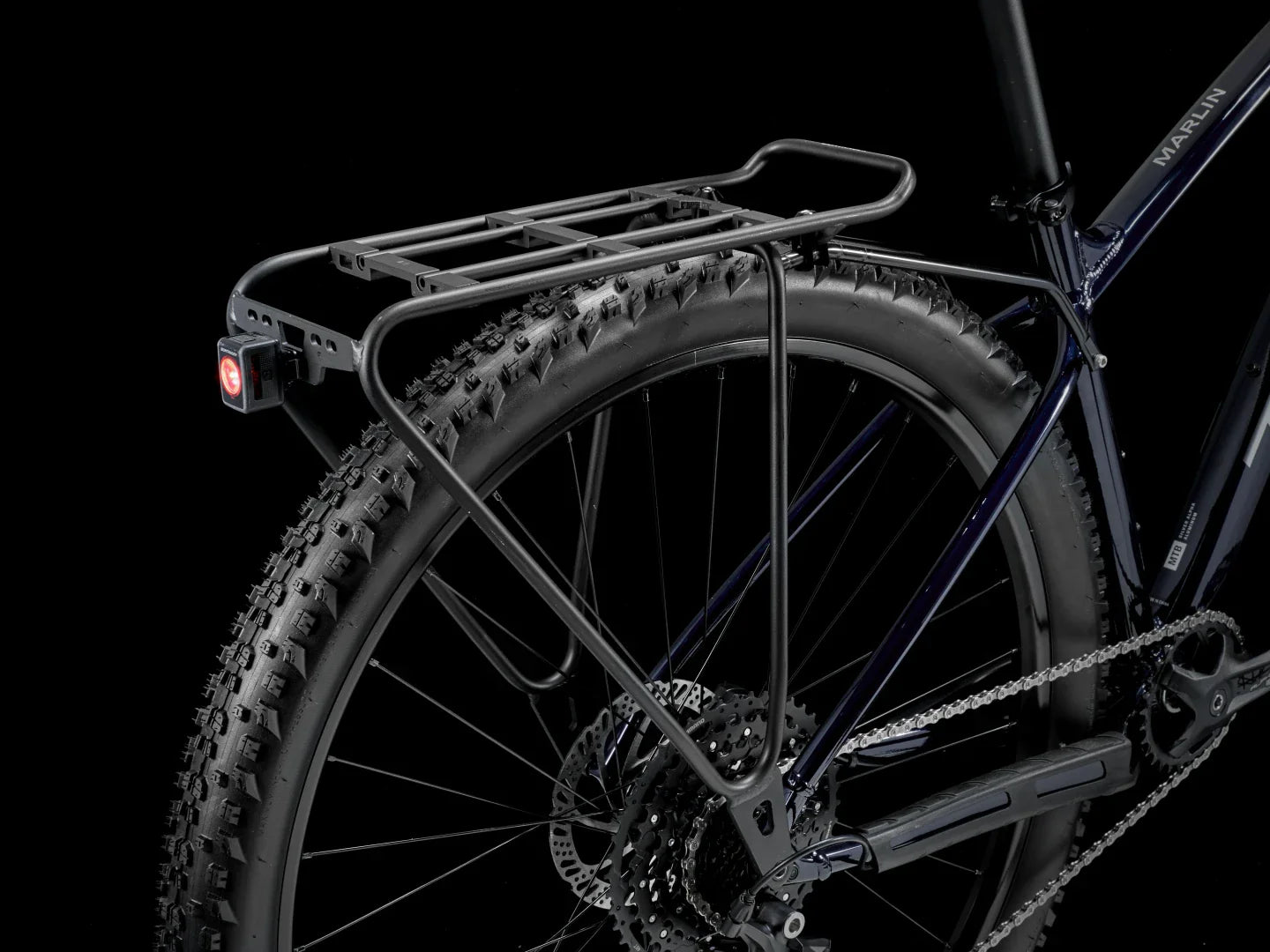

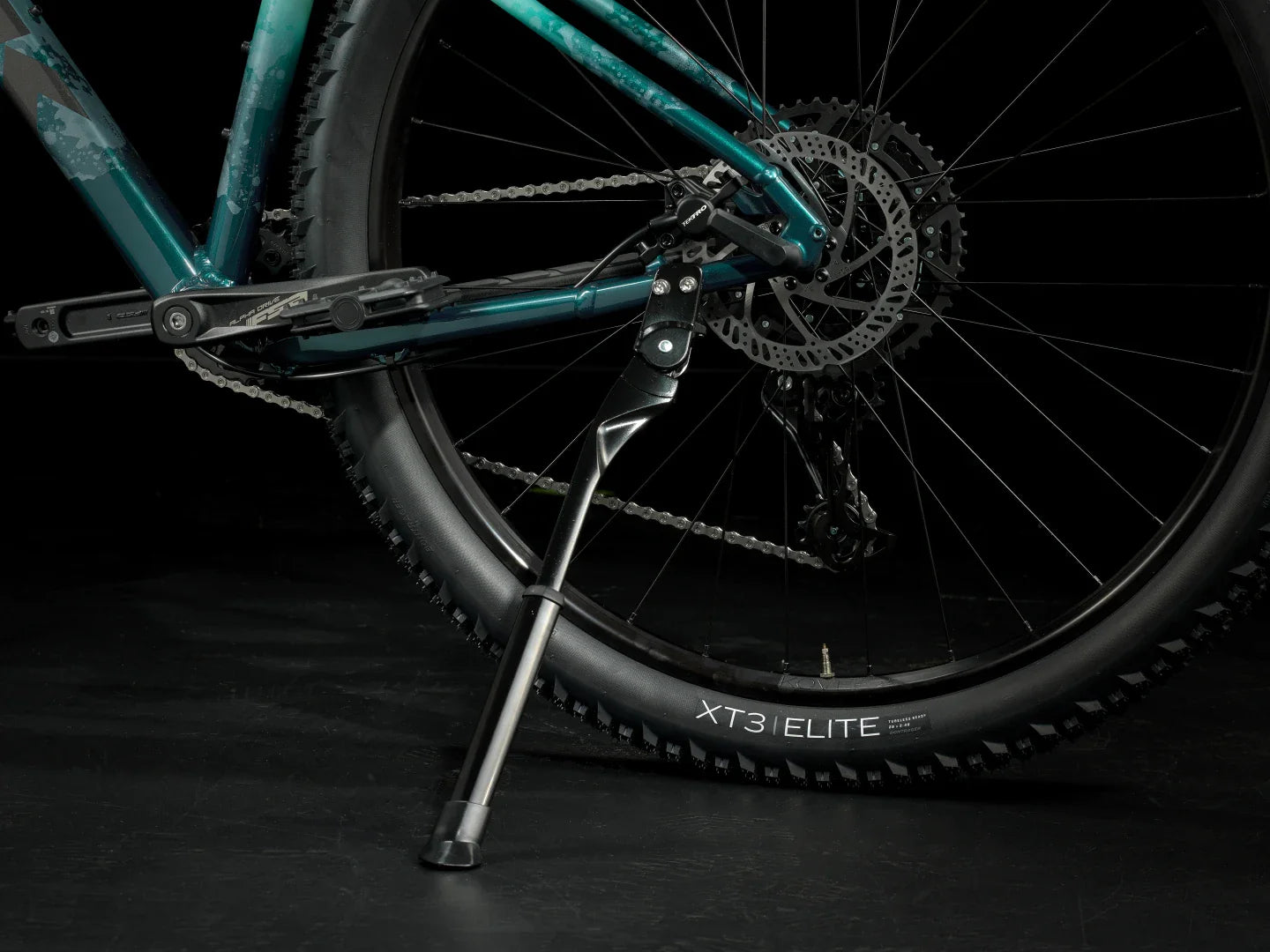

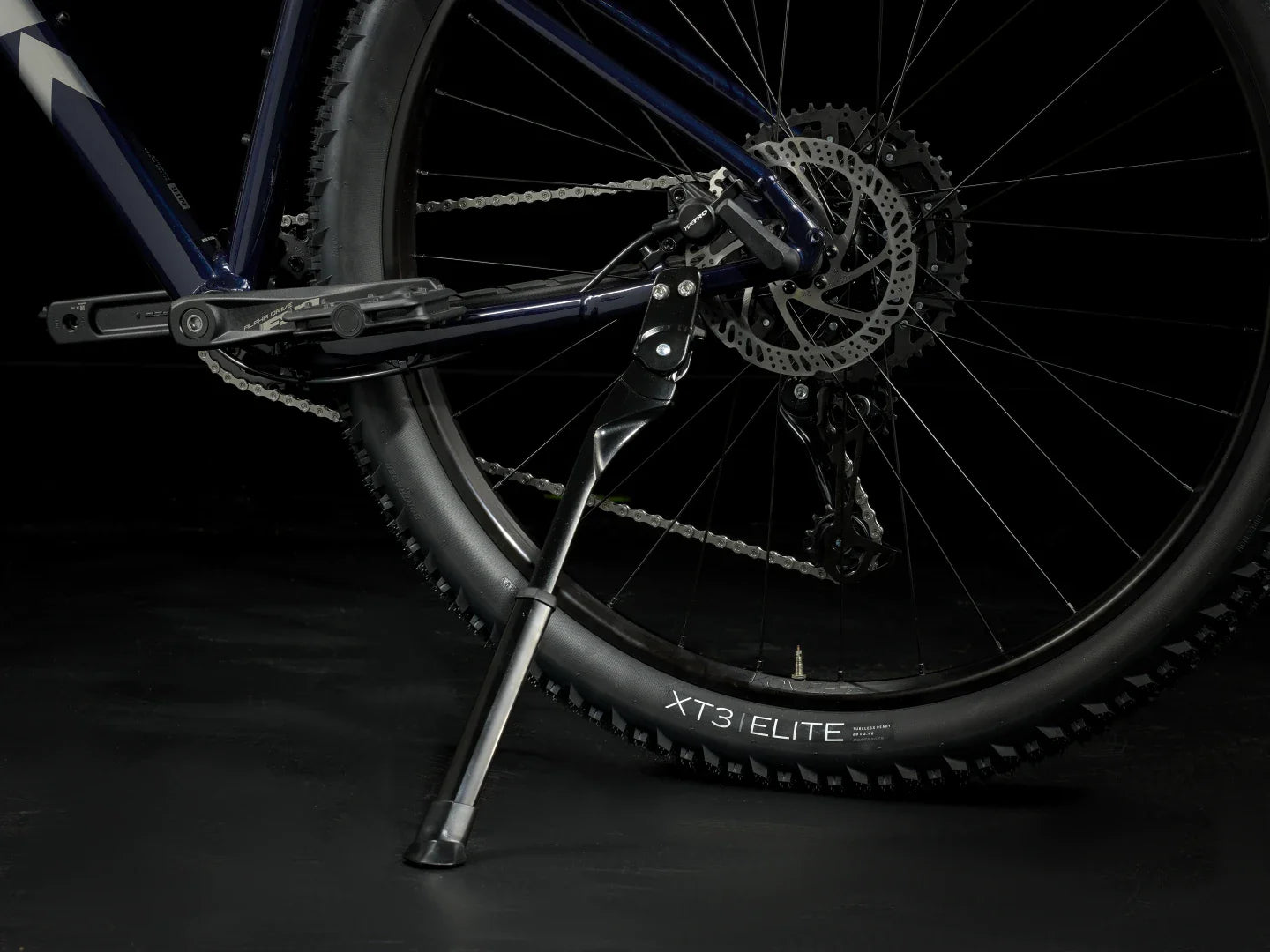

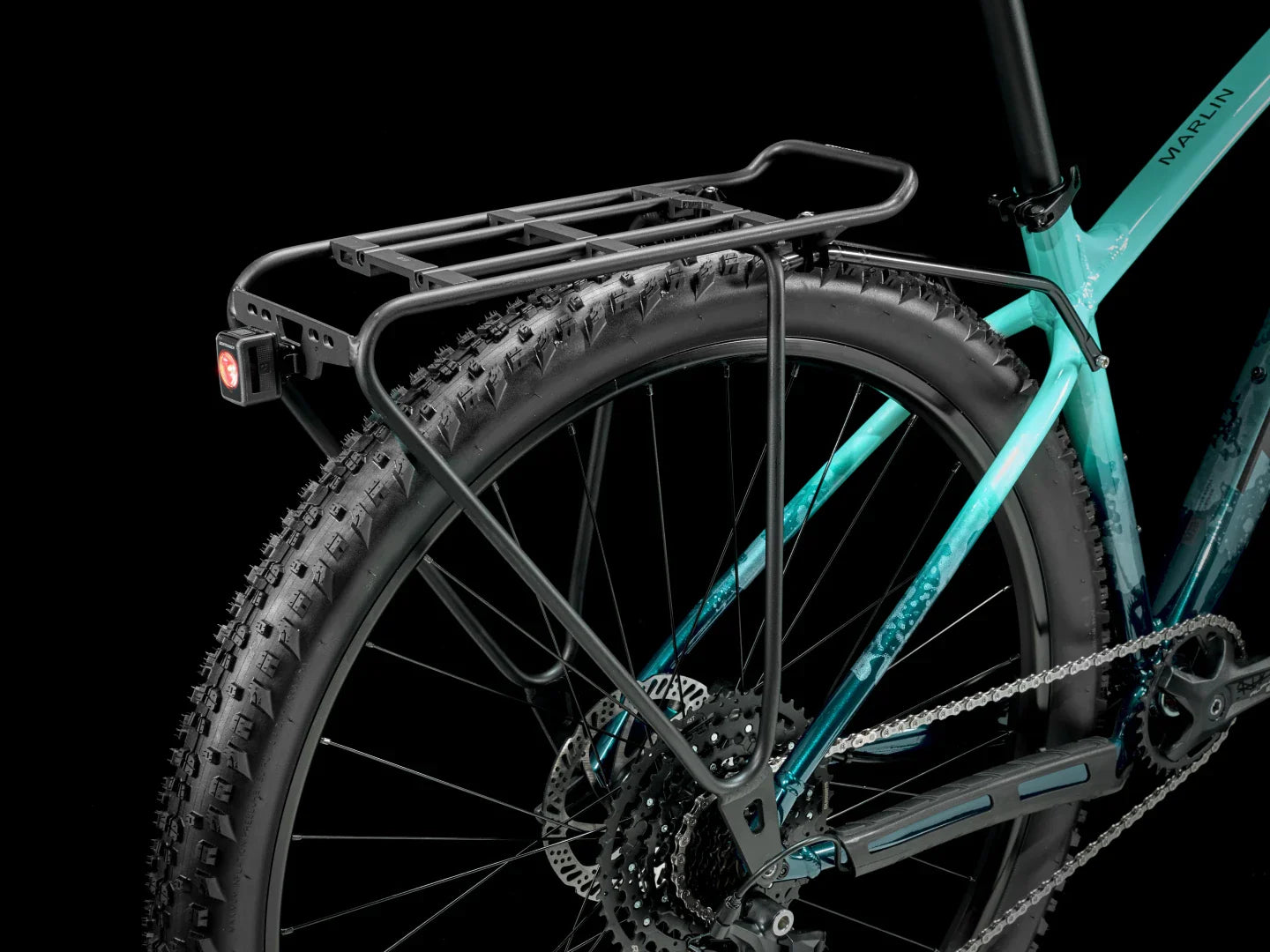

Trek Marlin 6 Mountain Bike is the perfect choice for riders aiming to sharpen their trail skills. Its upgraded suspension fork easily smooths out rough, rocky tracks, while the refined frame geometry offers better handling on descents. With built-in rack and kickstand mounts, it’s a versatile bike that’s simple to customize for both adventurous rides and everyday use.
- 371.810 BD
- 371.810 BD
- Unit price
- per
Limited-Time Offers, End in:
151D
8H
23M
0S
+
+
Compare color
Specs
Sizing
Geometry
Frameset

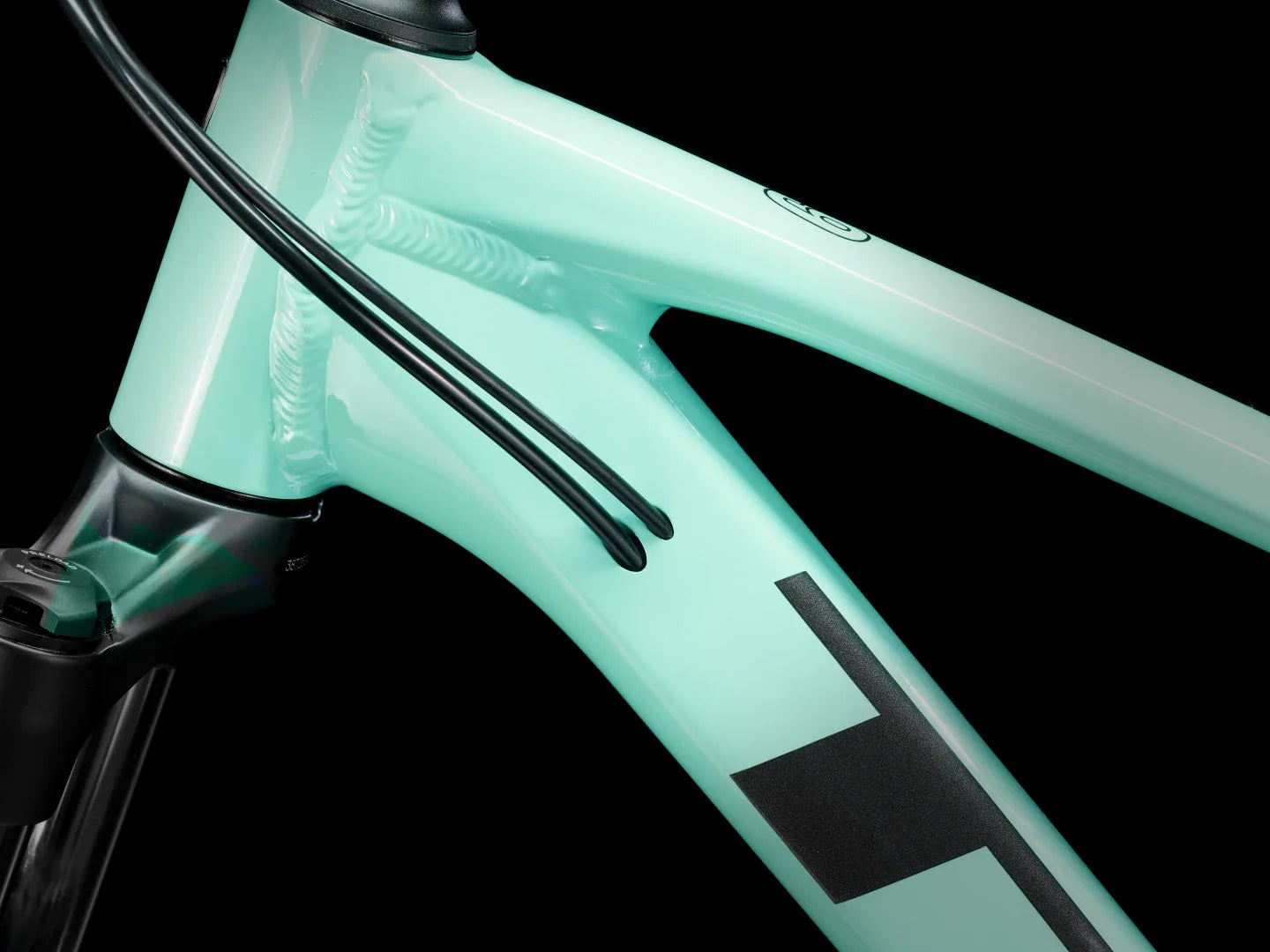

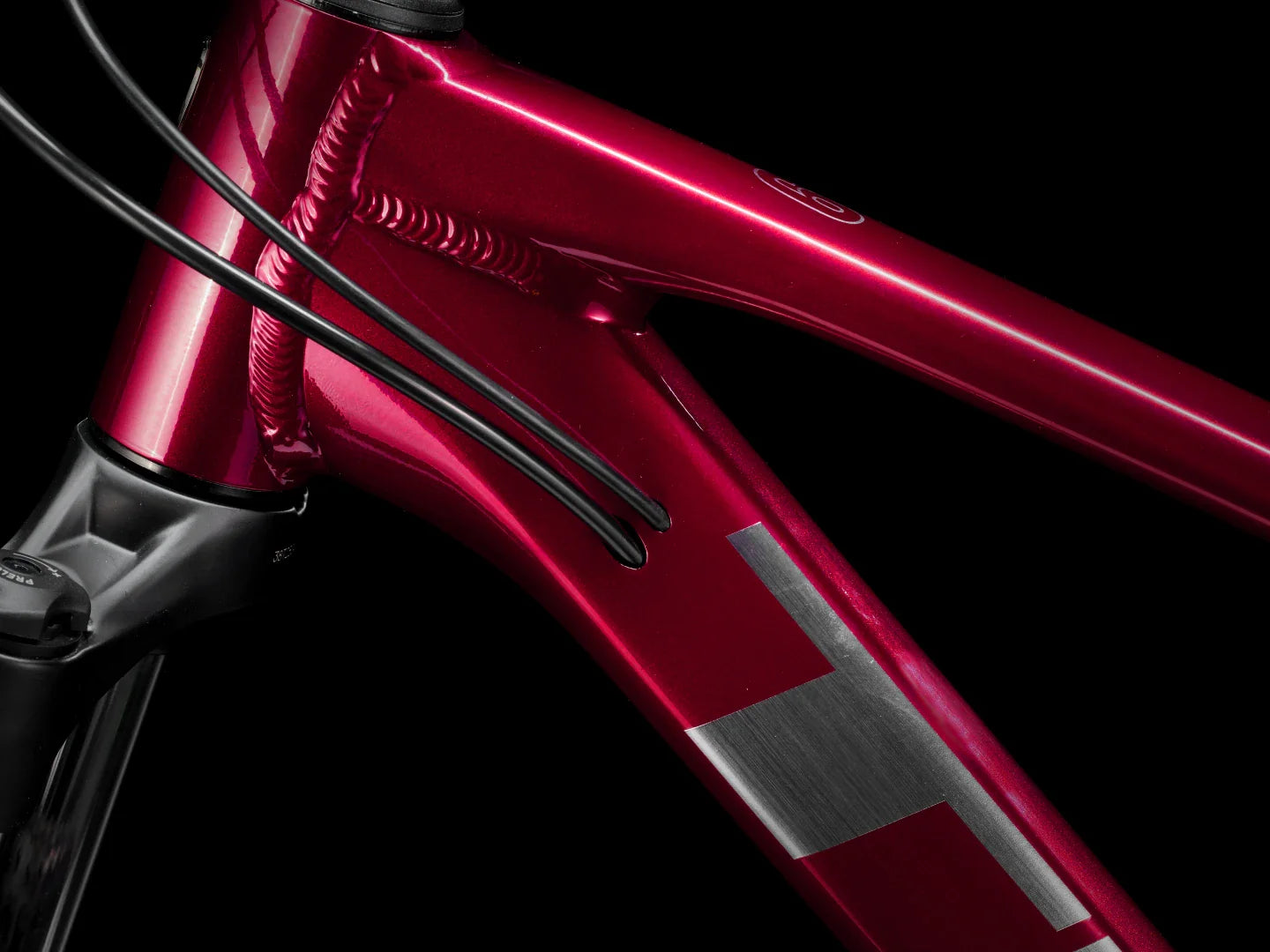

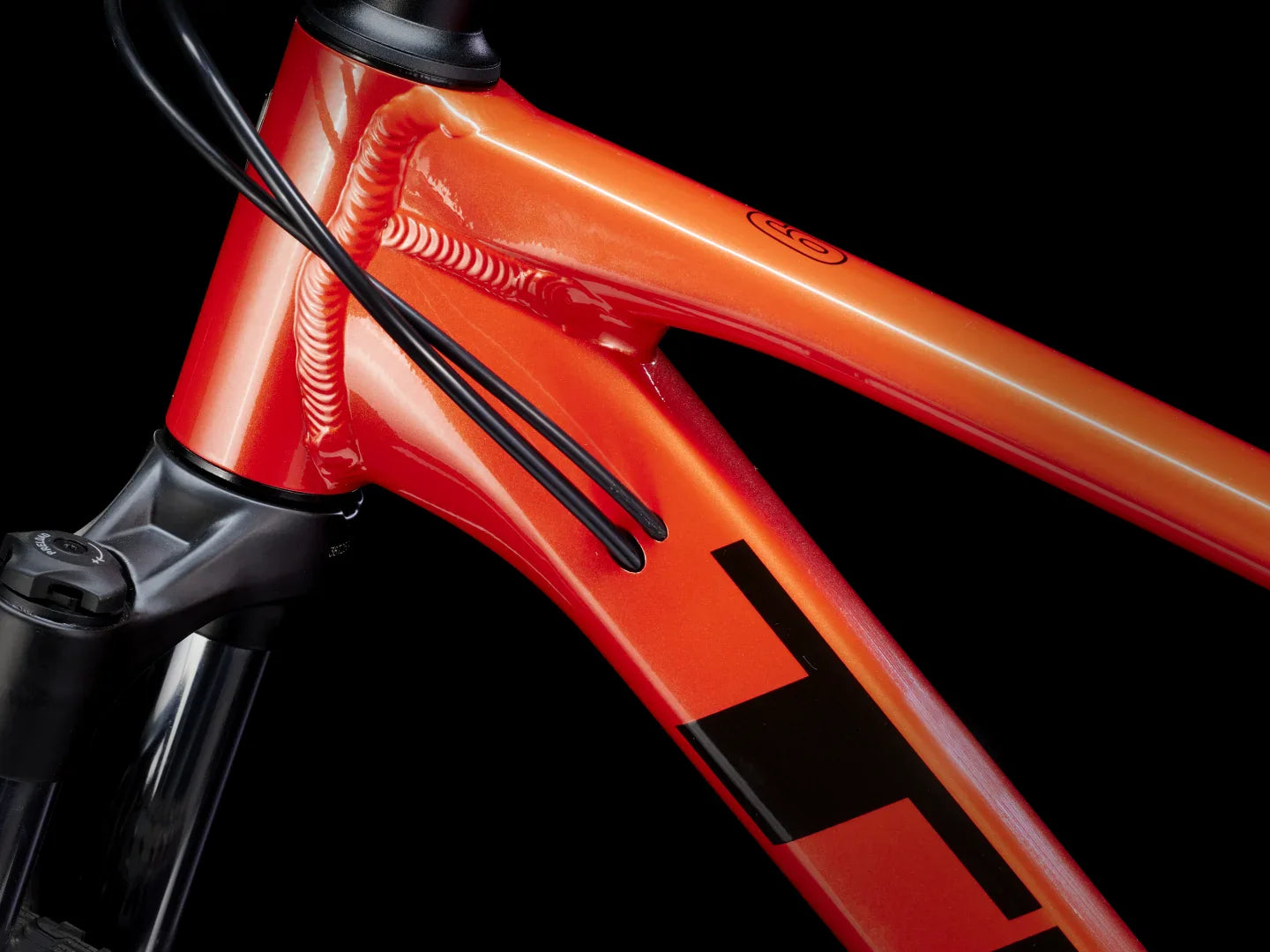

| *Frame | Size: XS , S Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR Size: M , ML , L , XL Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR |
|---|---|
| *Fork | Size: XS SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel Size: S SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel Size: M , ML , L , XL SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
| Max compatible fork travel | 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
Weight
| Skewer rear | 173x5mm QR |
|---|---|
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |

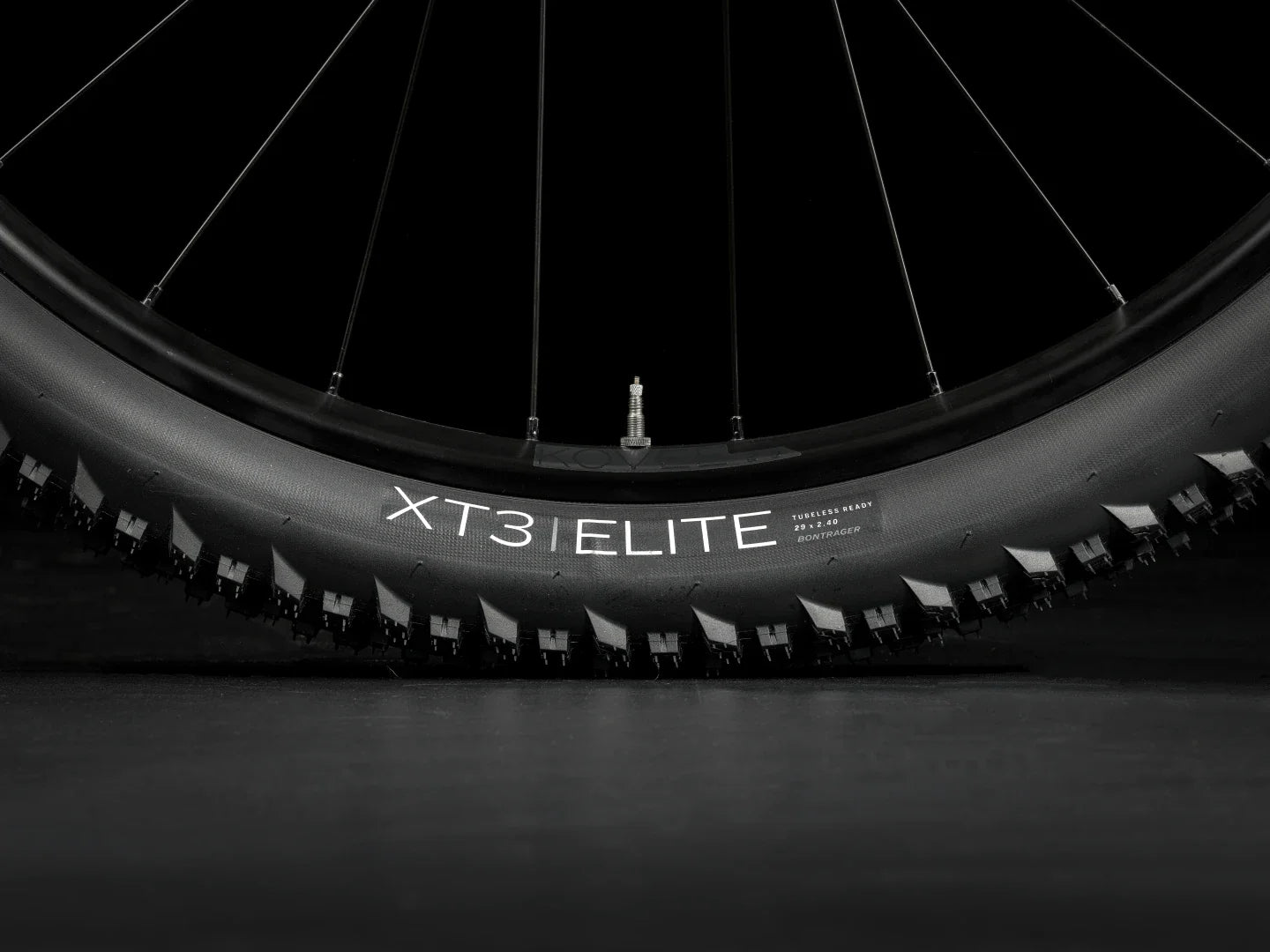

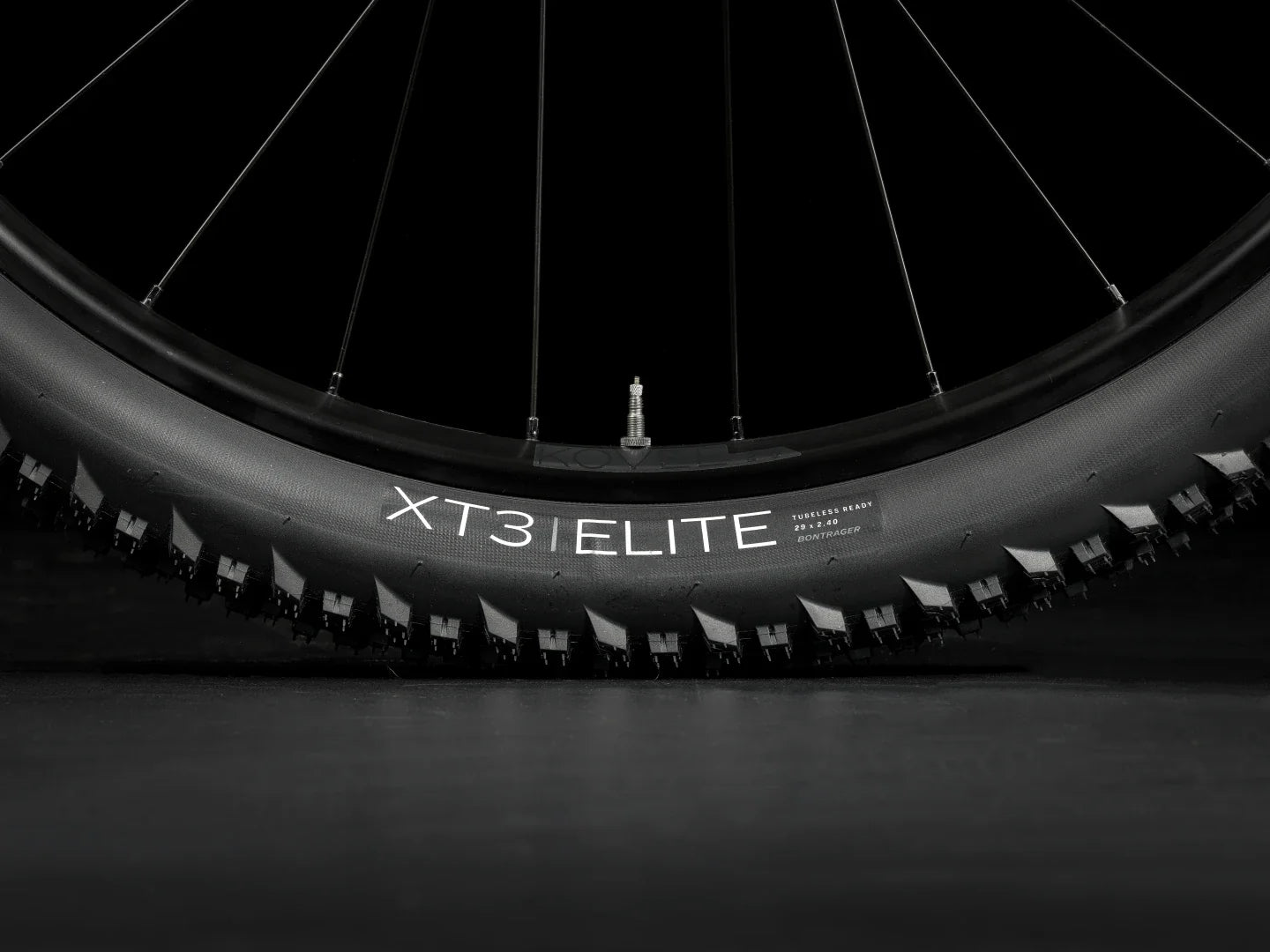

| *Tire | Size: XXS Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26x2.35'' Size: XS , S Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35'' Size: M , ML , L , XL , XXL Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35'' |
| Max tire size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
Drivetrain
| Shifter | Shimano U6000, 10 speed |
|---|---|

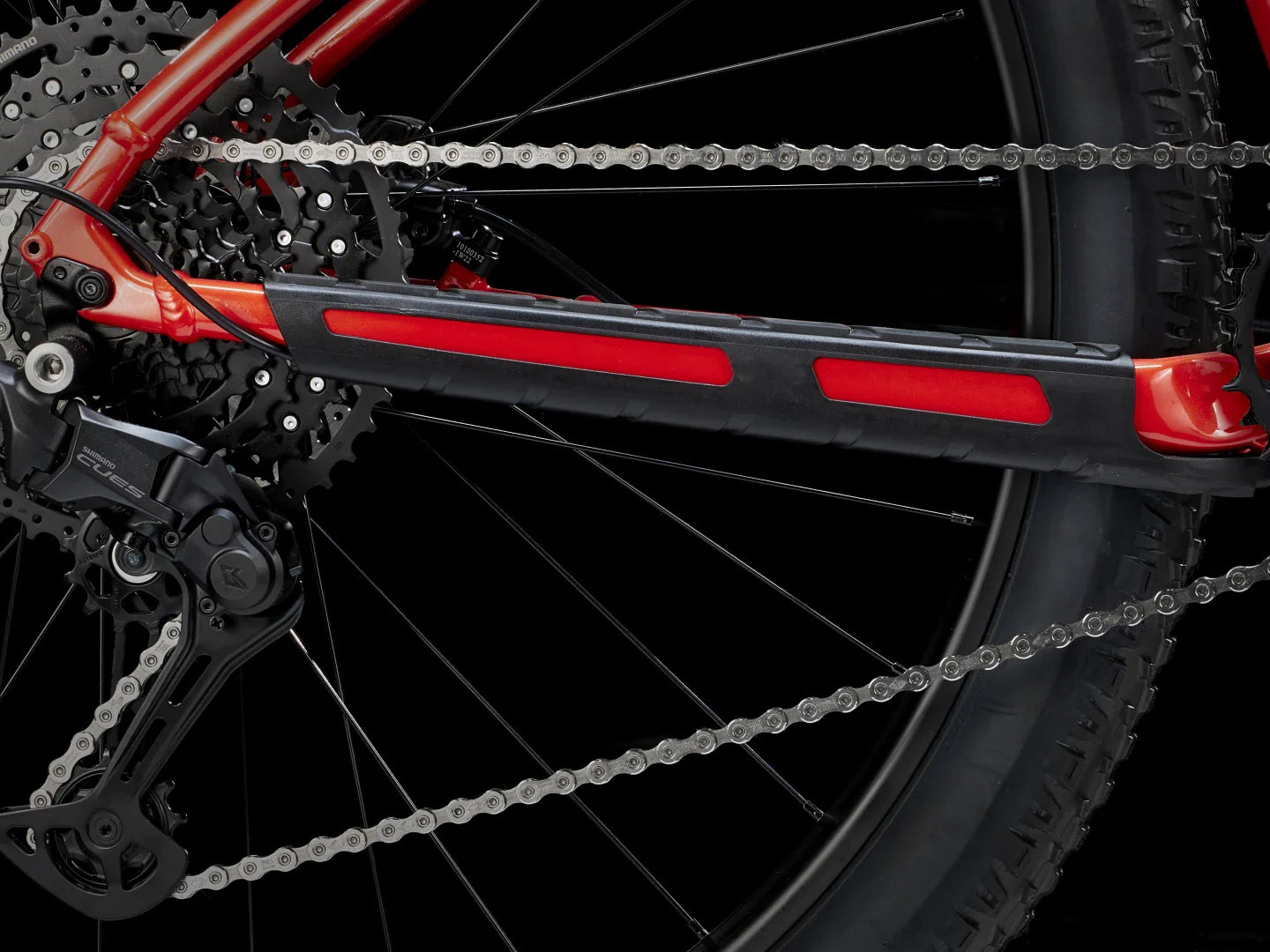

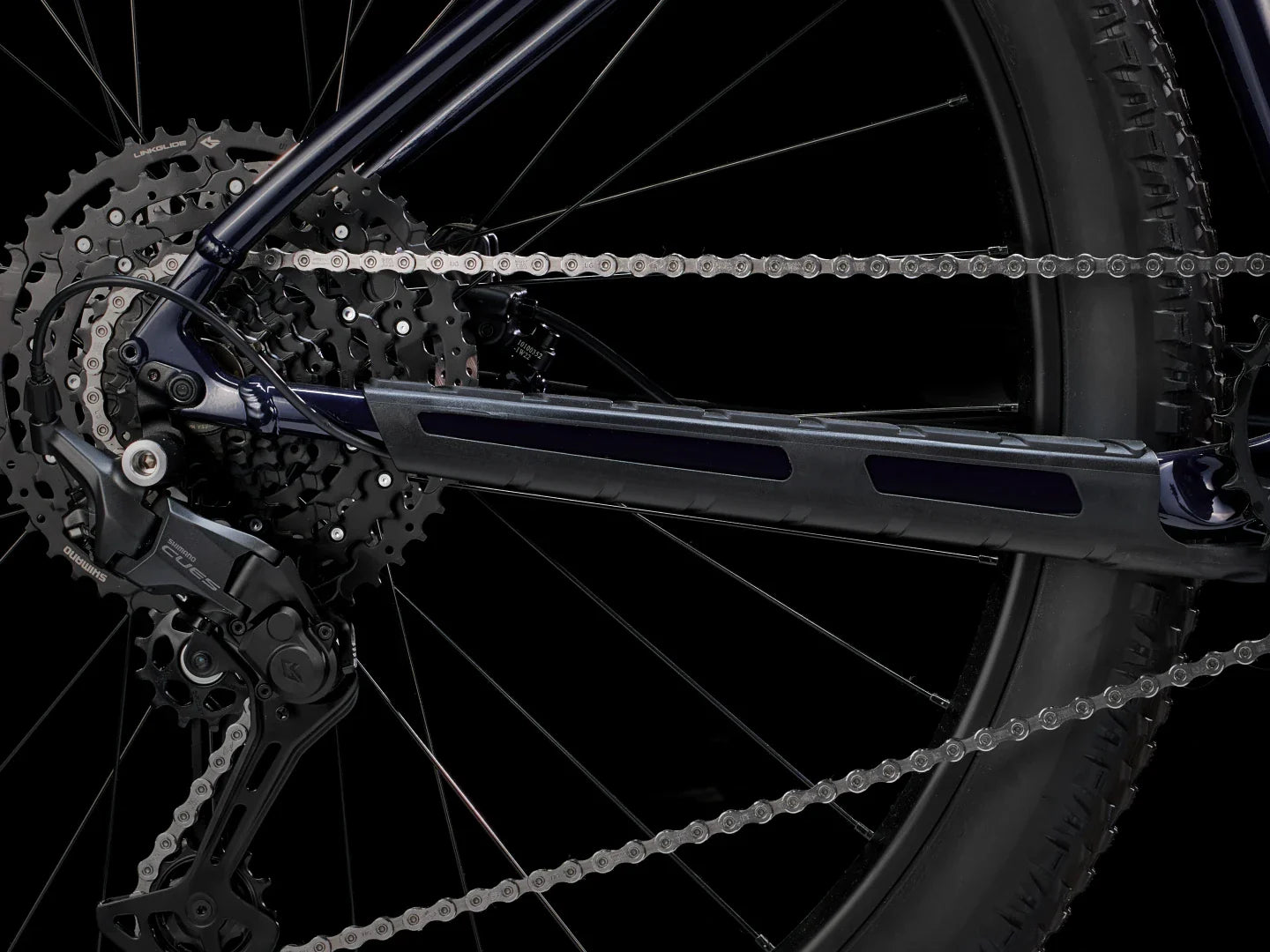

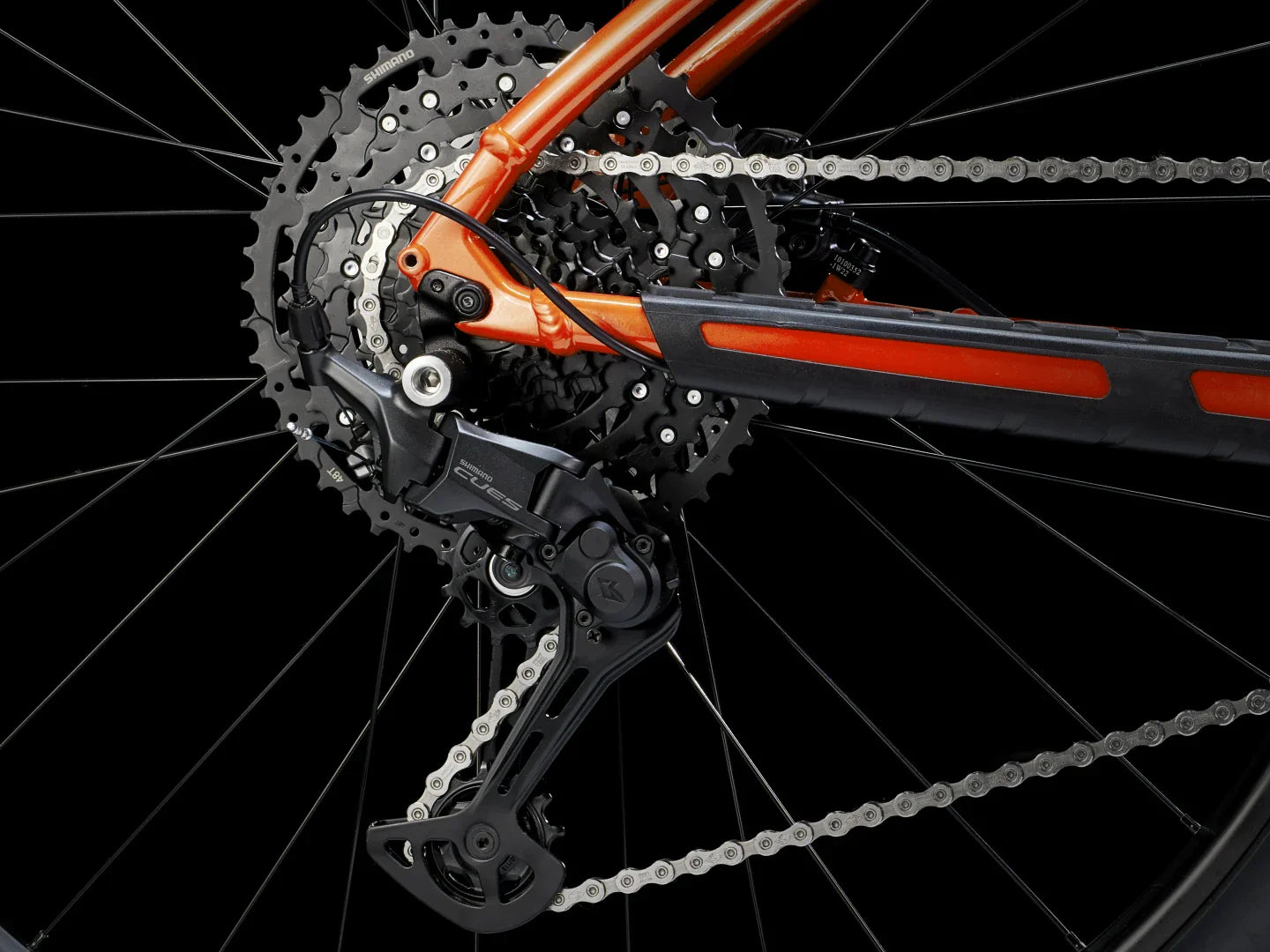

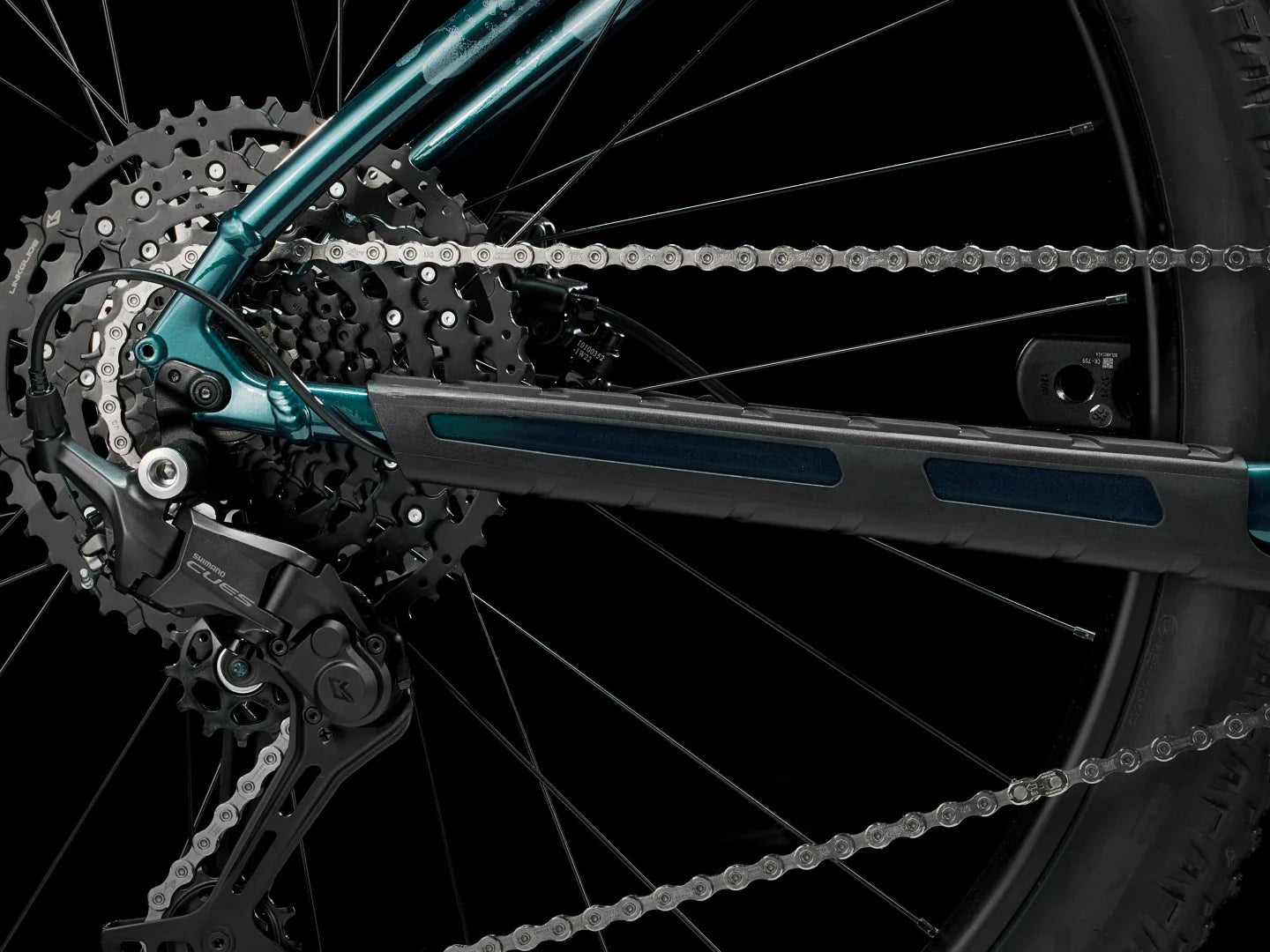

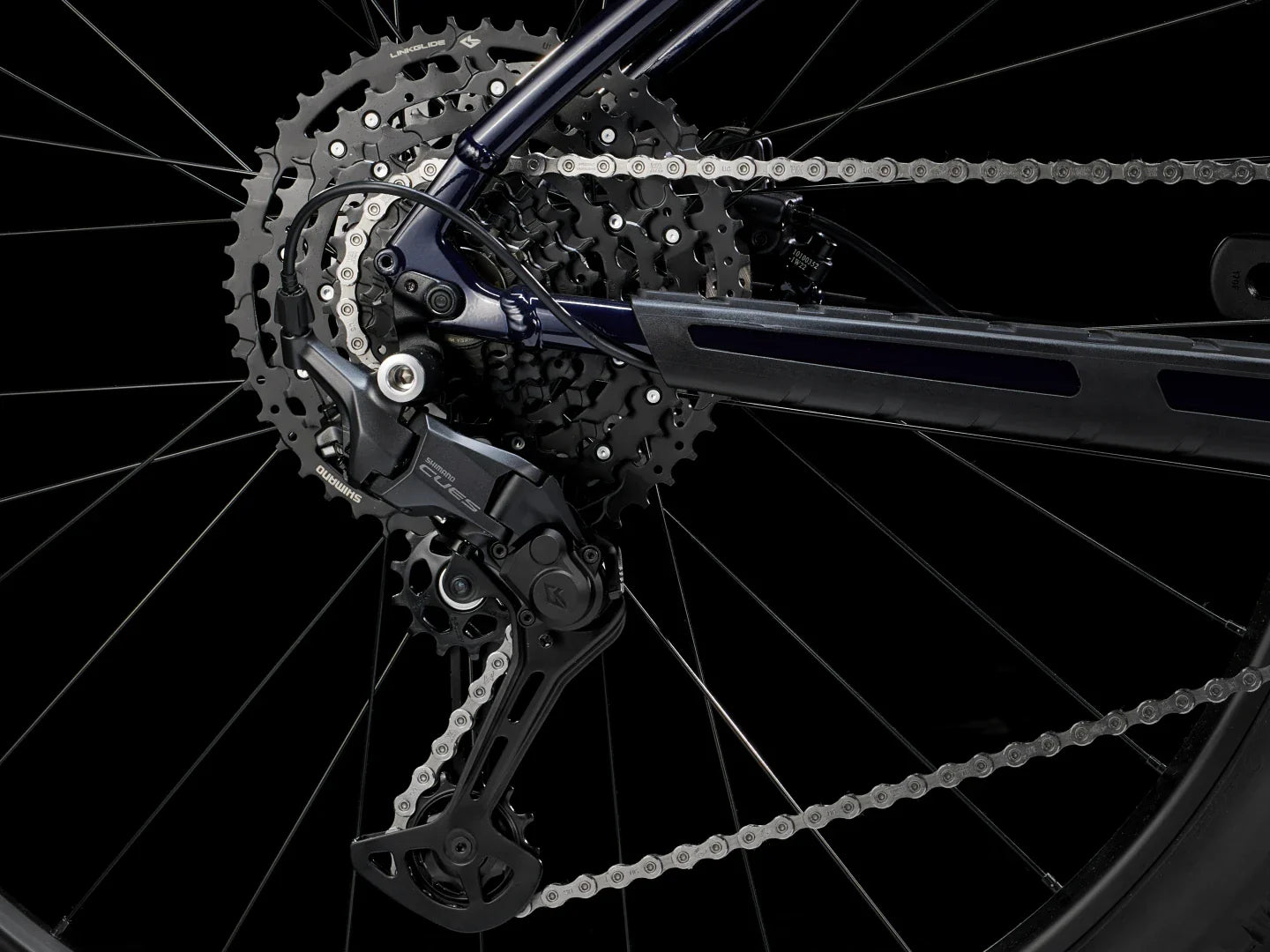

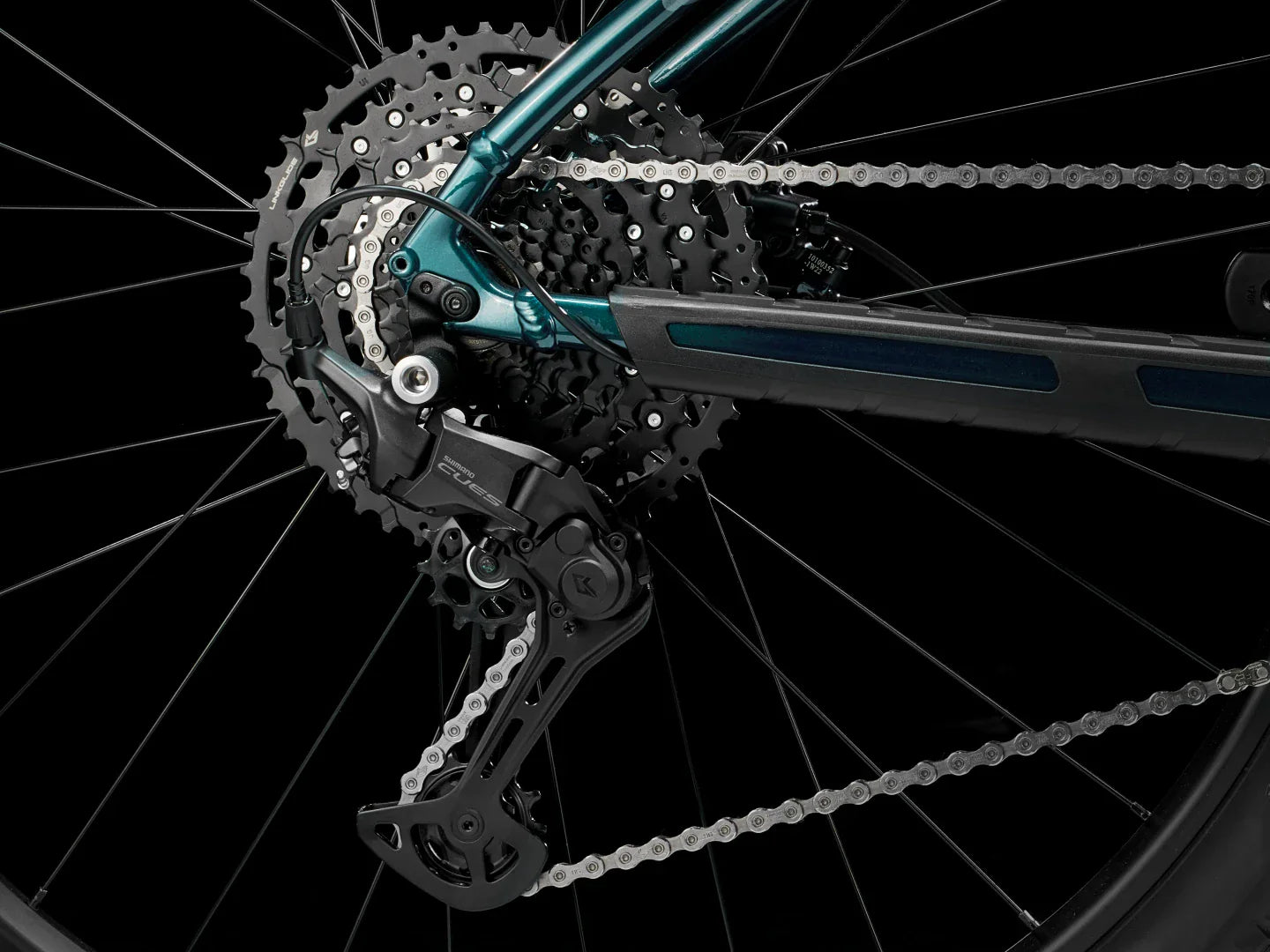

| Rear derailleur | Shimano CUES U6000 GS |

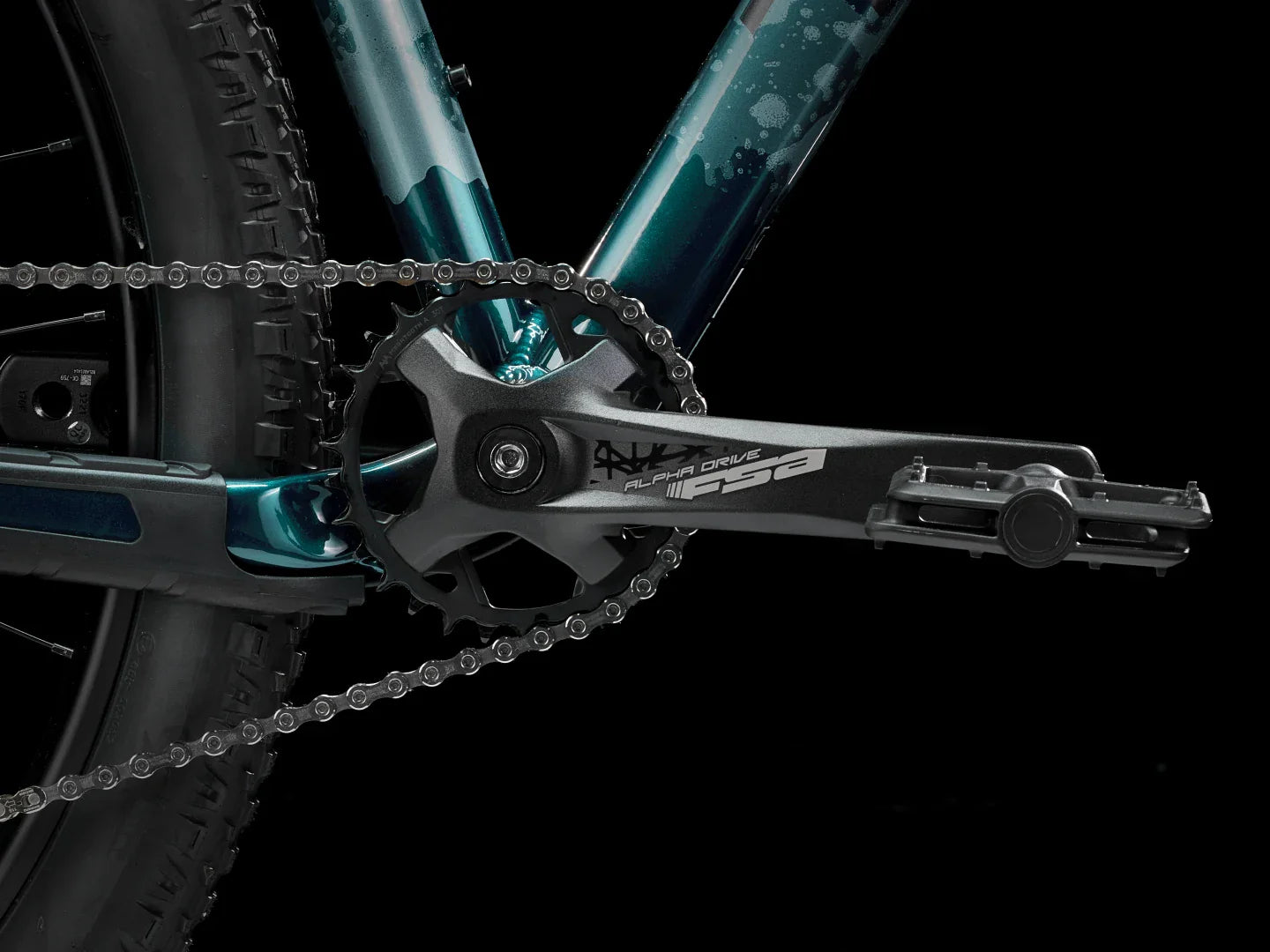

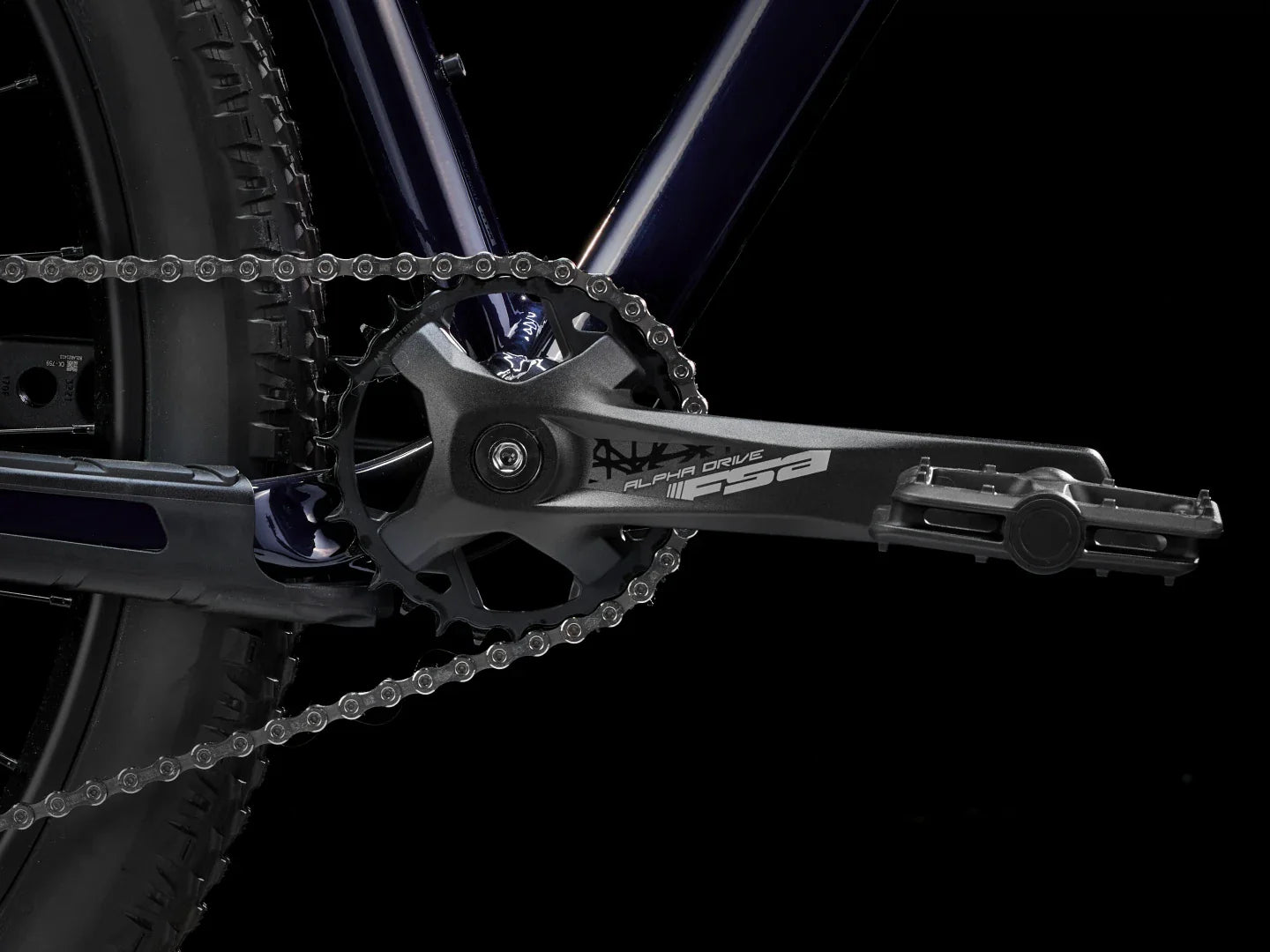

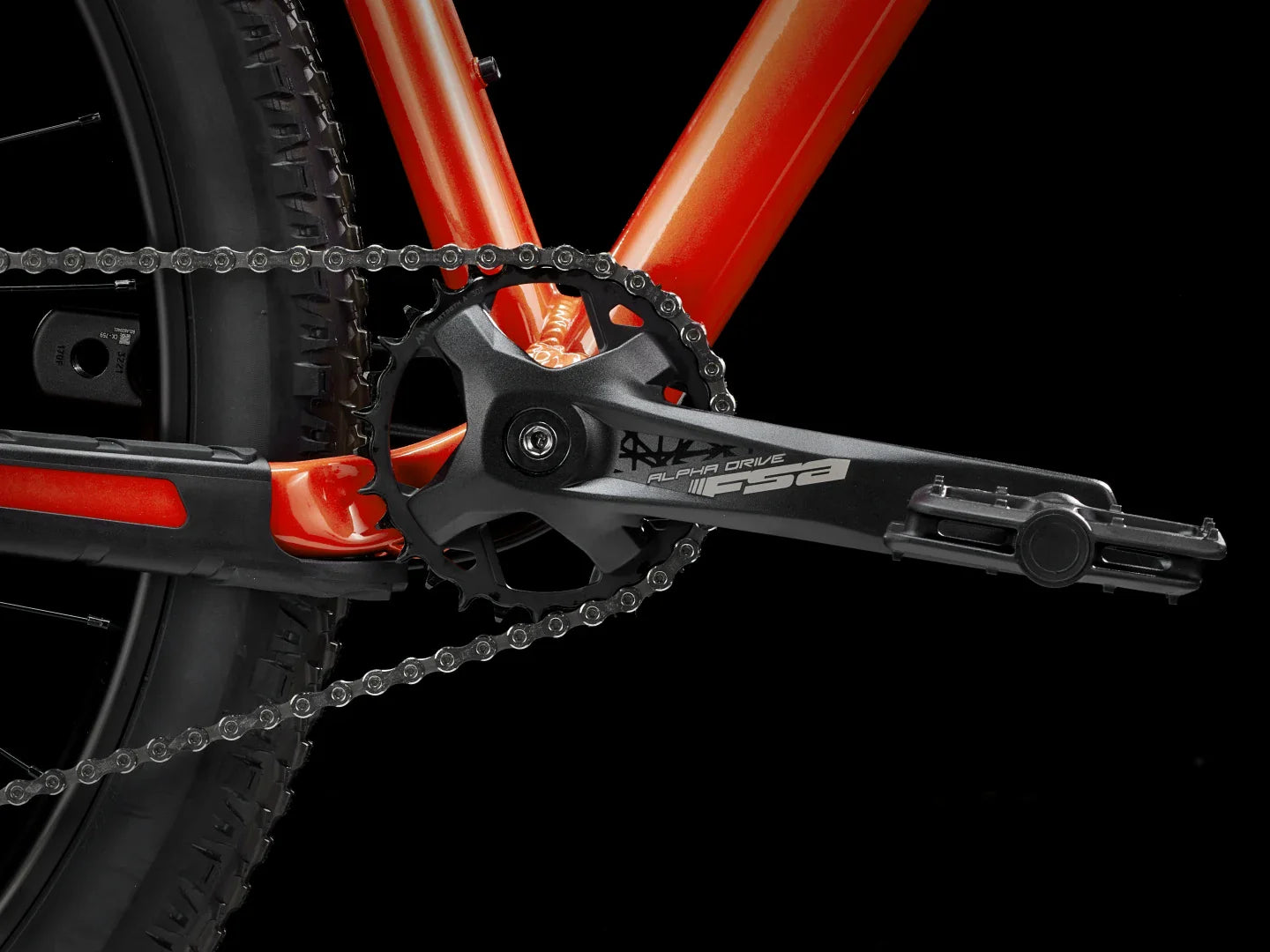

| *Crank | Size: XXS , XS FSA Alpha Drive, 30T, 160mm length |
| Size: S , M , ML FSA Alpha Drive, 30T, 170mm length | |
| Size: L , XL , XXL FSA Alpha Drive, 30T, 175mm length | |
| Bottom bracket | FSA, 73mm, threaded cartridge, 122.5mm spindle |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed |
| Chain | Shimano LG500, 9/10/11 speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 34T, 2x: 36/22 |
Components
| Saddle | Bontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost | Size: XXS Bontrager alloy, 31.6mm, 12mm offset, 300mm length |
| Size: XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length | |
| Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length | |
| *Handlebar | Size:XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Size: S Bontrager alloy, 31.8mm, 15mm rise, 720mm width | |
| Size: M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 15mm rise, 750mm width | |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: XXS , XS , S Bontrager Comp, 31.8mm, 7 degree, 35mm length |
| Size: M , ML , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length | |
| Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length | |
| Size: XXL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length | |
| Headset | Semi-integrated, 1-1/8'' |

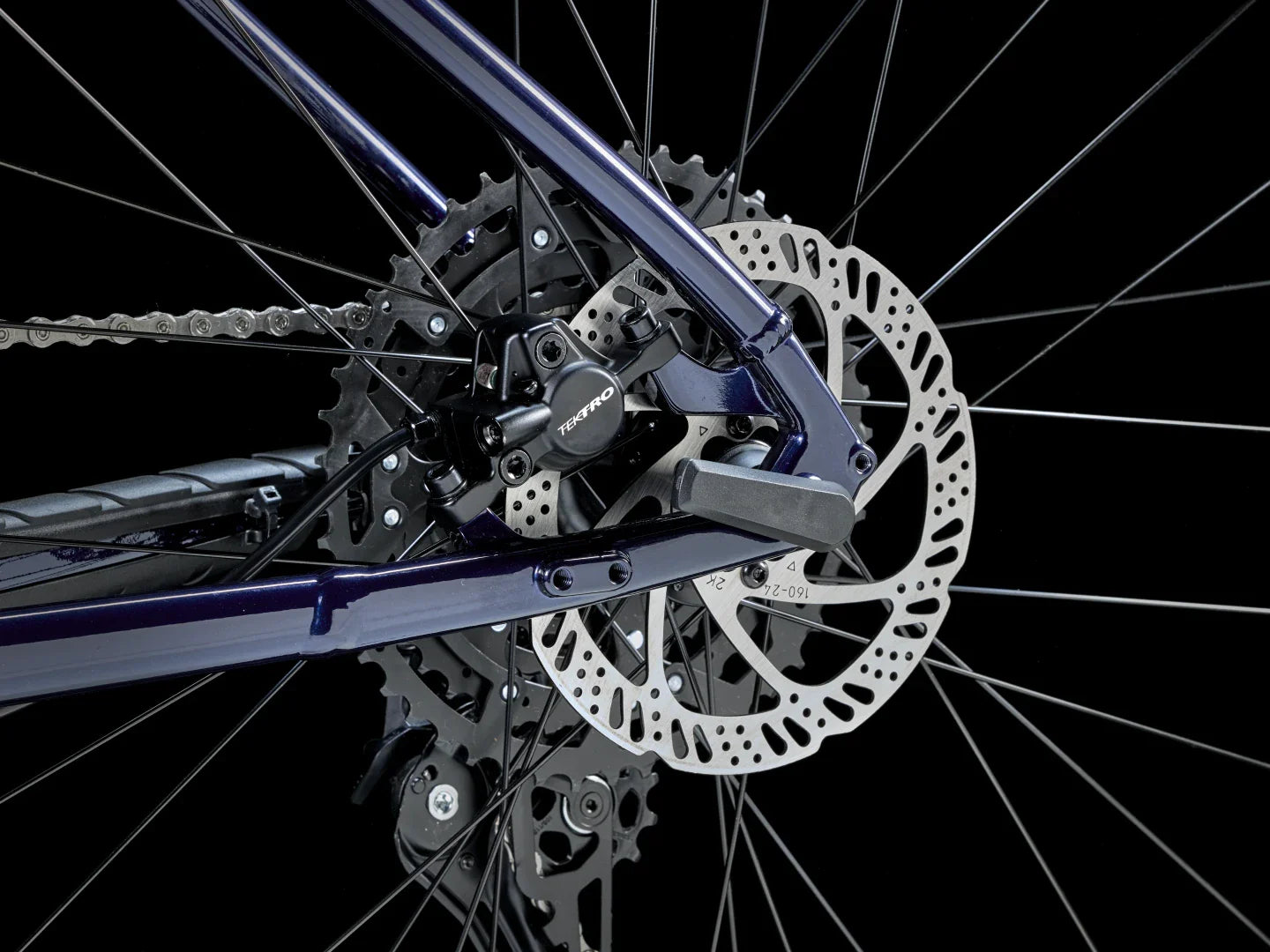

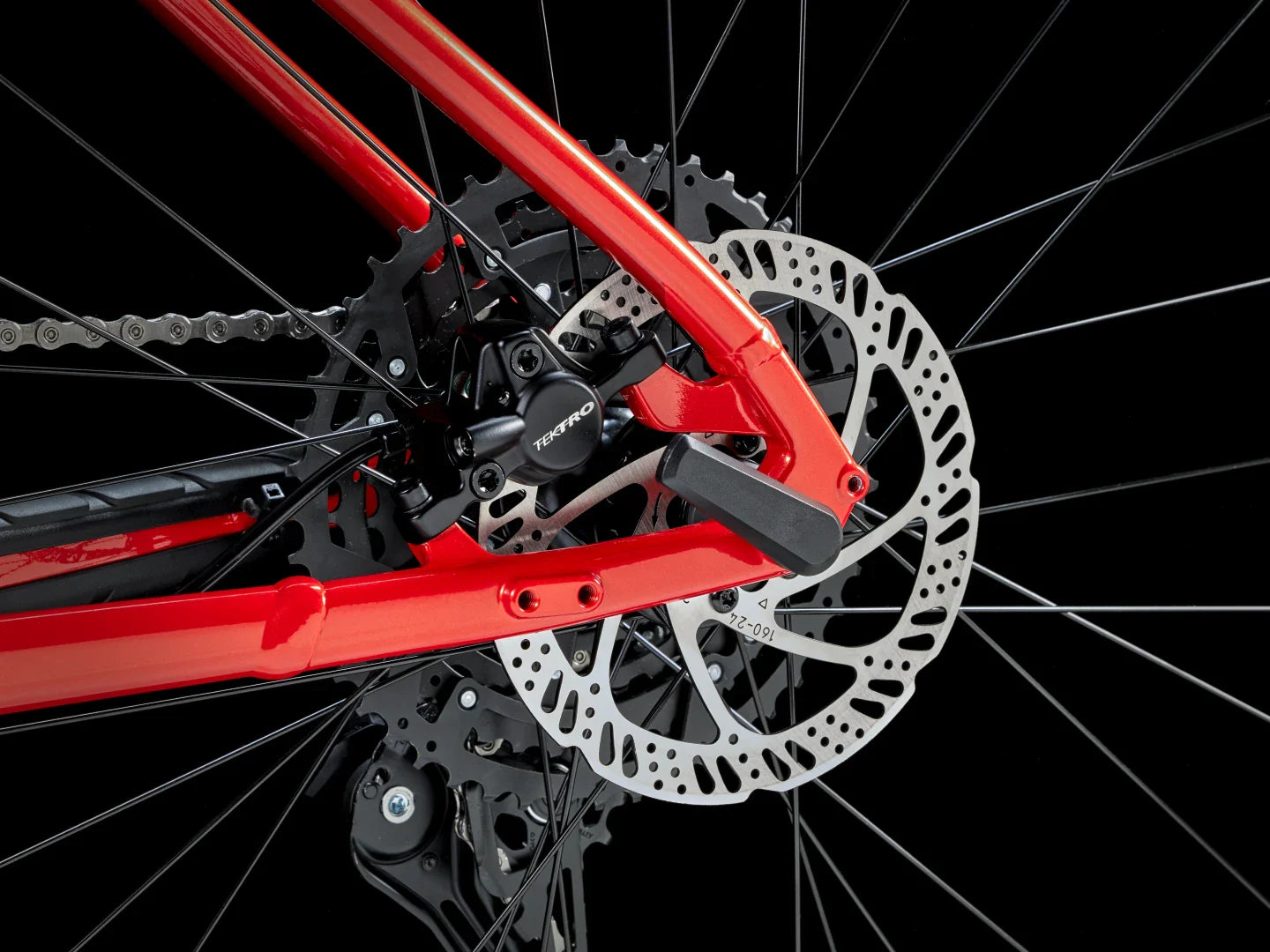

| Brake rotor | Tektro, 6-bolt, 160mm |
| *Brake Set | XXS , XS , S Tektro HD-M276 hydraulic disc, short reach Size:M , ML , L , XL , XXL Tektro HD-M275 hydraulic disc |
| Rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
Wheels
| Weight | M - 14.50 kg / 31.97 lbs (with tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
Size
2XS
XS
S
M
M/L
L
XL
2XL
Rider Height
135 - 145 cm
4'5" - 4'9"
145 - 155 cm
4'9" - 5'1"
155 - 165 cm
5'1" - 5'5"
165 - 176 cm
5'5" - 5'9"
173 - 180 cm
5'8" - 5'11"
177 - 188 cm
5'10" - 6'2"
188 - 195 cm
6'2" - 6'5"
195 - 203 cm
6'5" - 6'8"
Inseam
64 - 68 cm
25" - 27"
69 - 73 cm
27" - 29"
74 - 78 cm
29" - 31"
79 - 83 cm
31" - 33"
81 - 86 cm
32" - 34"
84 - 89 cm
33" - 35"
89 - 91 cm
35" - 36"
91 - 97 cm
36" - 38"
All measurements provided in cm unless otherwise stated.
| Frame size number | Frame size letter | Wheel size | A — Seat tube | B — Seat tube angle | Effective seat tube angle | C — Head tube length | D — Head angle | E — Effective top tube | F — Bottom bracket height | G — Bottom bracket drop | H — Chainstay length | I — Offset | J — Trail | K — Wheelbase | L — Standover | M — Frame reach | N — Frame stack |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5" | XXS | 26" | 32.0 | 74.0° | 74.0° | 9.0 | 66.5° | 52.1 | 30.2 | 3.8 | 43.3 | 4.0 | 10.4 | 106.0 | 65.0 | 36.5 | 54.4 |
| 14.5" | XS | 27.5" | 34.0 | 73.8° | 74.0° | 9.0 | 66.5° | 55.1 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 109.2 | 65.8 | 39.0 | 56.3 |
| 15.5" | S | 27.5" | 37.0 | 73.8° | 74.0° | 10.0 | 66.5° | 57.9 | 31.3 | 4.5 | 43.3 | 4.2 | 11.0 | 112.1 | 69.2 | 41.5 | 57.2 |
| 17.5" | M | 29" | 42.0 | 73.4° | 74.0° | 10.5 | 66.5° | 61.5 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 116.3 | 74.7 | 44.0 | 60.9 |
| 18.5" | ML | 29" | 43.5 | 73.4° | 74.0° | 11.0 | 66.5° | 63.1 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 118.0 | 75.9 | 45.5 | 61.4 |
| 19.5" | L | 29" | 45.0 | 73.4° | 74.0° | 11.5 | 66.5° | 64.7 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 119.7 | 77.1 | 47.0 | 61.8 |
| 21.5" | XL | 29" | 50.0 | 73.4° | 74.0° | 13.5 | 66.5° | 67.8 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 123.0 | 79.1 | 49.5 | 63.7 |
| 23.0" | XXL | 29" | 54.0 | 73.4° | 74.0° | 15.0 | 66.5° | 70.7 | 30.8 | 6.0 | 43.8 | 4.6 | 11.0 | 126.1 | 81.6 | 52.0 | 65.1 |
