Compare color

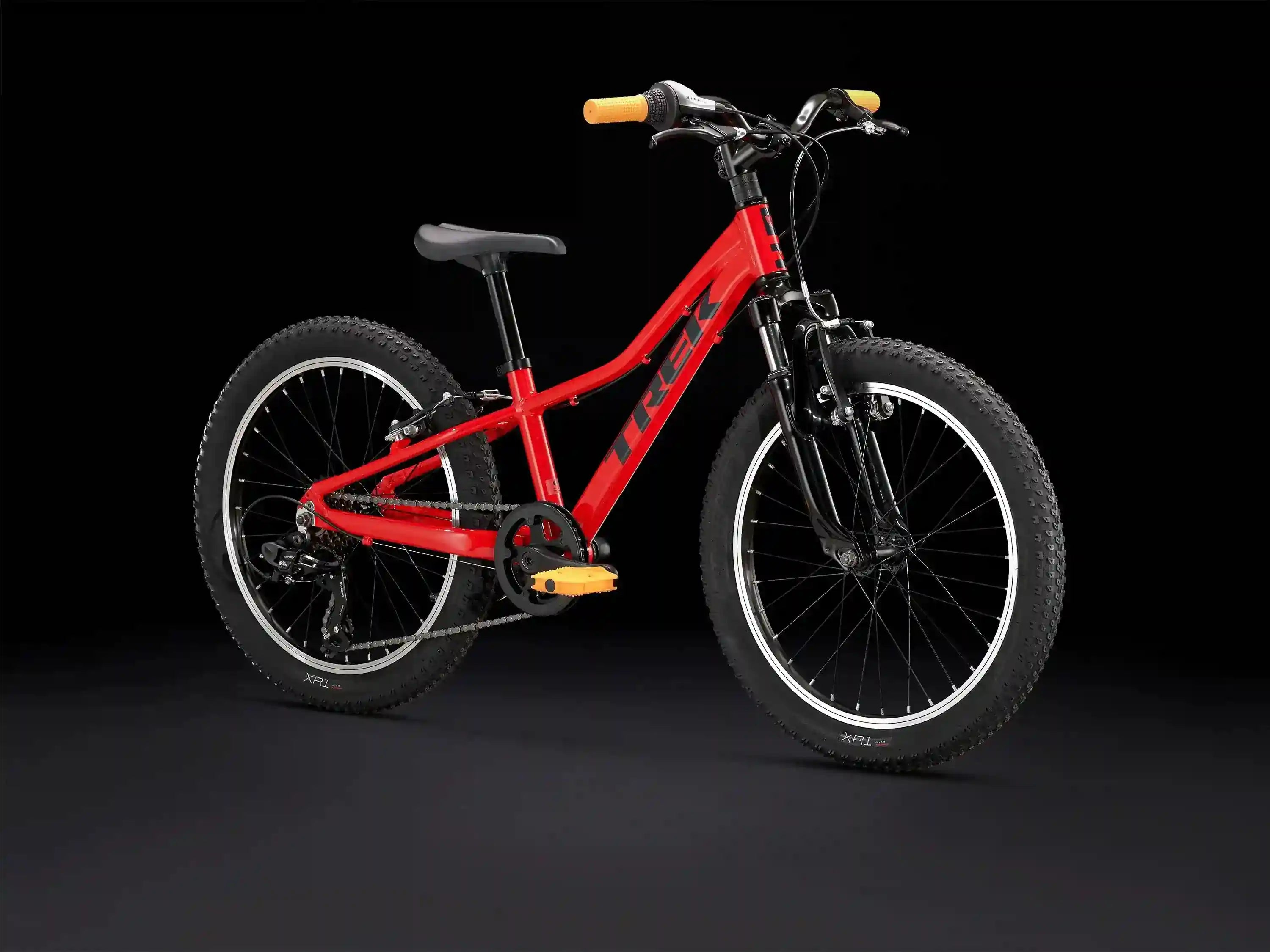

  • red

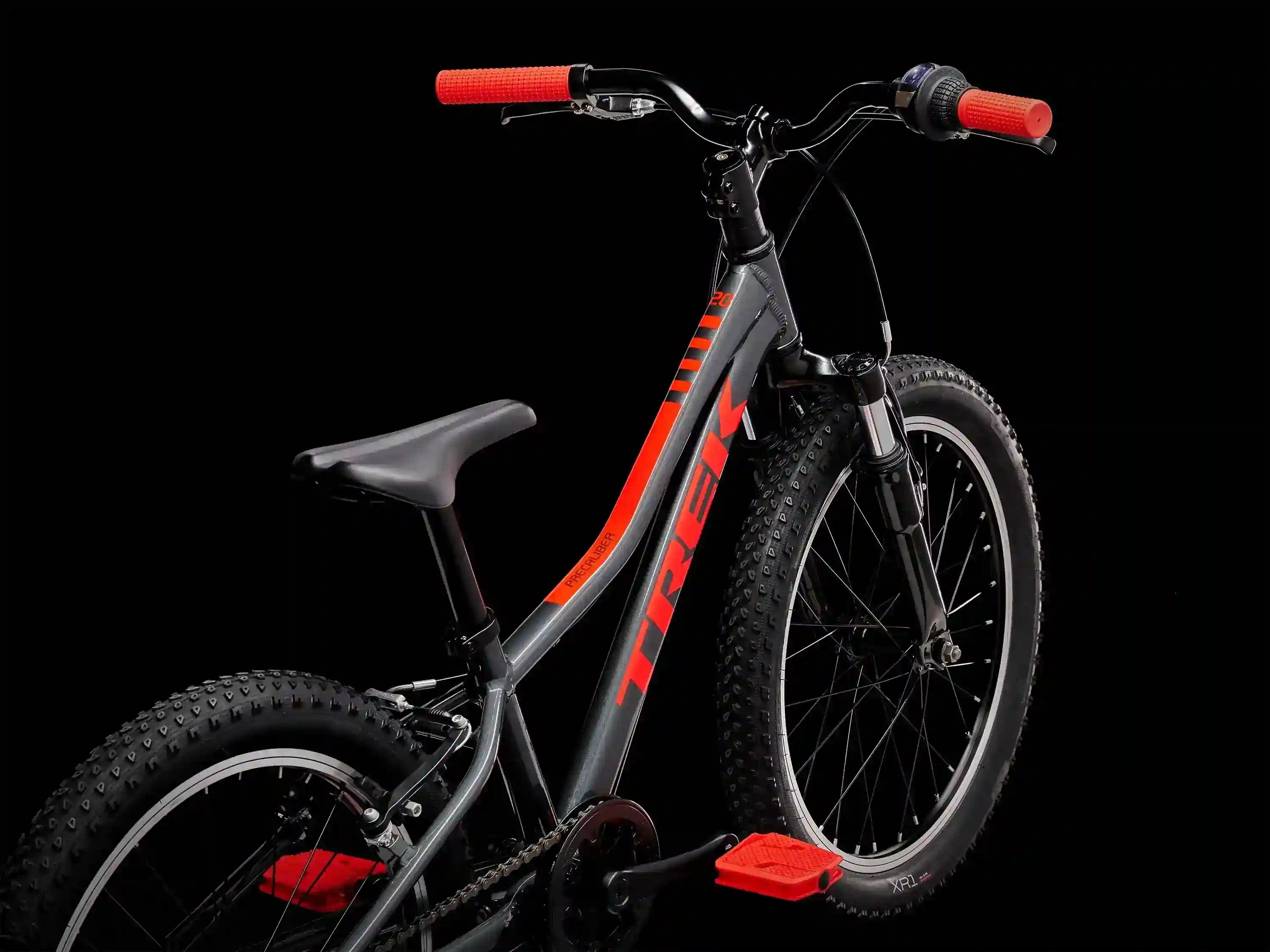

  • charcoal

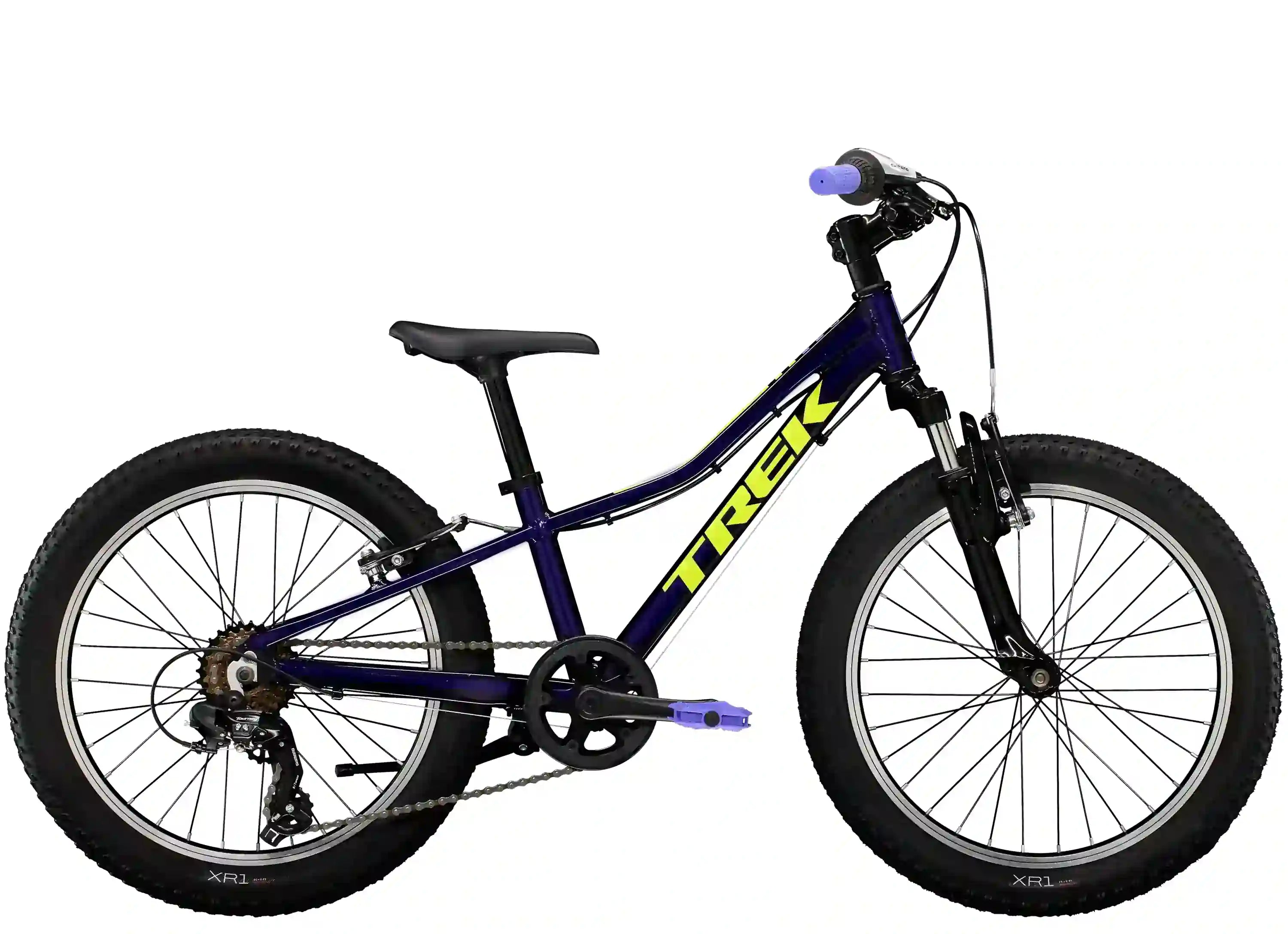

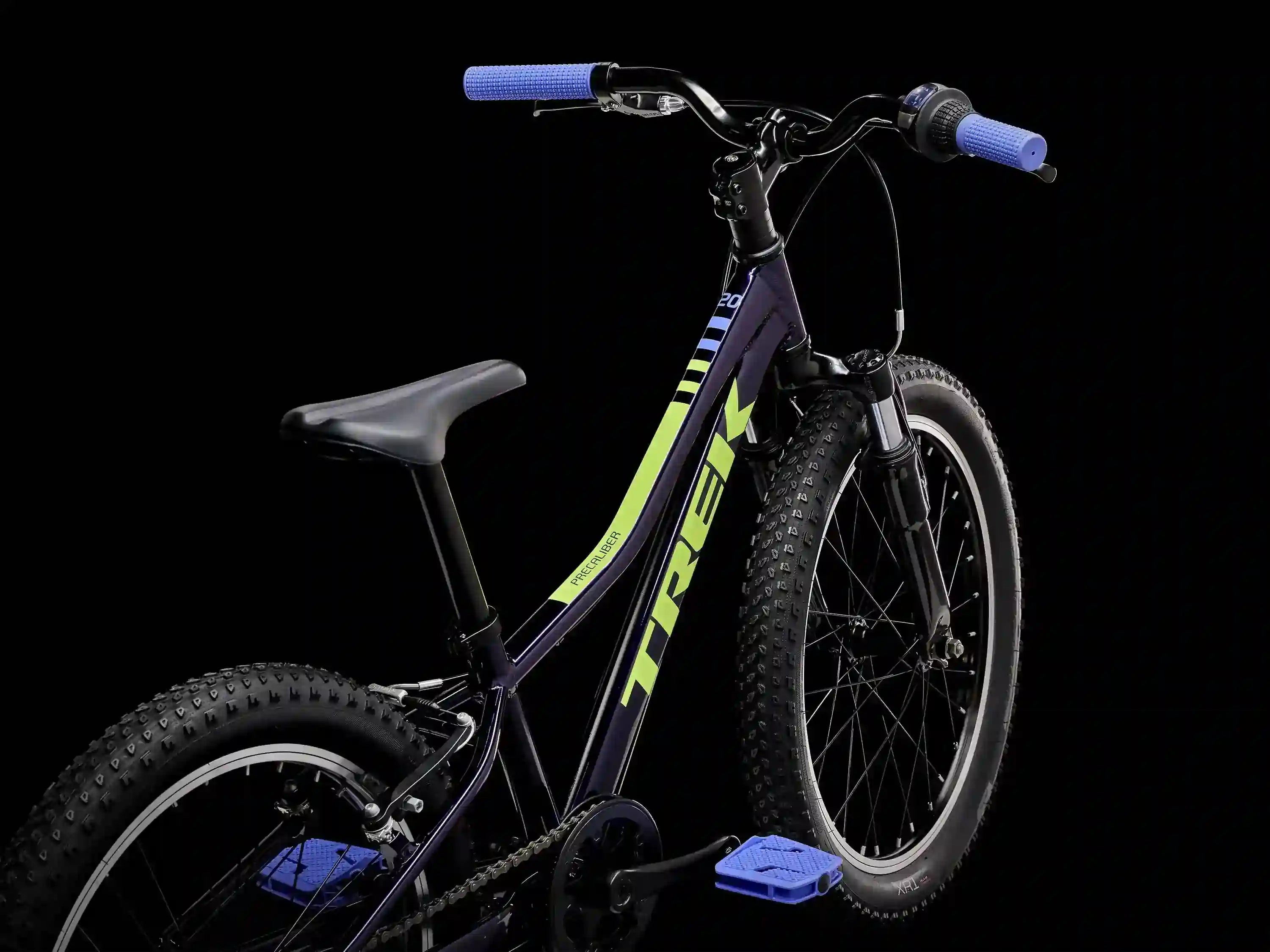

  • purple-lotus
Click on color/pattern to compare, click and drag images to reorder
Specs
Sizing
Geometry
Frameset

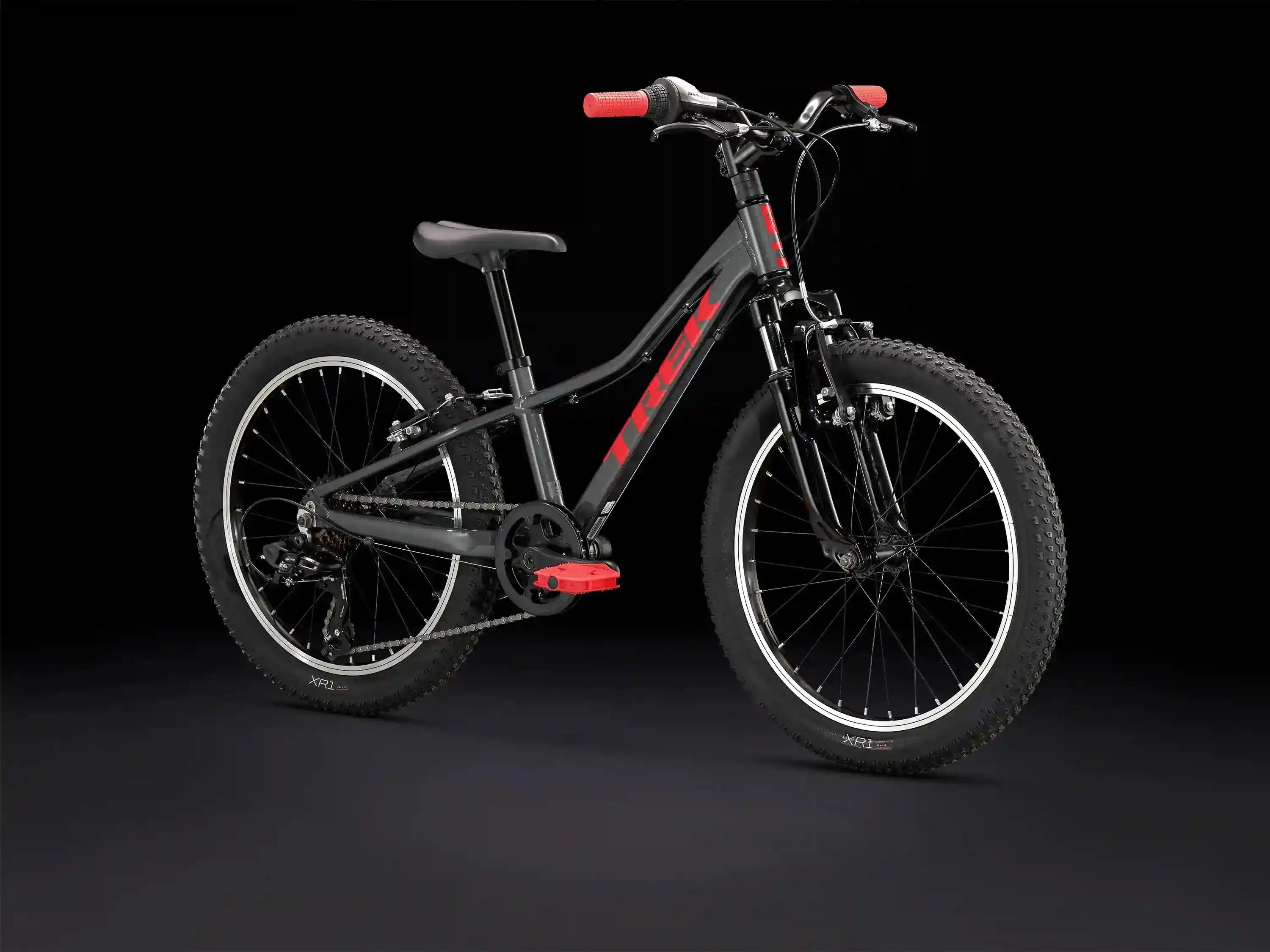

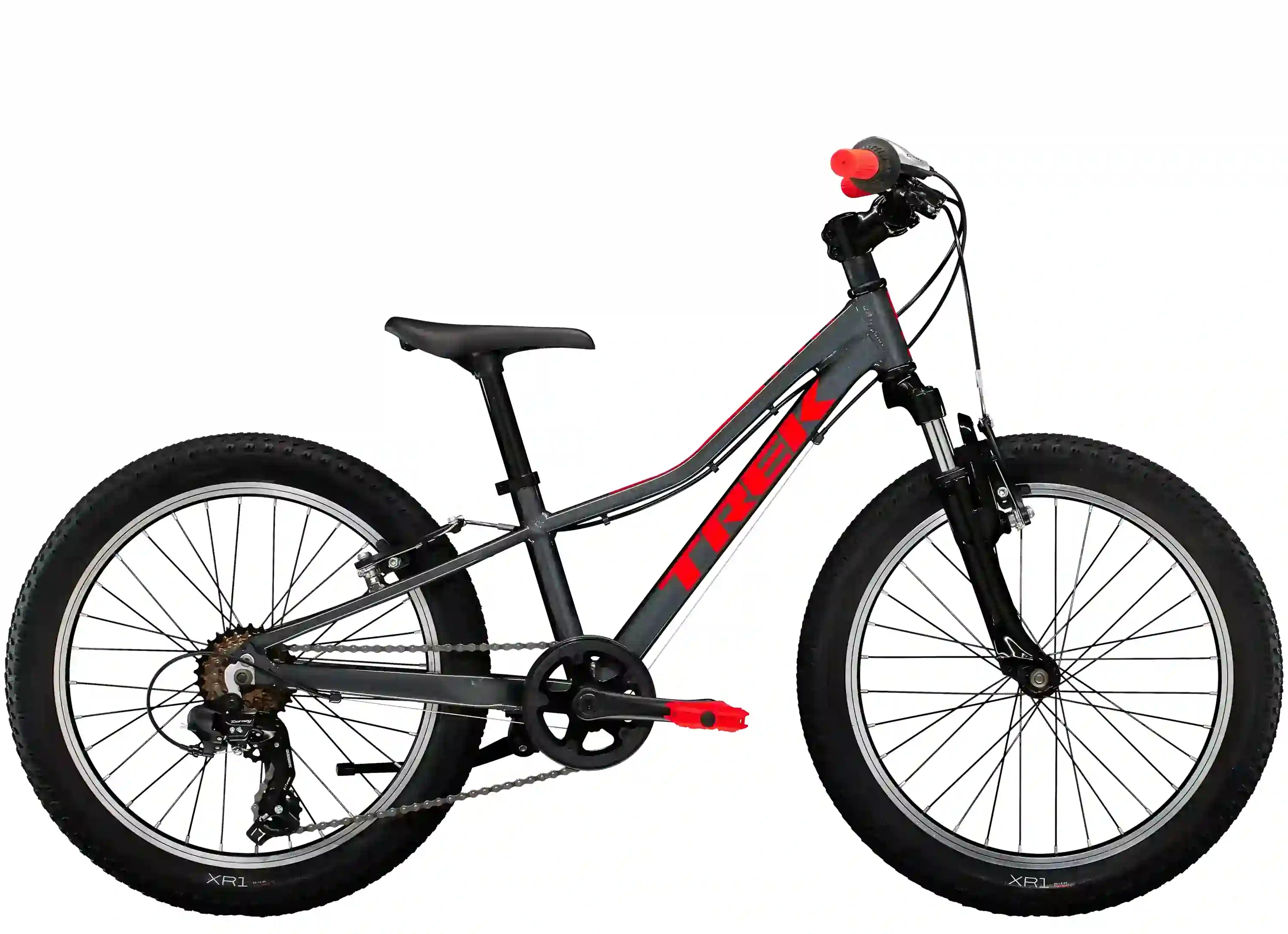

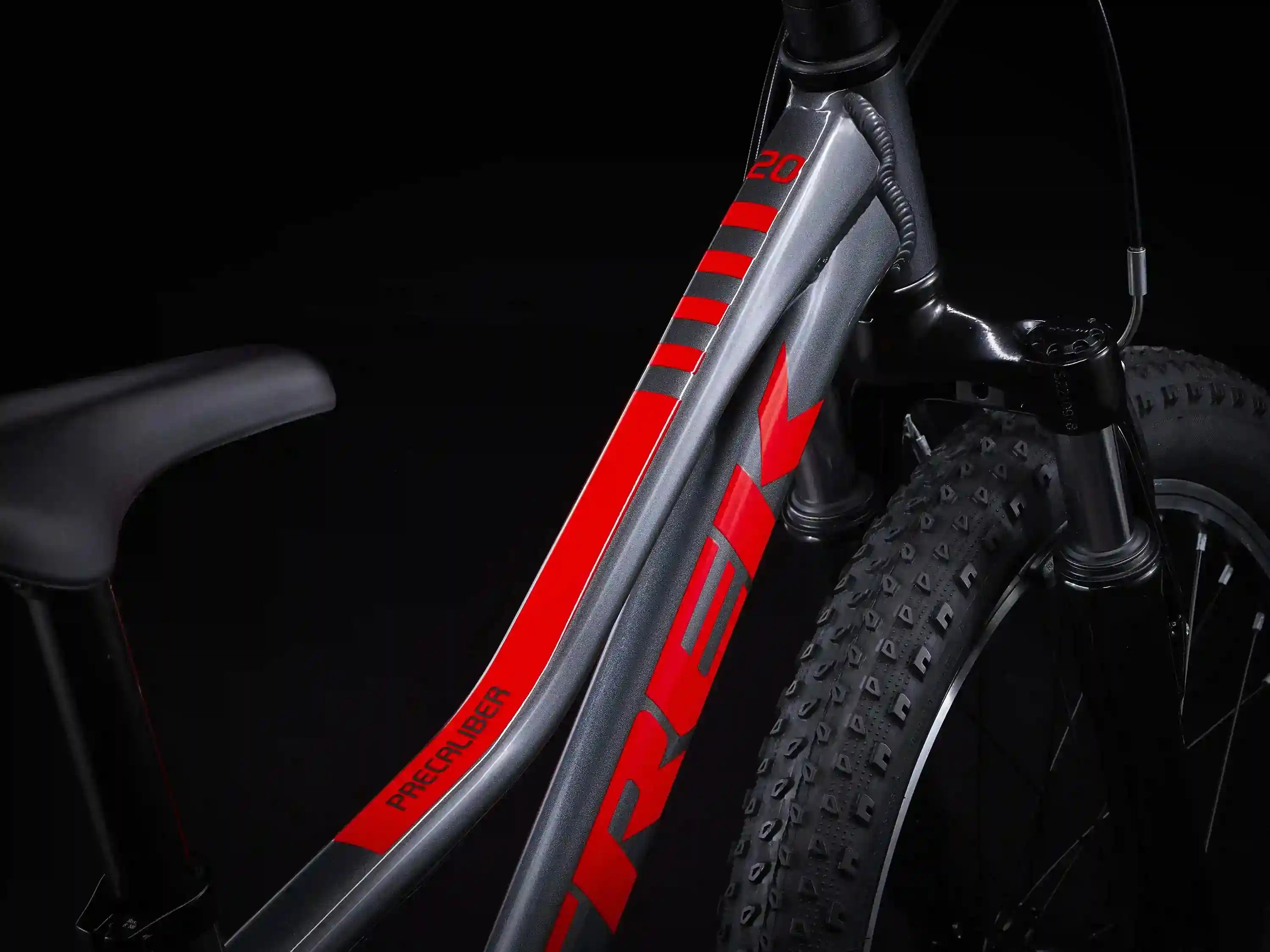

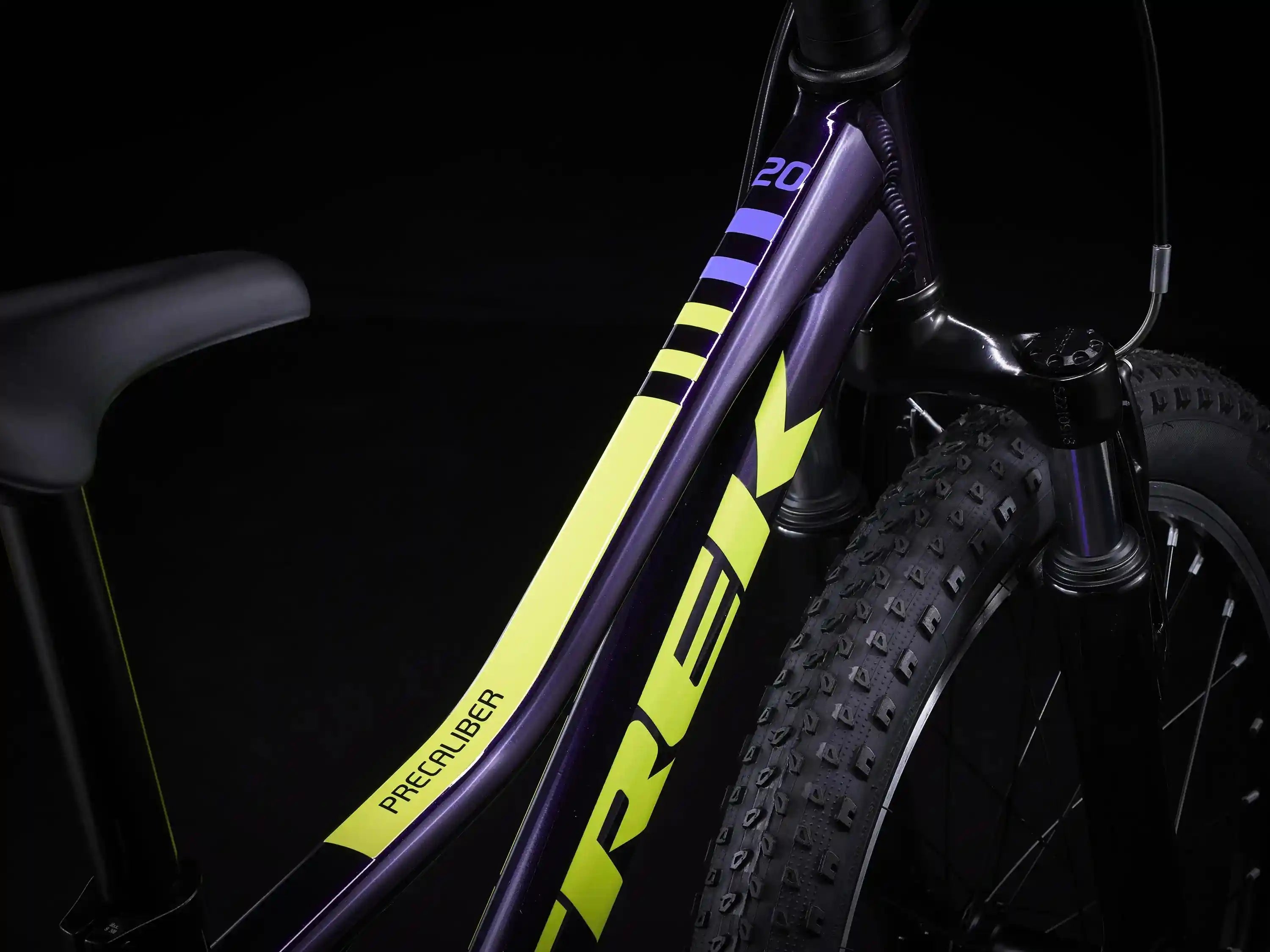

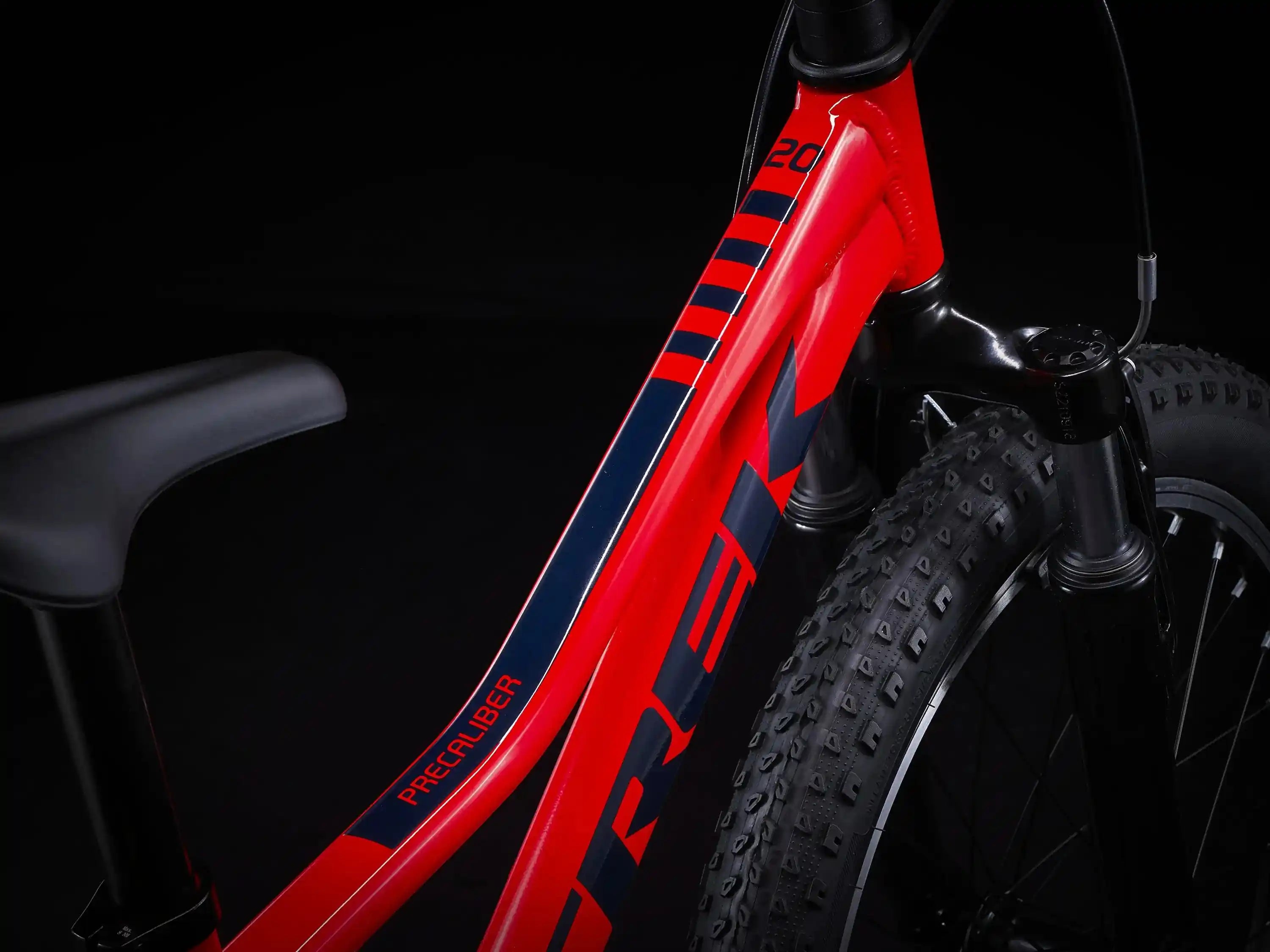

Frame Alpha Silver Aluminium, 20" kids' frame size

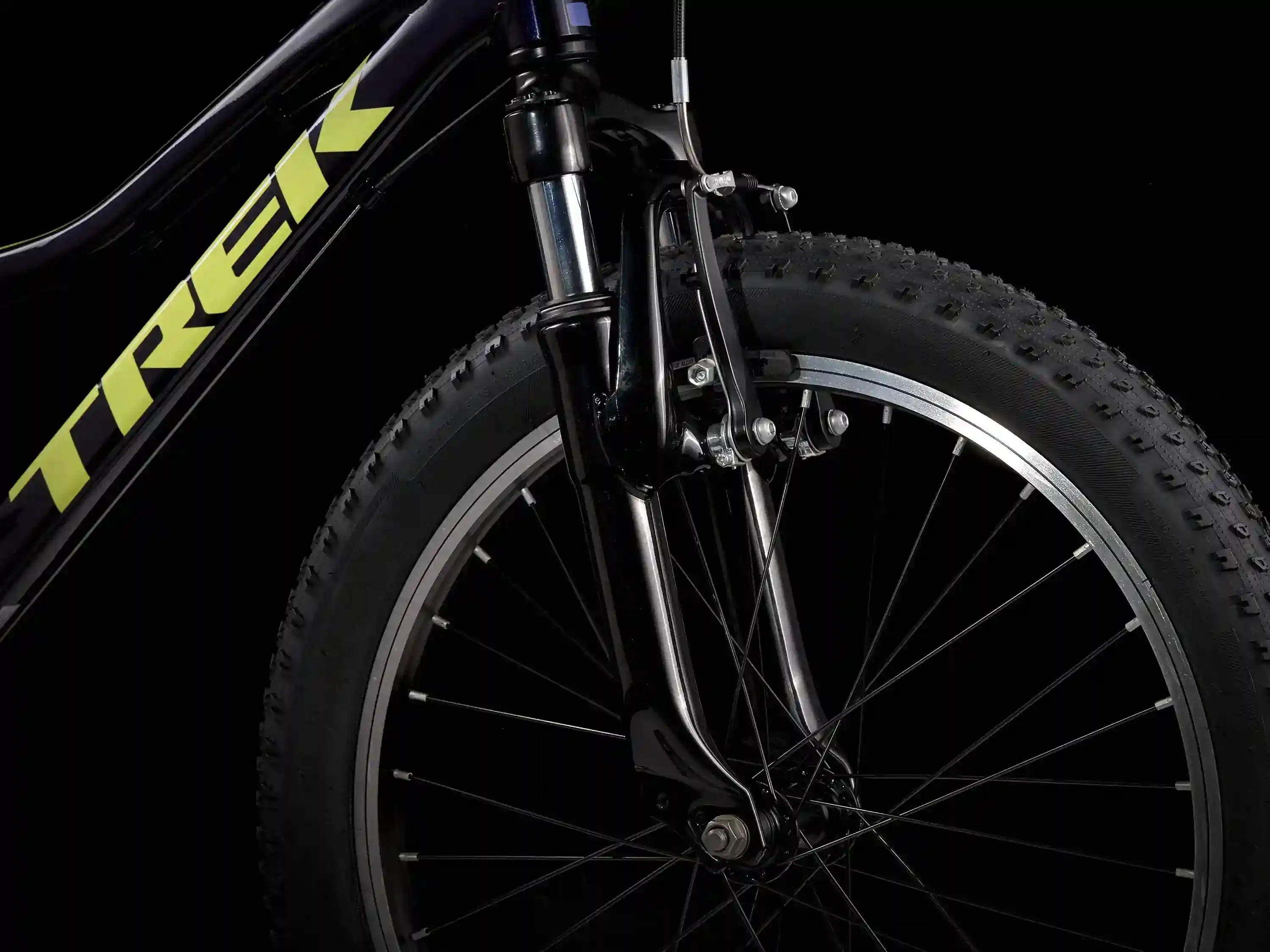

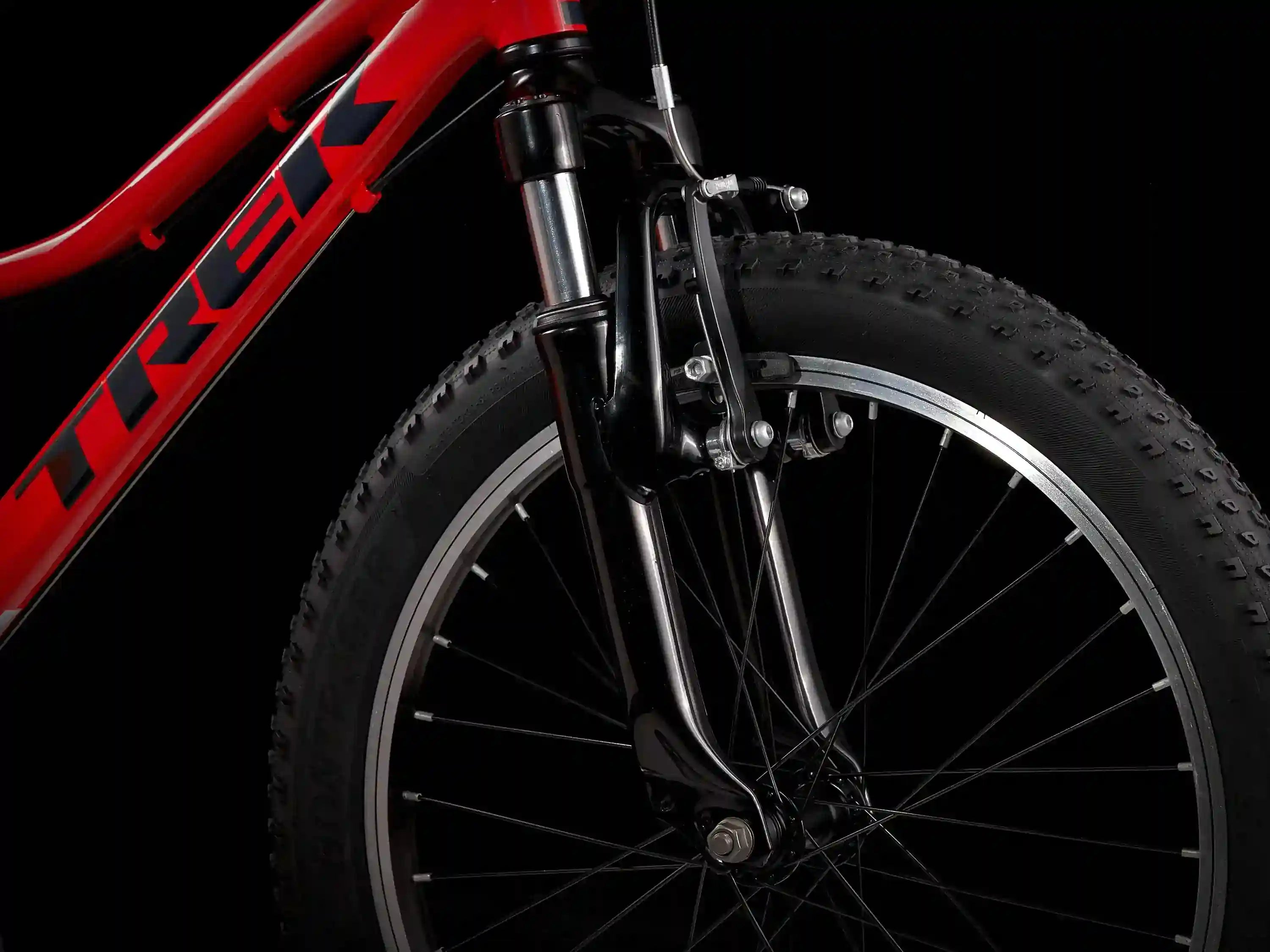

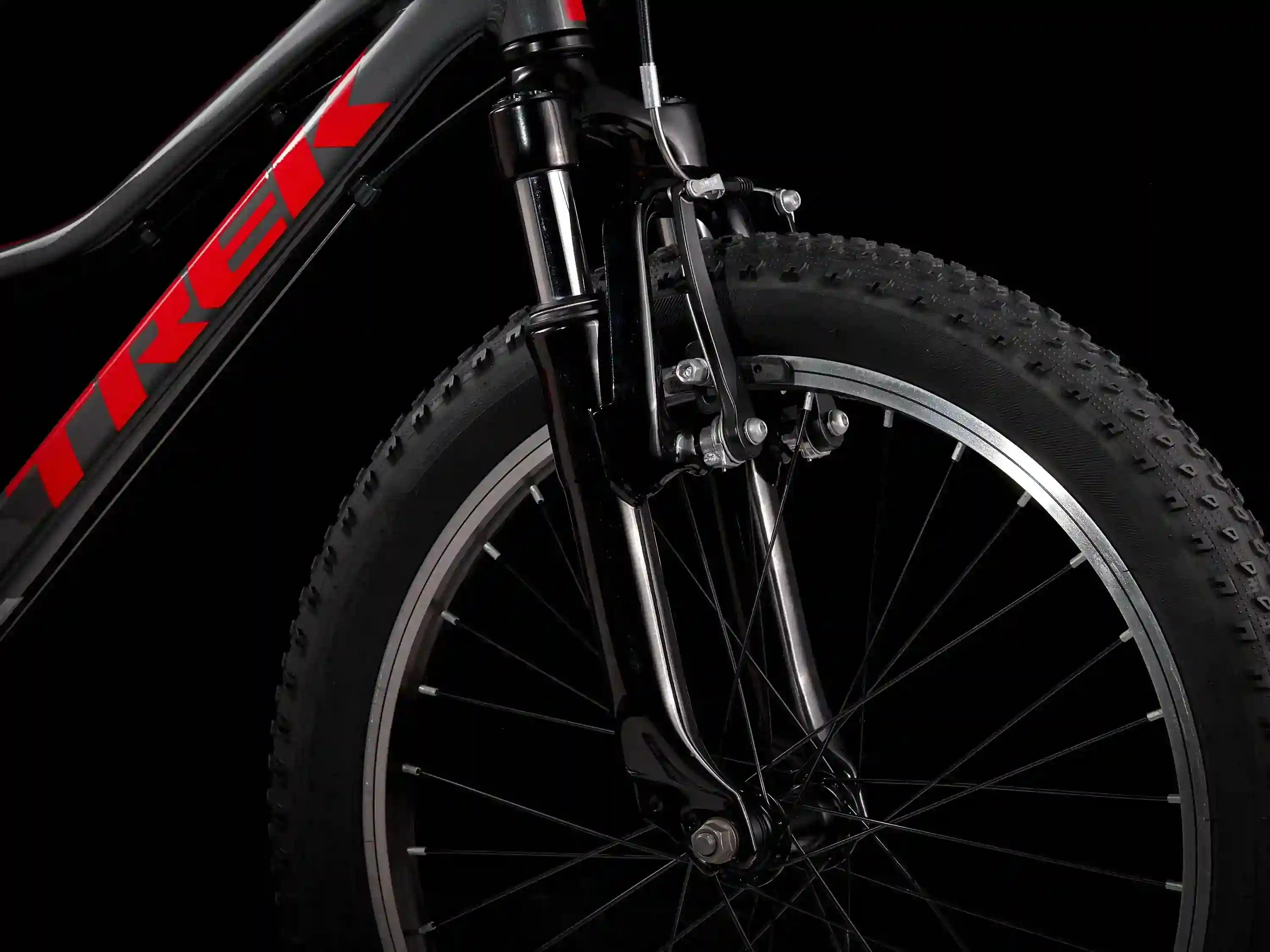

Fork Kids' suspension, threadless steerer, 35 mm travel

Wheels

Hub front Alloy, 100 mm bolt-on
Hub rear Alloy, 8-speed, 130 mm bolt-on
Rim Alloy 20", 32-hole, Schrader valve
Tyre Bontrager XR1, wire bead, 27 tpi, 20x2.25"

Drivetrain

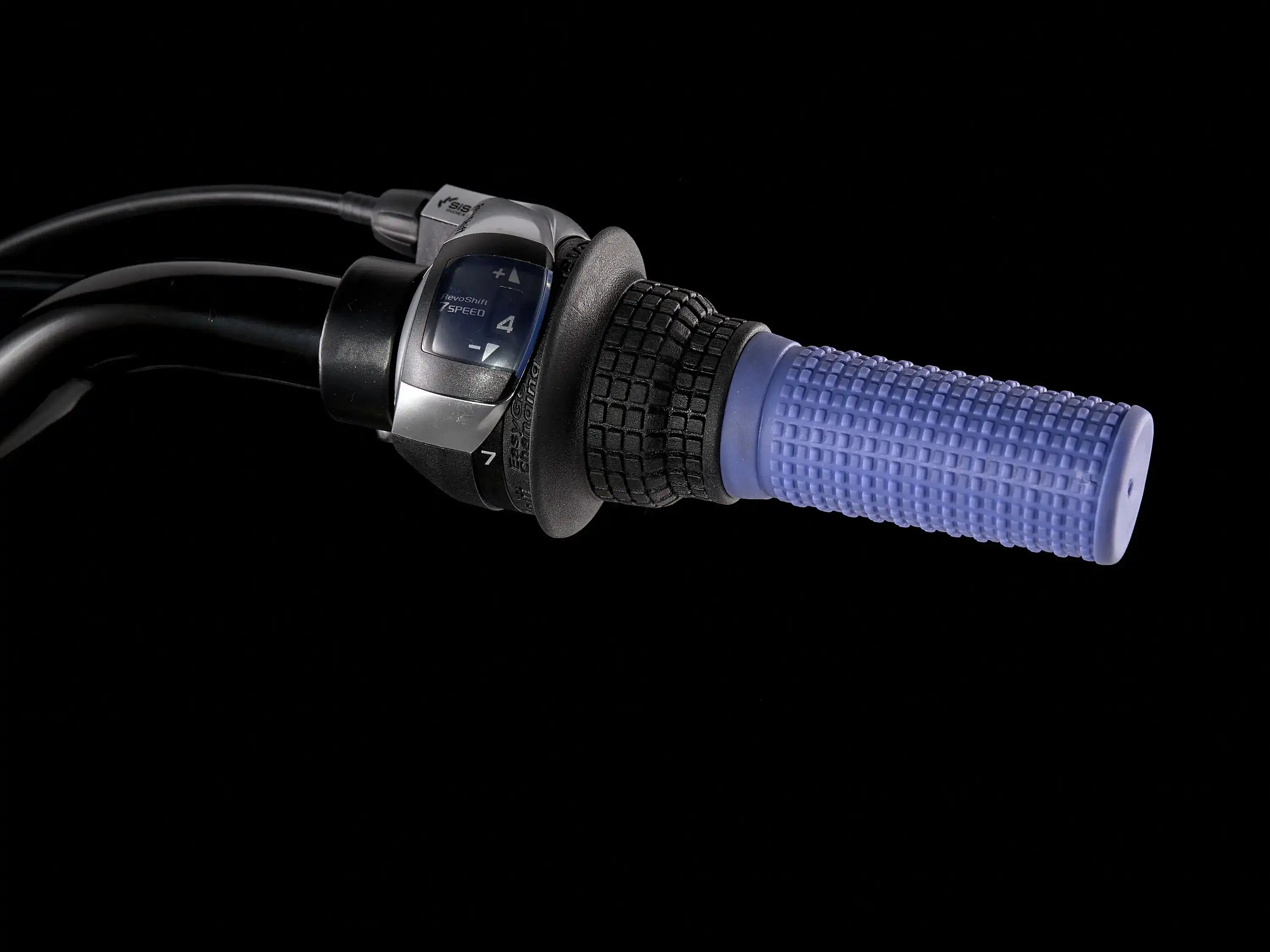

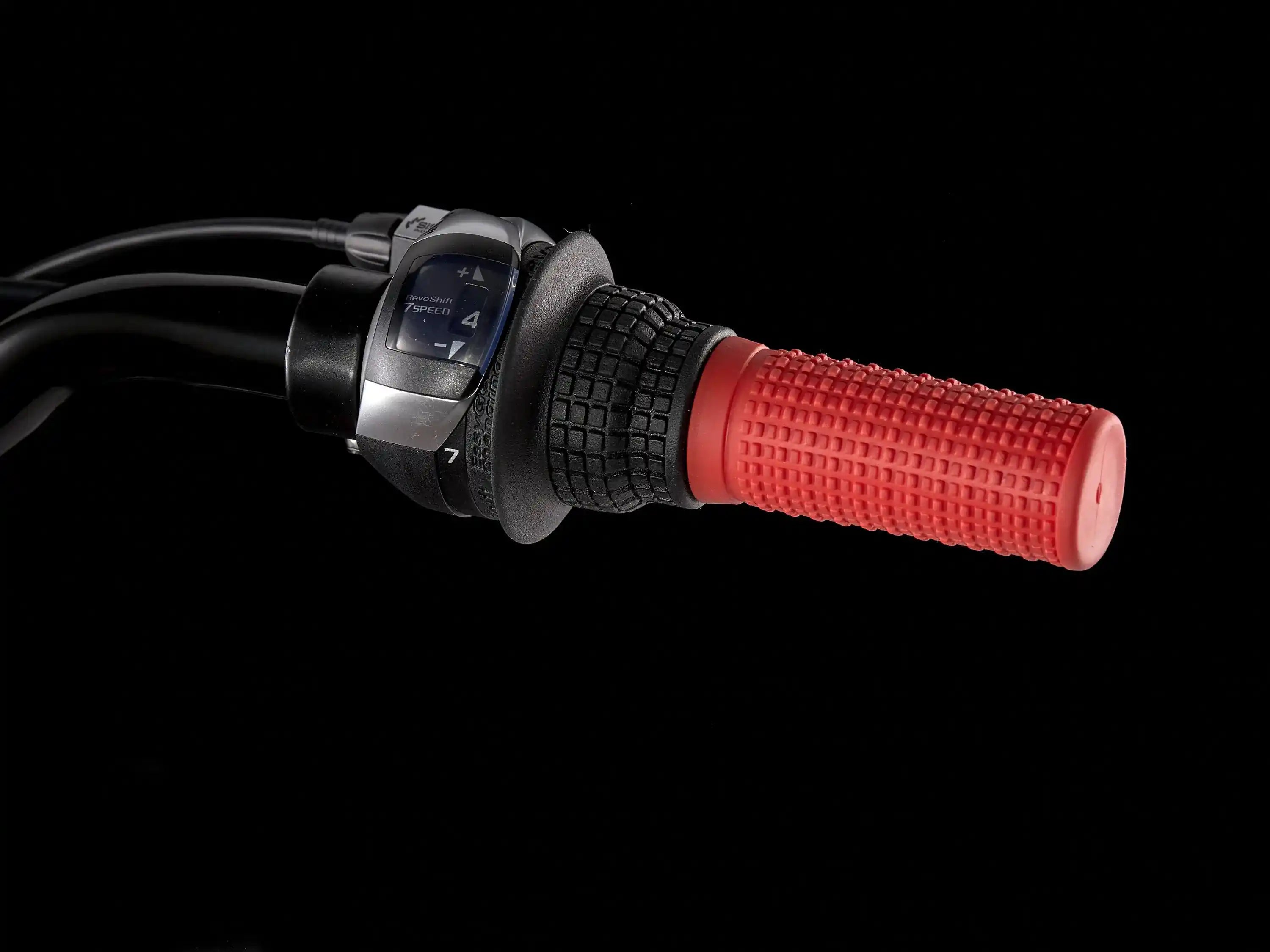

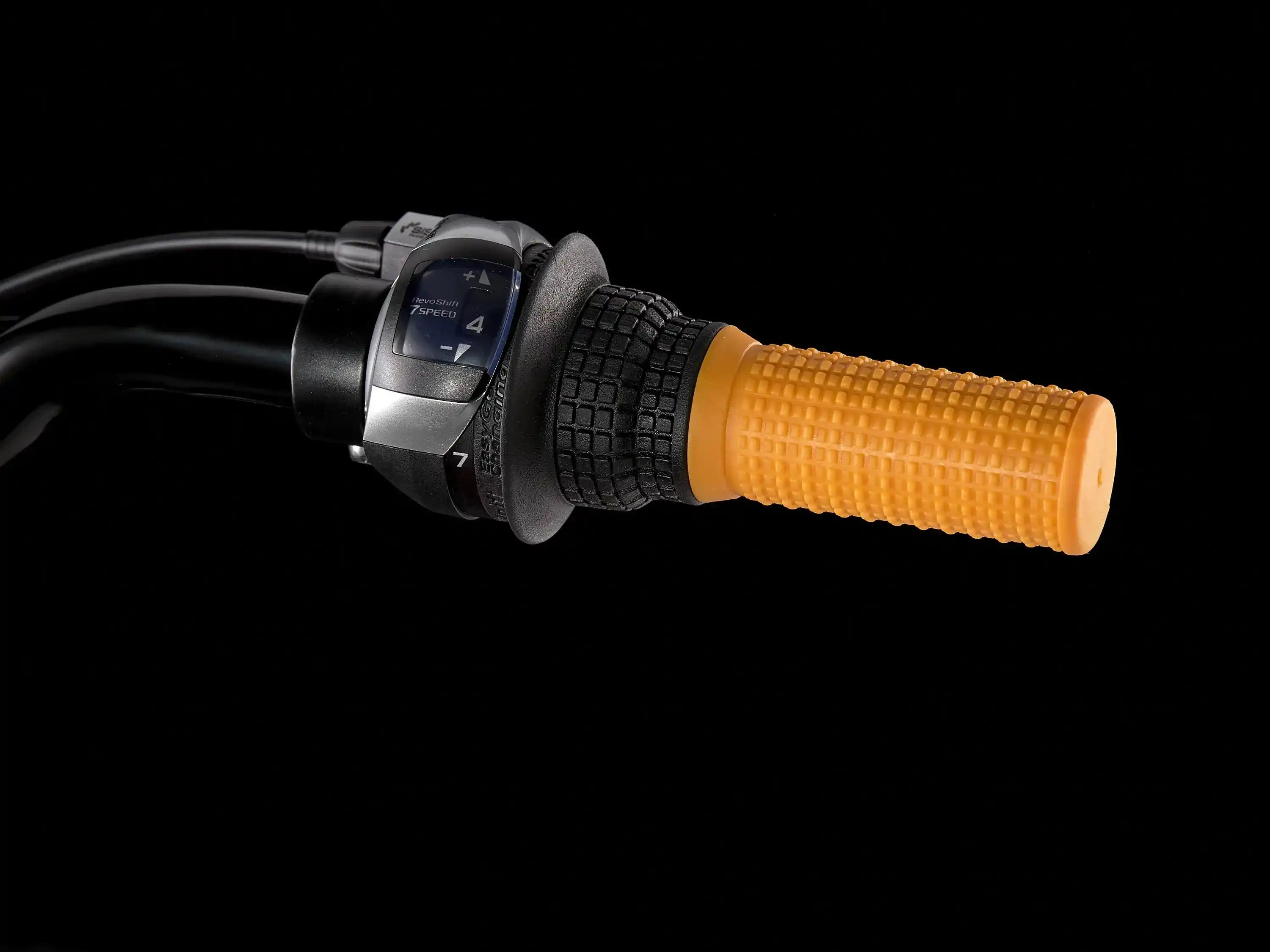

Shifter Shimano Tourney RS45, 7 speed twist
Rear derailleur Shimano Tourney TY300
Crank ProWheel alloy, 32T steel ring w/double guard, 127 mm length
Bottom bracket Square taper, 68 mm, sealed cartridge
Cassette SunRun freewheel, 14-28, 7-speed,
Chain KMC Z7, 7-speed
Pedal Kids' Satellite, 9/16 thread

Components

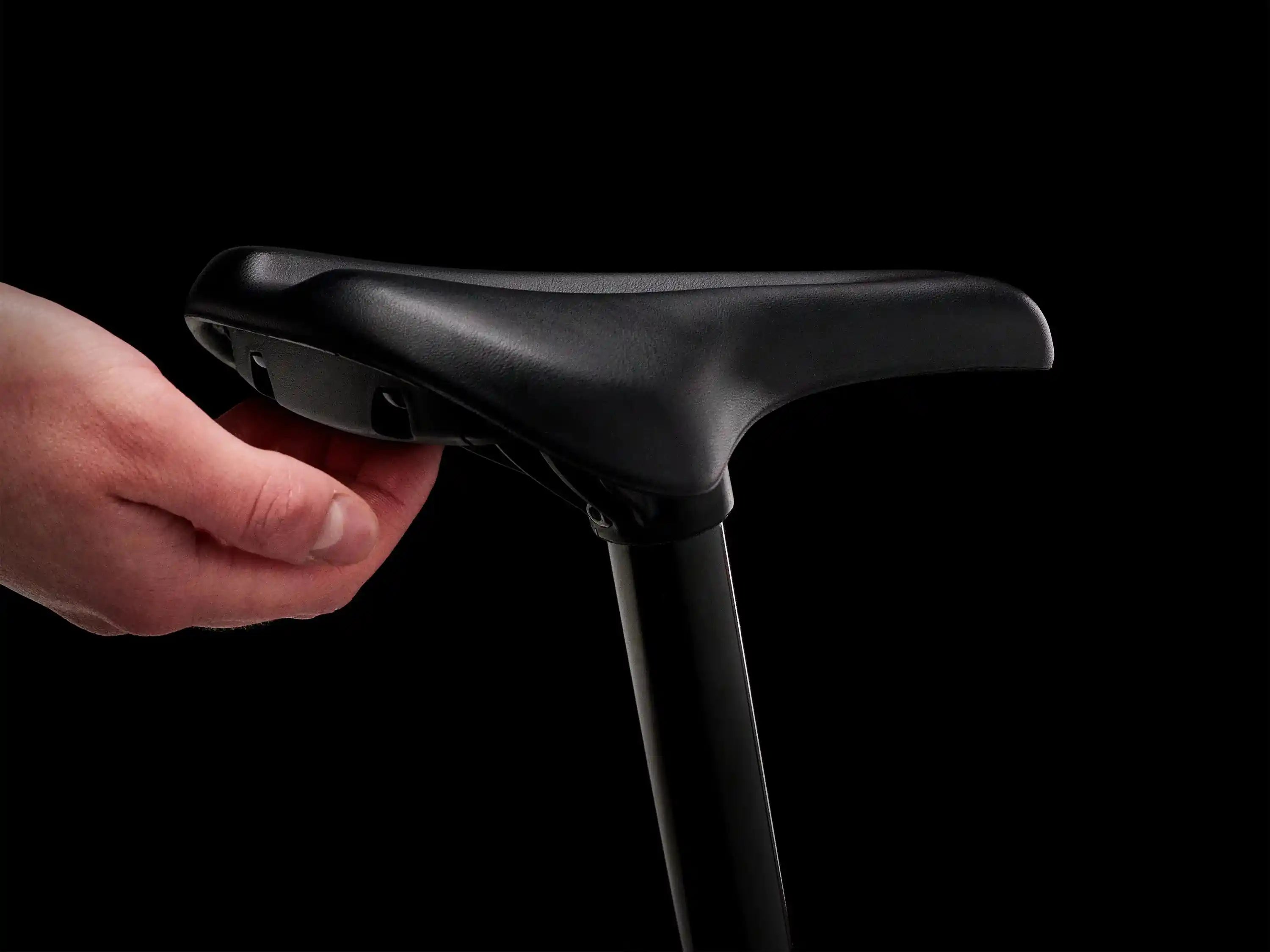

Saddle Kids' padded, integrated seat post, with handle

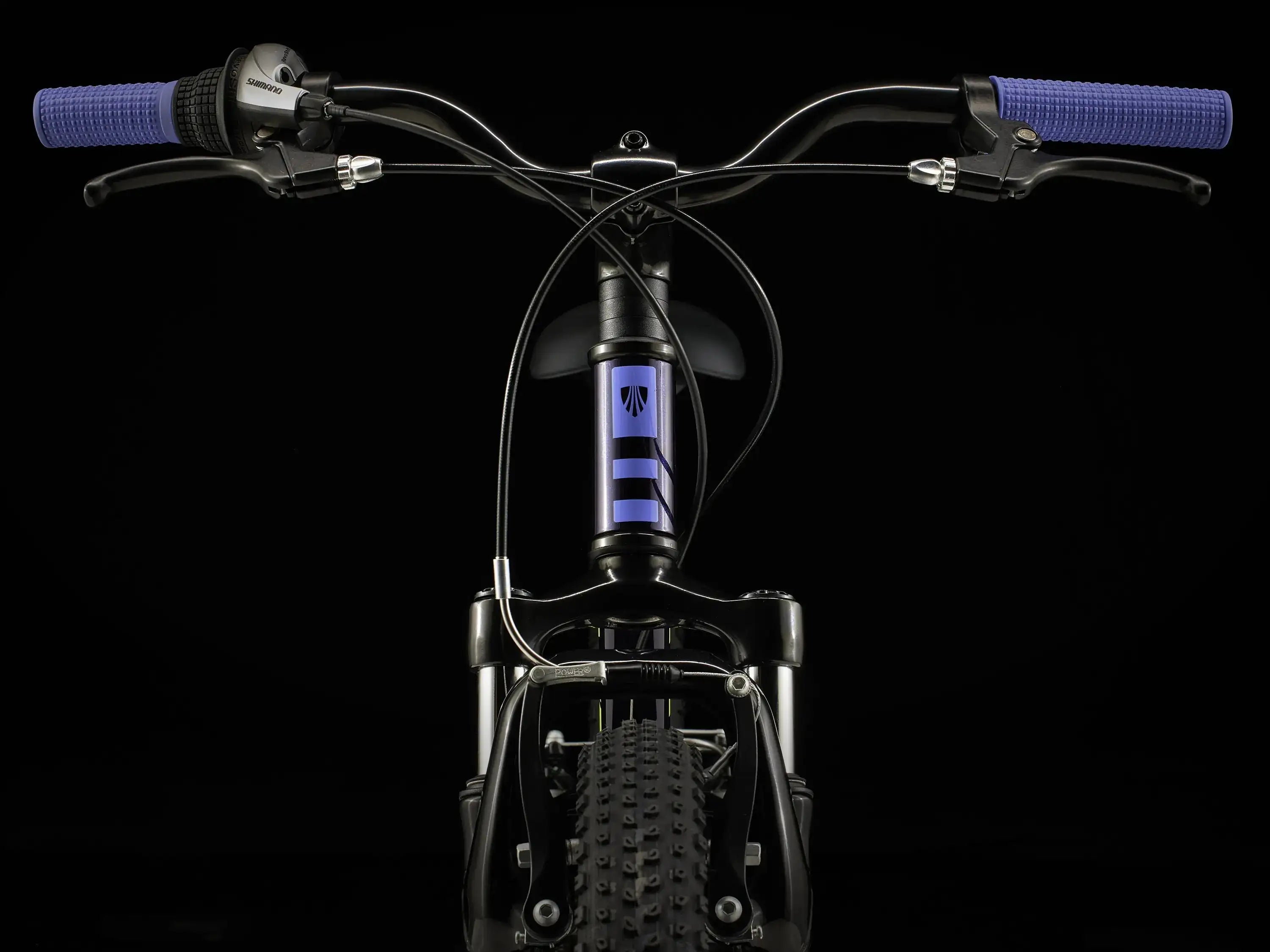

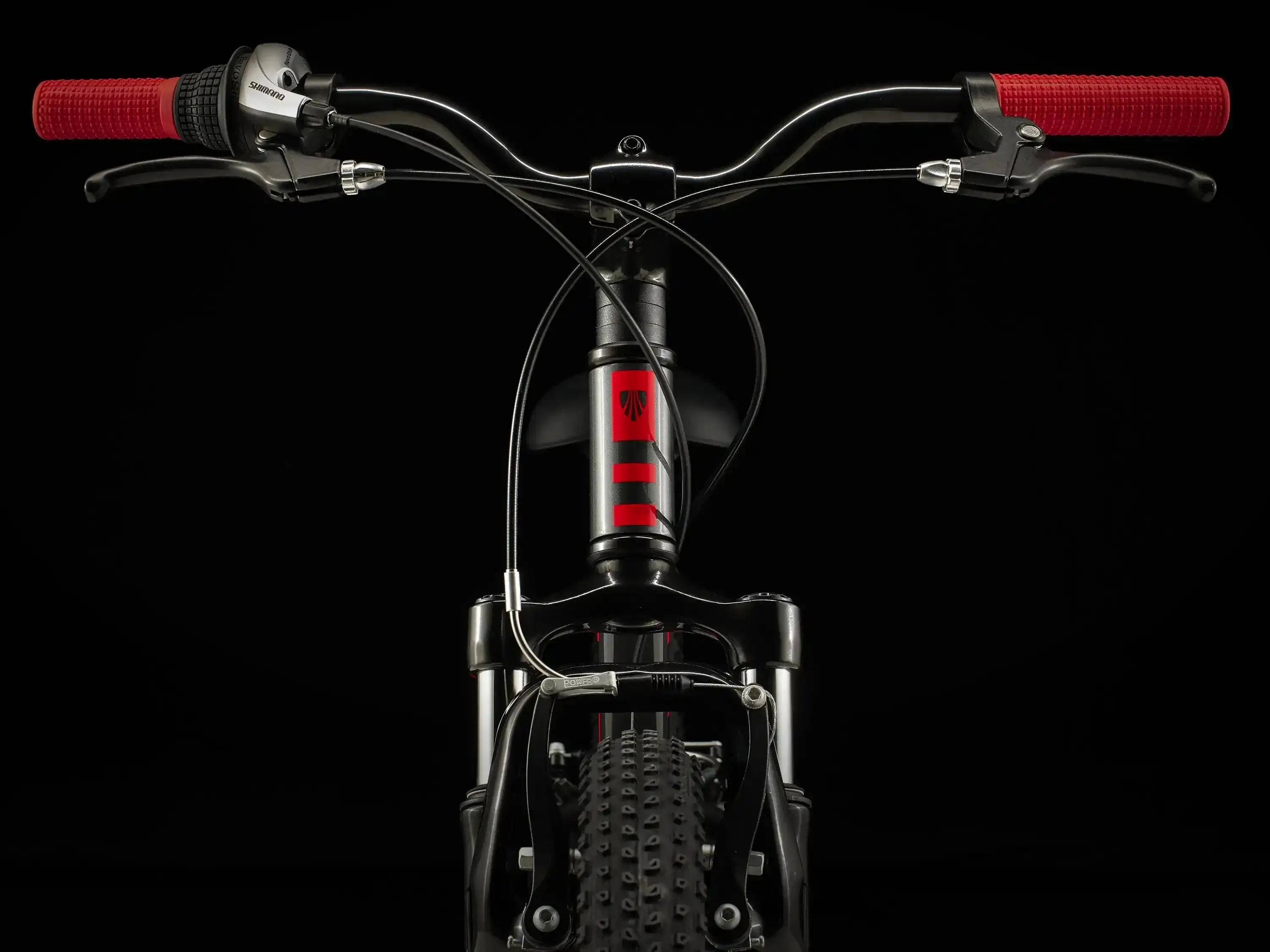

Handlebar Kids' steel, 25.4 mm clamp, 40 mm rise, 560 mm width
Grips Kids' grip, 125 mm width
Stem Bontrager Approved alloy, 25.4 mm clamp, 15-degree rise, 60 mm
Head set Adjustable ball bearing, threadless
Brake Alloy linear-pull
Brake lever Kids', alloy

Accessories

Kickstand Kickstand
Kickstand

Weight

Weight 10.92 kg / 24.07 lb
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider,and cargo) of 36 kg (80 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

Size

12" wheel

16" wheel

20" wheel

24" wheel

26" wheel

Rider Height

86 - 102 cm

2'10" - 3'4"

99 - 117 cm

3'3" - 3'10"

114 - 132 cm

3'9" - 4'4"

130 - 150 cm

4'3" - 4'11"

146 - 160 cm

4'9" - 5'3"

All measurements provided in cm unless otherwise stated.

Sizing table
Frame size number Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
20 20" kids' 25.5 72.0° 8.5 70.0° 44.5 23.8 3.0 37.2 4.2 5.9 86.0 49.1 30.2 44.1
