Specs
Sizing
Geometry
Frameset

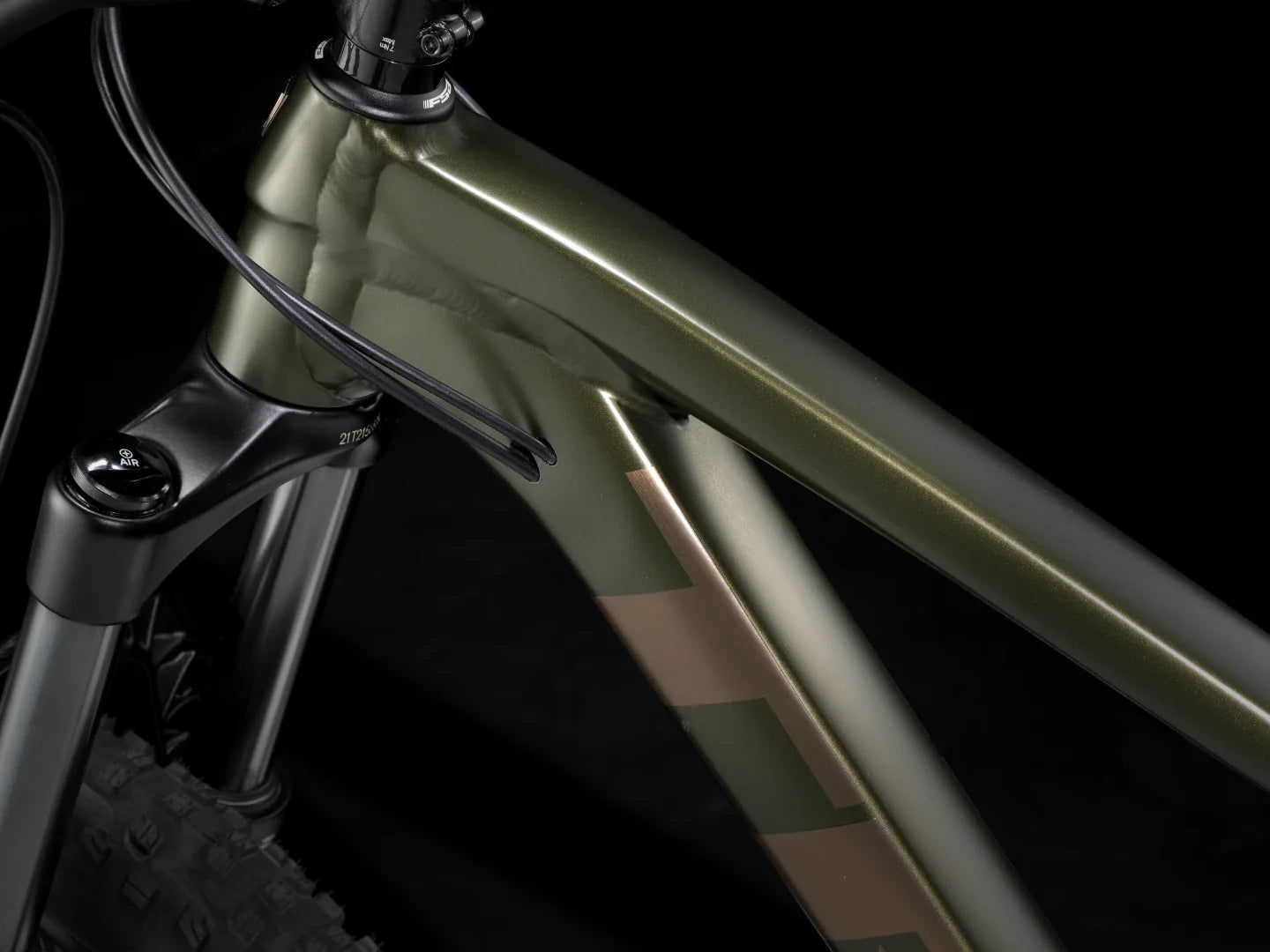

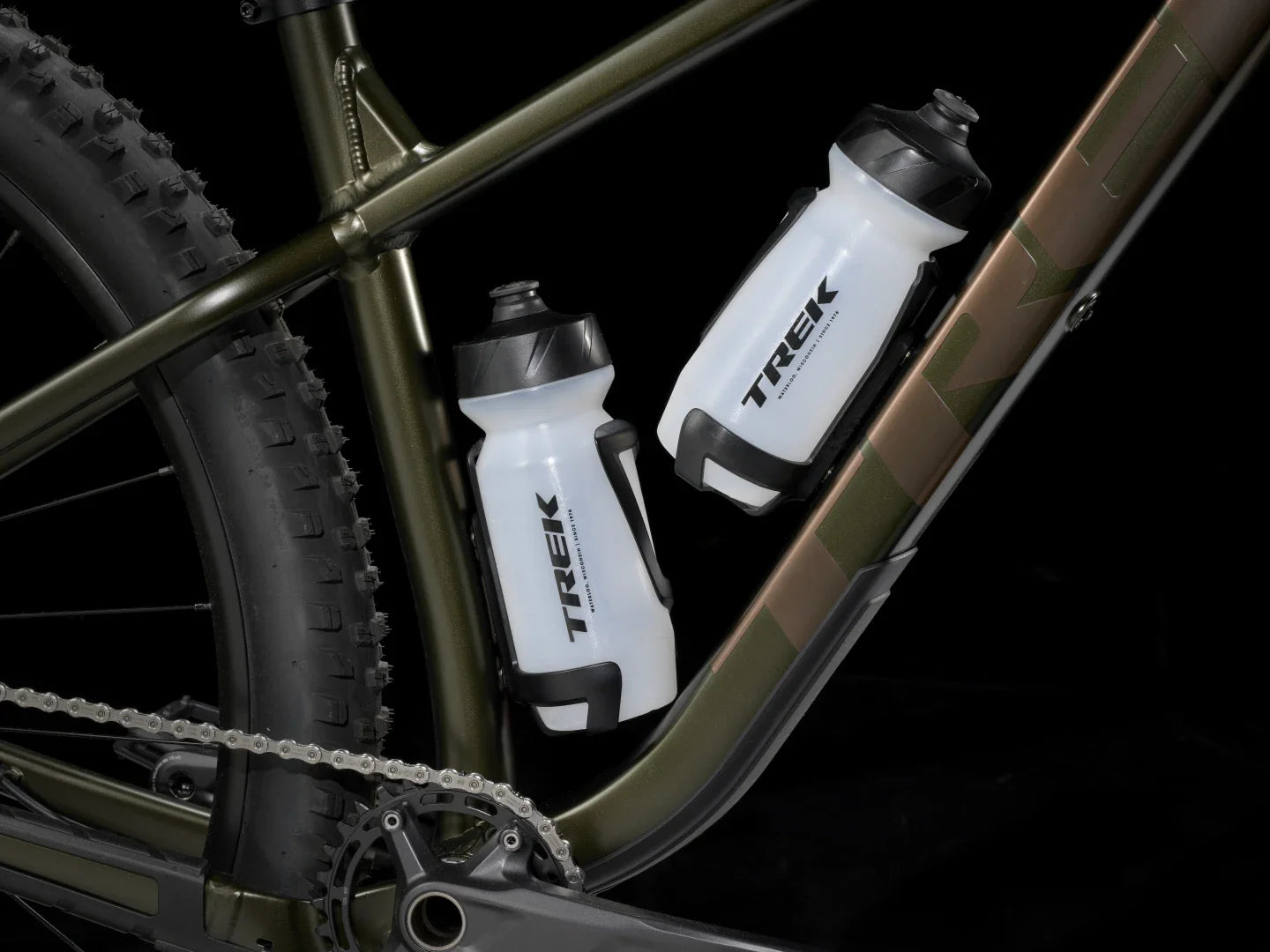

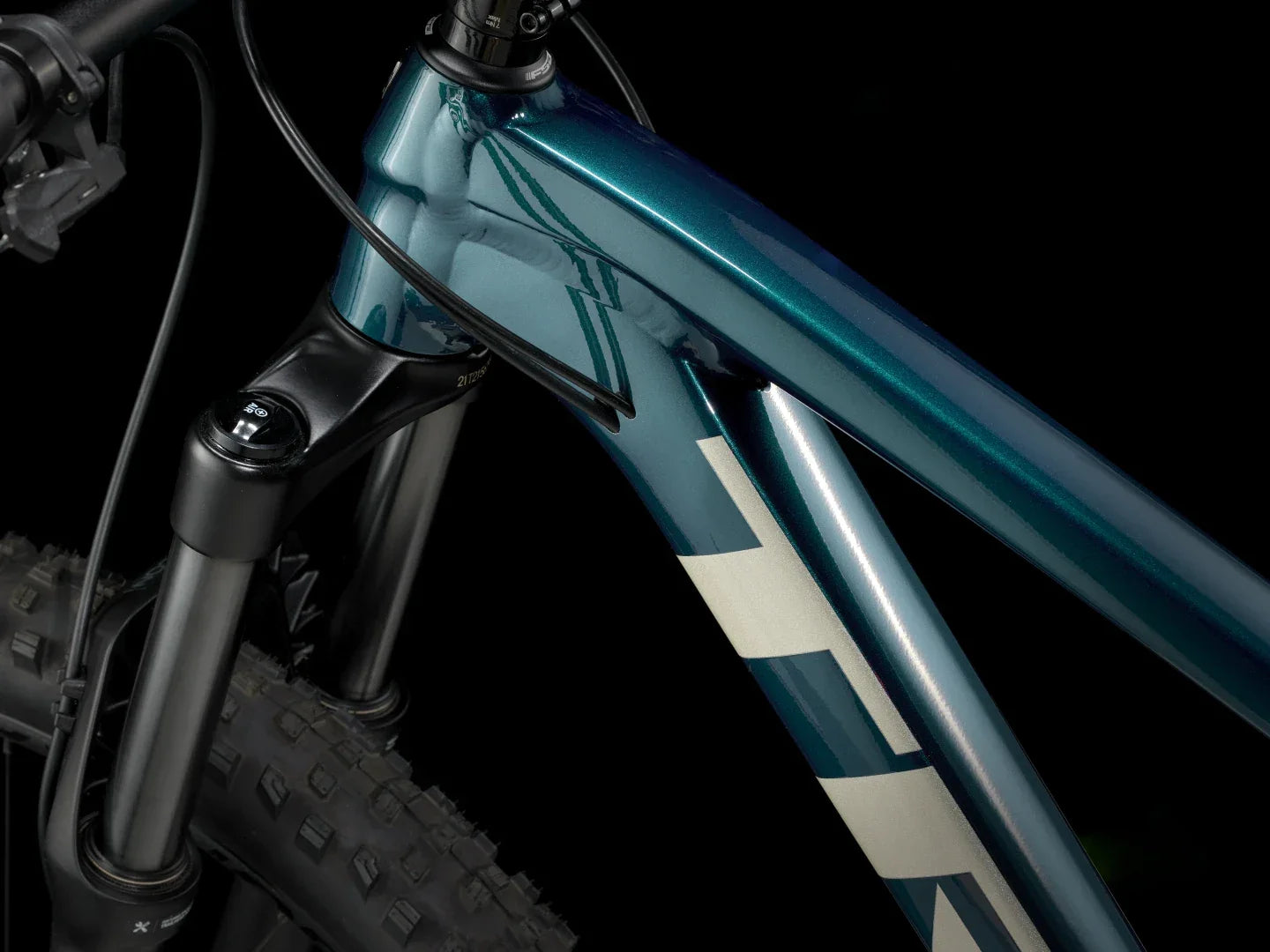

Frame Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR
*Fork Size: XS

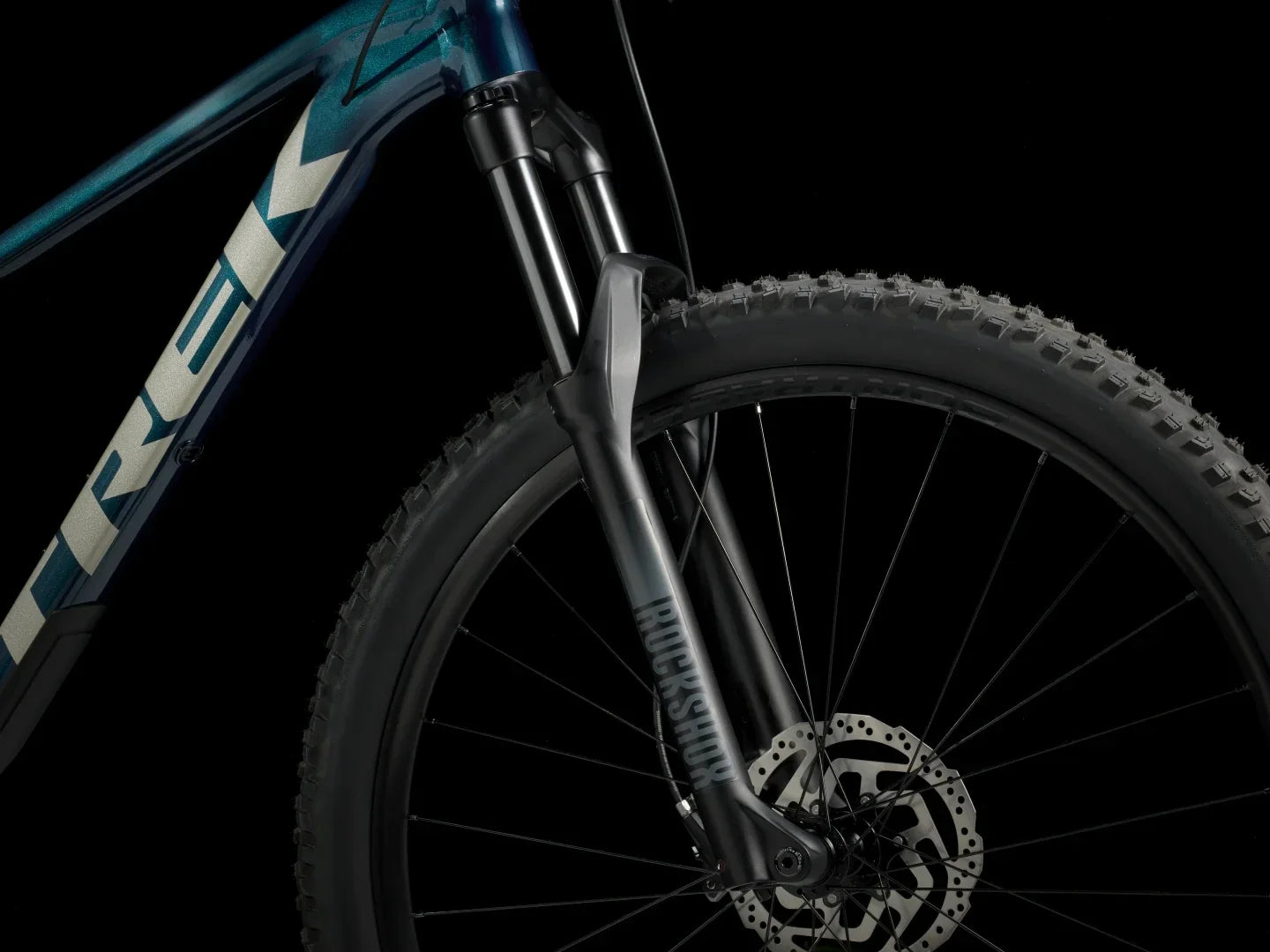

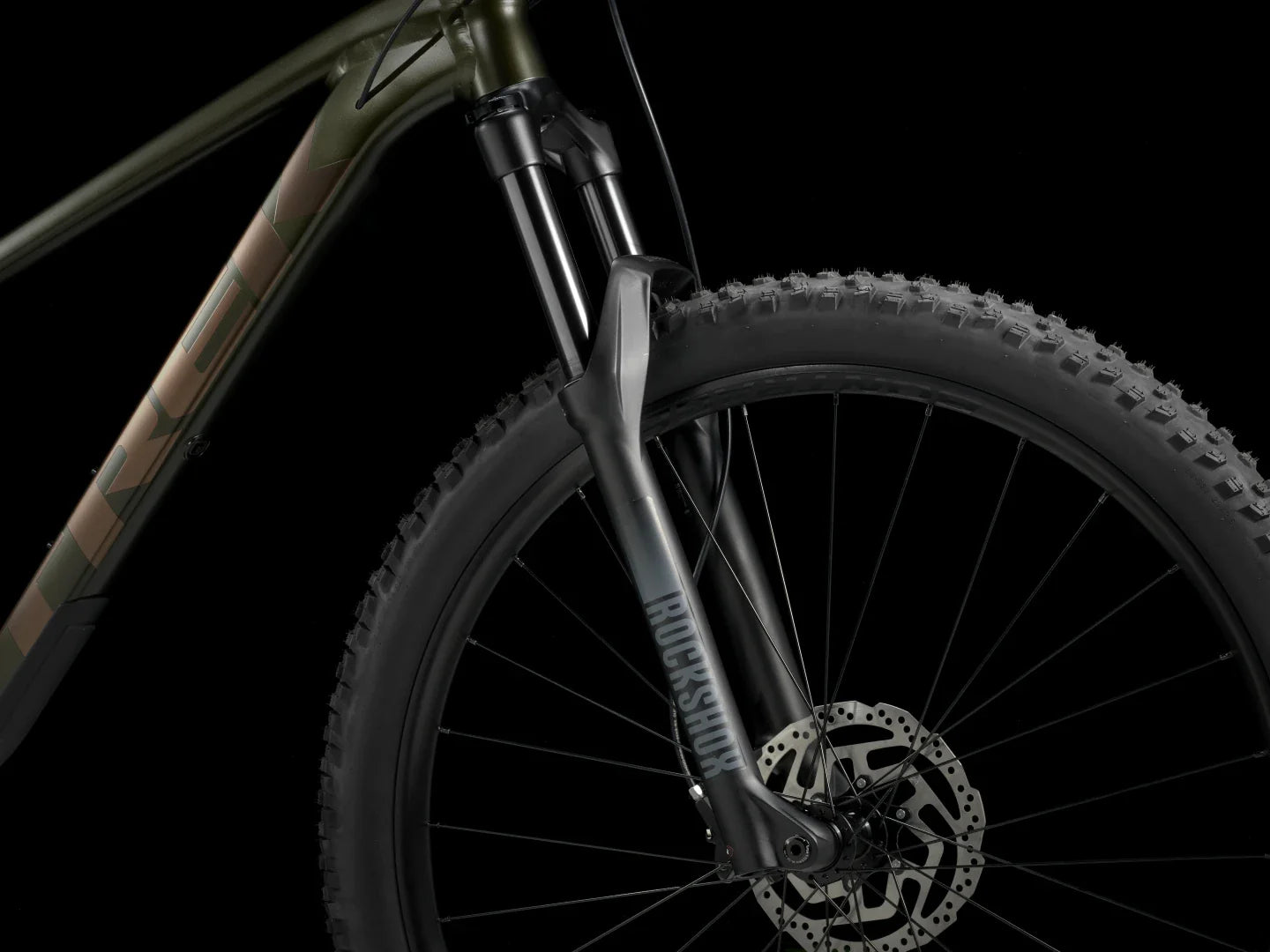

RockShox Judy Silver, Solo Air spring, TurnKey hydraulic lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel
Size: XS
RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15 mm Maxle Stealth, 100 mm travel
Size: S, M, M/L, L, XL, XXL
RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15 mm Maxle Stealth, 120 mm travel
Max compatible fork travel 150mm, XS: 120mm

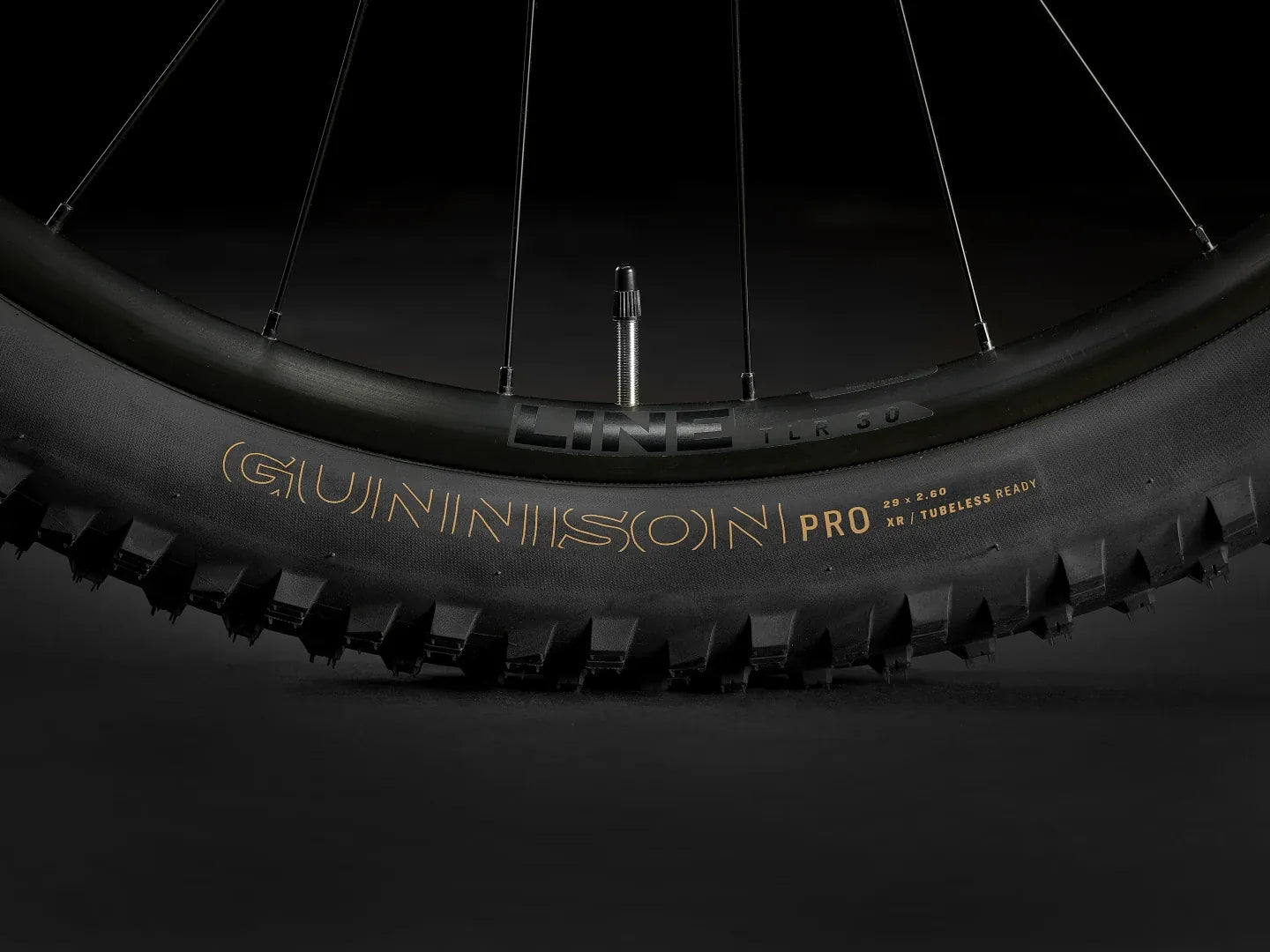

Wheels

Hub front Formula DC-511, 6-bolt, Boost110, 15 mm thru axle
Hub rear Formula DC-2241, alloy, 6-bolt, Shimano 8/9/10 freehub, Boost141, 5 mm QR

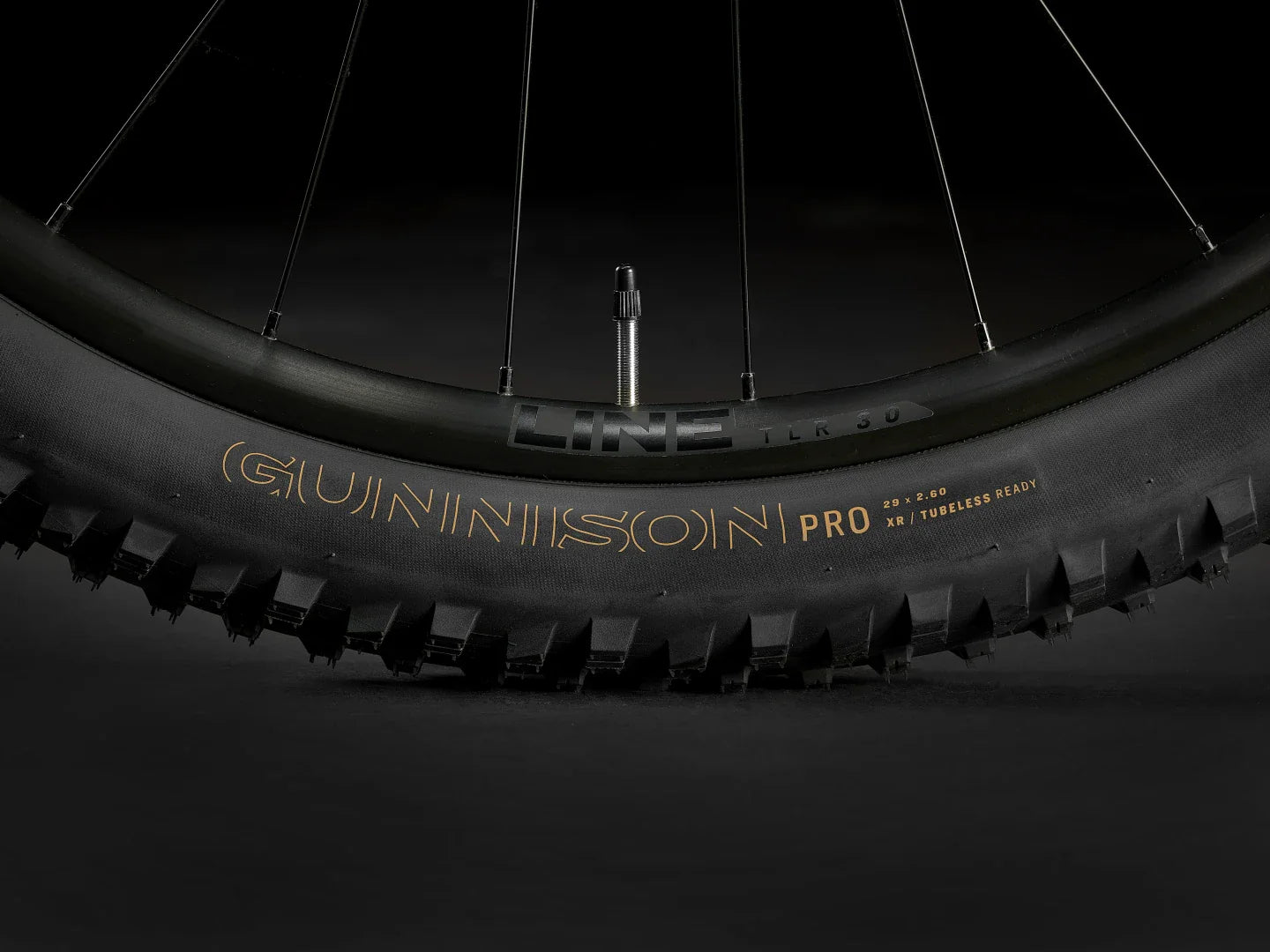

Rim Bontrager Line 40, Tubeless Ready, 28-hole, 40 mm width, Presta valve
Spokes 14 g stainless steel
*Tyre Size: XS, S, M, M/L, L, XL, XXL
Maxxis Rekon, tubeless, 60 tpi, 27.5x2.80'"'
Size: XS, S, M, M/L, L, XL, XXL
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 27.5x2.80"
Rim strip Bontrager TLR
Max tyre size Frame: 27.5x2.80" or 29x2.40", Fork: See manufacturer

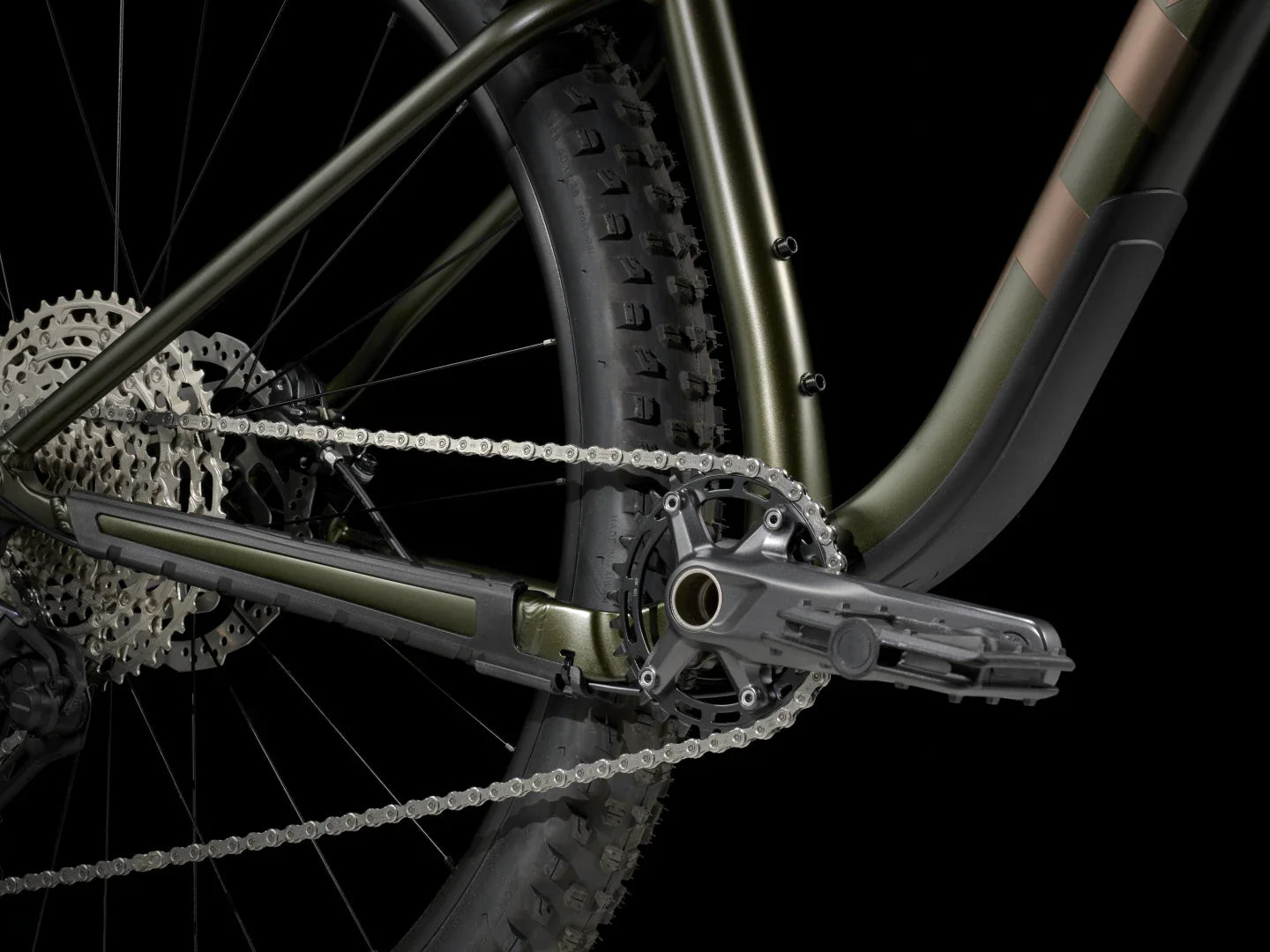

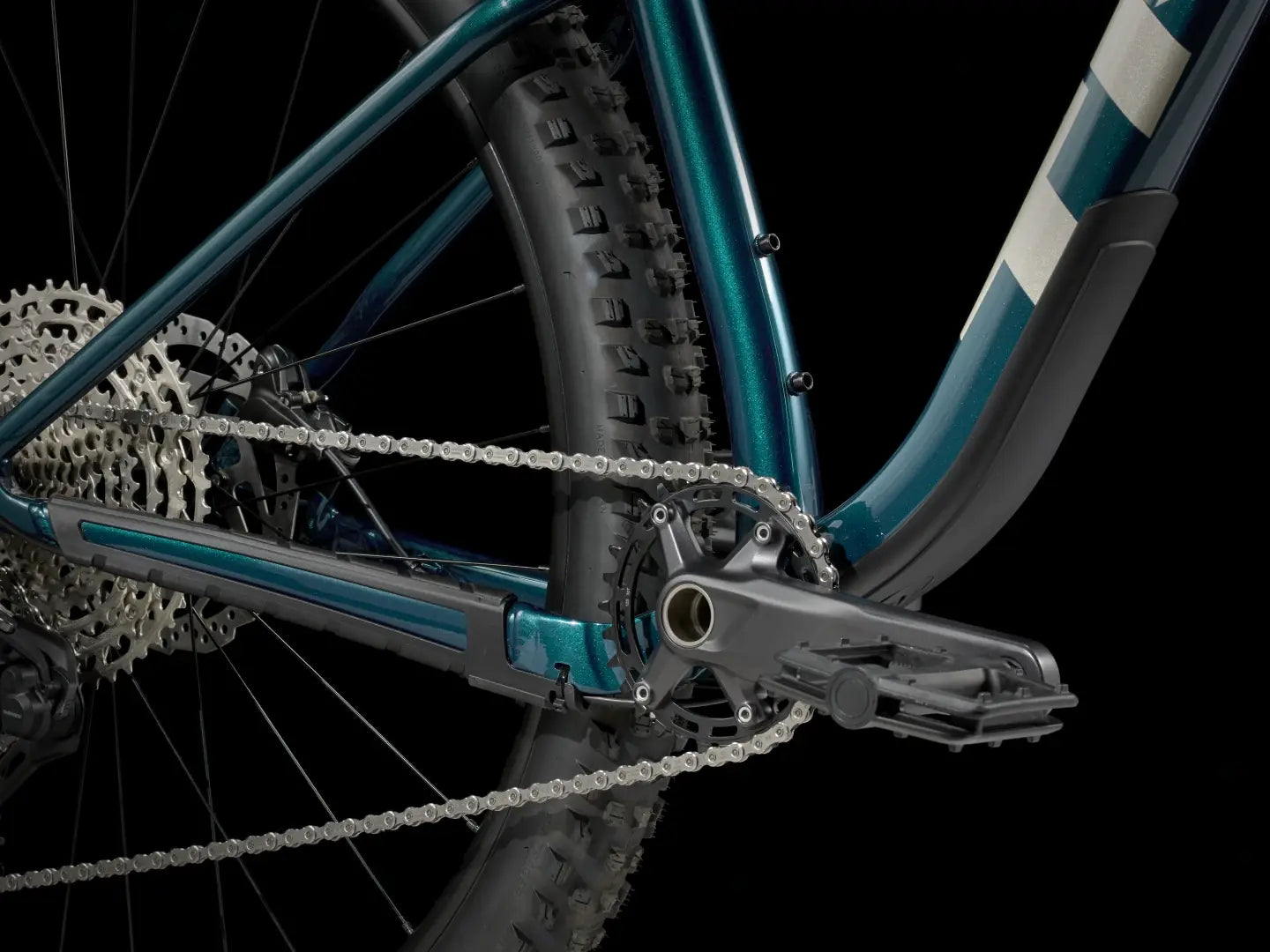

Drivetrain

Shifter SRAM SX Eagle, 12-speed
Rear derailleur SRAM SX Eagle
*Crank Size: XS, S, M
SRAM SX Eagle, GXP, 30T steel ring, Boost, 170 mm length
Size: M, M/L, L, XL, XXL
SRAM SX Eagle, GXP, 30T steel ring, Boost, 175 mm length
Bottom bracket Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
Cassette SRAM PG-1210 Eagle, 11-50, 12-speed
Chain SRAM SX Eagle, 12-speed
Pedal VP-536 nylon platform
Max. chainring size 1x: 32T

Components

Saddle Bontrager Arvada, steel rails, 138 mm width
*Seatpost Size: XS, S, M
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M, M/L, L, XL, XXL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length

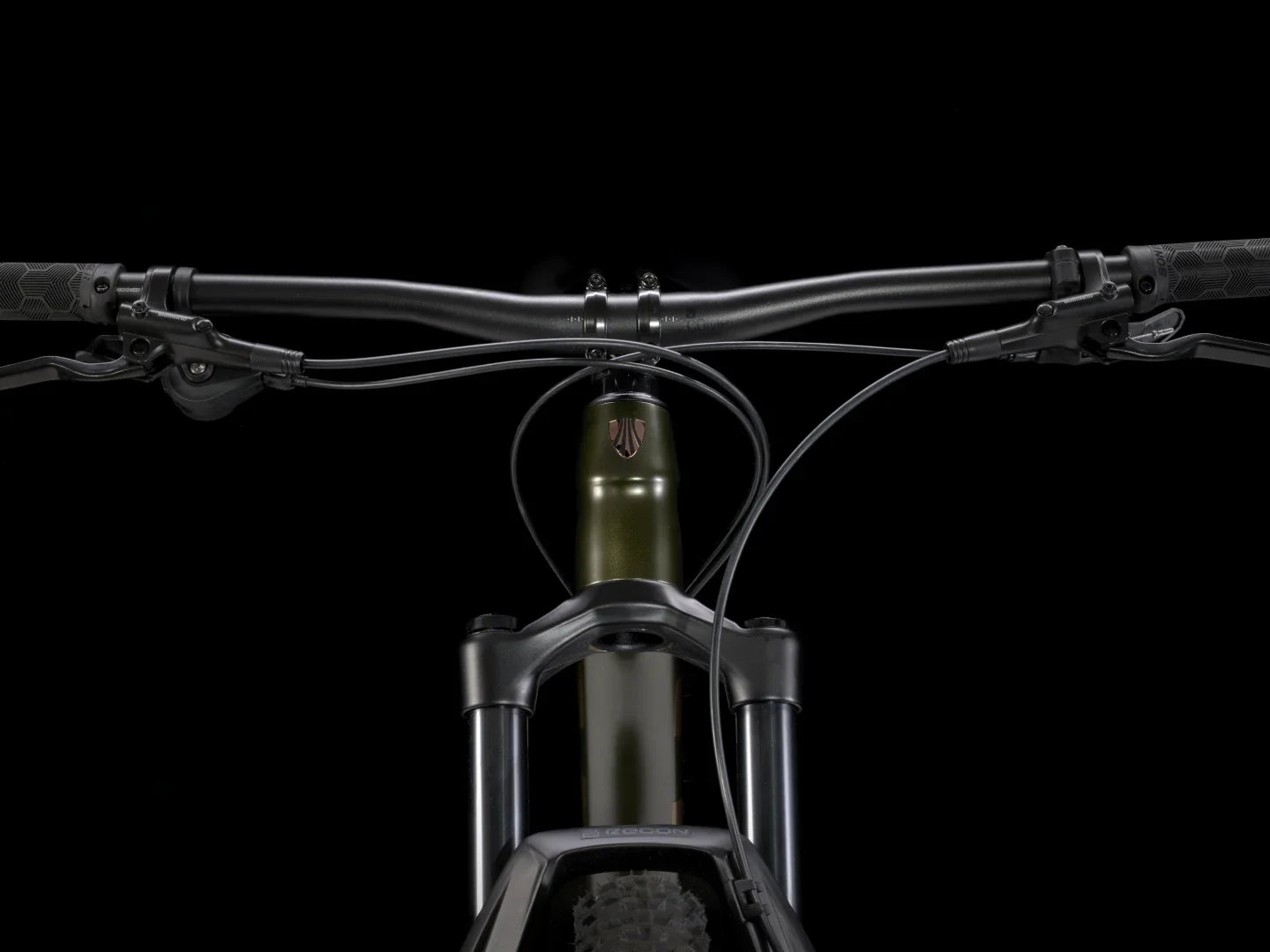

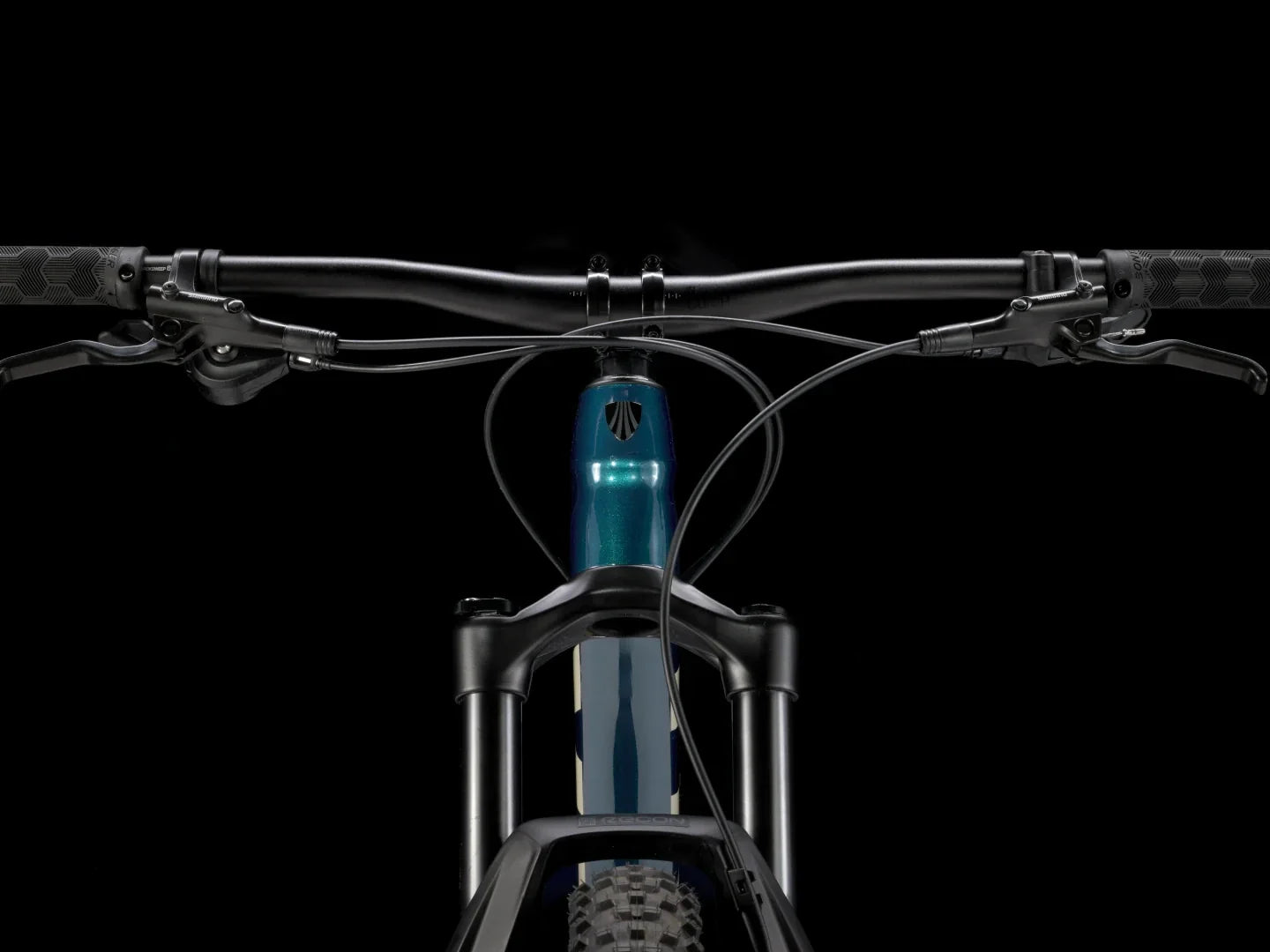

*Handlebar Size: XS
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: S, M, M/L, L, XL, XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips Bontrager XR Trail Comp, nylon lock-on
*Stem Size: XS, S, M
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Size: M/L, L, XL, XXL
Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length
Head set Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom

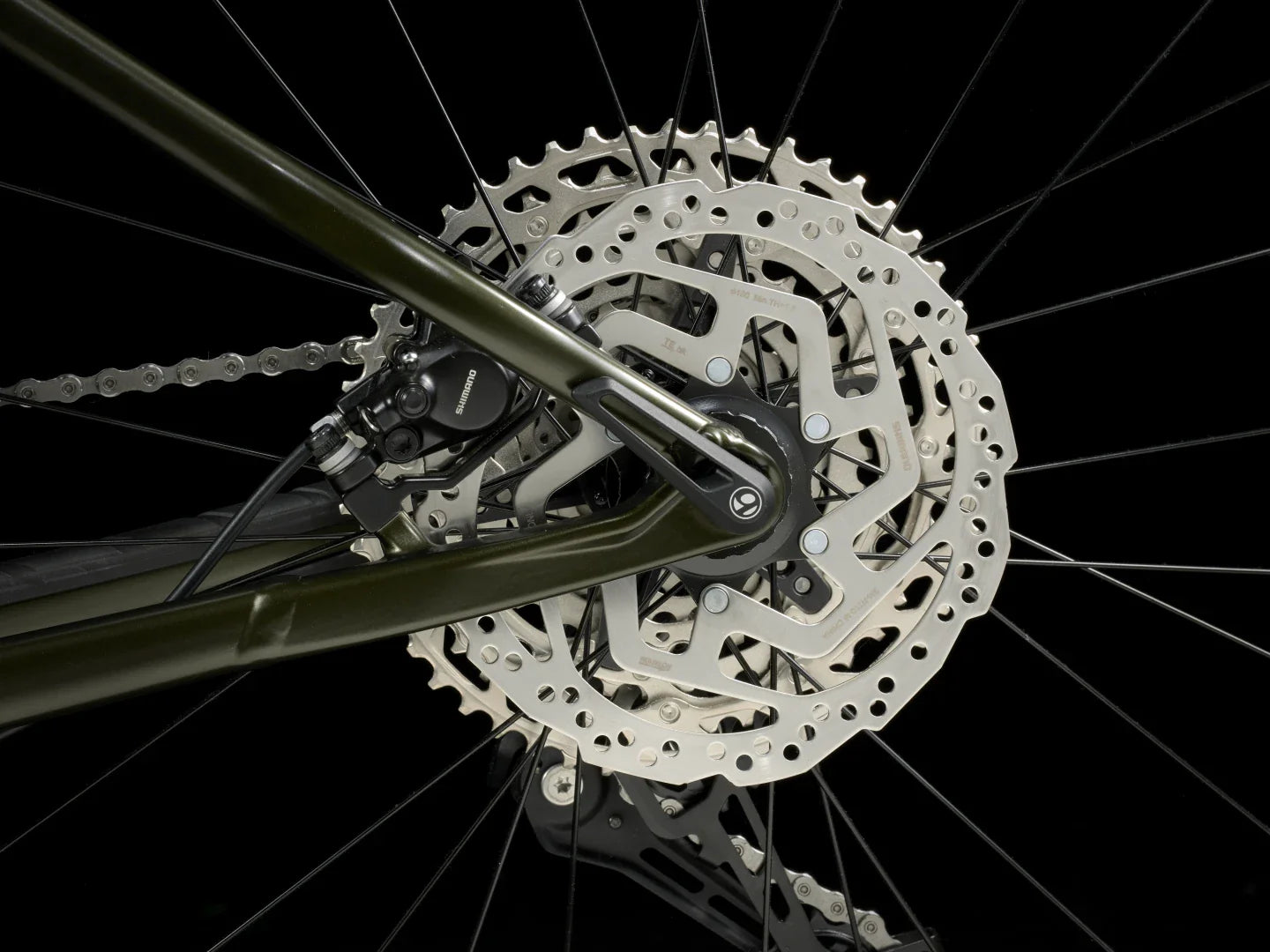

Brake Shimano MT200 hydraulic disc

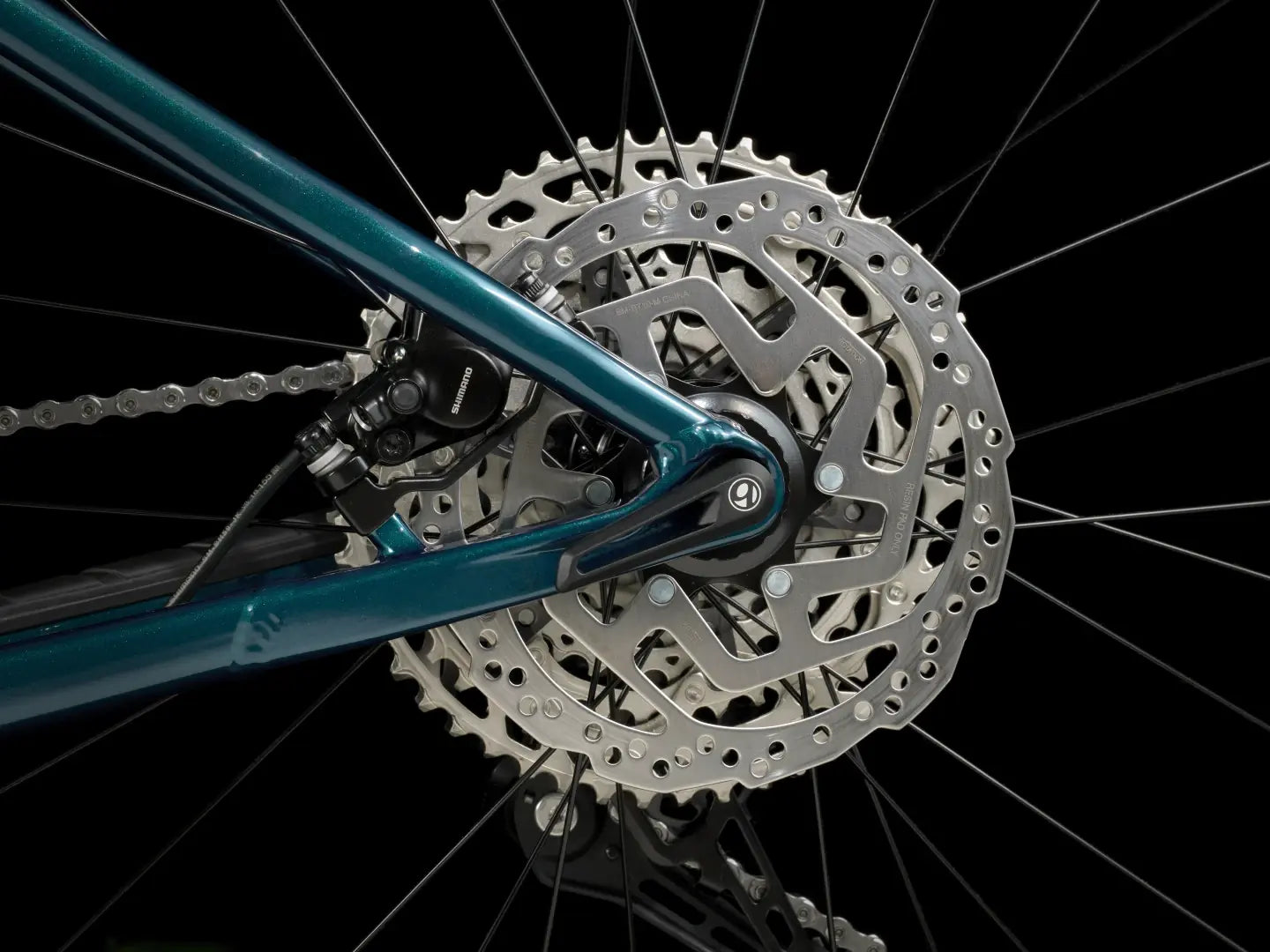

*Brake rotor Size: XS, S, M, M/L, L, XL, XXL
Shimano RT26, 6-bolt,160 mm
Size: M, M/L, L, XL, XXL
Shimano RT26, 6-bolt,180 mm
Brake Set Shimano MT200 hydraulic disc

Weight

Weight M - 14.84 kg / 32.72 lbs (with tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Size

XS

S

M

M/L

L

XL

Rider Height

145 - 155 cm

4'9" - 5'1"

155 - 165 cm

5'1" - 5'5"

165 - 176 cm

5'5" - 5'9"

173 - 180 cm

5'8" - 5'11"

177 - 188 cm

5'10" - 6'2"

188 - 195 cm

6'2" - 6'5"

Inseam

69 - 73 cm

27" - 29"

74 - 78 cm

29" - 31"

79 - 83 cm

31" - 33"

81 - 86 cm

32" - 34"

84 - 89 cm

33" - 35"

89 - 91 cm

35" - 36"

Sizing table
Frame size number Frame size letter Wheel size A — Seat tube B — Seat tube angle Effective seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
13.5 XS 27.5+ 34.3 69.7° 71.1° 9.0 67.1° 55.8 31.0 5.0 43.8 4.2 15.2 105.9 73.1 35.1 60.5
15.5 S 27.5+ 36.8 70.2° 71.2° 9.0 67.2° 57.4 32.0 4.0 43.8 4.2 15.2 108.1 75.4 36.4 61.4
17.5 M 27.5+ 41.9 69.6° 70.7° 9.0 67.2° 60.9 31.9 4.1 43.8 4.2 15.1 111.0 75.1 39.4 61.4
18.5 ML 27.5+ 44.4 69.6° 70.8° 9.0 67.3° 62.5 31.9 4.1 43.8 4.2 15.1 112.6 74.8 41.0 61.5
19.5 L 27.5+ 47.0 69.7° 70.8° 10.0 67.3° 64.5 31.9 4.1 43.8 4.2 15.1 114.6 76.3 42.8 62.5
21.5 XL 27.5+ 52.1 69.7° 70.9° 12.0 67.4° 66.6 31.8 4.2 43.8 4.2 15.0 116.8 76.0 44.2 64.4
23.0 XXL 27.5+ 55.9 69.7° 70.9° 12.0 67.4° 68.0 31.8 4.2 43.8 4.2 15.0 118.2 81.5 45.7 64.4
