Specs
Sizing
Geometry
Frameset

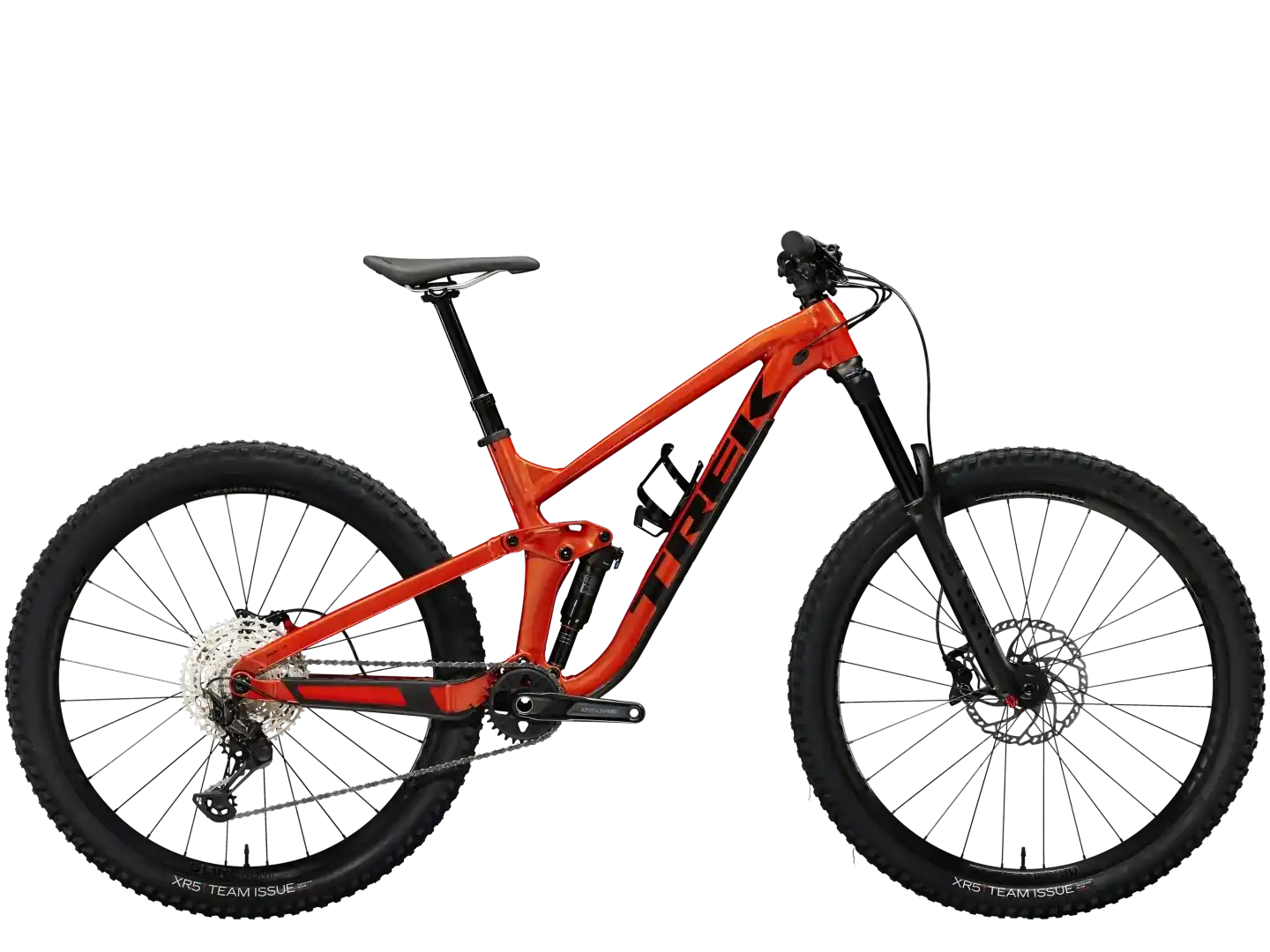

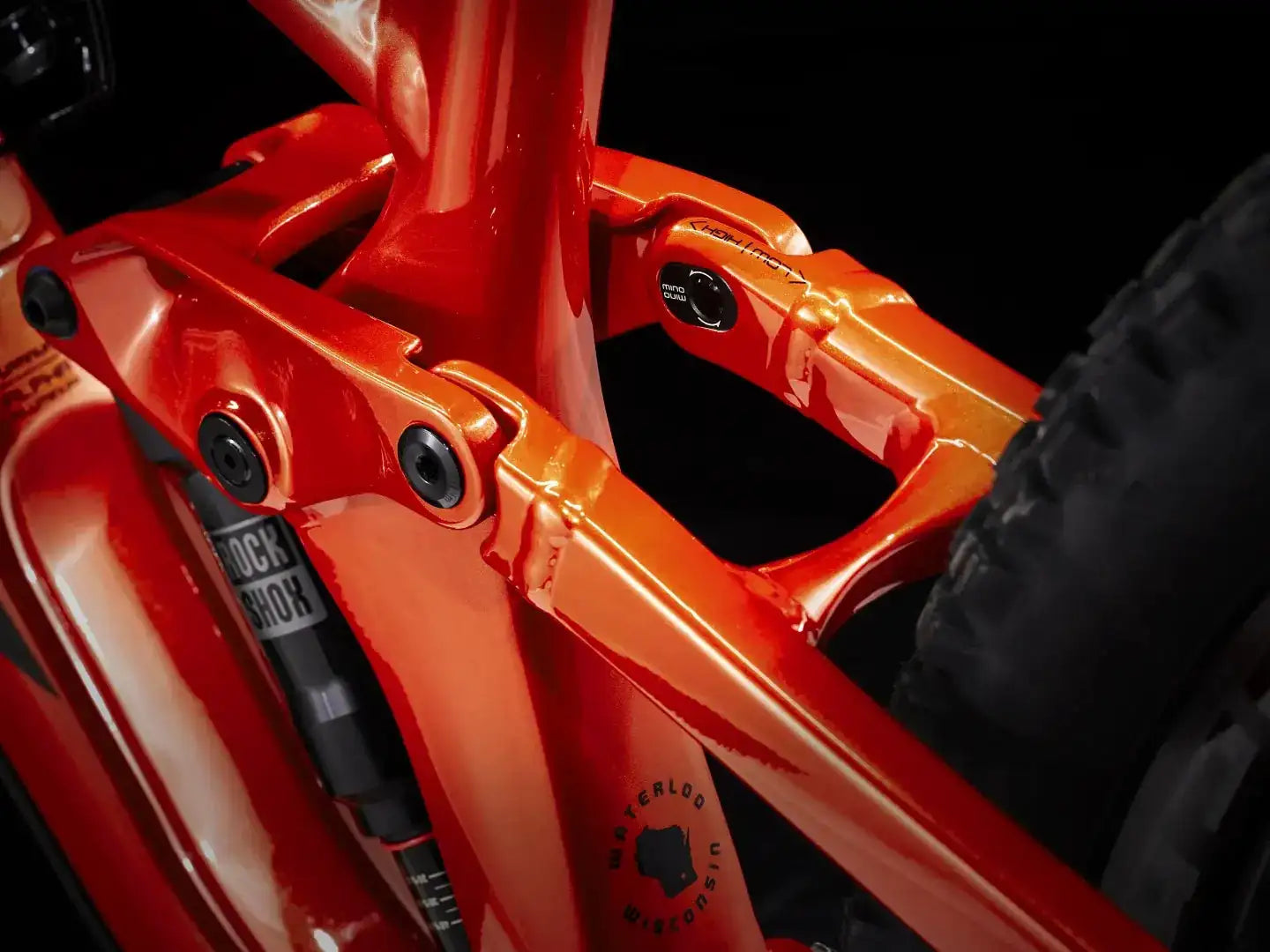

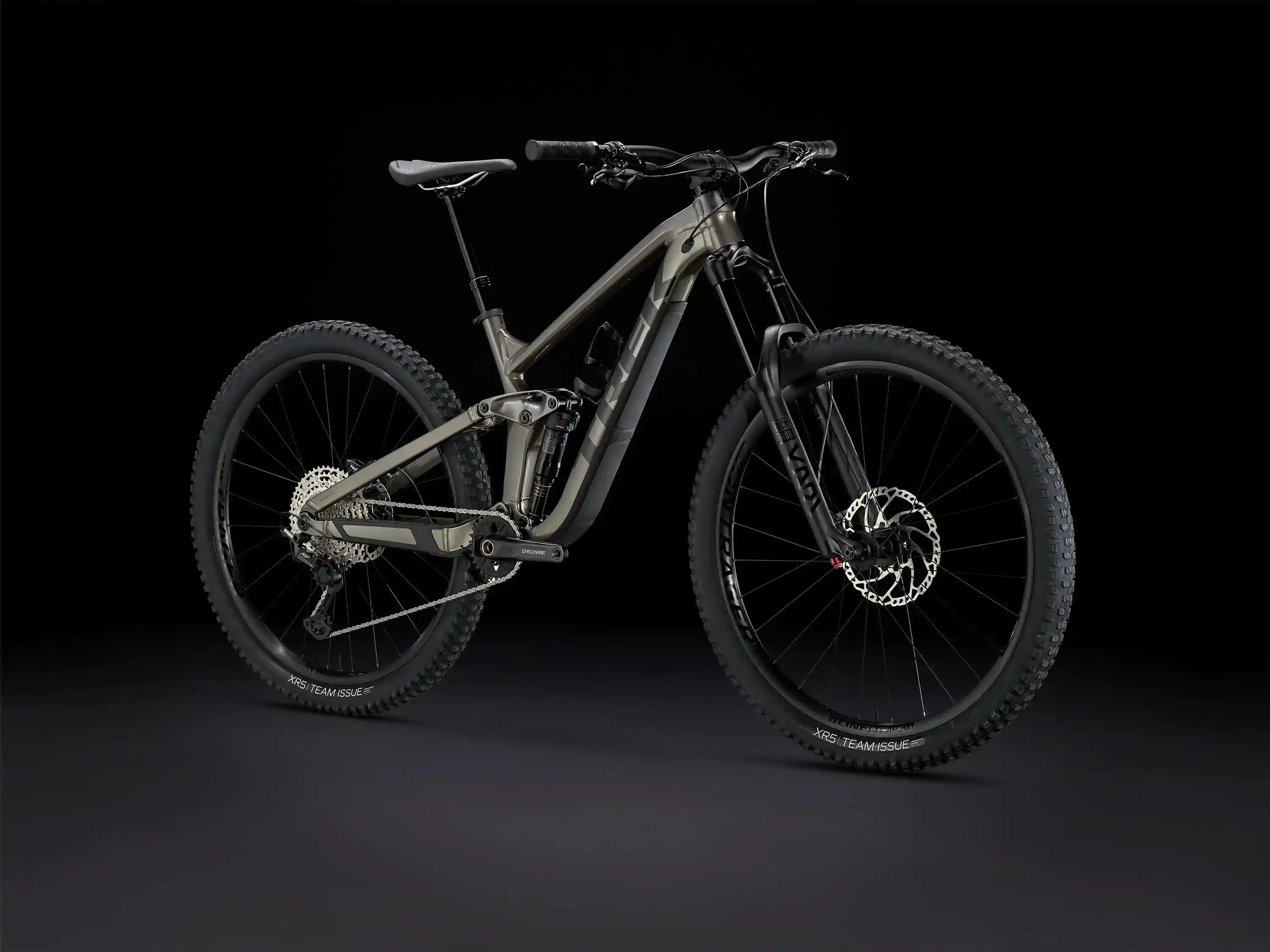

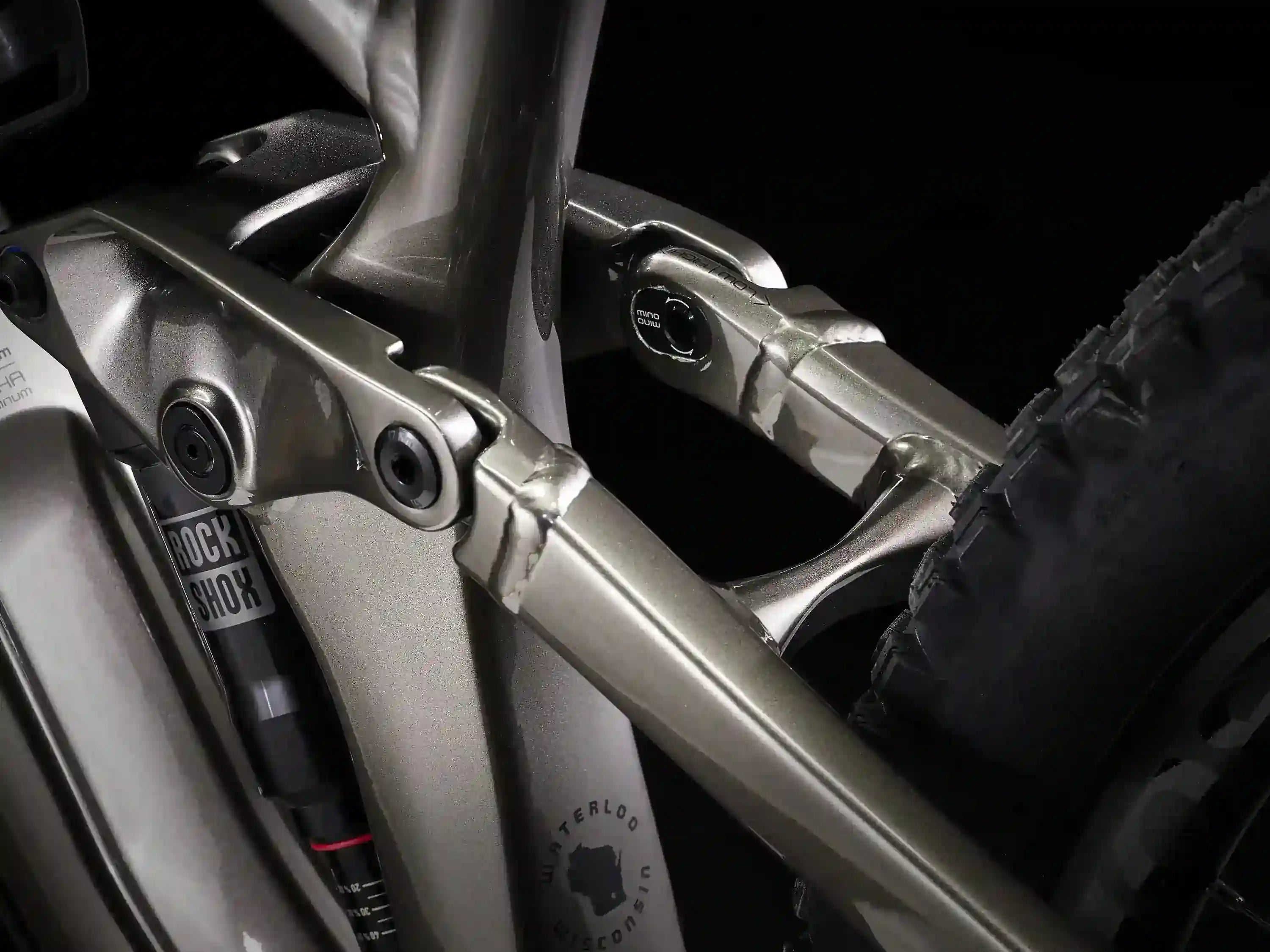

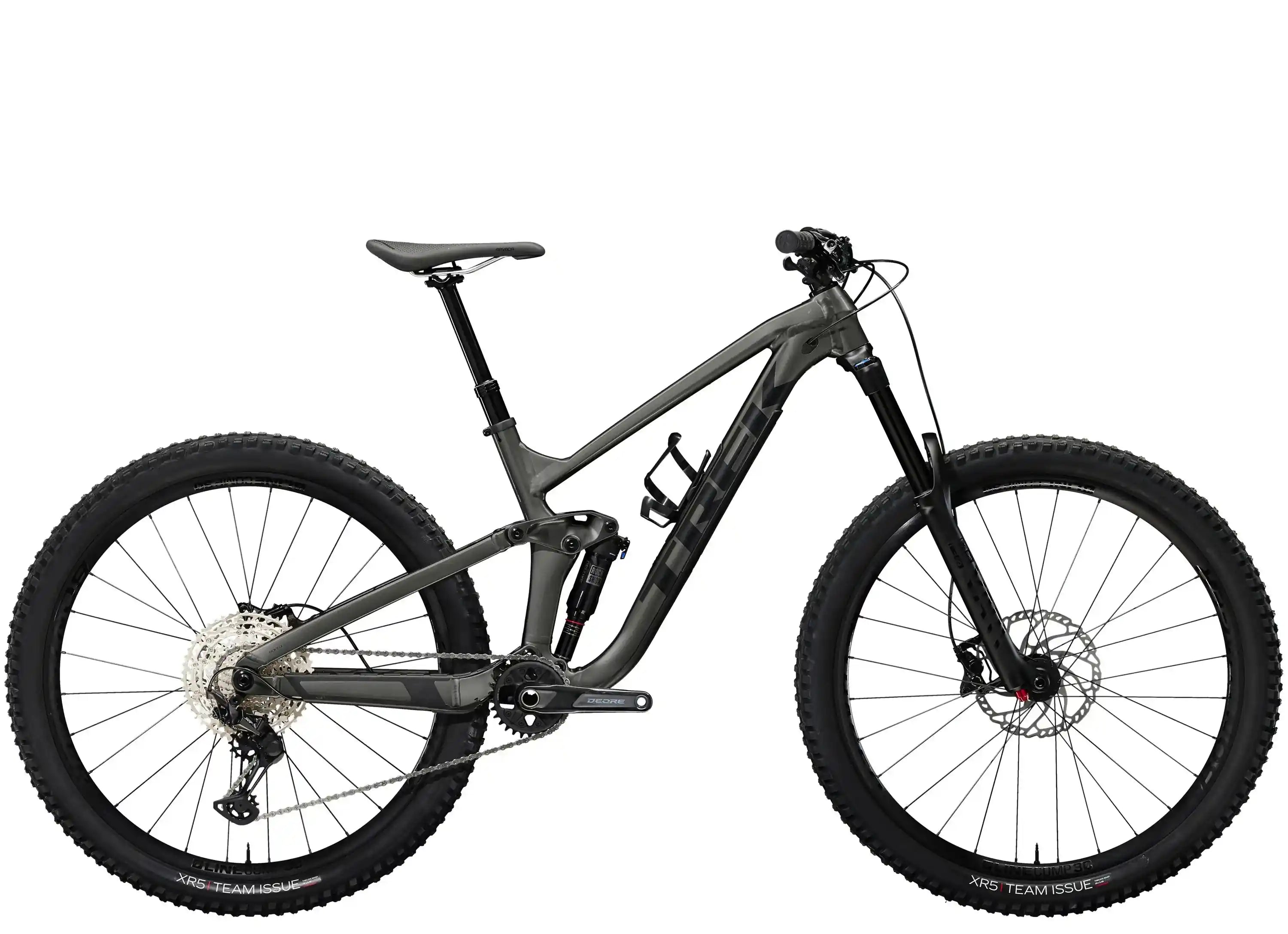

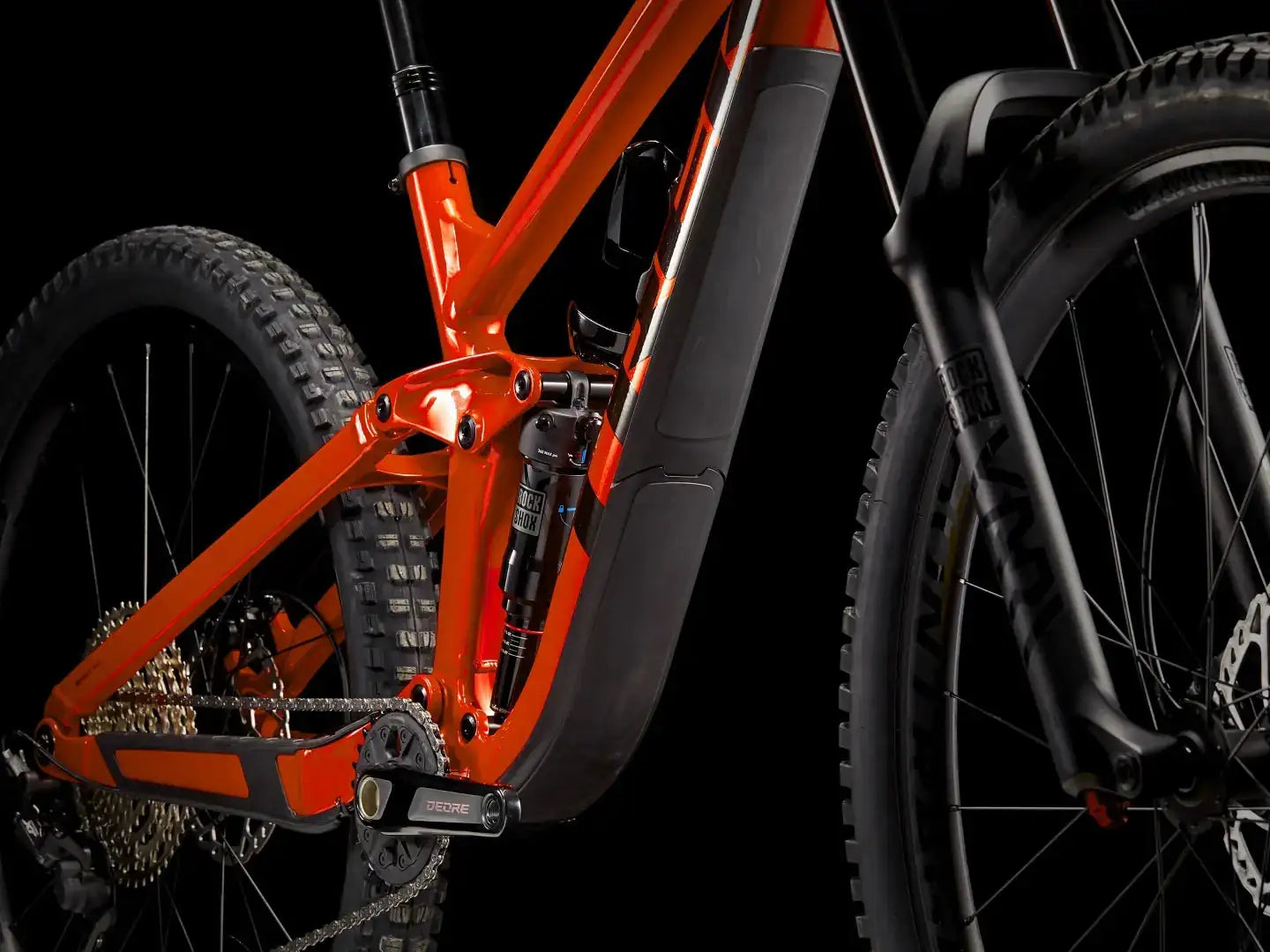

Frame Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, down tube guard, shuttle guard, threaded BB, ISCG 05, 34.9 mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160 mm travel
Fork RockShox Yari RC, DebonAir spring, Motion Control RC damper, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 170 mm travel

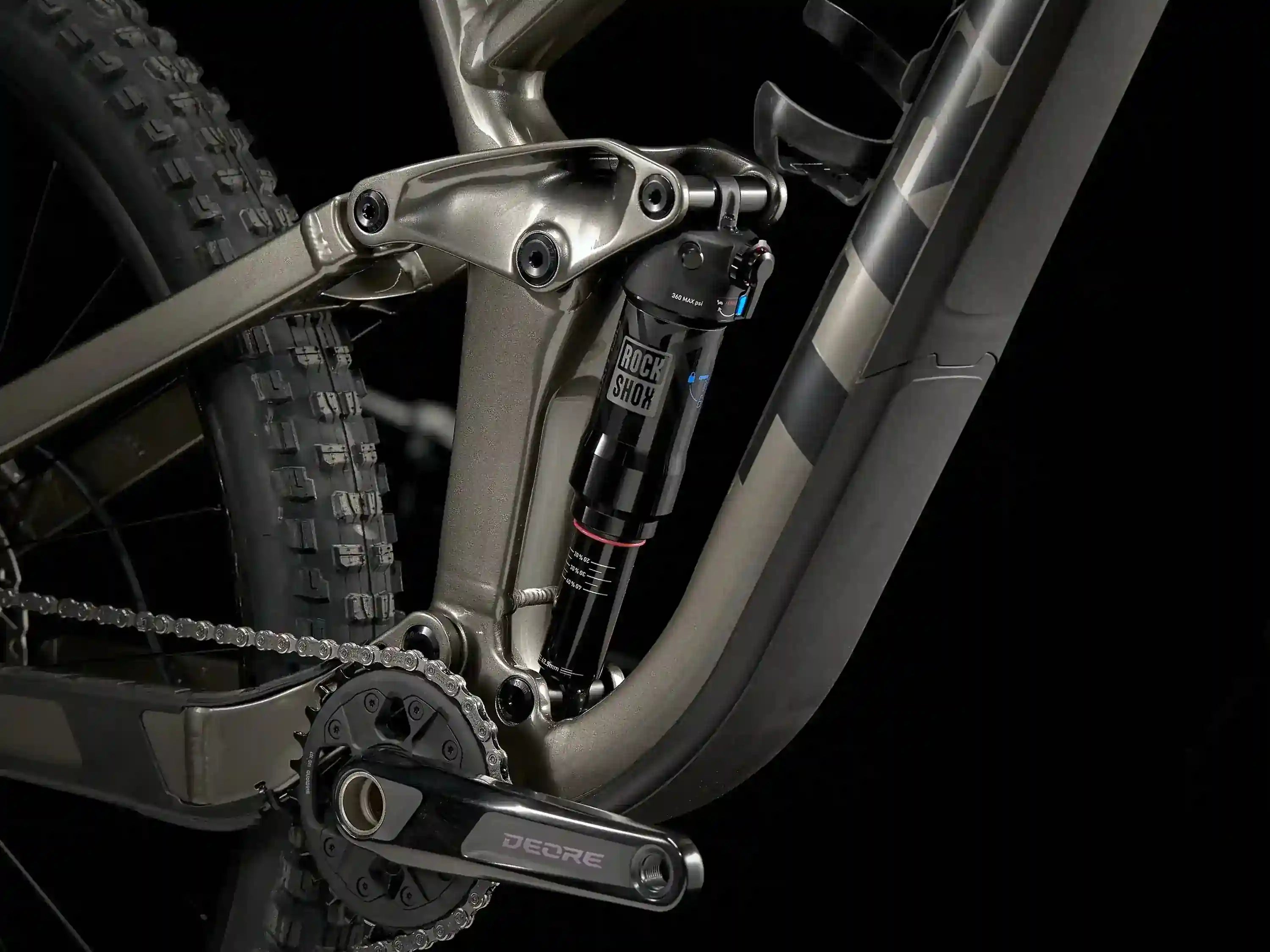

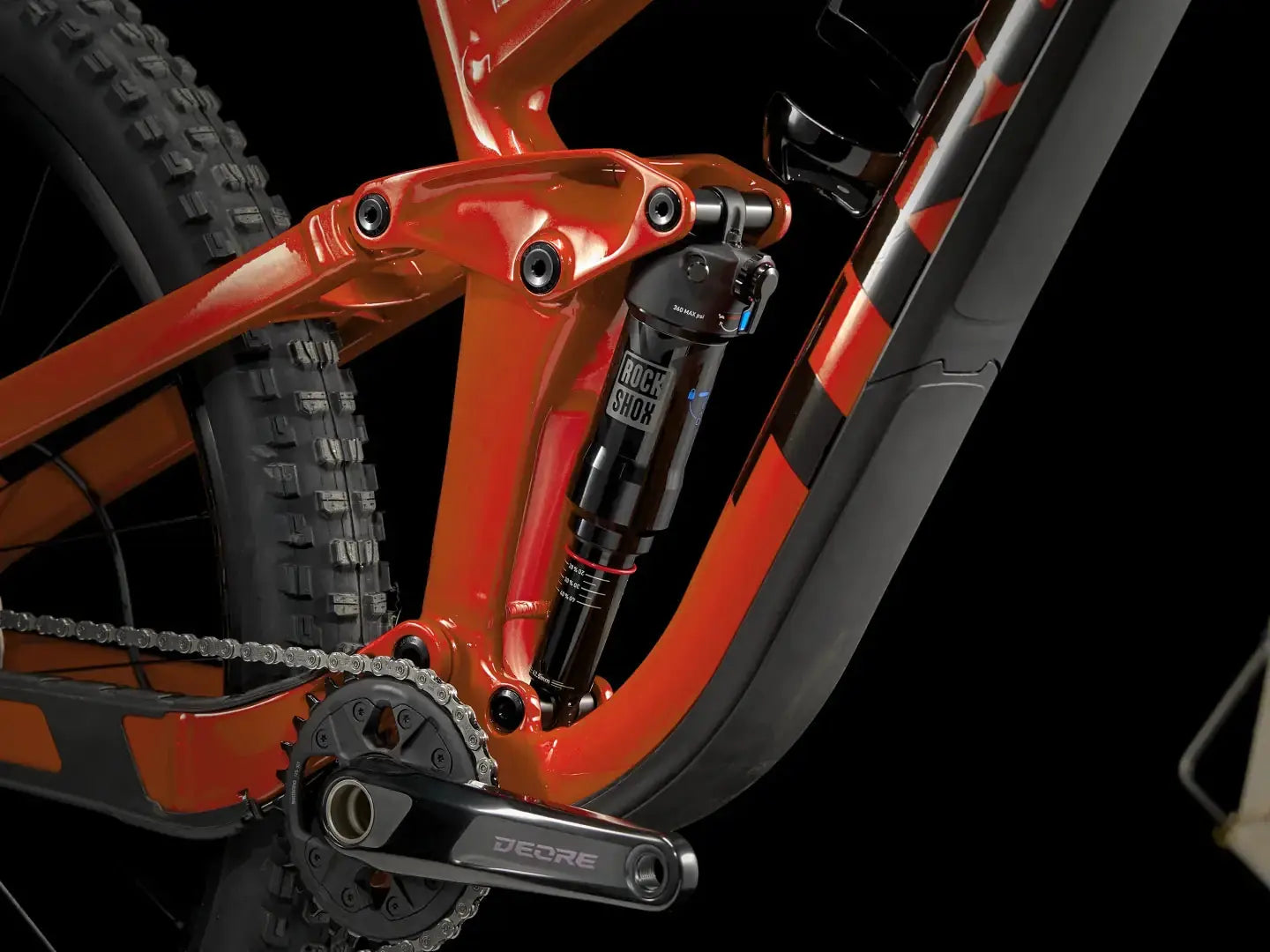

Shock RockShox Deluxe Select+, DebonAir spring, Select+ RL damper, 230x62.5 mm
Max compatible fork travel 180mm (596mm axle-to-crown)

Wheels

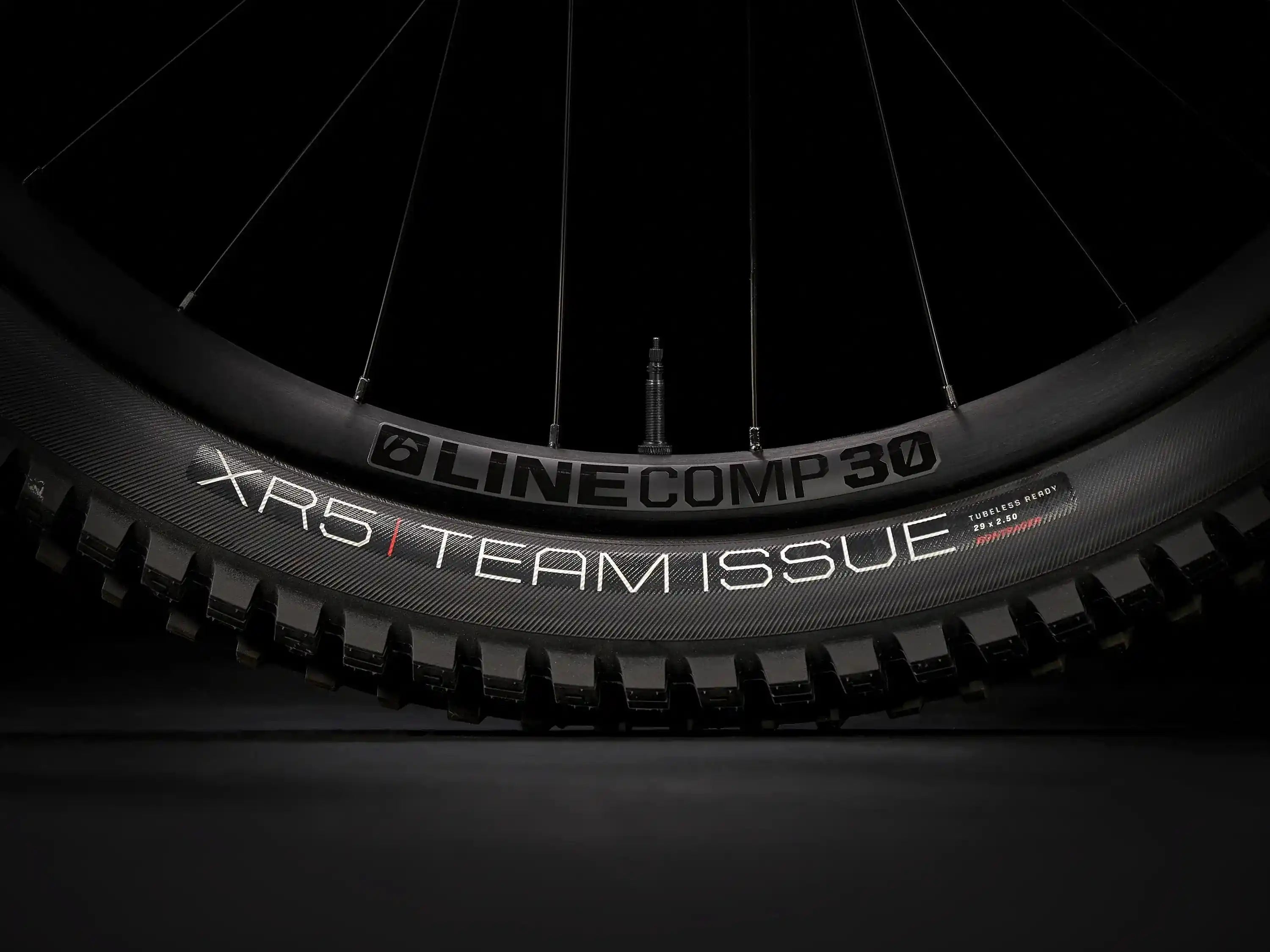

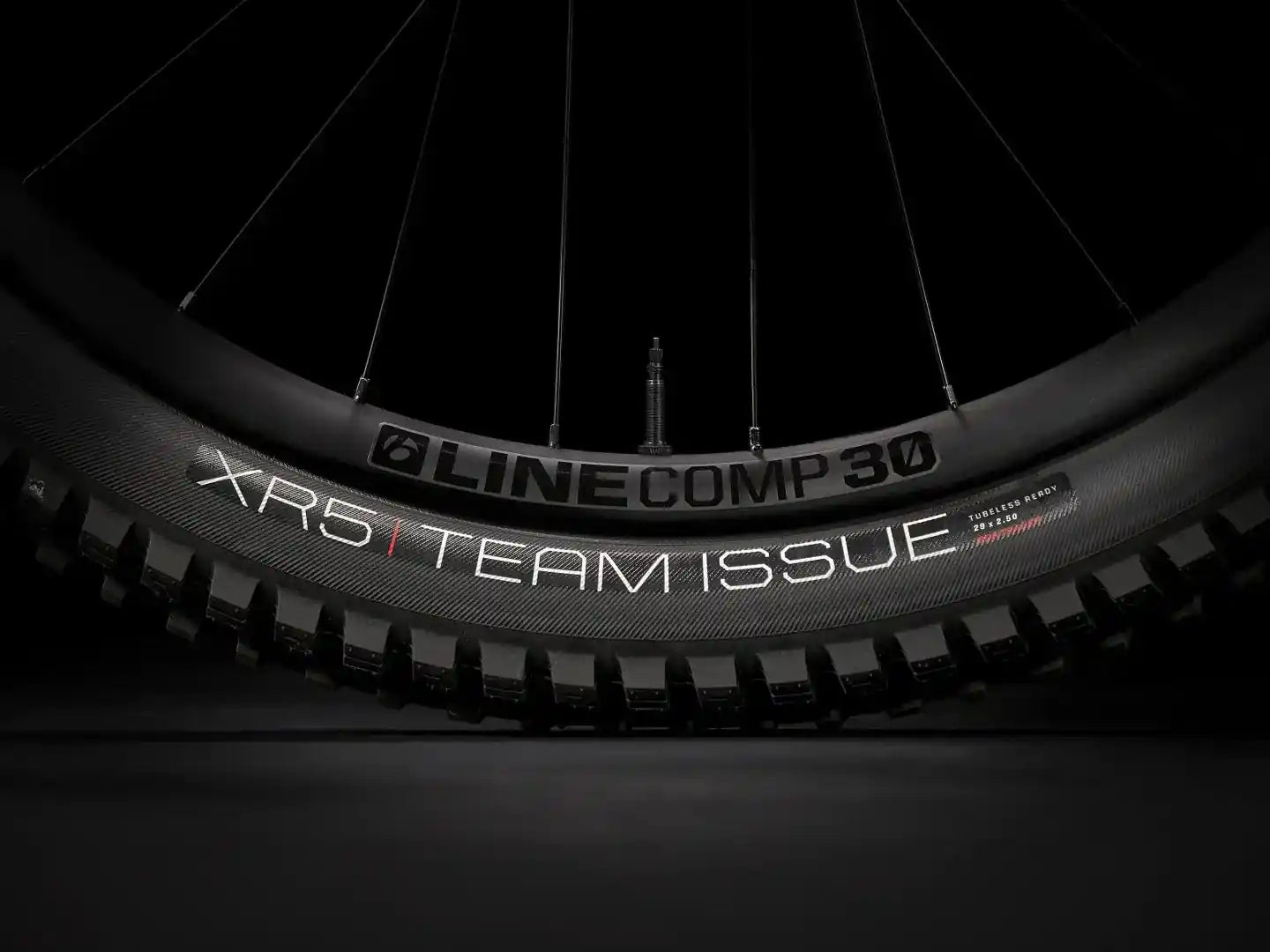

Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
Tyre Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Rim strip Bontrager TLR
Max tyre size Frame: 29x2.50", Fork: See manufacturer

Drivetrain

Shifter Shimano SLX M7100, 12-speed

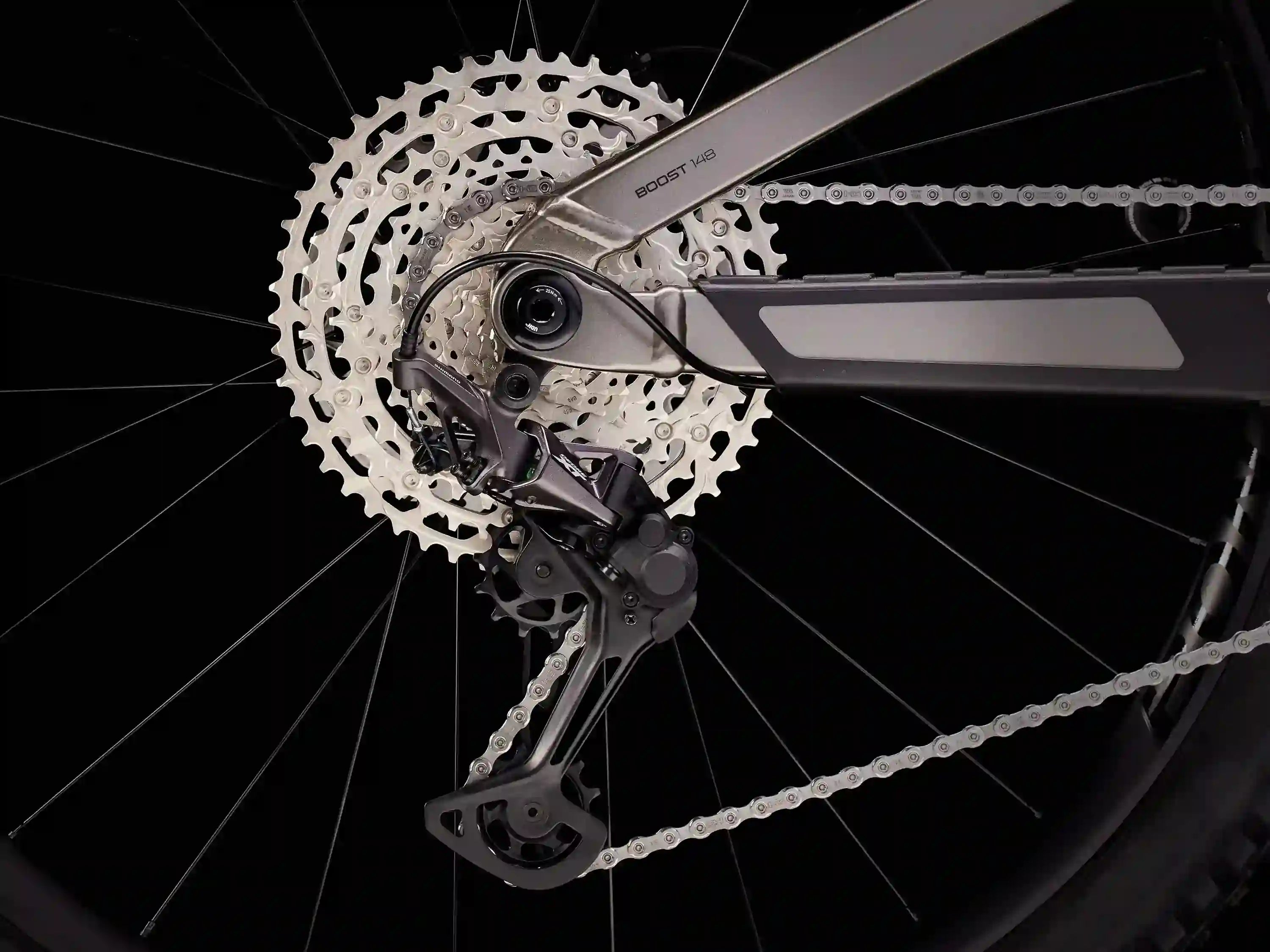

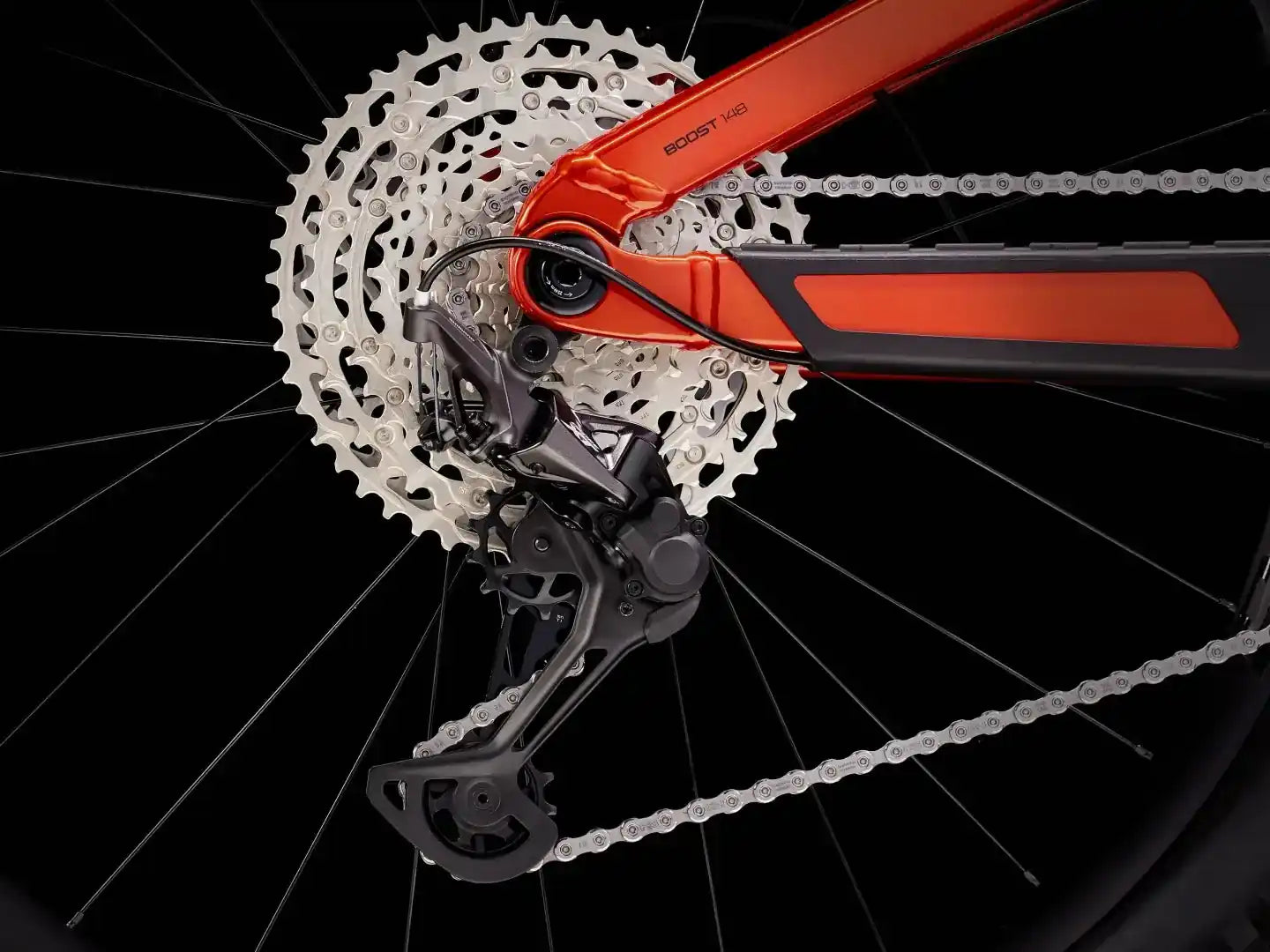

Rear derailleur Shimano XT M8100, long cage

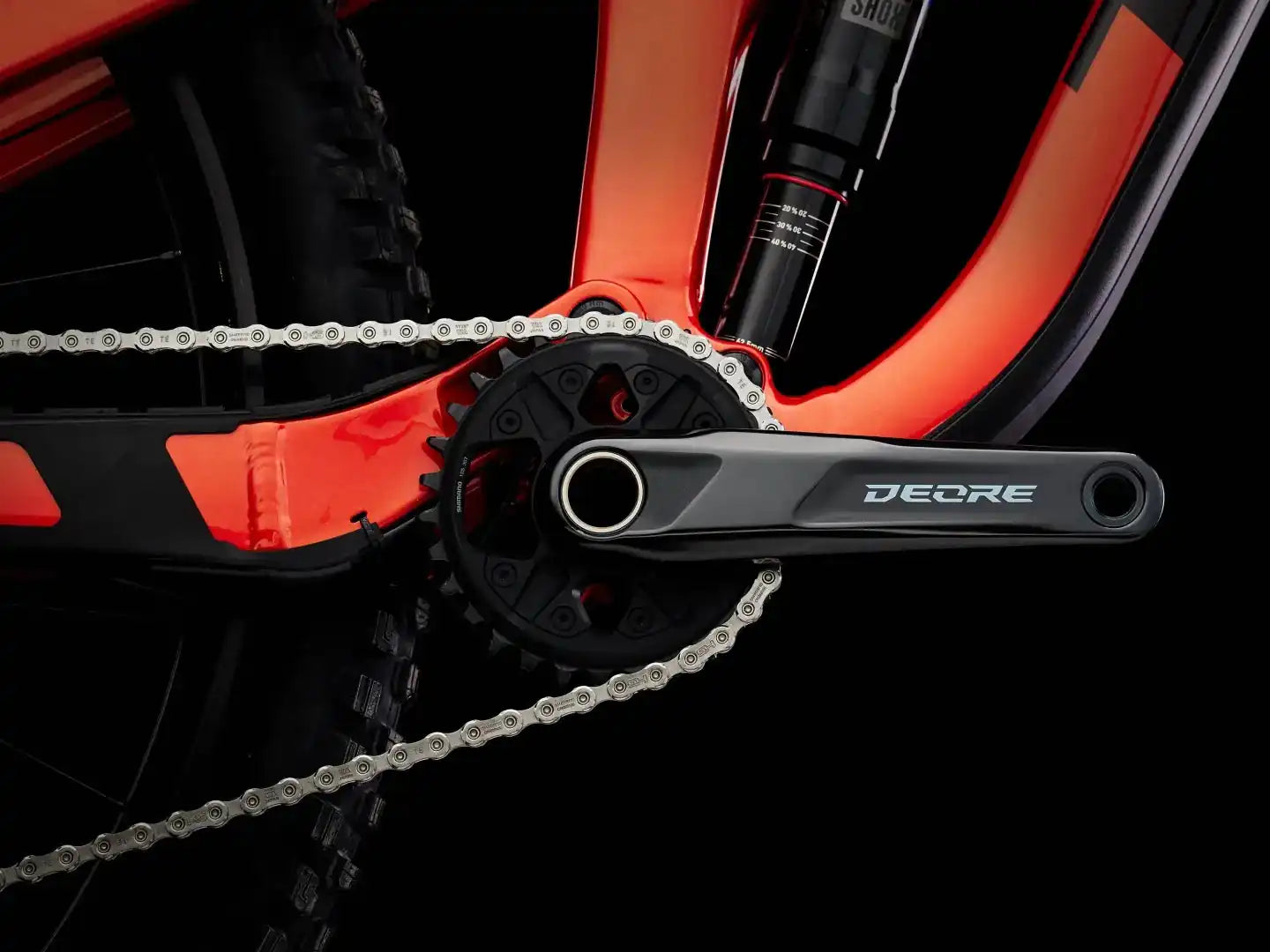

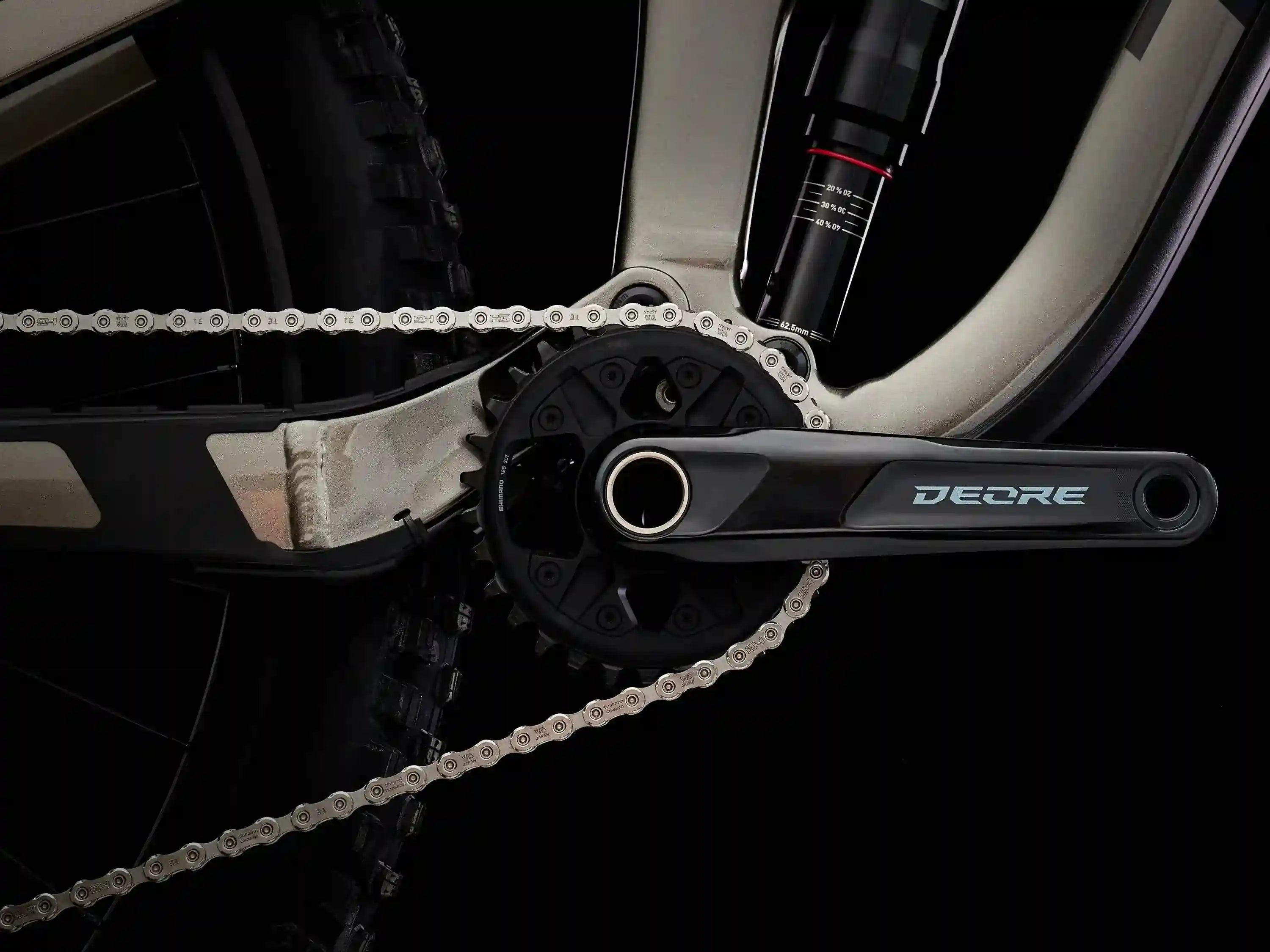

Crank Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
Bottom bracket Shimano SM-BB52, 73 mm, threaded external bearing
Cassette Shimano Deore M6100, 10-51, 12-speed
Chain Shimano Deore M6100, 12-speed
Max. chainring size 1x: 34T, min 28T

Components

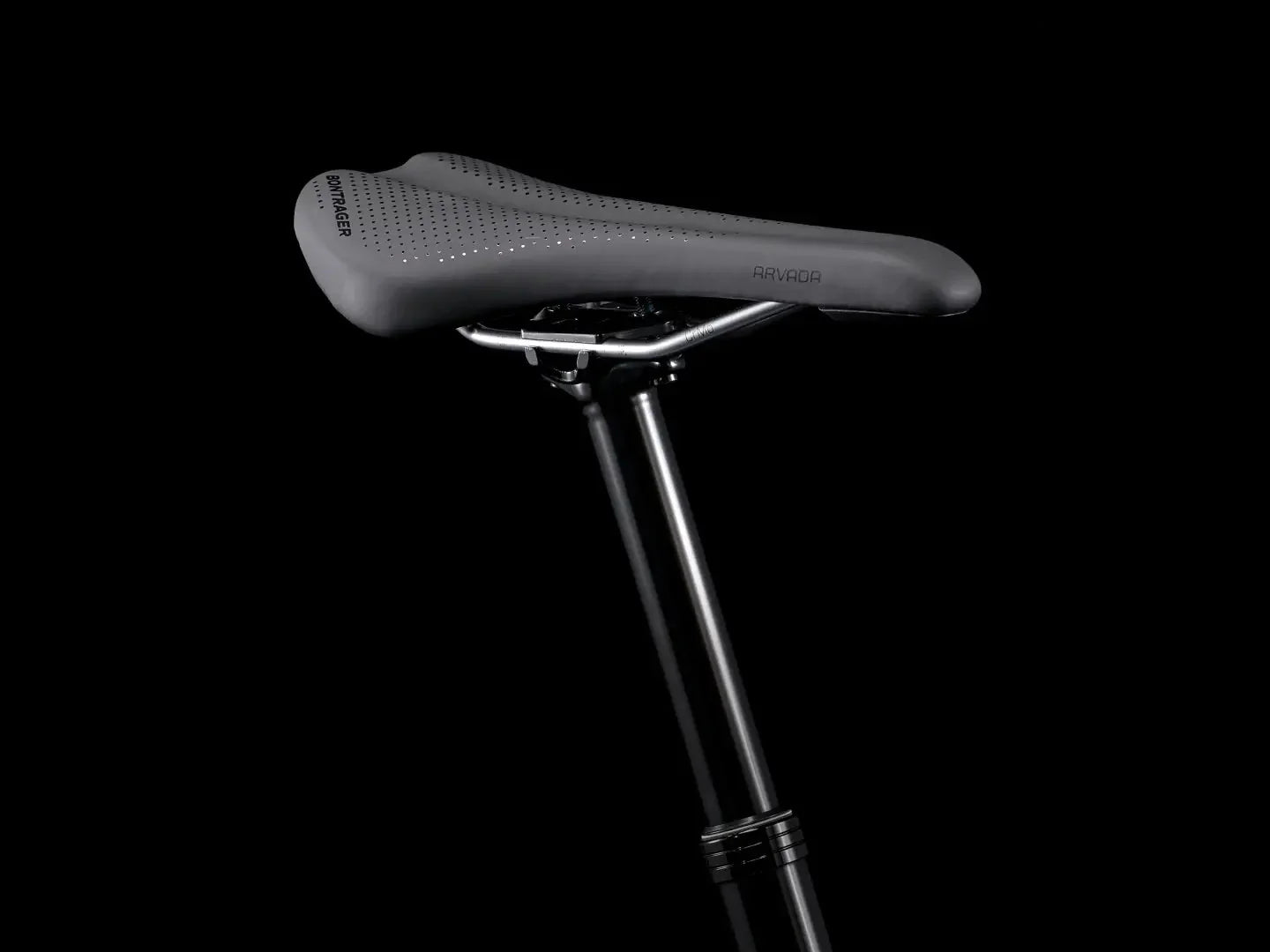

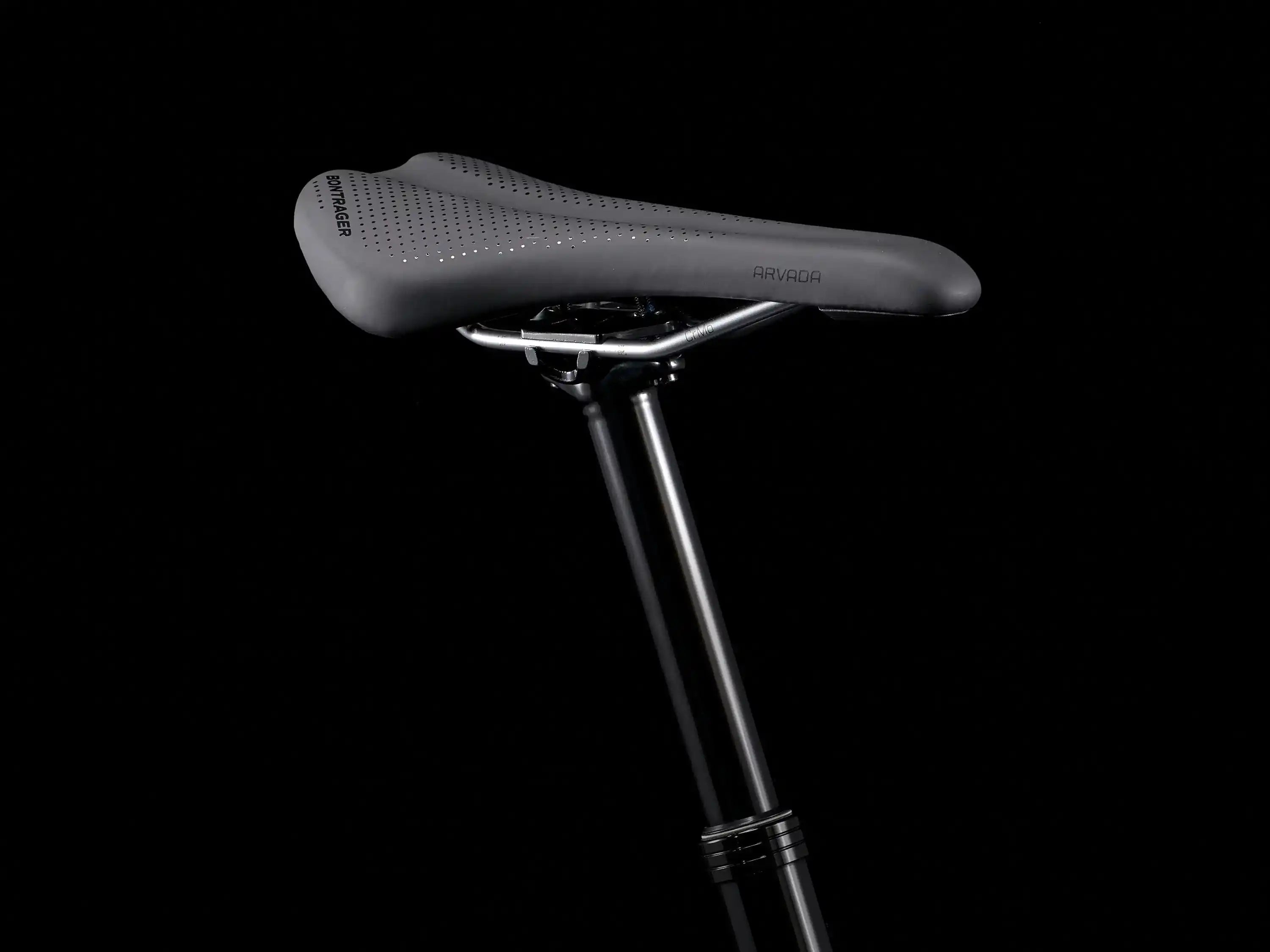

Saddle Bontrager Arvada, hollow chromoly rails, 138 mm width
*Seatpost Size: S
TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
Size: M , ML
TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
Size: L , XL
TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
Handlebar Bontrager Line, alloy, 35 mm, 27.5 mm rise, 820 mm width
Grips Bontrager XR Trail Elite, nylon lock-on
Stem Bontrager Elite, 35 mm, 0-degree, 35 mm length

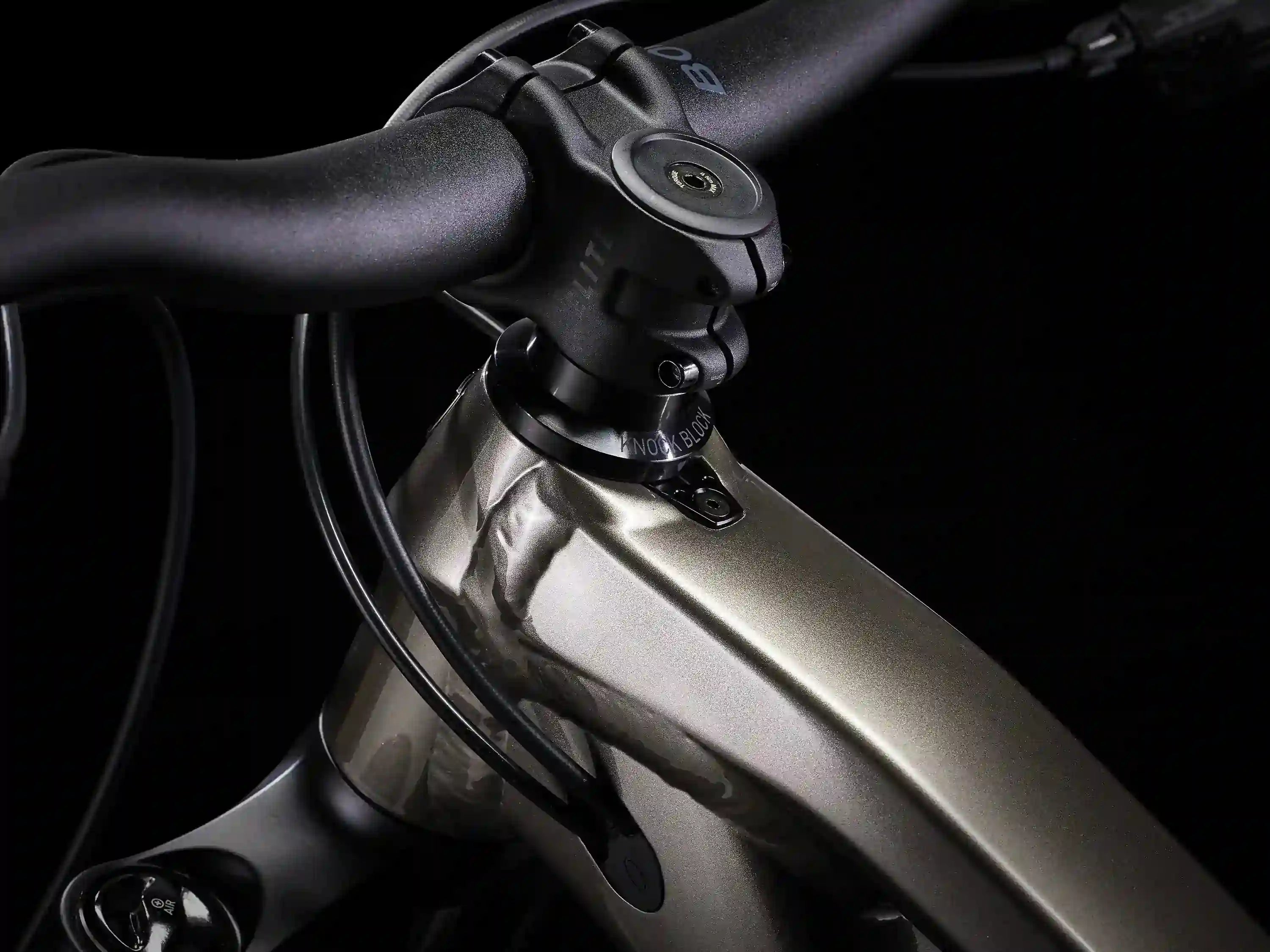

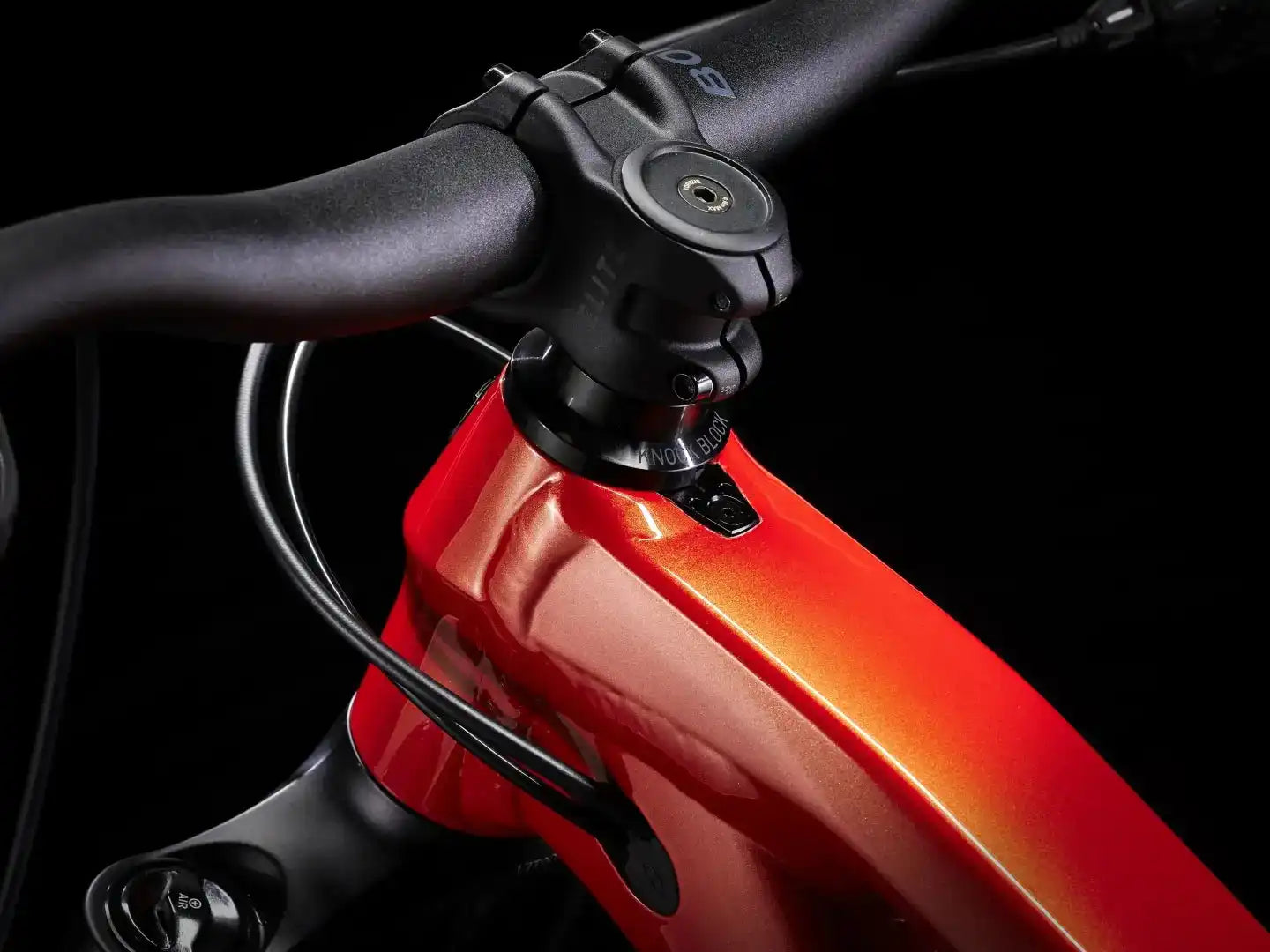

Head set Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom

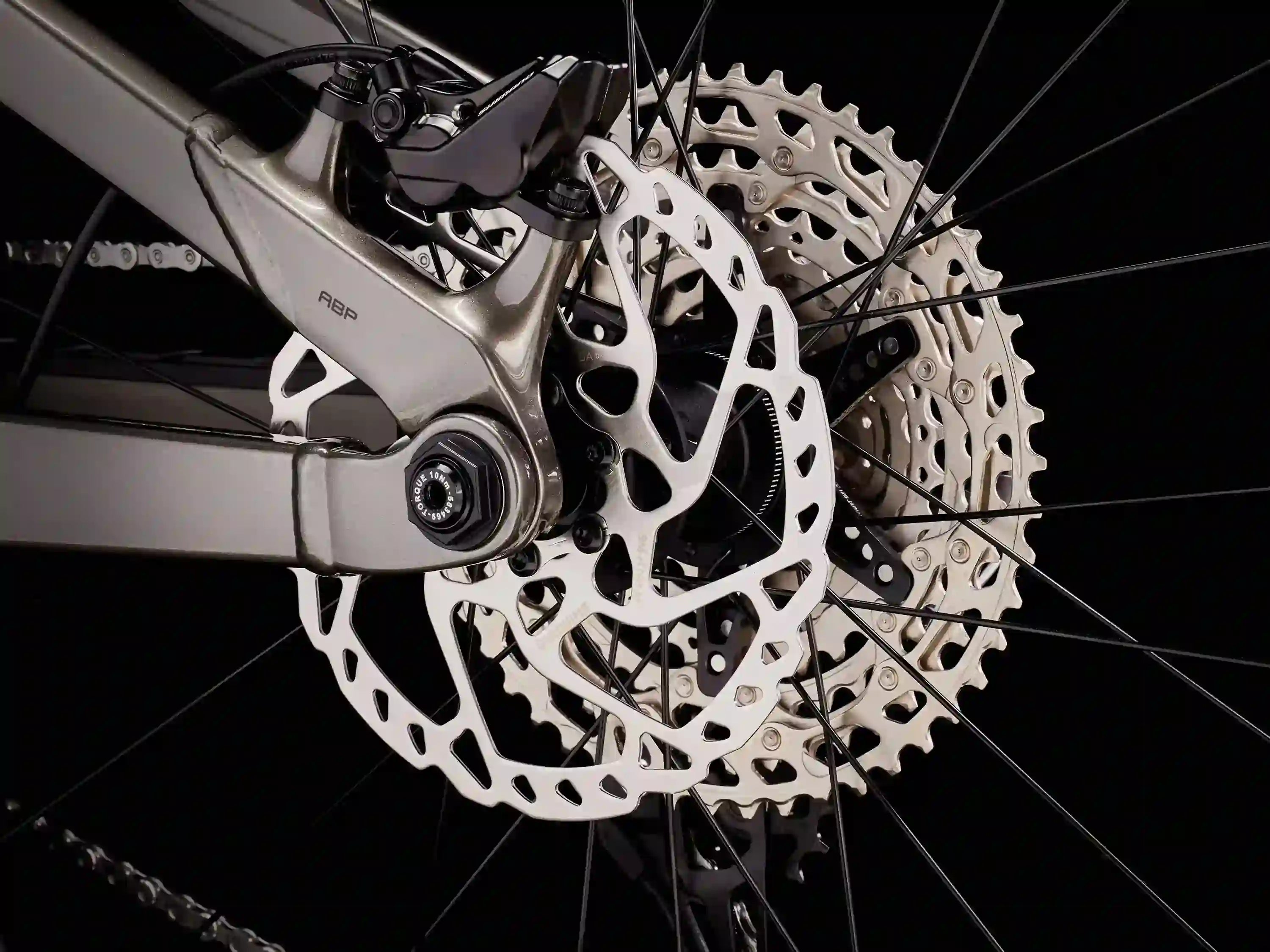

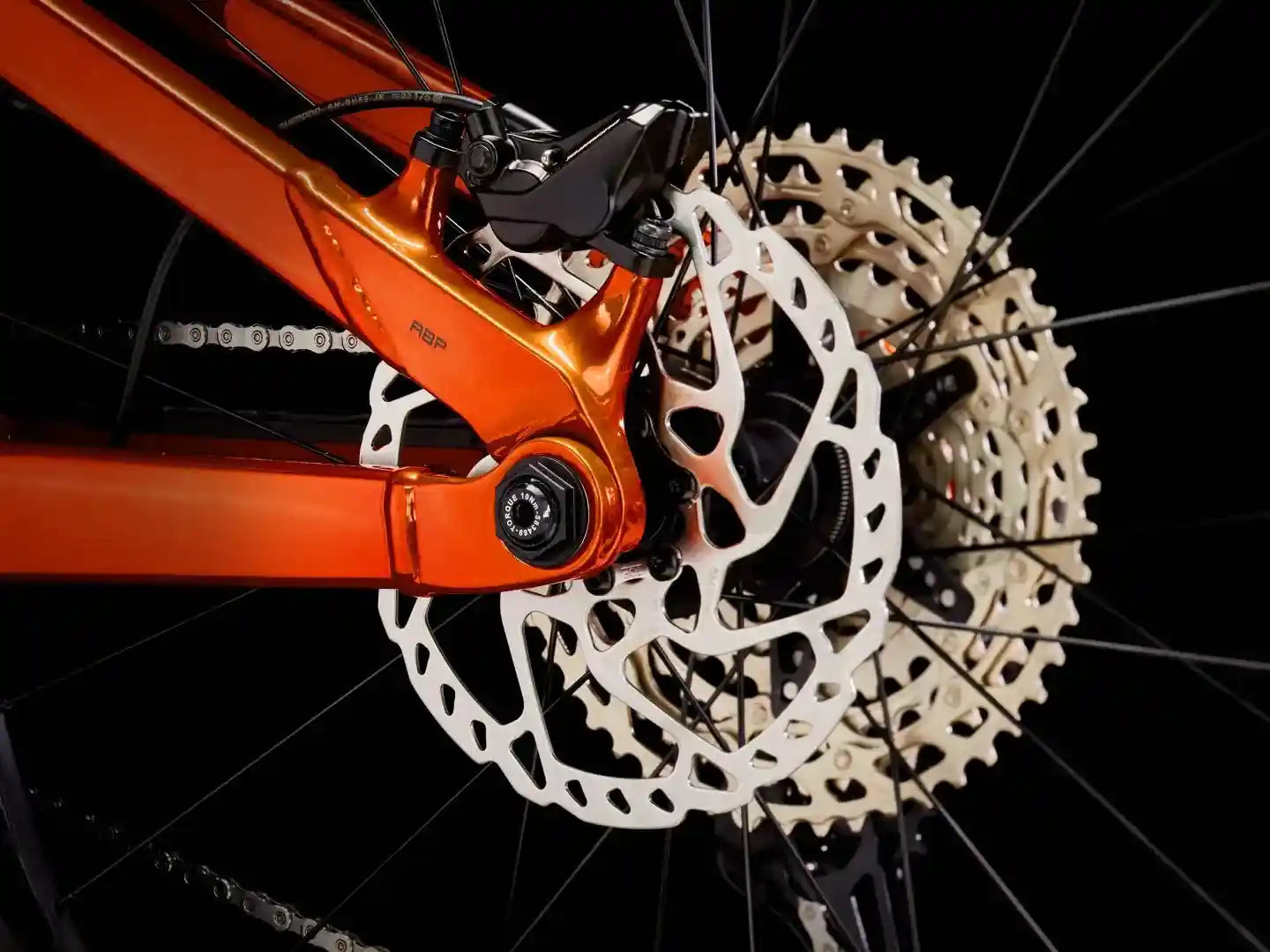

Brake Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
*Brake rotor Size: S , M , ML , L , XL
Shimano RT66, 6-bolt, 180 mm
Size: S , M , ML , L , XL
Shimano RT66, 6-bolt, 203 mm

Accessories

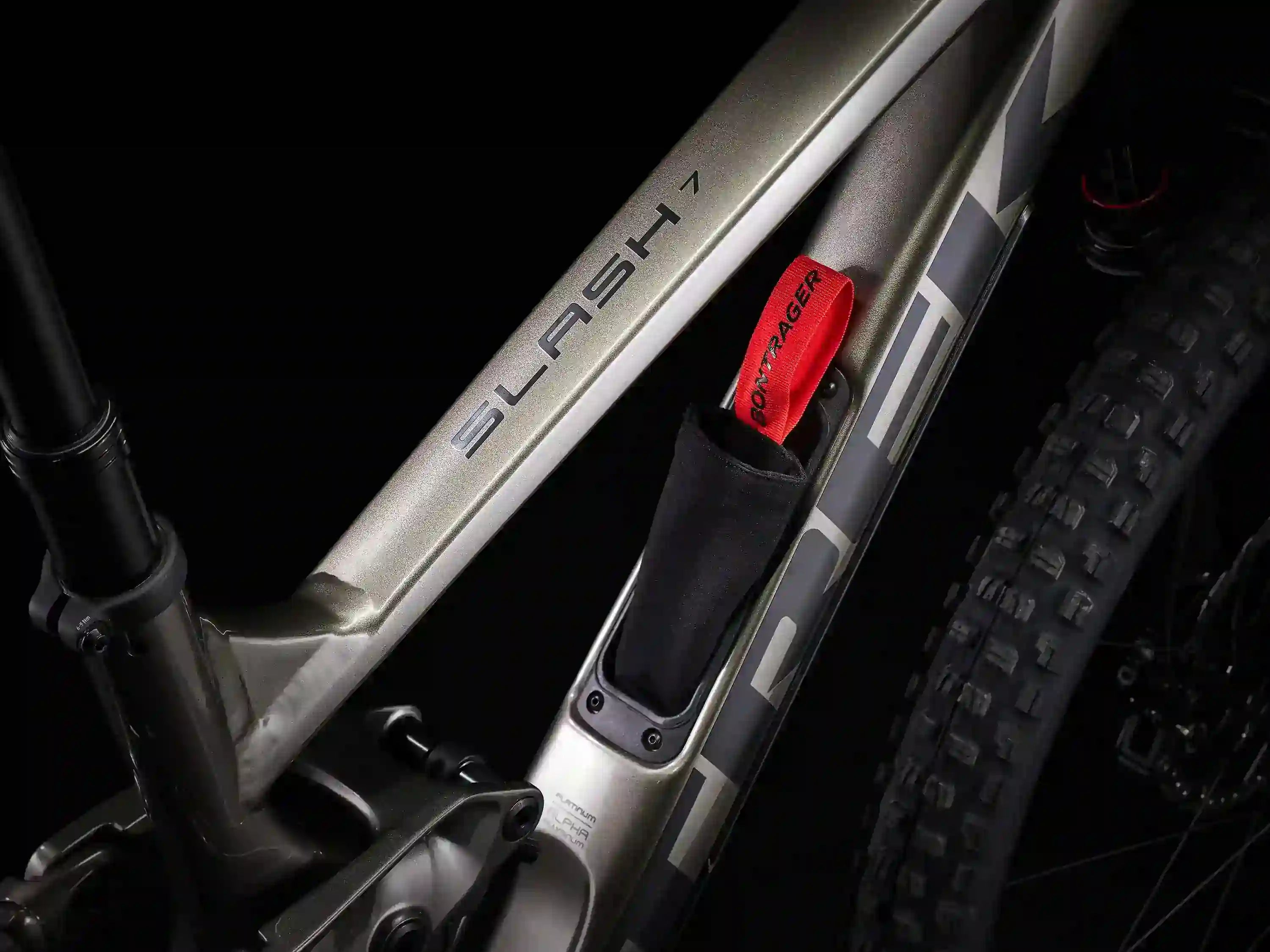

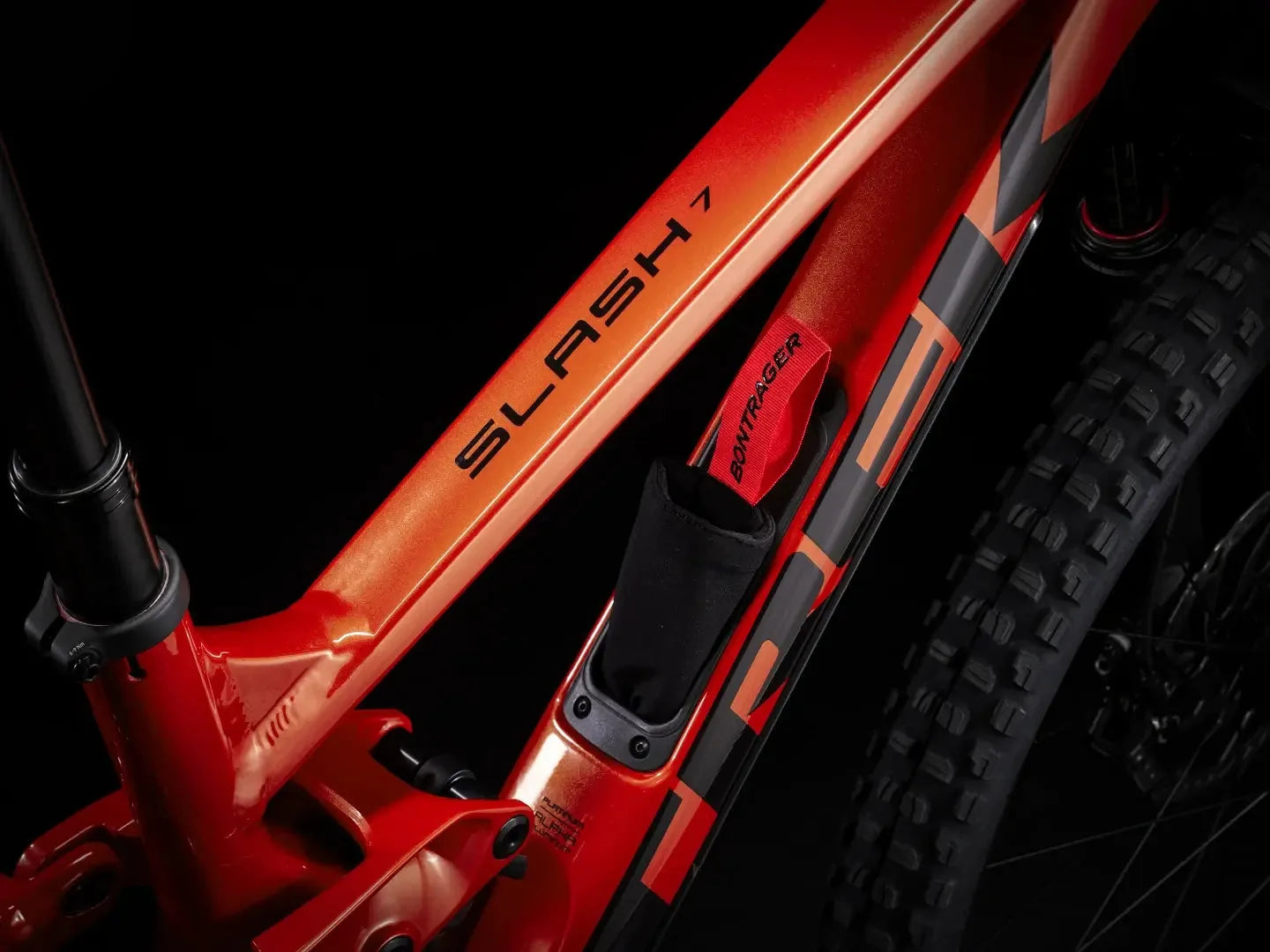

Bag Bontrager BITS Internal Frame Storage Bag

Weight

Weight 15.10 kg / 33.29 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

Size

S

M

M/L

L

XL

Rider Height

155 - 165 cm

5'1" - 5'5"

165 - 176 cm

5'5" - 5'9"

173 - 180 cm

5'8" - 5'11"

177 - 188 cm

5'10" - 6'2"

188 - 195 cm

6'2" - 6'5"

Inseam

74 - 78 cm

29" - 31"

79 - 83 cm

31" - 33"

81 - 86 cm

32" - 34"

84 - 89 cm

33" - 35"

89 - 91 cm

35" - 36"

Sizing table
Frame size number Frame size letter Geometry position Wheel size A — Seat tube B — Seat tube angle Effective seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
15.5 S Low 29" 39.5 66.6° 75.6° 10.0 64.1° 58.5 34.5 2.9 43.7 4.3 13.4 119.7 70.6 42.5 62.1
15.5 S High 29" 39.5 67.1° 76.1° 10.0 64.6° 58.4 35.2 2.2 43.5 4.3 13.0 119.7 71.2 43.1 61.8
17.5 M Low 29" 42.0 66.6° 75.6° 10.0 64.1° 61.0 34.5 2.9 43.7 4.3 13.4 122.2 74.4 45.0 62.2
17.5 M High 29" 42.0 67.1° 76.1° 10.0 64.6° 60.9 35.2 2.2 43.5 4.3 13.0 121.2 75.0 45.6 61.8
18.5 ML Low 29" 43.5 66.6° 75.6° 10.5 64.1° 62.9 34.5 2.9 43.7 4.3 13.4 124.3 74.4 46.9 62.6
18.5 ML High 29" 43.5 67.1° 76.1° 10.5 64.6° 62.8 35.2 2.2 43.5 4.3 13.0 124.2 75.0 47.4 62.2
19.5 L Low 29" 45.0 66.6° 75.6° 11.5 64.1° 64.9 34.5 2.9 43.7 4.3 13.4 126.4 75.4 48.6 63.5
19.5 L High 29" 45.0 67.1° 76.1° 11.5 64.6° 64.7 35.2 2.2 43.5 4.3 13.0 126.3 76.0 49.1 63.1
21.5 XL Low 29" 50.0 66.6° 75.6° 14.0 64.1° 68.4 34.5 2.9 43.7 4.3 13.4 130.5 77.4 51.6 65.8
21.5 XL High 29" 50.0 67.1° 76.1° 14.0 64.6° 68.3 35.2 2.2 43.5 4.3 13.0 130.4 78.0 52.1 65.4
