Specs
Sizing
Geometry
Frameset

*Frame Size: M, L
Alpha Gold Aluminium, smooth welds, rack and mudguard mounts, internal routing, kickstand mount, 135x5 mm QR
Size: M, L
Alpha Gold Aluminium, rack & mudguard mounts, internal routing, kickstand mount, 135x5 mm QR
Fork SR Suntour NEX, coil spring, preload, 50 mm travel, 100x5 mm QR
Fender/rack mounts Rear rack, alloy

Wheels

Hub front Shimano
Hub rear Shimano
Rim Alex Rims DP23, alloy, 36-hole, Presta valve
Tyre Schwalbe Energizer Active Plus, Puncture Guard, Twin Skin (50-622)
Max tyre size 700x50c with or without fenders

Drivetrain

Shifter Shimano Acera M3000, 9 speed
Rear derailleur Shimano Altus M2000, long cage
Crank ProWheel alloy, 170 mm
*Chainring Size: M, L
38T
Size: M, L
ProWheel 38T narrow/wide steel, w/alloy guard
Cassette Shimano HG200, 11-36, 9 speed
*Chain Size: M, L
Shimano 9-speed
Size: M, L
KMC E9S, 9-speed
Pedal VP-857

Components

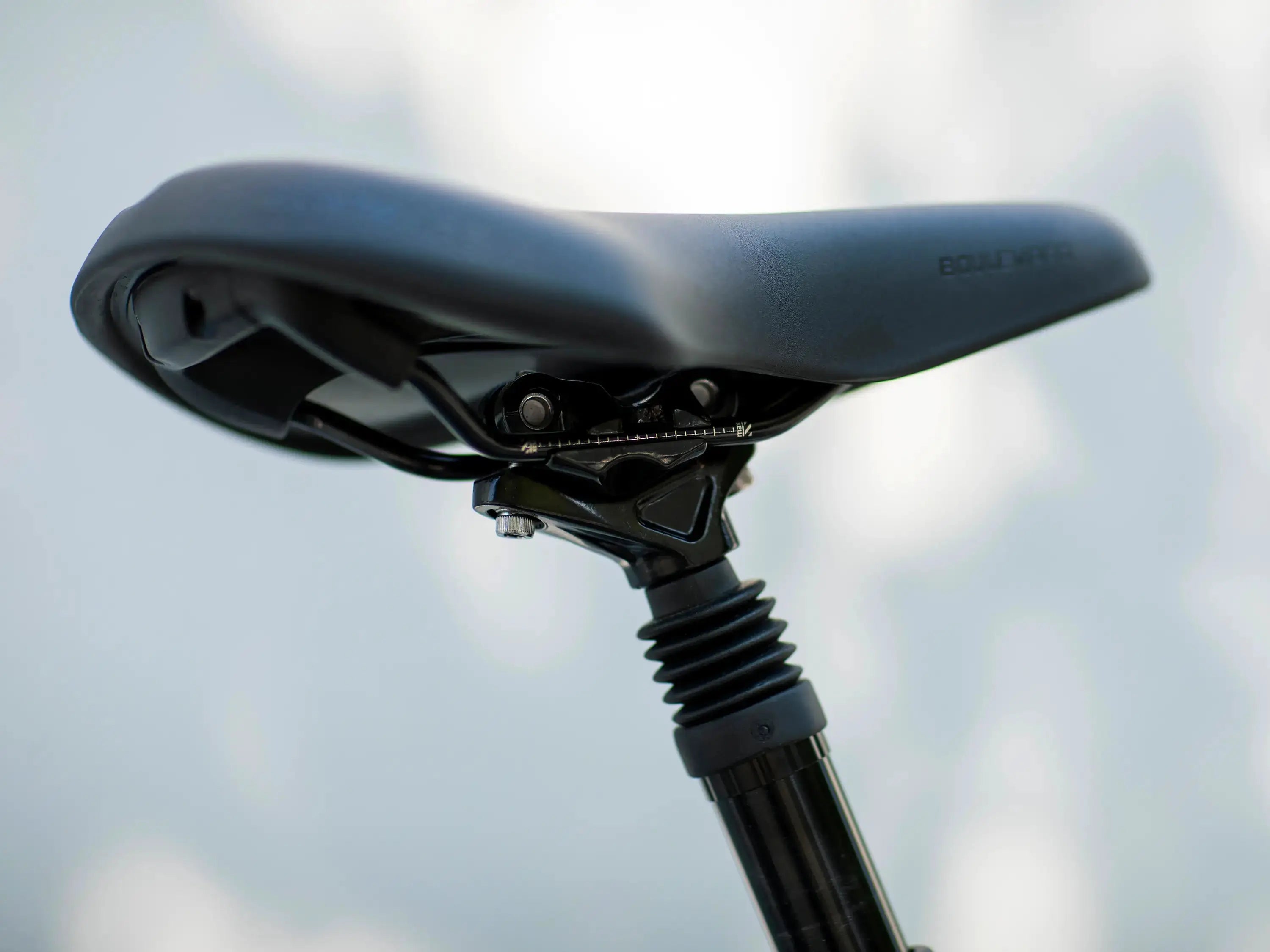

Saddle Bontrager Boulevard/td>
Seatpost >Alloy, suspension, 31.6 mm, 300 mm length
*Handlebar Size: M, L
Bontrager aluminium touring, 31.8 mm clamp, 25 mm rise, 630 mm width
Size: M, L
Bontrager aluminium touring
Grips Bontrager Satellite Plus
*Stem Size: M
Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85 mm length
Size: L
Bontrager alloy quill, 31.8 mm clamp, adjustable rise, Blendr-compatible, 105 mm length
Head set VP sealed cartridge, 1-1/8", threaded

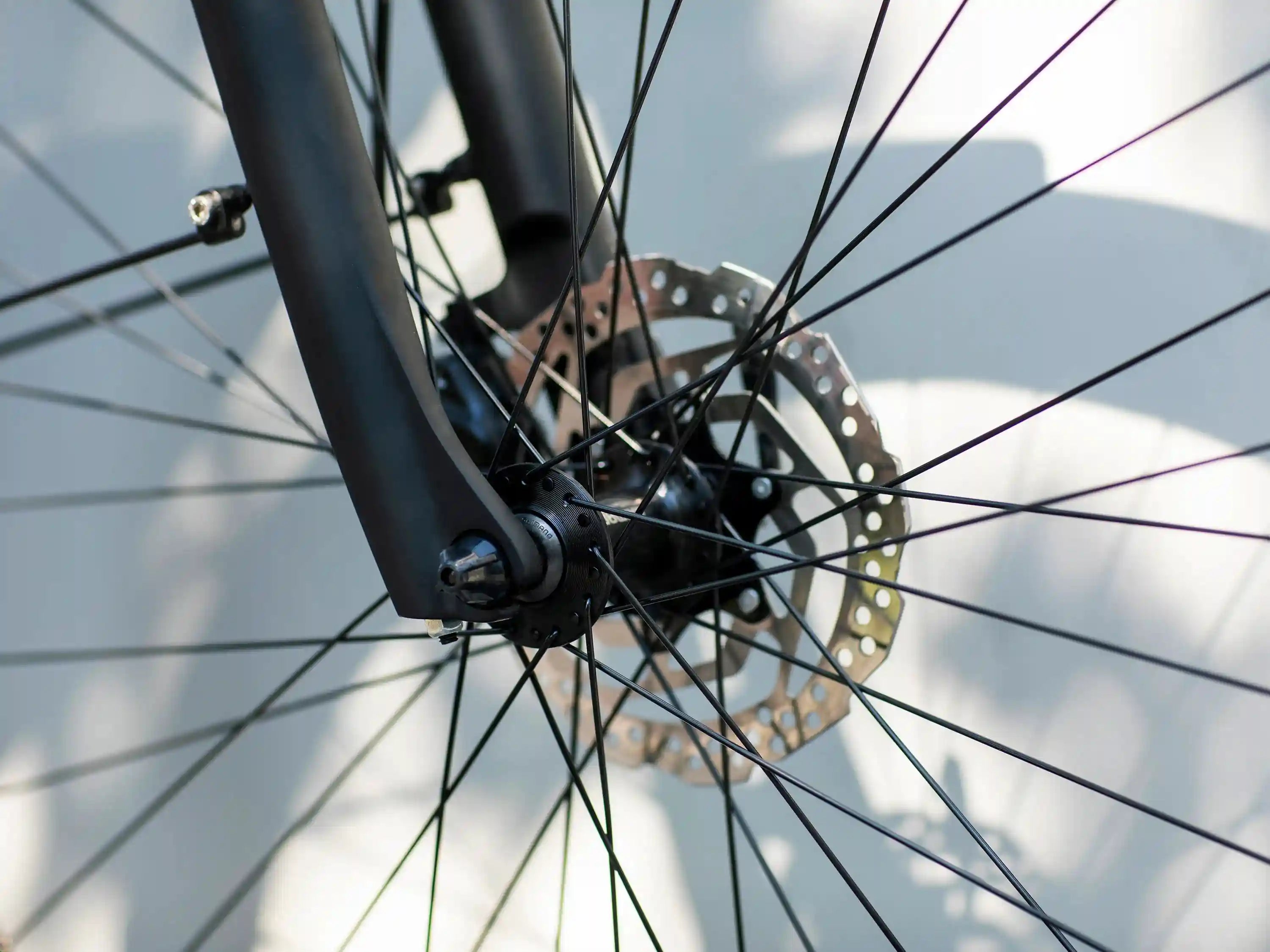

Brake Shimano MT200 hydraulic disc
Brake rotor Shimano RT10, CenterLock, 160 mm

Accessories

Charger Bosch standard 4A, 220–240V

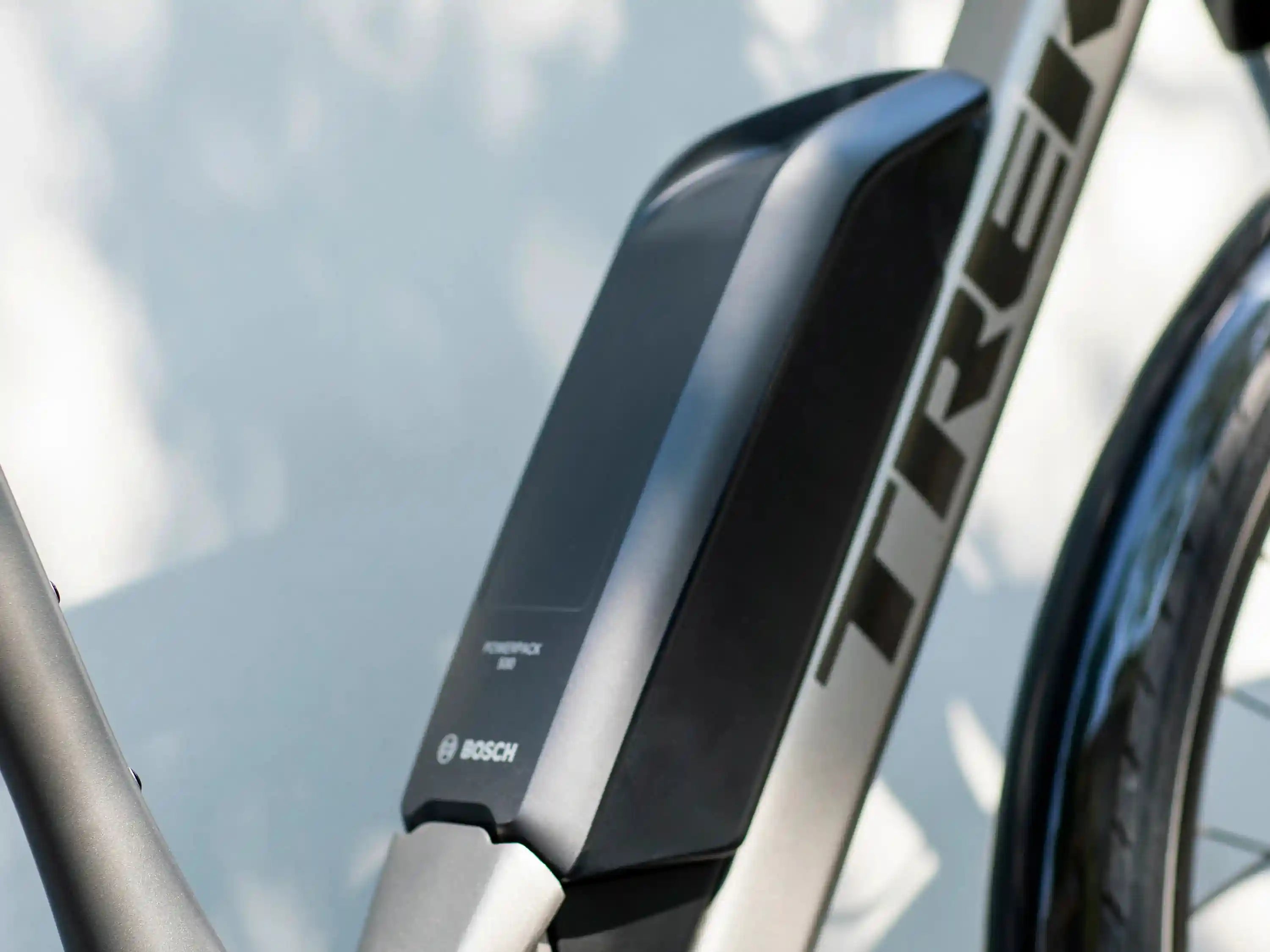

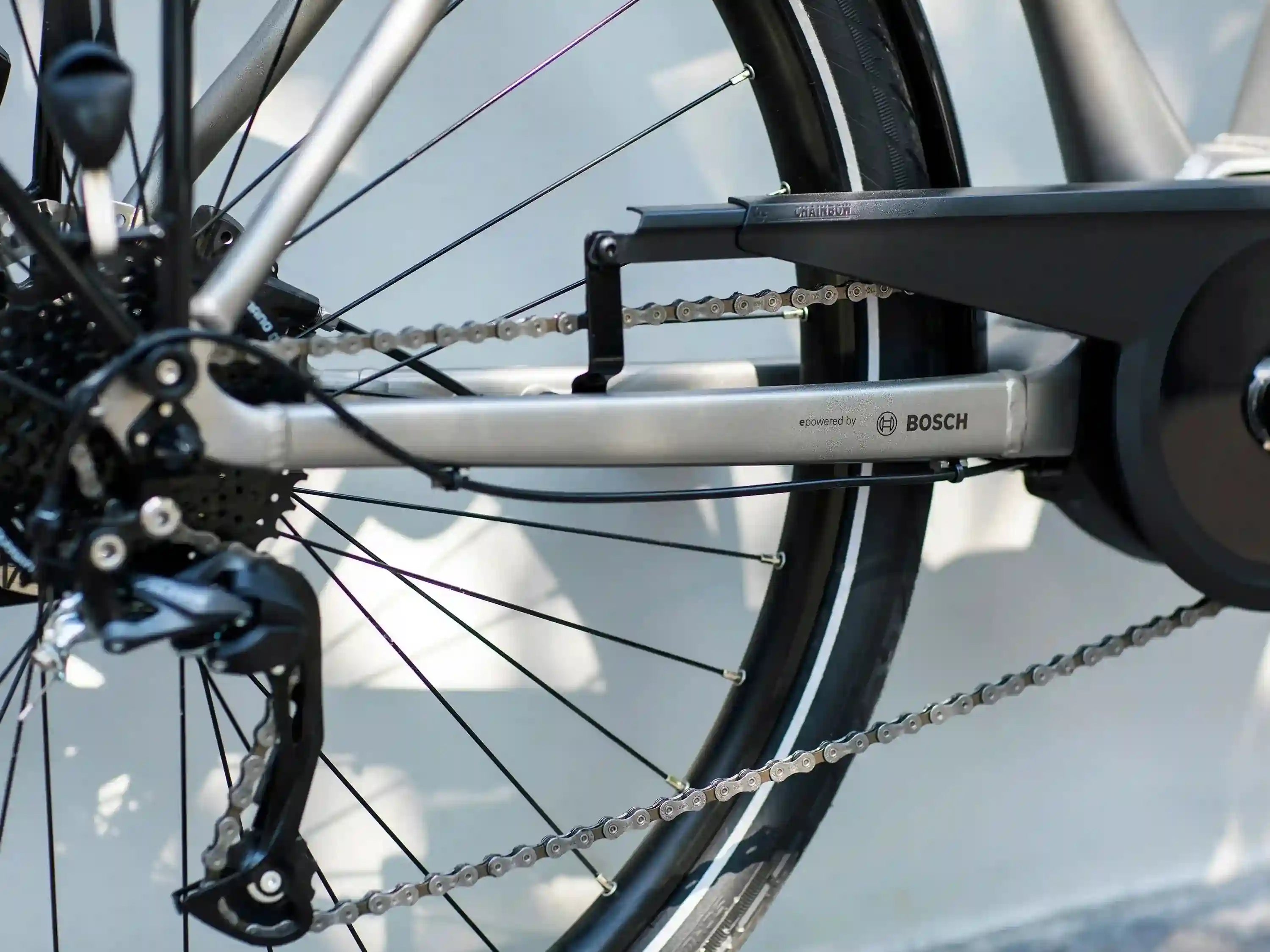

Motor Bosch Performance Line Cruise, 250 watt, 65 Nm, 20 mph (25 km/h in Europe)
*Light Size: M, L

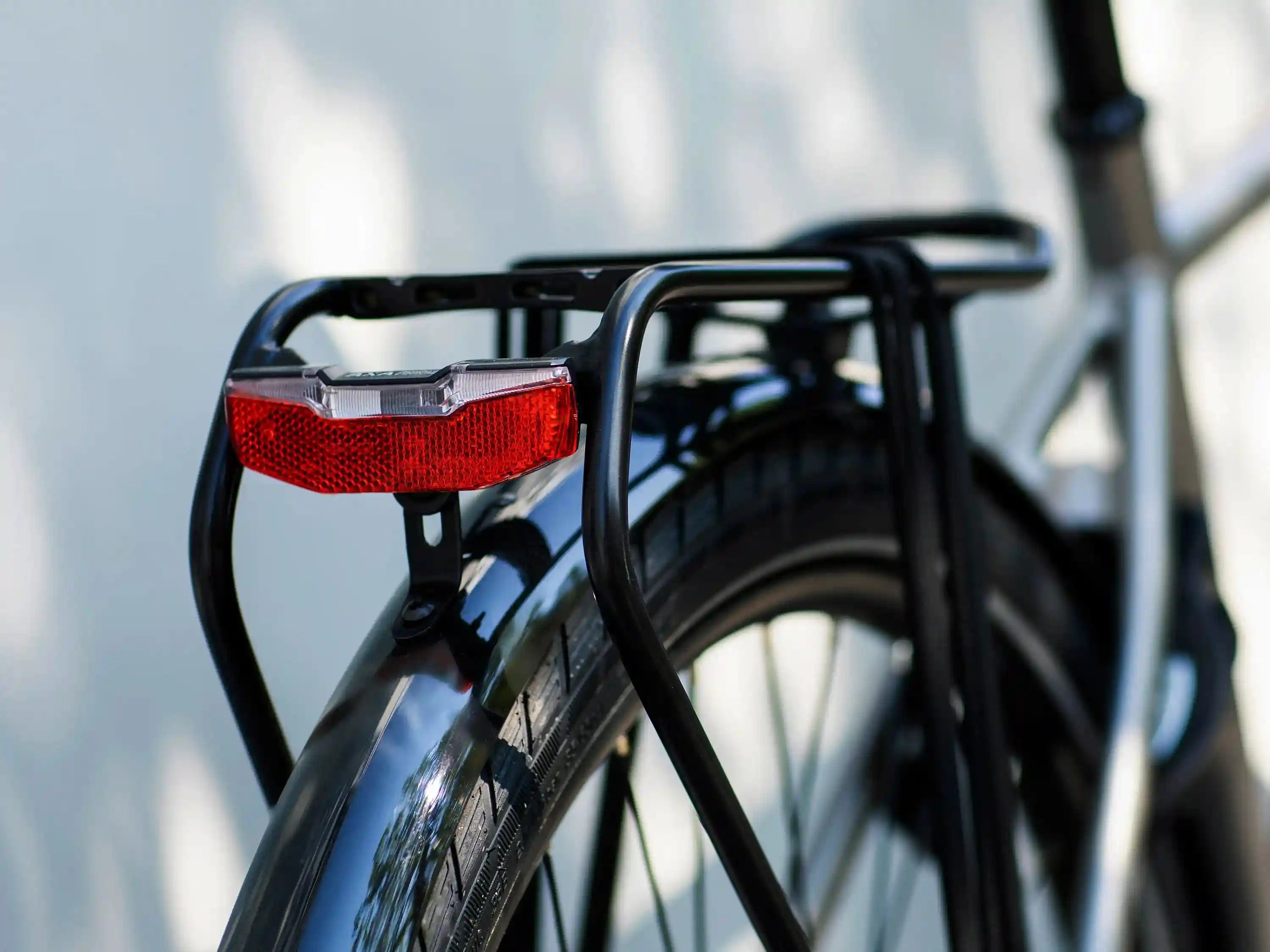

AXA Blueline taillight
Size: M, L

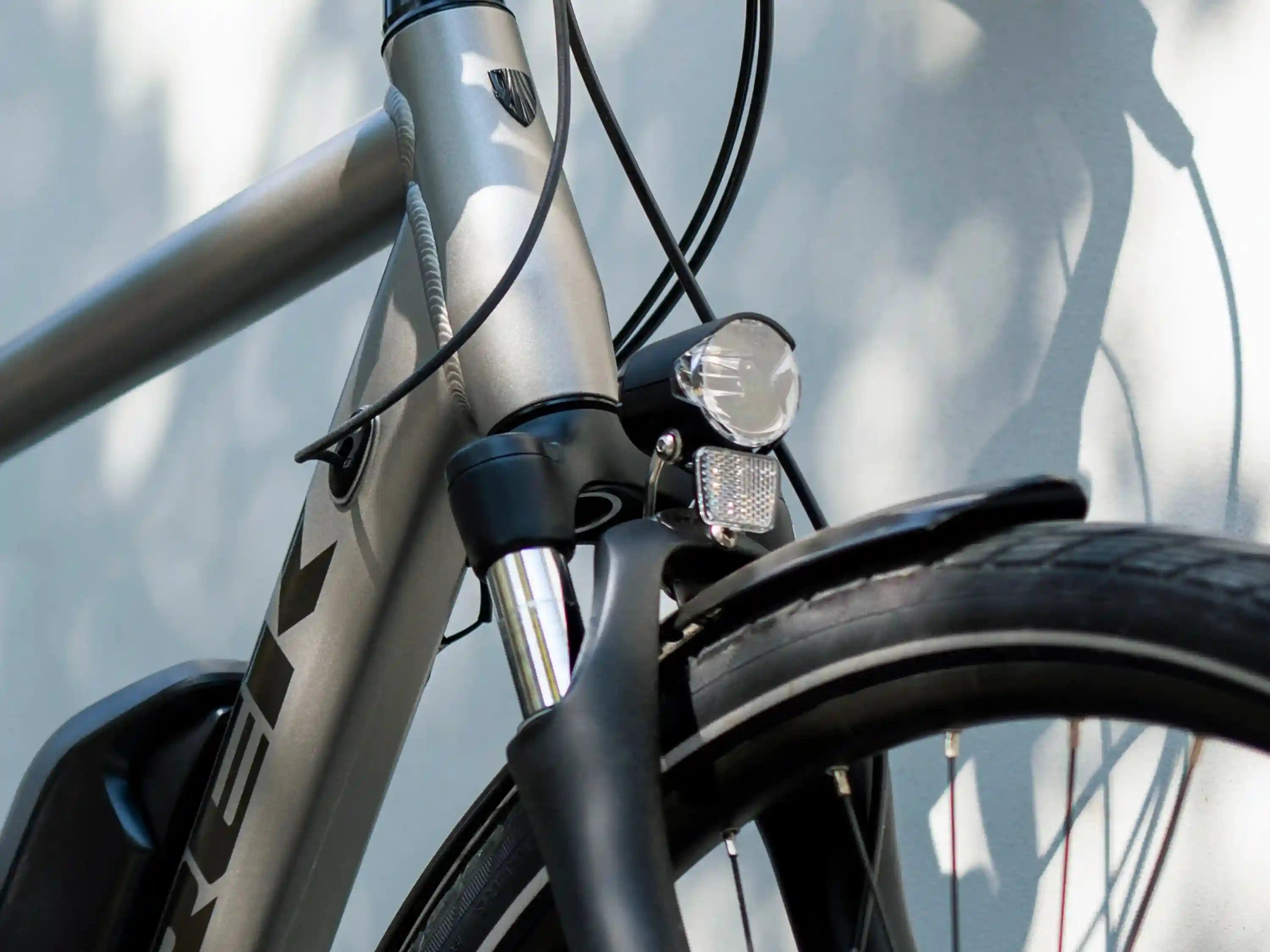

Herrmans H-Black MR4-E, 40 Lux/120 lumen

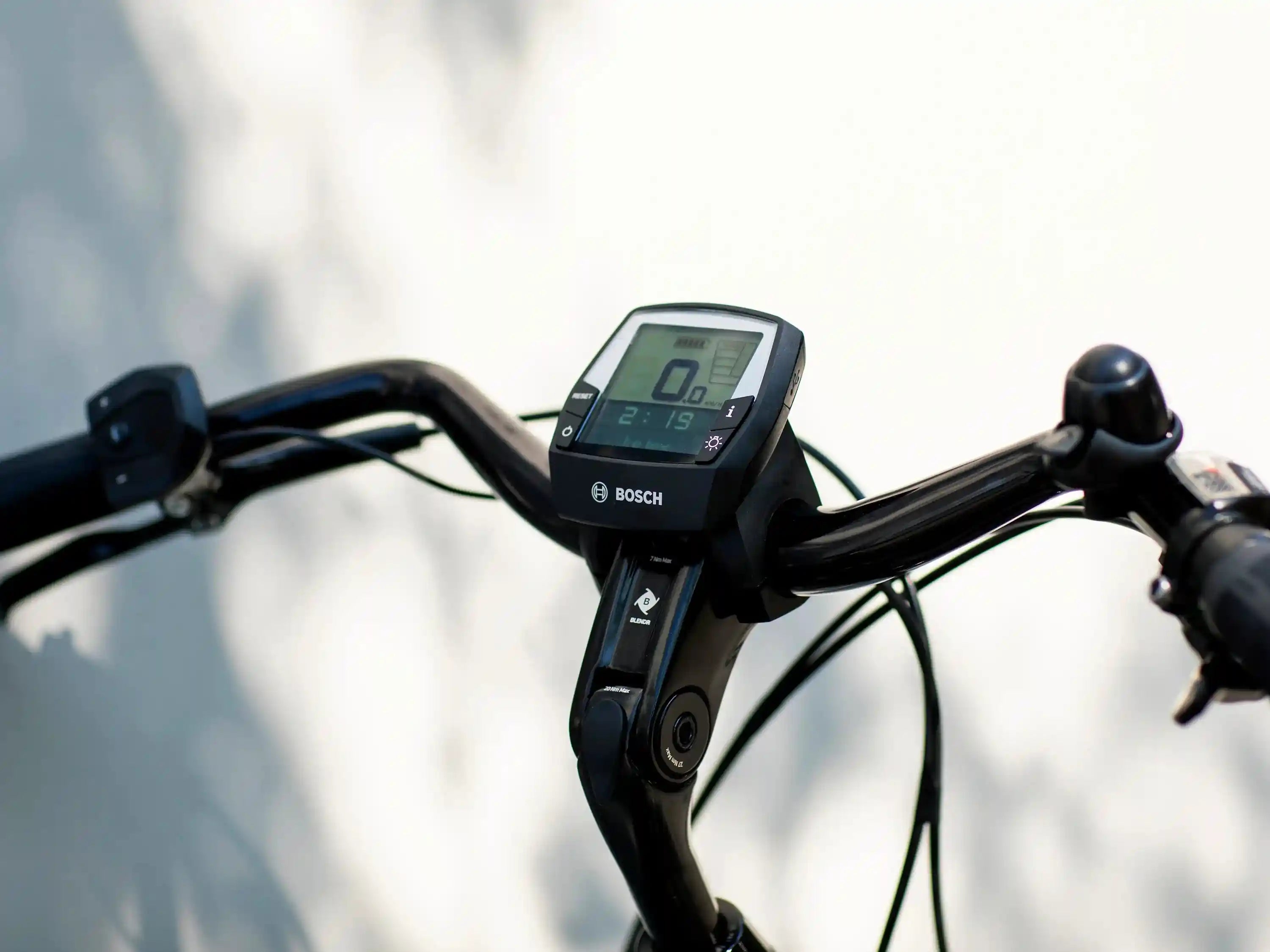

Computer Bosch Intuvia
Kickstand Pletscher Comp Flex 18
*Cargo rack Size: M, L
Alloy rear rack
Size: M
Alloy rear rack, 25 kg max weight
*Mudguard Size: M, L
SKS wide
Size: M, L
SKS plastic
Size: M, L
Eurofender Tempo

Weight

Weight L - 23.60 kg / 52.03 lbs (excluding battery)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Weights are based off pre-production products at time of publication. Weights may vary in final production.

Size

M

L

XL

Rider Height

165 - 175 cm

5'5" - 5'9"

175 - 186 cm

5'9" - 6'1"

186 - 197 cm

6'1" - 6'6"

Inseam

77 - 83 cm

30" - 33"

82 - 88 cm

32" - 35"

87 - 93 cm

34" - 37"

Sizing table
Frame size letter Wheel size A — Seat tube B — Seat tube angle C — Head tube length D — Head angle E — Effective top tube F — Bottom bracket height G — Bottom bracket drop H — Chainstay length I — Offset J — Trail K — Wheelbase L — Standover M — Frame reach N — Frame stack
M 700c 50.0 70.5° 16.0 68.5° 60.1 30.2 6.2 50.2 4.5 9.5 114.8 79.1 38.3 61.6
L 700c 55.0 70.0° 16.0 68.5° 60.7 30.2 6.2 50.2 4.5 9.5 114.8 81.9 38.3 61.6
